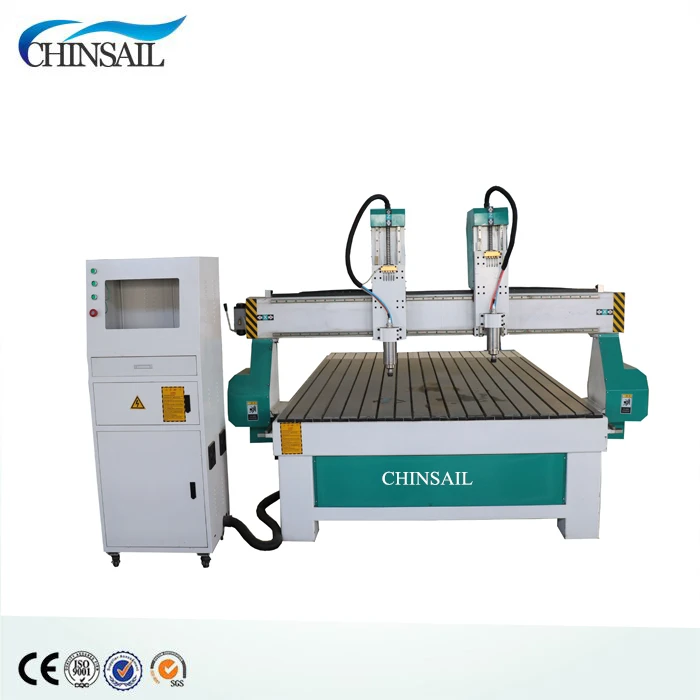

Cost effective router cnc 3d 1325 1530 china for funiture/stair/wood | Инструменты

For more information,Contact Emily email/Skype:info6(@)chinsailcnc.com

Whatsapp:+86 186 6368 0159

Suitable for diversified and complex processing, widely used for carving, drilling, cutting, side milling, guiding edge, and mainly used for cutting and wood routing.
1.Air cooling spindle,high precision,long life time,steady working,easy to start up.

2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time.

3.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc.

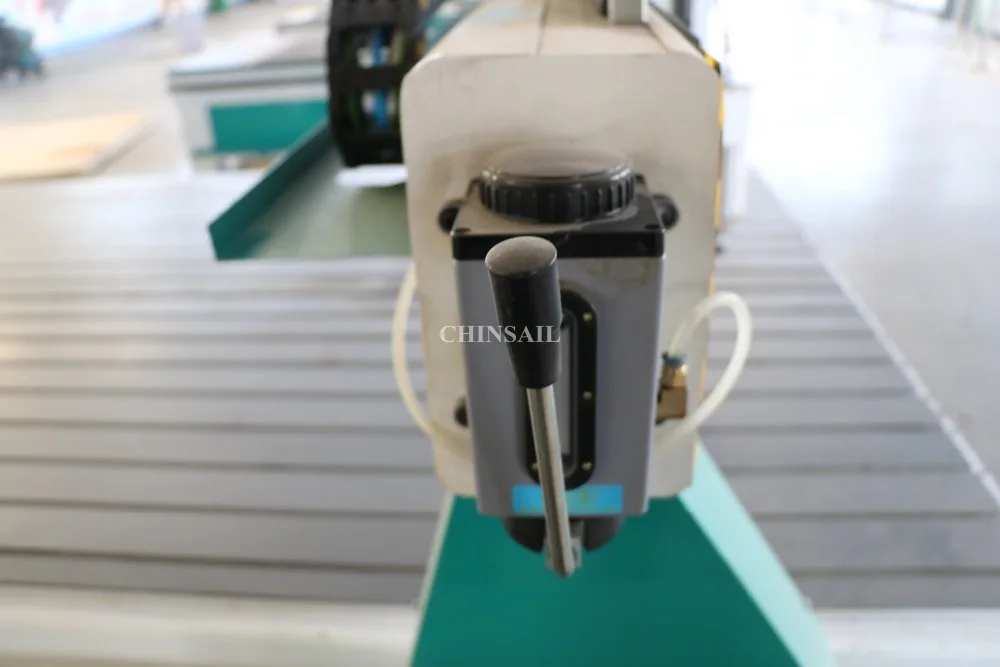

4.auto oilling system ,easy to operate by pressing one key.

5.seperated control system makes operation easily.

6.Adopt high speed stepper motor and drivers,and two motors for Y axis.

NO.

Discription

Parameter

1

Model

CXM1325-2

2

X,Y,Z Working Area

1500x3000x200mm

3

Working Size

1300*2500mm

4

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

5

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

6

Lathe Structure

Welded Strucutre

7

X, Y Structure

Gear Wheel Transmission

8

Z Structure

Ball Screw

9

Max.Consume power

6.5Kw

10

Max.Speed

0-32000mm/min

11

Max.Working Speed

0-20000mm/min

12

Spindle Power Motor

3.0KW

13

Spindle Speed

0-24000RPM

14

Working Motor

Stepper

15

Working Voltage

220V/380V

16

Command

G Code, *uoo, *mmg, *plt

17

Operating System

Mach3/DSP/NC Studio control system optional

18

Interface

USB

19

Flash Memory

128M

20

Collet

ER20

21

X,Y Working Delicacy

<0.01mm

22

Software

Ucancam /Artcam software

23

Running Circumstance

Temperature: 0°C~45°C
Relative humidity: 30%~75%

>>Applicable Industries

* It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on.

*It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.

SAMPLE DISPLAY

1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas.

>>After sales services
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.

Packaging details:plywood case

For the outside,we adopt plywood case.In the middle, machine covered by foam, to protect the machine from shaking.For the inside layer, the machine is covered by waterproof plastic bag.

1.Q: What’s the package?
A: We have standard plywood case.
2.Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

3.Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

4.Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us and do not try fix the machine by yourself or someone else. We will response within 18 hours as quick as we can to solve it for you.

Email/Skype:info6(@)chinsailcnc.com Whatsapp:+86 186 6368 0159
