Machine Features

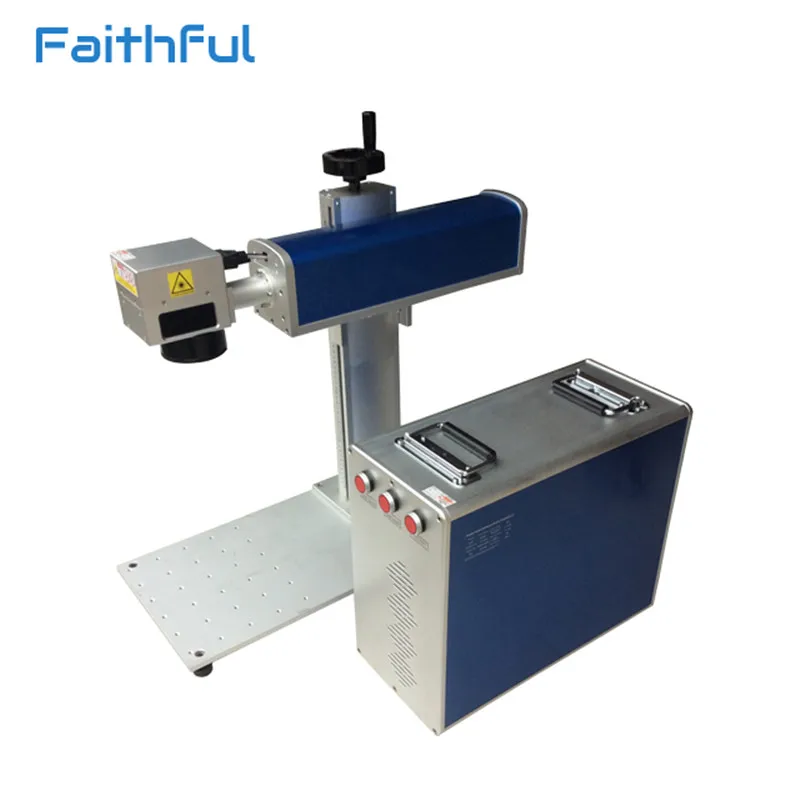

Product Type	Faithful laser marking machine
Marking Material	Both metals and some non-metals Metals: carbonsteel/mild steel, stainless steel, aluminum, copper,  magnesium,zinc;rare metal andalloy steel(gold, silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface,  surface oxygen breaking of aluminum and magnesium alloy). Non-metals: plastics, rubber, resin, carton box, etc.
Applied Industries	electronic components, IC, electrical appliances, mobile phones,  plastic buttons, color paper, food packaging,clocks and watches,  molds, gaskets and seals,bearing, auto parts,hardware, tools, building materials, PVC tubes, etc.
Marking Content	logo, character, serial number, bar code, data matrix
Main Parts	Fiber Laser Source, Scan Head, F-theta Lens, Marking Software,  Computer
Core Parts & Brand & Lifetime	Core Parts: Fiber Laser Source Brand: IPG, SPI, Raycus, Max, JPT (optional) Lifetime: 100, 000 hours
Cooling Mode	Air Cooling
Marking Software	English Version Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc. Easy Operation With Powerful Function
Certification	CE, FDA

​

Specifications:

Output Power:	20W
Laser Wavelength:	1064nm
Pulse Frequency:	<=200KHz
Marking Window:	110mm * 110 mm (4.33" * 4.33")
Minimal Marking Character Size:	0.15mm
Maximal Marking Depth:	0.01~0.50mm, depends on marking material
Minimal Marking Width:	0.01mm
Maximal Marking Speed:	12,000mm/s
Beam Quality	M2<1.5
Positioning Accuracy:	+/-0.02mm
Expected Laser MTBF:	100,000 hours
Cooling:	Air Cooled
Working Temperature:	0°C~40°C (32°F~104°F)
Power Consumption:	<=500W

  Shipping&packing:

Country / region	Delivery Service	Shipping Time
Rassia(not tax way)
	by train/car	7-25days
USA/UK
	DHL	3-5days
Australia,Mexico,Canada and other Asian countries
	DHL	5-7days
France,Italy,Spain,Portugal and other European countries
	DHL	3-7days
	DPD	3-7days



Aftersale service:

We will offer our customers remote trouble shooting services and faulty hardware replacement, repair service. Customers may create a trouble ticket when system has a problem, our service team will contact customers by mail or instant chat messengers, service engineers will help to identify the problem by remote control the laser and video call, engineers will help to sort out software problems online, as for small hardware faulty, we will send replacement parts to customers premises (not necessarily send from China, we can buy from local online shop and do a fast shipping), in this case, a local gentleman (not necessarily an engineer) is required to get hardware replaced with our remote help, for the worst case, the laser source faulty, then we have to send it back to China for repair, and we will bear the freight, please no worry about the worst case, the laser source industry in China is matured, laser sources are assembled with integrated modules and they are very stable, that’s why we are confident to give such a long warranty period   Contact: 0086-18602388139 (Whatsapp/Wechat)
