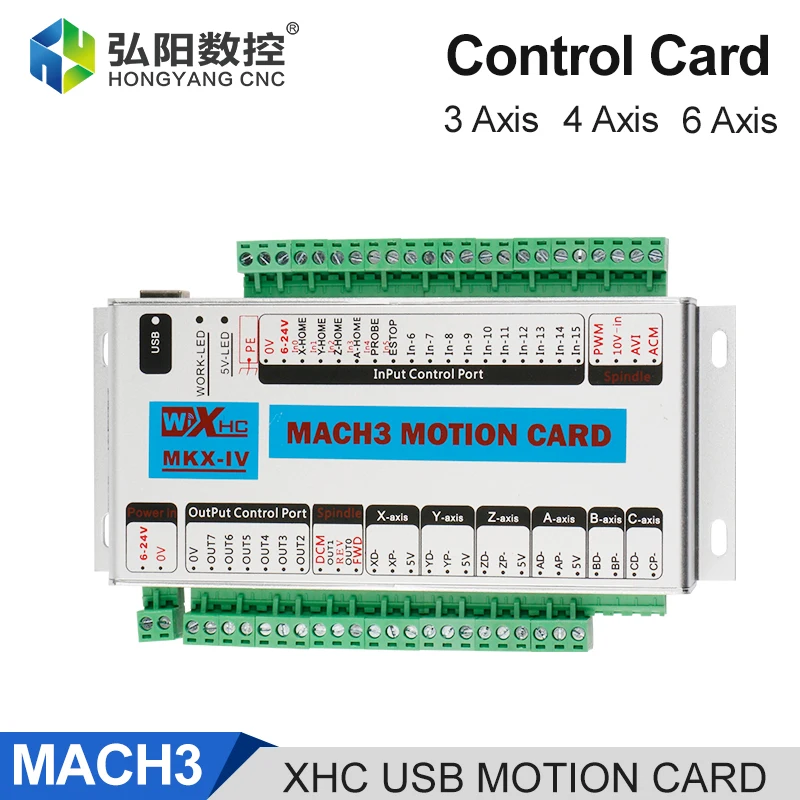

XHC Mach3 USB Breakout Board 3 4 6-Axis Motion Control Card Frequency 2000KHZ Controller For CNC Router/Cutting Machine on - Управляющая плата XHC Mach3 USB Breakout Board 3 4 6-Axis с частотой 2000 кГц для управления станком с ЧПУ / режущей машиной.

XHC Mach3 USB Breakout Board 3 4 6-Axis Motion Control Card Frequency 2000KHZ Controller For CNC Router/Cutting Machine on - Управляющая плата с частотой 2000 кГц для управления станком ЧПУ / режущей машиной.

USB interface supports 1.5m USB cable:

USB interface, standard 1.5 meter USB cable (3 meters optional).With status indicator light, all kinds of status can be clearly seen in operation. Support 6-axis rotation, including 6-axis coupling.(The number of supporting shafts varies according to the model.)· Support breakpoint continuous rotation, spindle speed feedback and differential signal output

1. Standard usb device, usb hot plug can be used in all windows.

2. Monitor the card status.

3. Support 6-axis simultaneous movement.

4. The stepping pulse frequency is up to 2000khz, supporting servo and stepping motor drive.

5. USB status indication with LED

6. All io isolation, stable anti-noise performance

7. PWM and step/pulse spindle control

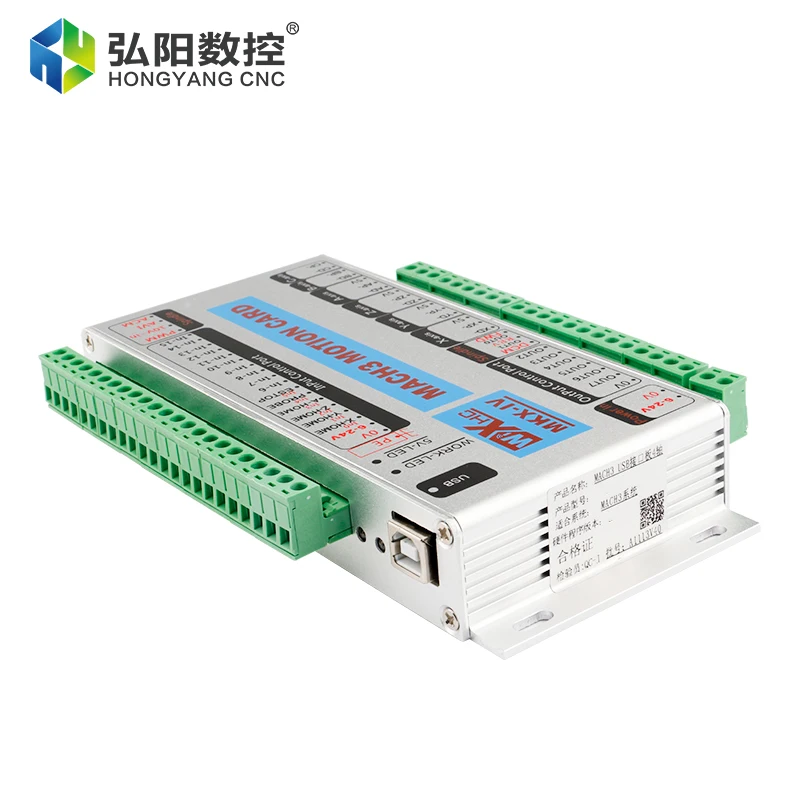

8. Aluminum shell, shielding interference. Speed index function.

9. Power-off continue function

1. High-speed differential pulse output up to 2000KHZ;

2. Powerful functions-up to 6-axis motion control, 16 straight tool magazines, and four-process functions can be supported;

3. Many IO ports-support 16 input ports, 8 output ports;

4. Strong compatibility-support all brands of stepper/servo drives/inverters;

5. Diversified communication interfaces-provide three types of USB interface, Ethernet interface and PCIE interface for users to choose;

6. High stability-all adopt optocoupler isolation anti-interference design, power supply anti-plugging, power supply isolation, power supply interference filtering, PESD anti-static protection.

Brand: WiXHC/Core Synthesis

Warranty period: 1 year

Interface: USB interface

Input IO port: 16

Output IO port: 8

Pulse output speed: 2000KHZ

Support several axis linkage: 3 axis 4 axis 6 axis linkage

Software language: Chinese/English

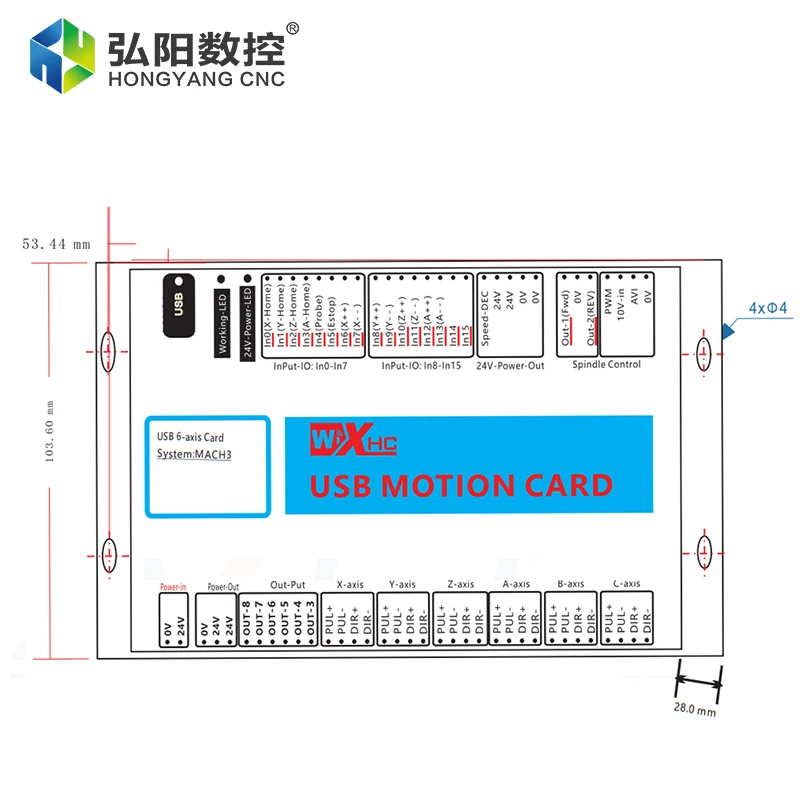

Electrical characteristics

1. Shaft output control

Drive current: isolated open collector output; 5V, 20mA

Drive mode: pulse + direction output

Output frequency: 200KHZ

Axes: MK3: 3 axes; MK4: 4 axes;

MK6: 6 axes

Isolation voltage: 3.5KV

2. Spindle inverter output

Analog voltage output: 0——10V

PWM output: 5V, 2KHZ, duty cycle; 0-100%

Pulse + direction output: 5V, 15HZ to 400HZ

3. Spindle speed input

Input: isolated input, 5V pulse signal

Isolation voltage: 3.5KV

4.8 IO output

Drive current: isolation: 50mA, 25V

Isolation voltage: 3.5KV

5.16 IO input Input

Current: Isolated input, 5 mA, maximum Voltage 25V

Isolation voltage: 3.5KV

6.USB interface

Compliant with USB2.0 standard

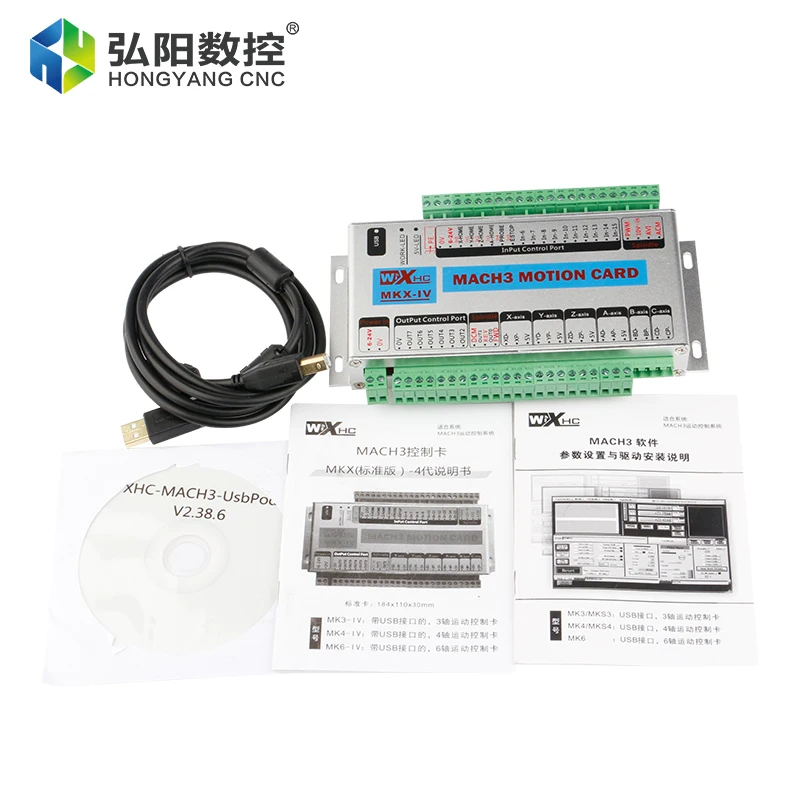

MKX series control card: 1

Control card USB connection line: 1

Driver CD: 1

MACH3-USB control card common problem solution book: 1

MACH3 software parameter setting and driver installation manual: 1

MKX (standard version)-4 generation manual: 1

Packing box size: 275*144*42mm

Weight: 0.7KG

Strong anti-interference · Fast and stable speed

Adopt various anti-jamming isolation design, strong anti-jamming.The maximum pulse is 2000KHz and the working state is stable. The metal shell shields the external interference signal and is more reliable

Support spindle speed feedback

USB plug and play support differential signal output.
