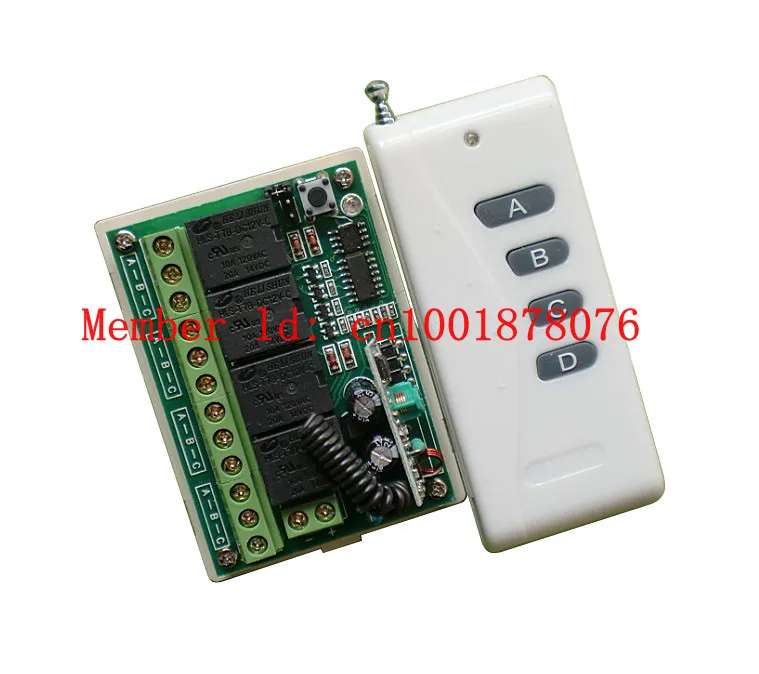

Free postage DC12V 4CH 4 channel 10A learning wireless remote control switch with 1000 m RF transmitter lamps window controller |

Free postage DC12V 4CH 4 channel 10A learning wireless remote control switch with 1000 m RF transmitter lamps window controller |

Application :

Relay control power off, the wireless remote control to achieve the operation of electrical appliances. For example: control motor reversing the top and bottom of the door stop (garage door shutter doors electric remote control), the remote control of household appliances (lights on and off, etc.), the field of security (electromagnetic locks, access control systems, surveillance equipment, security alarm )

Products:

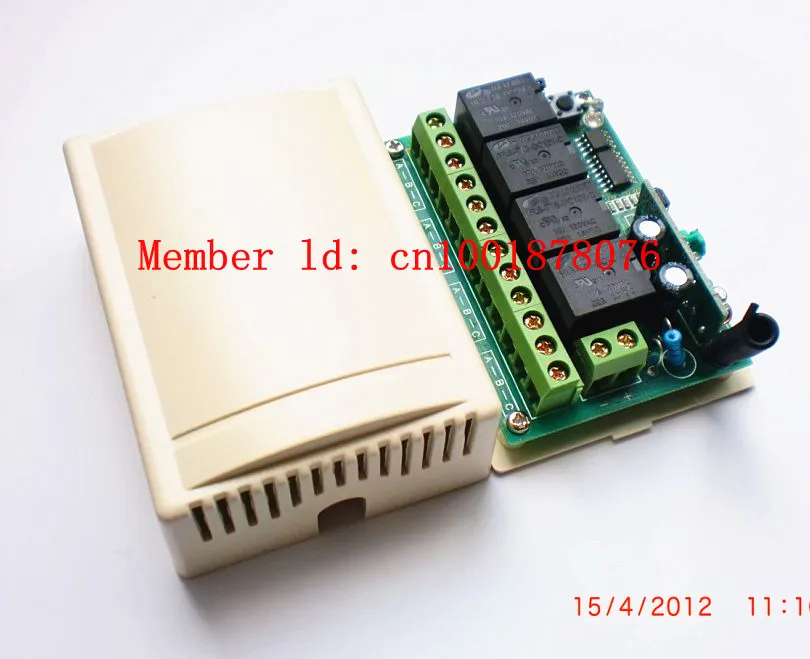

Receive plates parameter:

Operating voltage: 12V

Operating frequency: 315MHz/433 MHz (optional)

Maximum load: 10A

Size: 68mm * 48mm * 18mm

Work: Self-locking T4, jog M4, interlock L4 (jump cap conversion work yourself)

Supporting remote control: 500 m 2 button remote control with battery


Status Description:

Self-locking T4: A open, and then press the A off, the rest of the keys and so on.

The jog M4: Press A to open, release the A off the rest of the keys and so on.

Interlock L4: A Open A Off B, B to open. A B can only remain a key to open.

Distance open without interference theoretical distance, the practical application of the use of environmental disturbances decrease, estimated in accordance with the label 10% -30%, Thank you for your cooperation.

 Remote control parameters:

Operating voltage: 12V (wear 12V23A battery a)

Frequency: 315MHZ/433MHZ

Transmission Distance: 100 meters (open) (due to different use of the environment and receive the first sensitivity, the actual distance is marked 10% -30%)

Coding Type: Fixed code welding code pairing learning code 1527

Dimensions: 85mm*37mm*16mm

Oscillation resistance: 4.7M


Learning methods

1, click the learning key, the indicator light turns off, let go, 6 seconds, press any key indicator of the remote control flashes four Always learning success;

2, can learn more than 20 different addresses code 2262 chip, 1527 chip same frequency wireless remote control;

Clear method

And hold the learn button for about 8 seconds, the indicator, which means that all information stored successfully cleared off to the long bright.


Mode change

1, 2, and 3 different places through the shorted circuit board pad switch works. (See above comment)

A, jog M4 - works by default, job switching the jumper cap is not inserted;

B, self-locking T4 - short-circuit cap 1,2-position connection

C, interlock L4 - short circuit to take the 2,3 position connection
