DE Stock 3axis Nema23 stepper motor 272oz-in 3.0A 4wires & driver DM542A CNC Router Plasma controller kit | Обустройство дома
История изменения цены
*Текущая стоимость 11 476,57 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 13656.74 руб. | 14339.61 руб. | 13997.5 руб. |
| Aug-18-2025 | 13542.18 руб. | 14219.12 руб. | 13880.5 руб. |
| Jul-18-2025 | 11361.94 руб. | 11929.99 руб. | 11645 руб. |
| Jun-18-2025 | 13312.4 руб. | 13978.48 руб. | 13645 руб. |
| May-18-2025 | 11591.88 руб. | 12171.1 руб. | 11881 руб. |
| Apr-18-2025 | 13083.37 руб. | 13737.8 руб. | 13410 руб. |
| Mar-18-2025 | 12968.68 руб. | 13616.5 руб. | 13292 руб. |
| Feb-18-2025 | 12853.32 руб. | 13496.88 руб. | 13174.5 руб. |
| Jan-18-2025 | 12738.42 руб. | 13375.51 руб. | 13056.5 руб. |
Описание товара

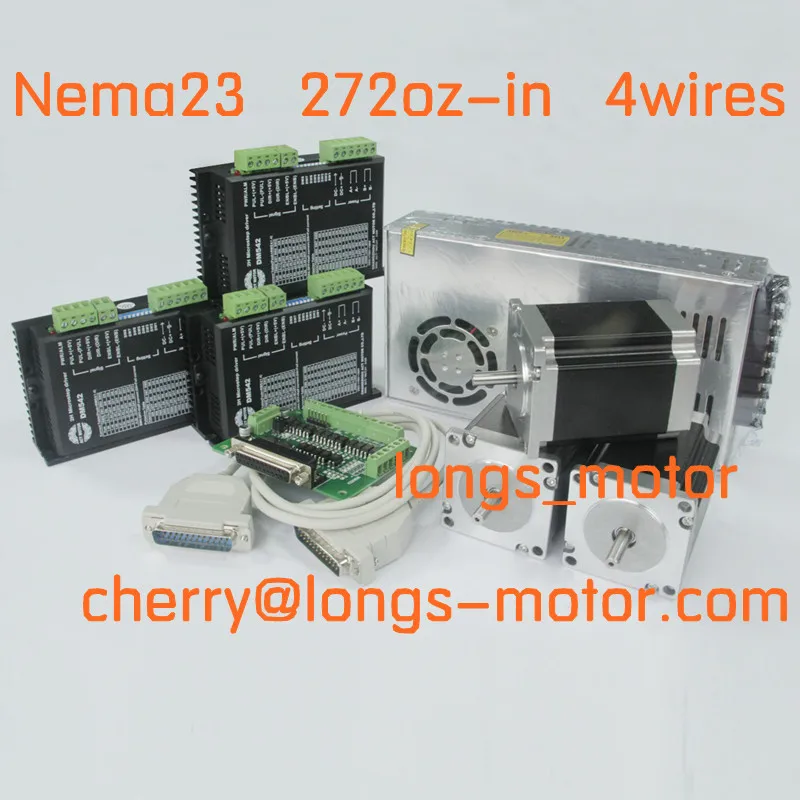

What's in Box?
- 3 pcs Nema 23 stepper motor with 272oz-in,3.0A,4wires
- 3 pcs stepper motor driver DM542A, peak 4.2A, 128 micsteps, replacing M542
- 1pc power supply 350W/24v 14.5A)
- 1 pc Breakout board & 1 pc Parallel cable
Detailed information:
1. Nema 23 stepper motor:
Nema 23 stepper motor:
Technical Specifications
Part No.: 23HS7430
Frame Size: NEMA23
Step Angle: 1.8 degree
Voltage: 3.0V
Current: 3.0 A/phase
Resistance: 1.0Ohm/phase
Inductance: 3.5mH/phase
Holding torque: 272oz-in
Rotor inertia: 480 g-cm2
Detent torque: 0.6 kg-cm
Number of wire leads: 4
Weight: 2.20lb (1.0 kg)
Length: 78mm
2.Stepper motor driver DM542A:
DM542A is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 18VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is smiliar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM542A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.
Features: High performance, low price Average current control, 2-phase sinusoidal output current drive Supply voltage from 18VDC to 50VDC Opto-isolated signal I/O Overvoltage, under voltage, overcorrect, phase short circuit protection 15 channels subdivision and automatic idle-current reduction 8 channels output phase current setting Offline command input terminal Motor torque is relased with speed, but not related with step/revolution High start speed High hording torque under high speed3. Power supply:
The power of this power supply is 350Watts, and the output voltage/current is 24VDC/14.5A.

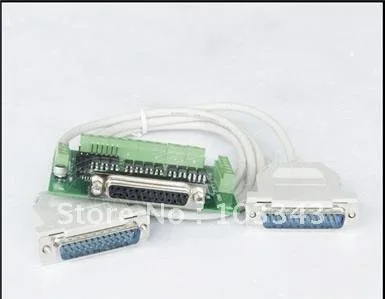

4. Breakout Board:- Built in DB25 male connector.
- DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17.
- DB25 Input Pin: P10,P11,P12,P13,P15.
- DB25 GND Pin: P18-P25.
- Power supply: +5V DC.
- Built in C-class Optical-coupler.
- High quality with Surface-mount Tech.
Hello,dear friend,thanks for you visiting my store very much.if you have any questions or need more detailed info of our goods,please feel free let me konw,I'll try my best to support you,thanks.
Wish you have a good shopping!:-)
