High-speed comparator （TLV3501）

TLV3501 3502Module Youku video1（Basic functional parts）：

http://v.youku.com/v_show/id_XMzU4MTAzMjA3Ng==.html?spm=a2h3j.8428770.3416059.1

TLV3501 3502Module Youku video1（Frequency adjustment and duty cycle adjustment part）：

http://v.youku.com/v_show/id_XMzU4MTAzNzAxMg==.html?spm=a2h3j.8428770.3416059.1

A、Product Application：

TLV3501It is a single channel high speed push-pull output comparator，Delay time4.5ns，Power supply voltage： 2.7VTo 5.5V，The common mode range beyond the swing input makes it ideal for low voltage applications。Rail-to-rail output can be directly drivenCMOSOrTTLLogic。This module can shape the periodic signal of wide voltage range，As the frequency、Front-end conditioning module for time domain measurement such as phase difference.

Application：1.The sine wave to the square wave 2.Zero-crossing comparator 3.General purpose comparator

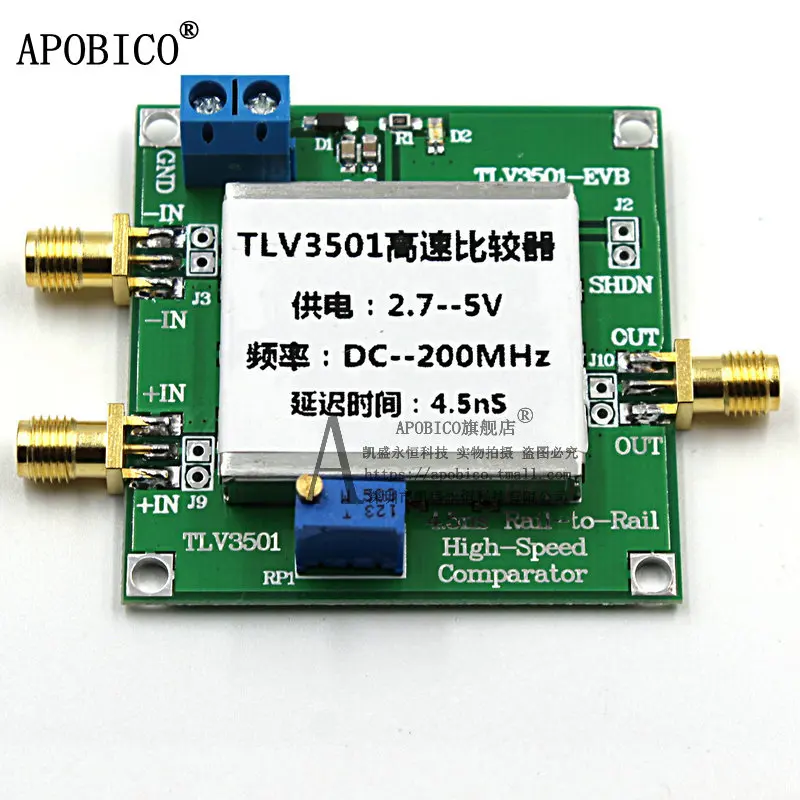

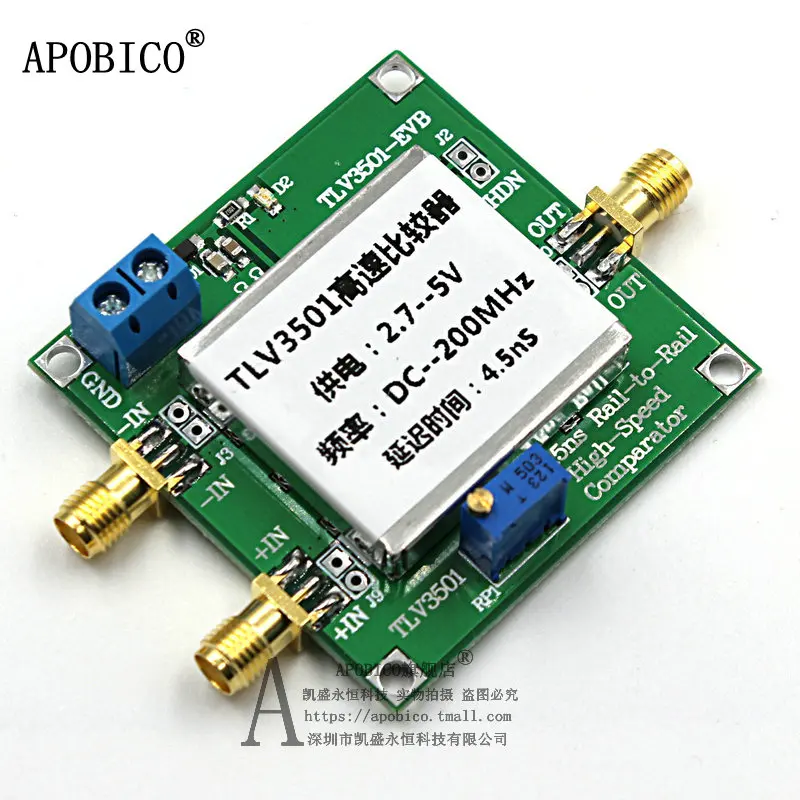

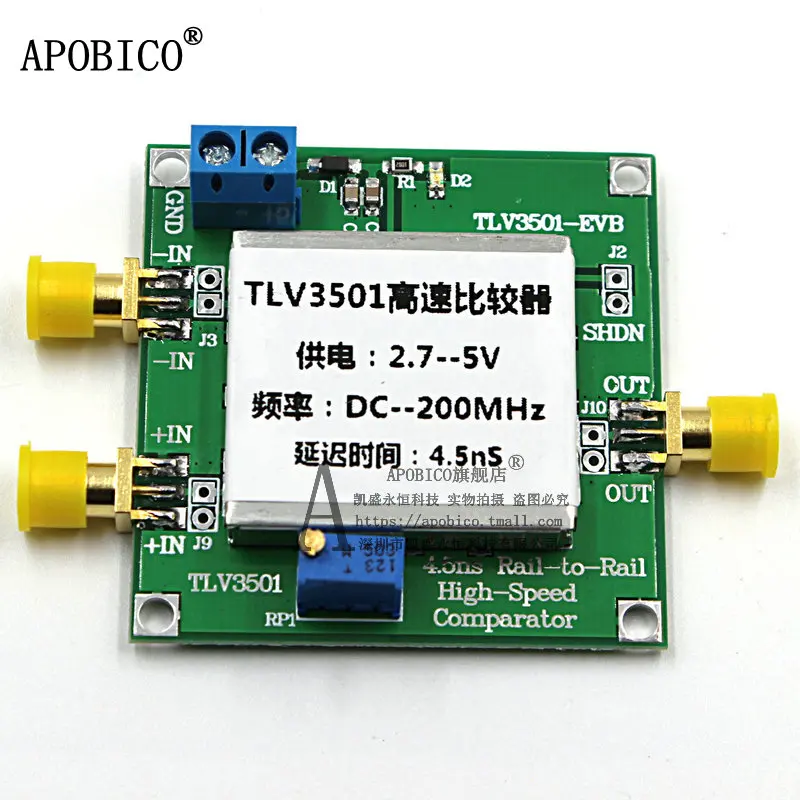

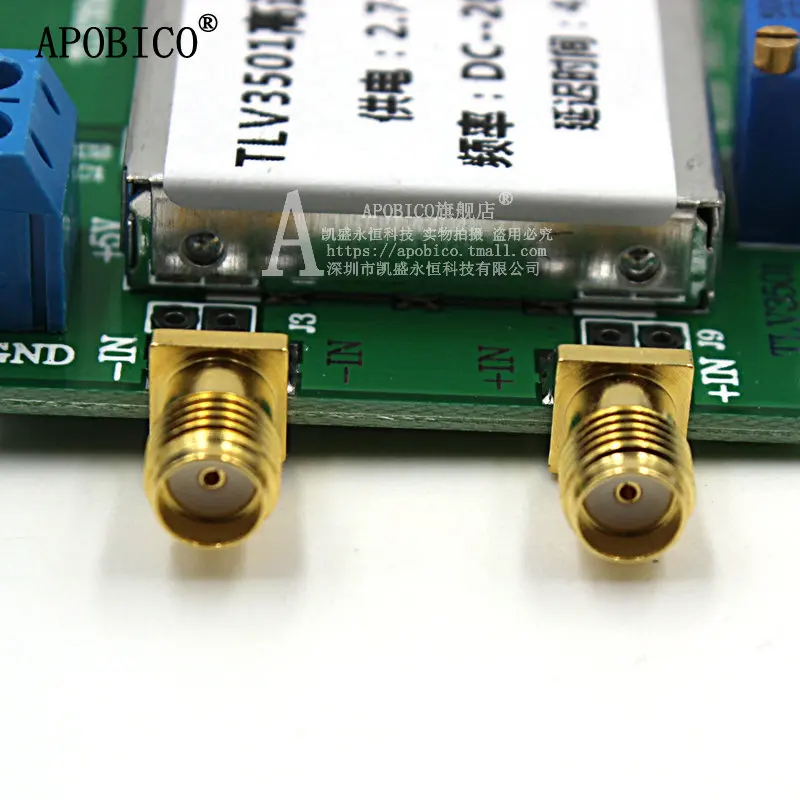

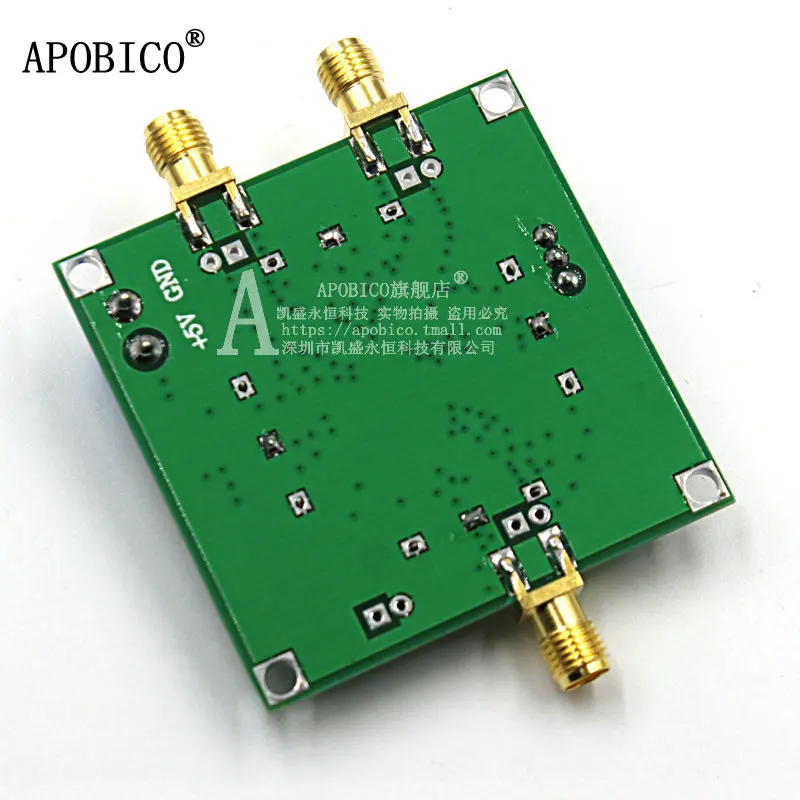

II、Product Picture：

Three、Technical indicators

1.Power supply voltage：2.7-5VDC

2.Input voltage：10-1000mV（Valid values）

3.The output level：Rail-to-rail output,Enables direct driveTTL/CMOSLevel

4.Input frequency：DC--200MHz

5.Interface：SMAFemale head（The outer screw bore）

6.Input impedance：50Ohm

7.The shielded housing

8.ProvidePDFGear schematic diagram

Four、The measured waveform

1、1MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

2、10MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

3、50MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

4、100MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

5、150MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

6、200MHZ(1VPPThe sine wave input，Output waveform after passing the comparator)

Data Download link: http://pan.baidu.com/s/1kVC0qMz Password：55x0
