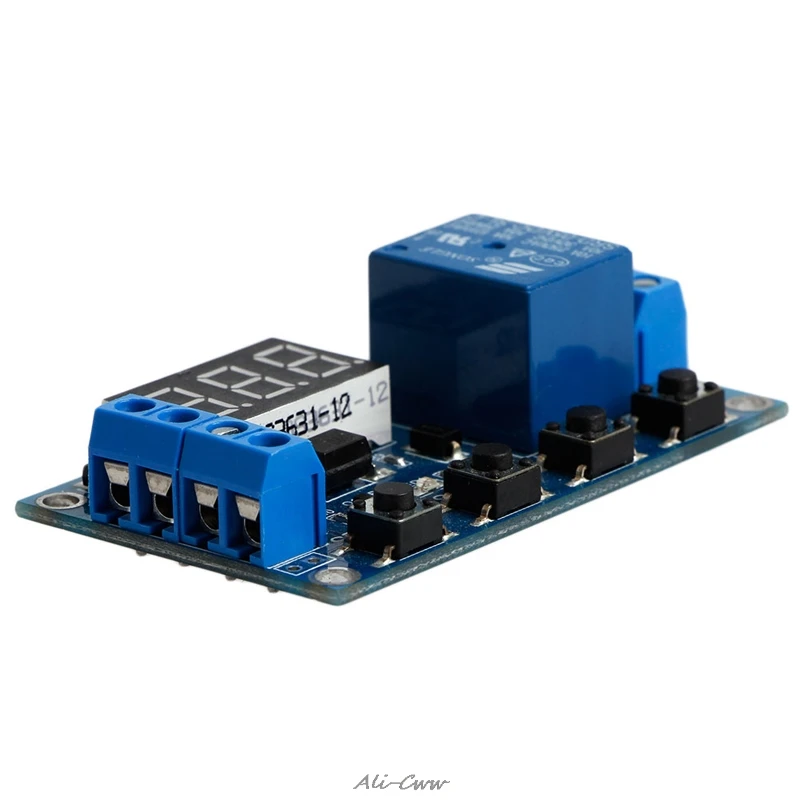

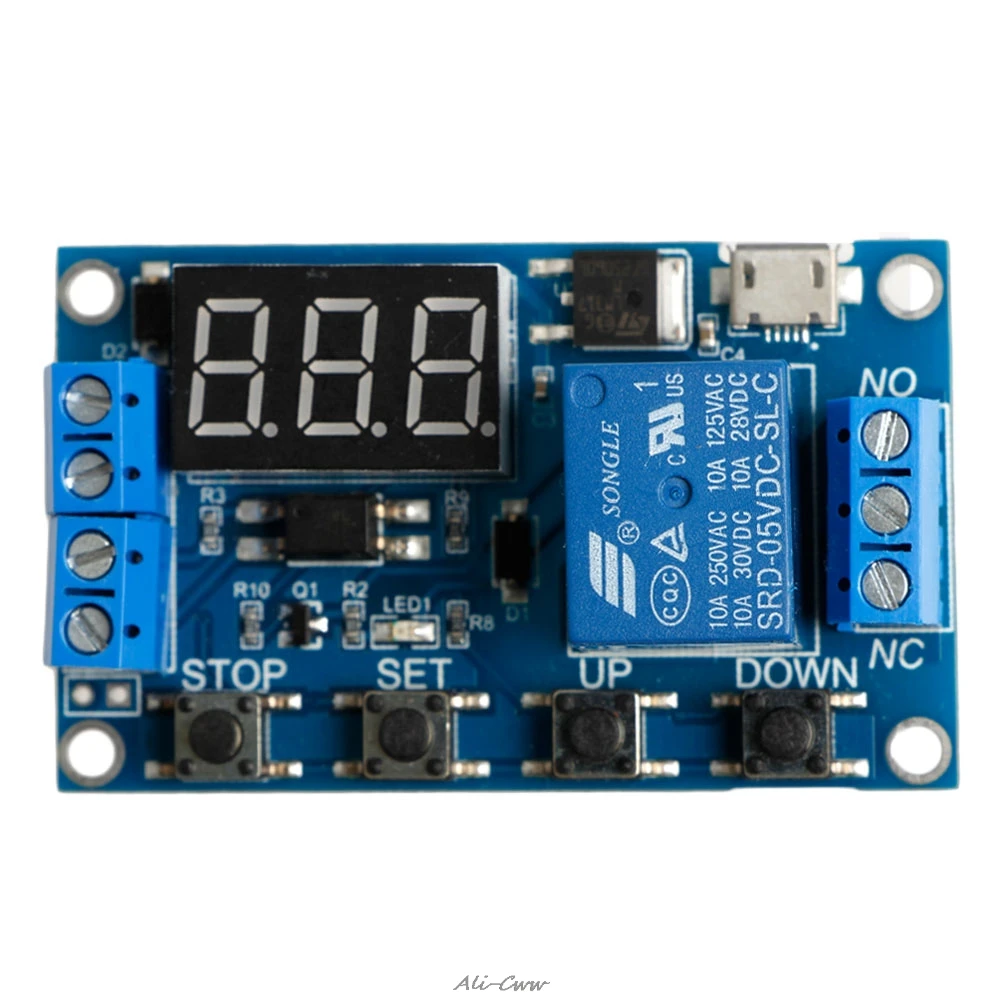

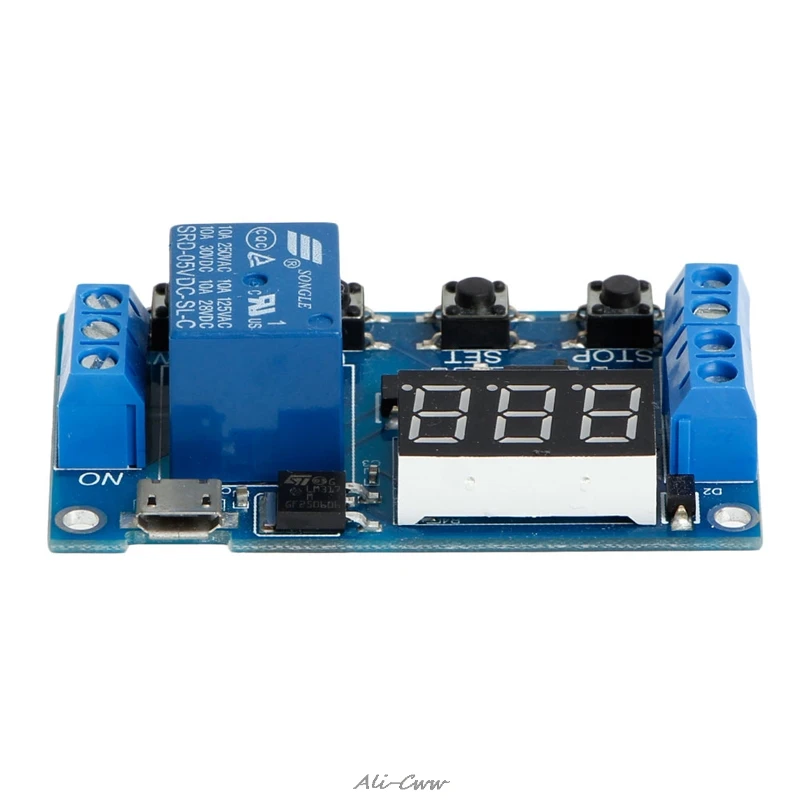

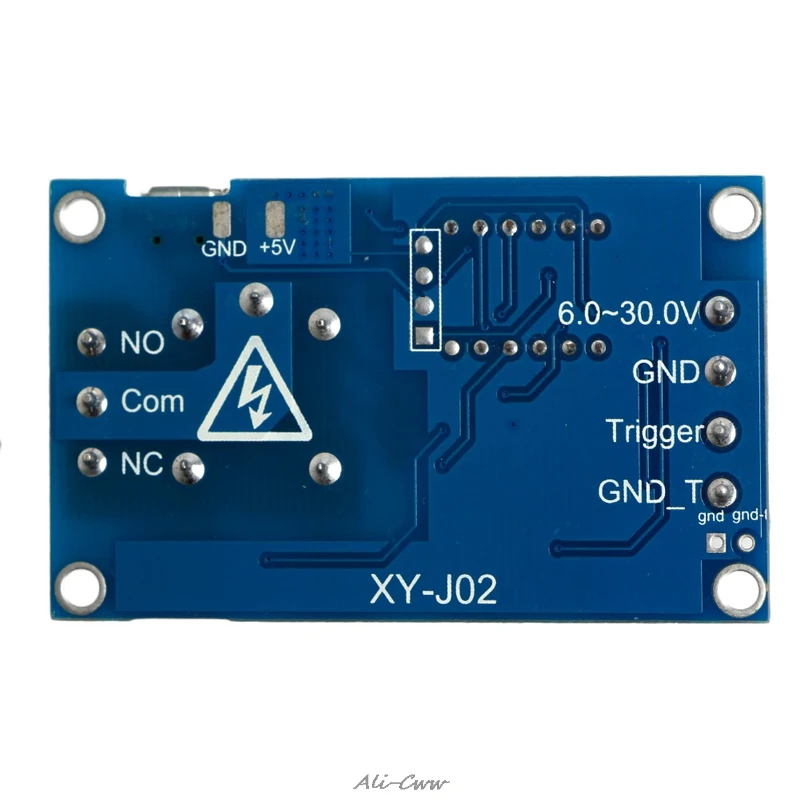

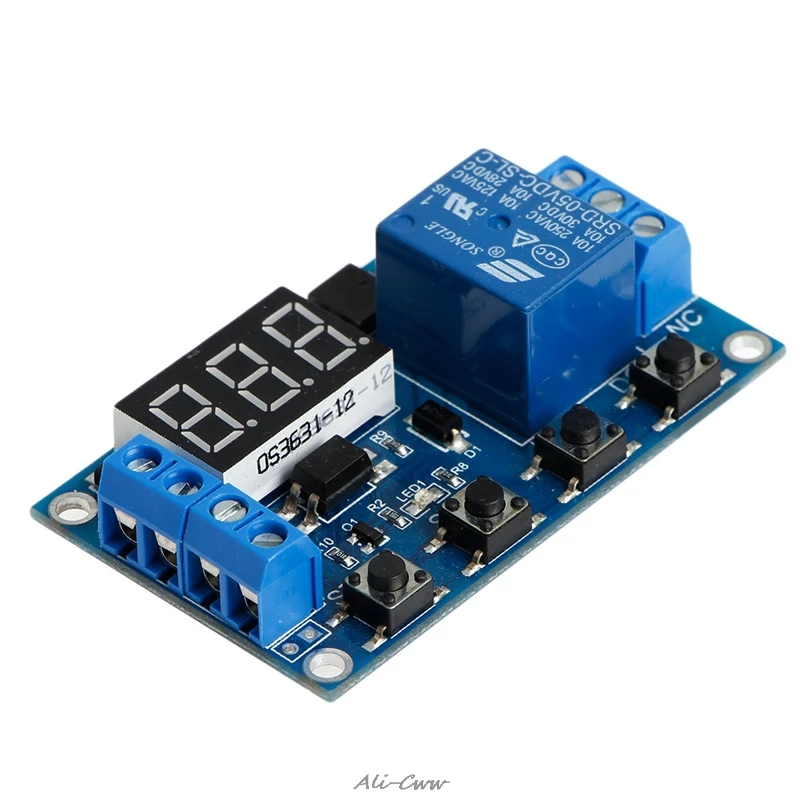

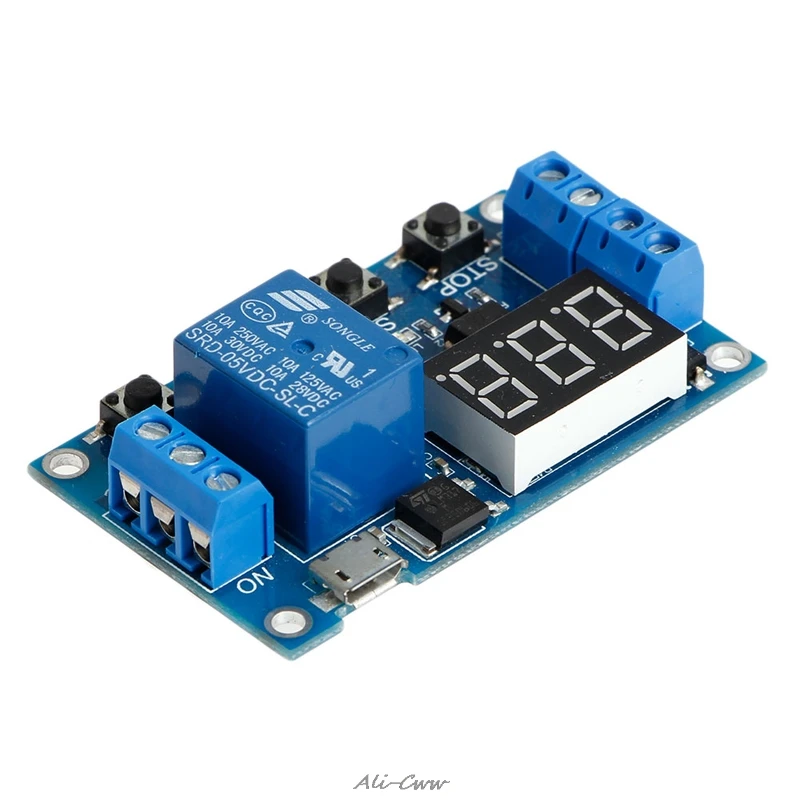

100% brand new and high quality

• Material: Electrical components
• Color: See pictures
• Product introduction:
• 1. Operating voltage: 6--30V
• 2. Trigger Signal Source: High Level Trigger (3.0 V-24 V), signal ground and system ground are not common, which can increase anti-interference abilit
  system (short circuit can also connect with a ground common)
• 3. Output Capacity: can control no more than DC 30V 5A AC or 220 V devices 5A
• 4. Optocoupler Isolation: improve the anti-interference ability, after the parameter setting, it will memory forever
• Warning: Relay contact is passive and electricity production; 1 channel has the control function on / off


Operation mode:

• P1: After triggered signal, power relay on time OP, then turn off; within the OP period following operation:
• 1) P1.1: signal being triggered again is not effective
• 2) P1.2: signal being triggered again, start time again
• 3) P1.3: signal being triggered again, reset; disconnect relay, stop timing
• P2: giving the trigger signal, the time after shutdown relay CL power relay OP time; then timing, turn off the relay
• P3.1: give the trigger signal after the power relay on time OP, CL shutdown time relay; then operating cycle above cycle gaive signal again, shutdown relay stop timing; cycle times (LOP) can be set
• P3.2: after connecting. no need to trigger signal, power relay on time OP, CL shutdown time relay; then the operating cycle above timea cycle (LOP) can be set
• Q4: keeping the function of the signal; if there is no trigger signal, the time will be canceled, relay stay connected; when the signal disappears, timing OP turn off the relay; over time, if no signal again, the time is cleared

• Time interval:
• 0.1 s (minimum) ~ 999 min (maximum) continuously adjustable
• how to choose the time interval:
• in the selection of parameter set interface mode, and press the STOP button to select the time
• xxx. if the decimal point is in some place, the time interval is s-1 999 s
• xx. x is decimal place is ten, the time interval is 0.1 s 99.9 s-
• x. x. x is the decimal point are all on, the time interval is 1 min-999 min
• parameter Introduction: OP power over time, turn off time CL, LOP cycle times (1-999 times, "---" is unlimited cycle)
• How to set the parameter:
• 1. First make sure relay operation mode
• 2. According to the operaiting relay mode, the main interface (power module will flash current operating mode; standard mode P1.1, then come intot main interface); long press SET key two seconds and then looen enter selection interface mode; by pressing UP, DOWN key to choose the mode setting
  (P1.1 ~ P4)
• 3. After selecting the mode, press short SET to set the corresponding parameter, then the parameter you want to set will flash
  (OP power in time; CL power off time; LOP cycle times, "---" is unlimited cycle ); by UP, DOWN to set the parameter value, support long press
  (increase or decrease quickly) and press slightly (increase or decrease of 1 unit); after setting the parameter value by short press the STOP key to choose decimal place; choose the time interval (corresponding time interval is 0.1 s-999 min); Short press SET to set the current mode next parameter, the process is the same as above
• 4. After the setting mode parameter, press and hold the SET button then hold the current configuration mode will flash, then go back to the main interface; define success parameter
  main interface: when the relay does not work, it will show "000" (no decimal point); the operating state relay, the screen has a decimal point
• Mode Select Interface: press and hold the SET key to enter; after setting, long press the SET button back on main interface

• Expansion Function Key STOP:
• Activate Relay mode:
• 1. NO: PO in power over time, relay can be connected
• 2. OFF: relay is not allowed to connect, when in the off state
  in short main interface press the STOP key to achieve turn ON and OFF, current state will flash; then back to the main interface
  (this function is a function of sudden stop, 1 key to turn off the relay)
• Sleep Mode:
• C-P Sleep mode: within 5 minutes, no operation; nixie tube will close auto display, and a function program well
• The d-Normal Mode: nixie tube show ever
• Note: Press and hold STOP button for 2 seconds can achieve change from C-P to O-d; Current state will flash and then return to the main interface
• Size: 6.3*3.8*1.5cm/2.48"*1.50"*0.59"
• No retail package
• Quantity:1Pc

Package includes:

• 1Pc x Cycle Timing Circuit Switch
