GBS-8118 Arcade Game Multi JAMMA 2 in 1 Switch Remote Control JAMMA PC Board Jamma Switcher Multiple input options (Inputs through JAMMA slots, VGA connections, RGB-S Connections, and L/R o inputs); On initial power up, slot 1 automatically is enabled and plays. Switcher routes +5VDC, +12VDC, and -5VDC. Switcher routes SERVICE & TEST button functions, plus up to 4 shooter buttons per player; Switcher routes +5VDC, +12VDC, and -5VDC, Setup is quick and easy
Now you can plug 2 different Jamma PCB into one cabinet and select the game you want to play with the press of a switch control .
To install just plug the PCB into your existing Jamma harness. It install easily and working perfect.
Install two different JAMMA (or non-JAMMA with the use of a JAMMA Adapter) PCBs into a single JAMMA cabinet with ease! This 2-in-1 MultiJAMMA switcher board is simple to install and works with just a quick press of the button. Included is a wired switch function.
This 2-in-1 MultiJAMMA Switcher board operates differently than the larger 6-in-1 MultiJAMMA Switcher board.
First, both slots (1 & 2) are simultaneously powered on together unlike the 6-in-1 switch will only power on a single slot at once.
This provides seamless quick switching between the two installed boards.
Also this is a must if installing in a public game room (so the customer does not have to wait for the second game board to power on and test itself if selected...the game would already be up and ready to go).
Important Reminder: Technical Notes: This switcher will not switch the video with the 400-in-1 V2 PCB board using VGA video.
In order to work with this board the VGA video need to be manually switched using a VGA switch box. Short of the video needing to be switch on a separate switch all other functions will switch properly.
If you are using a CGA tube monitor then there is no issues.
Monitor: If you are using a CGA monitor then you simply wire the monitor off of the Jamma harness, If you are using a VGA monitor then you have to set your Jamma boards to VGA then plug both of your Jamma boards VGA ports from the boards to the VGA input of the switch using a male to male VGA cord.
Package Include:

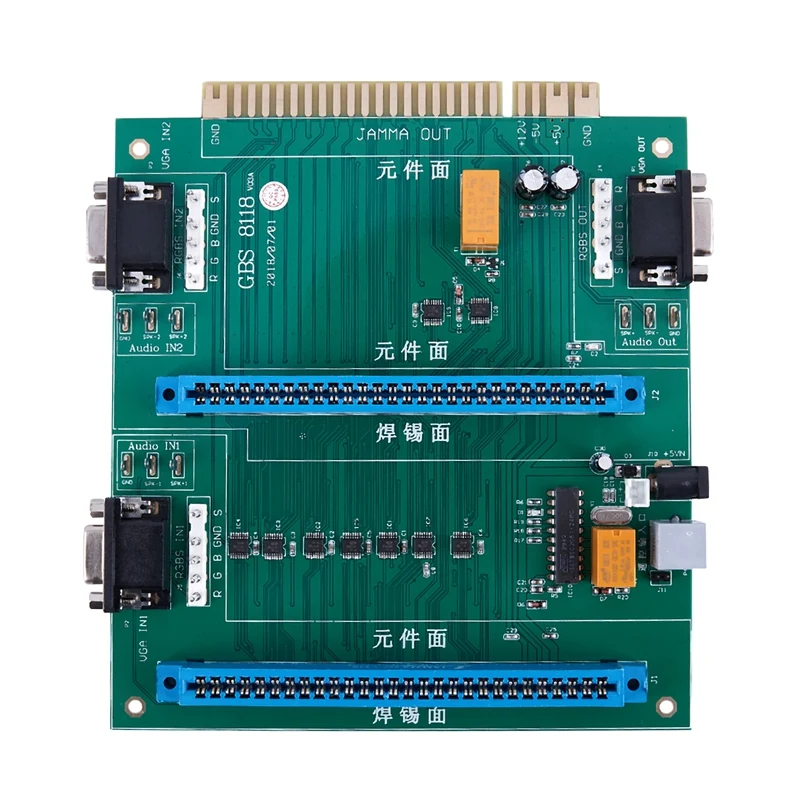

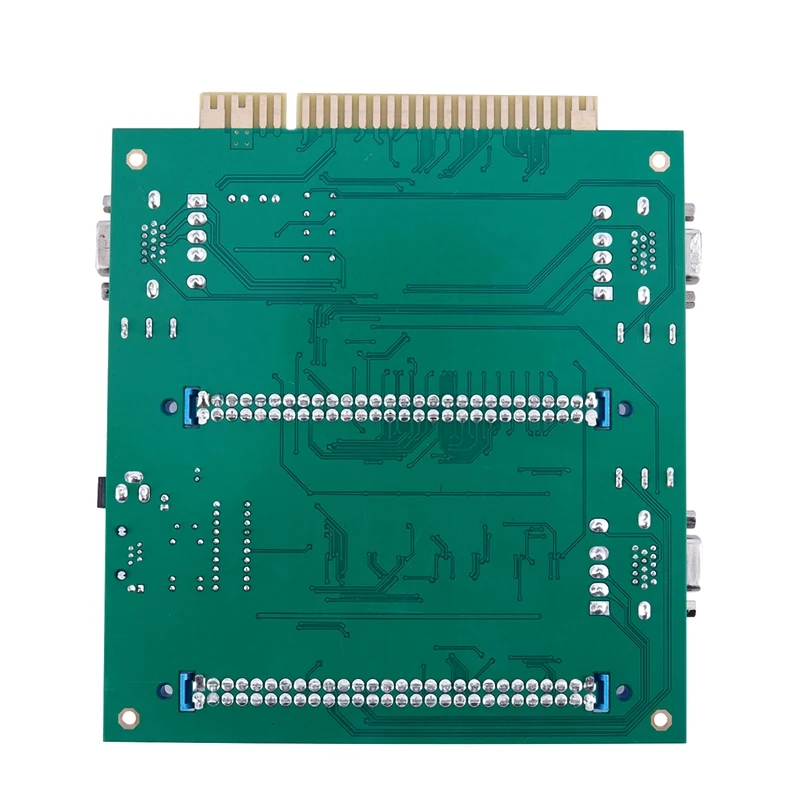

1 x 2-in-1 MultiJAMMA Switcher PCB

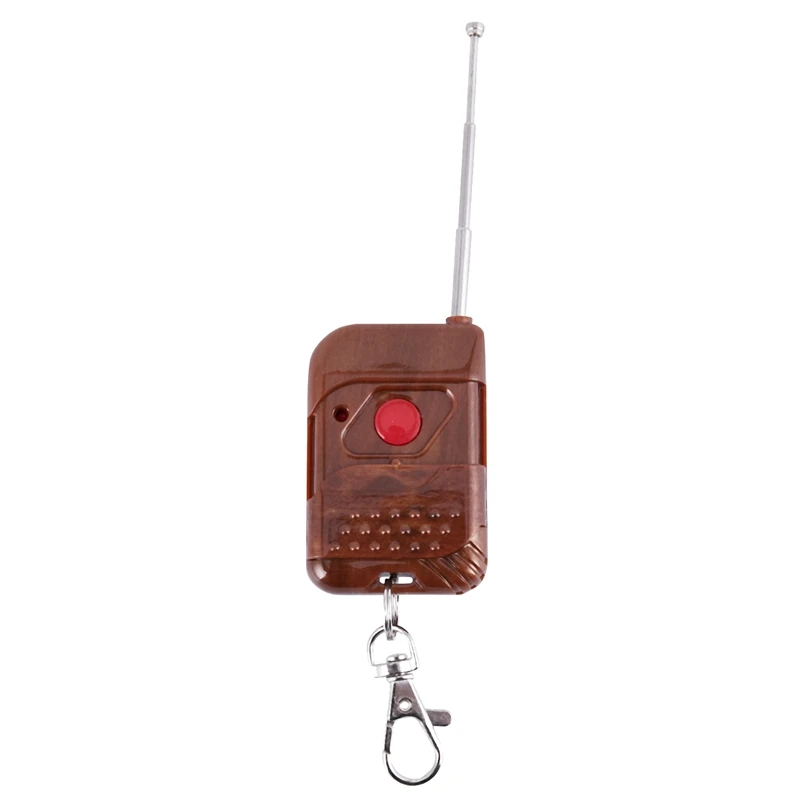

1 x Remote Control

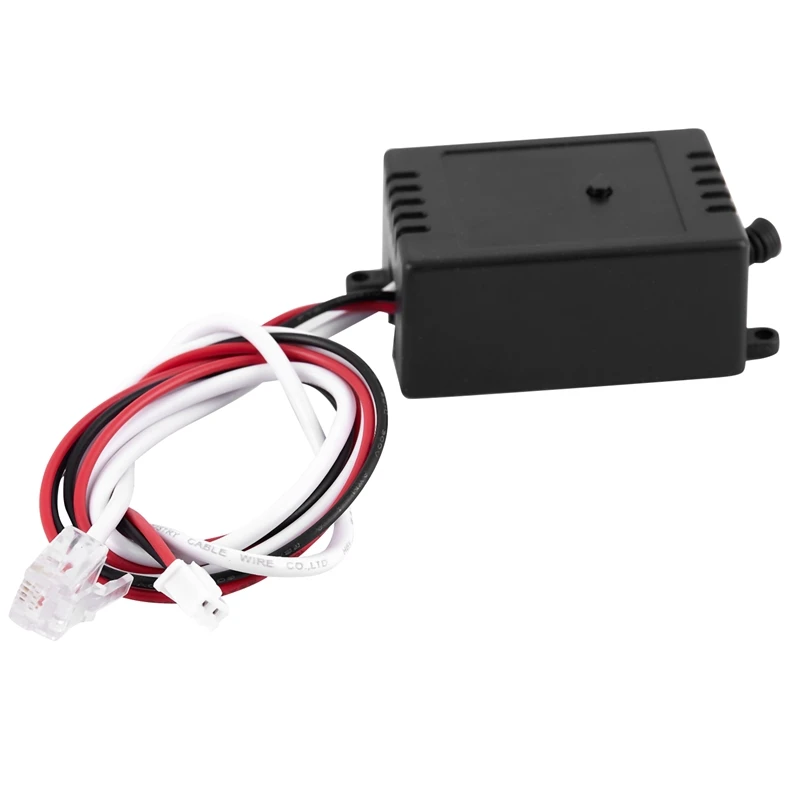

1 x Remote Receiver
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
