Product overview

Our company produced two channels DC wide voltage wireless controller, the product adopts learning code wireless coding technology, no direction, switch non-interference.Switch circuit component materials, using high-quality double-sided PCB, the power part adopts the imported professional voltage chip and low consumption, use two 30 a large current relay switch, the output of two passive switch signals, and can drive the ac load or dc load switch signal control, receive maximum bear 30 or less a current, to prolong the service life of receiving plate, suggested that control power in the 3000 w (impedance load);Within 2000W(motor type inductive load).

The output mode can be set as non-lock, interlock, self-lock and self-lock + non-lock, which can replace various manually controlled switches.It is mainly used in motor switch, equipment remote control switch, large current load remote control switch, industrial control and security industry



Technical parameters:



1. Working voltage: DC12-48V

2. Standby power consumption: about 8mA

3. Operating frequency: 315MHz/433.92MHZ

4. Coding types: fixed code and learning code

5. Reception sensitivity: -110DBM

6. Number of output groups: two-way switching output

7. Output mode: inching, interlocking and self-locking can be set

8. Load recommendation: resistance load 3000W, motor inductive load less than 2000W

9. Operating temperature: -10℃~70℃

10. Size of circuit board: 92.8*87.5*29mm

11. Shell size: 90.5*115.5*40.5mm   Working mode: jog , self-locking and interlocking

 Add transmitter by the Learning Button on the receiver

Function parsing

1)  jog  mode: don't dial the code switch

2) self-locking mode: dial code switch 1,2 to ON for self-locking

3) interlock mode: dial code switch 2 to ON for interlock

4) jog+self-locking mode: dial code switch 1 to ON for 1ch self-locking;2ch  jog

Learning methods:

1-800

Learning methods:

When the receiver is powered on, press the code button on the receiver.indicator, Indicator light on, enter the Learn code state:Press the remote control button corresponding to the first line in turn,Corresponding to the second remote control button,And as the main button of the remote control (If it is a remote control with two keys, press the key for code on the receiver board to exit the study after pressing the first two keys.)

Clearing Code:

Keeping press the learning button 8 seconds until the LED indicator ON, It mean the code have been cleared successfully.



Note:We default send 315Mhz, if you need 433Mhz, pls leave a message under your order, thanks!

Transmitting Distance: 20-500m(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-90% with the block and signal interference ).

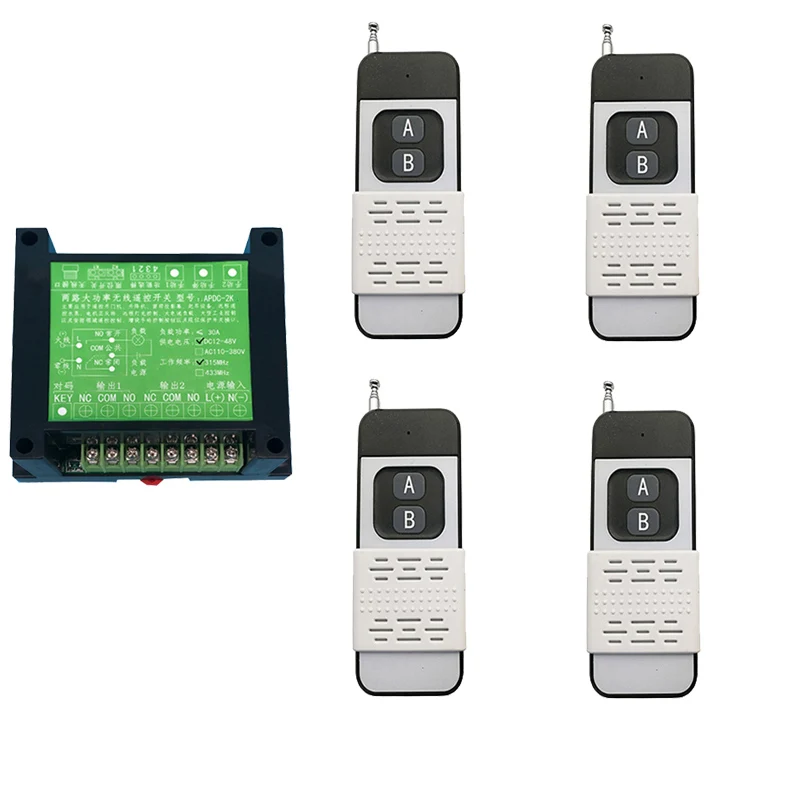

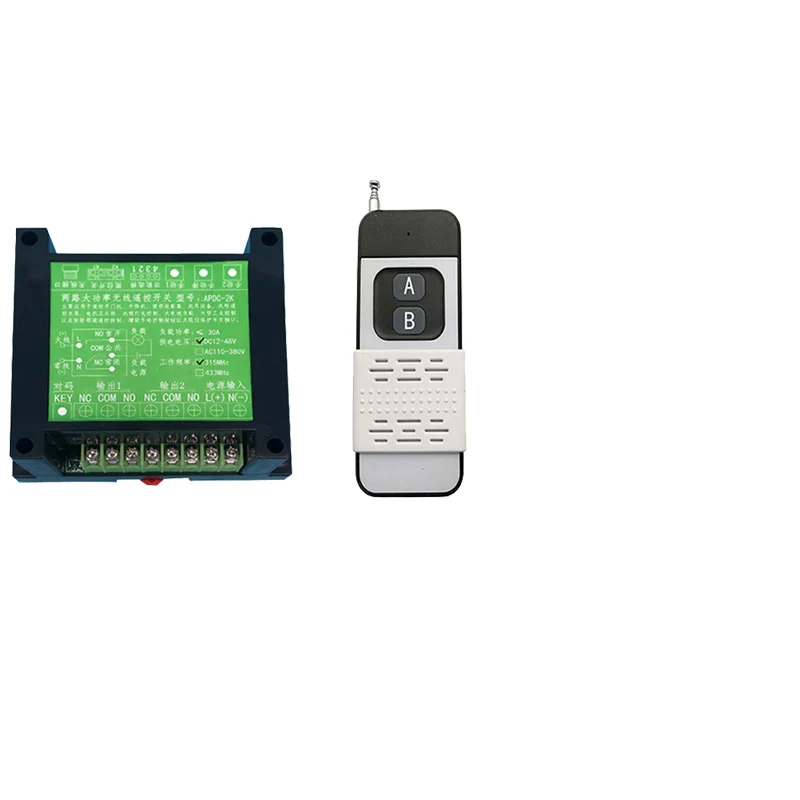

pacote inclued:

A:

1x Receiver(with cover)

B: 1 x Receiver(with cover) 1x Transmitter(with battery) C: 1x Receiver(with cover) 2x Transmitter(with battery) D: 1x Receiver(with cover)

3x Transmitter(with battery)

E:

1x Receiver(with cover)

4x Transmitter(with battery)1-31-4(1)20151213-IMG_2605 拷贝 12F01EC268570D50FB6E5F544C3330D2D2_750_7501-503F9596656EE277B4D95B076D12BD06F_750_750
