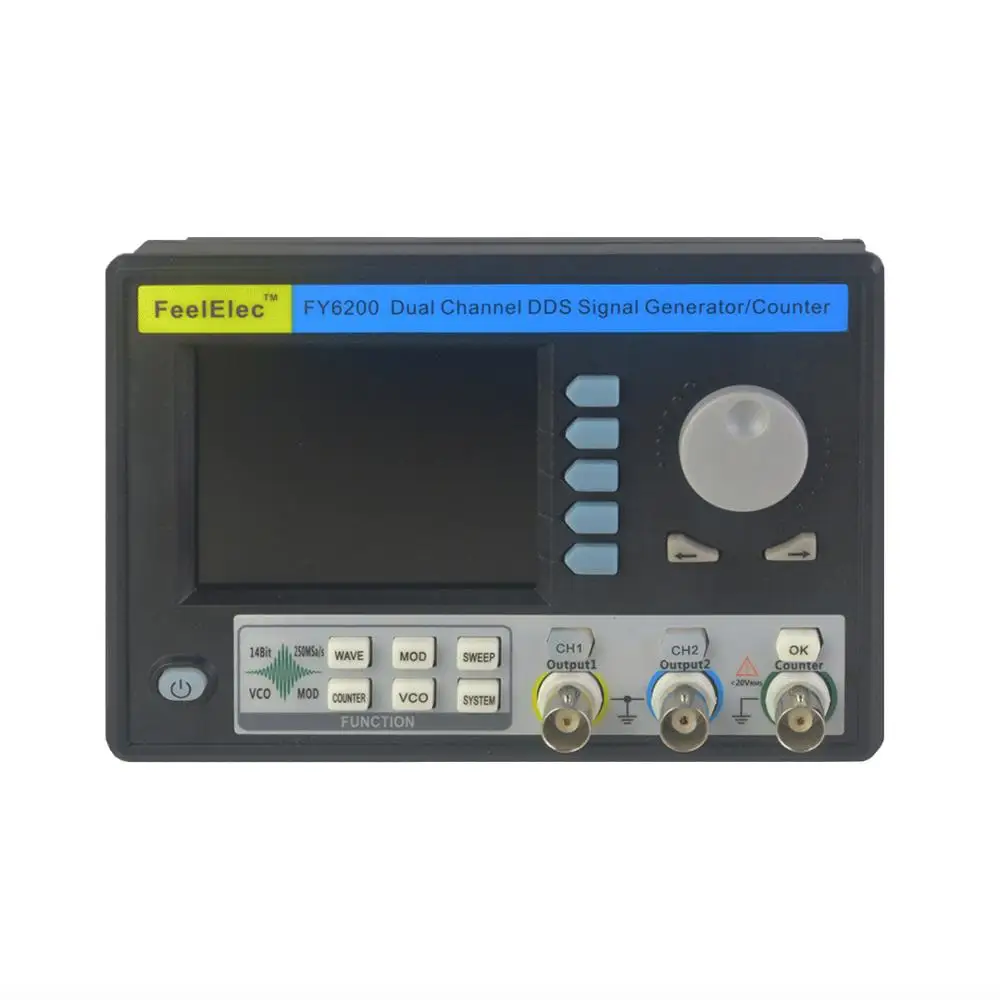

FeelElec черный с логотипом генератор сигналов DDS произвольная форма сигнала FY6200

Frequency characteristics

Product number

FY6200-20M

FY6200-30M

FY6200-50M

FY6200-60M

Sine wave

0~20MHz

0~30MHz

0~50MHz

0~60MHz

Square wave

0~15MHz

0~20MHz

0~25MHz

0~25MHz

Triangular wave

0~10MHz

0~10MHz

0~10MHz

0~10MHz

Pulse wave

0~10MHz

0~10MHz

0~10MHz

0~10MHz

Arbitrary wave

0~10MHz

0~10MHz

0~10MHz

0~10MHz

TTL/CMOS Digital wave

0~10MHz

0~20MHz

0~20MHz

0~20MHz

Minimum pulse width

20ns(The minimum adjustable width of all types of pulse wave can reach 20ns)

Min. Resolution on all frequency range

1μHz (The minimum resolution of the whole frequency band can reach 1uhz, so as to ensure the adjustment accuracy of the instrument at high frequency. For example, the instrument can output 10.000000000001MHz high-precision signal.)

Frequency Accuracy

±20ppm

Frequency stability

±1ppm/ 3 hours

Waveform Characteristic

Waveform Catalog

Sine wave, square wave (duty cycle adjustable), pulse wave (pulse width and cycle time can be accurately set), triangle wave, rising sawtooth wave, falling sawtooth wave, CMOS wave, DC level, half wave, full wave, positive ladder wave, anti ladder wave, exponential rise, exponential fall, Lorentz pulse wave, multi sound wave, irregular noise wave, ECG wave, trapezoid pulse wave, cinke pulse wave, narrow Pulse wave, Gaussian white noise wave, amplitude modulation wave, frequency modulation wave, and 64 user-defined waves.

Nonvolatile storage (64)

64 user-defined arbitrary waveforms can be stored

Waveform Length

8192 points (8K points) * 14bits

Sampling rate

250MSa/s

Vertical Resolution

14 bits

Sine Wave

Harmonic suppression system

≥50dBc(<1MHz);≥45dBc(1MHz~20MHz);

Total harmonic distortion

<0.5% (20Hz~20kHz,0dBm)

Square and Pulse wave

Rising and falling time

≤7ns(VPP<5V)

overshoot

≤5%

Duty cycle adjustment range

0.01%~99.99% (Resolution 0.01%)

Sawtooth wave

linearity

≥98% (0.01Hz~10kHz)

Output characteristics

Amplitude（VPP）

Frequency≤10MHz

10MHz<Frequency≤20MHz

Frequency>20MHz

1mVpp~20Vpp

1mVpp~10Vpp,

1mVpp~5Vpp

Amplitude Resolution

1mV

Amplitude Stability

±0.5%/ 5 hours

Amplitude flatness

±5%(<10MHz)；±10%(>10MHz);

Waveform Output

Output Impedance

50Ω±10%（Typical）

Protection

All signal output terminals can work for more than 60s under load short circuit condition

DC Offset

Offset Range

Frequency≤20MHz:±10V；  Frequency>20MHz: ±2.5V

Offset Resolution

1mV (Minimum)

Phase Feature

Adjustable Range

0~359.99°

Minimum resolution

0.01°

TTL Output

TTL Level Amplitude

>3Vpp

Fan-out coefficient

>8 TTL Load

Rise/Fall Time

≤10ns

CMOS Output

Low Electric Level

<0.3V

High Electric Level

1V~10V

Rise/Fall Time

≤18ns

External measuring function

Function

It can measure frequency, period, positive pulse width, negative pulse width and duty cycle of external signal.

Input signal voltage range

2Vpp~20Vpp

Function of frequency meter

Frequency measurement range

0.01Hz~100MHz

measurement accuracy

Gate time 1s, 10s, 100s three speed regulation

Counter function

Counting range

0-4294967295

counting mode

Manual

Pulse width measurement

10ns Resolution，Maximum measurable 20S

Cycle measurement

10ns Resolution，Maximum measurable 20S

Sweep Function

Carrier waveform

Sine wave, square wave, sawtooth wave, arbitrary wave (excluding DC voltage)

Sweep Type

Linear sweep, logarithmic sweep

Sweep Direction

Forward, reverse, round trip

Sweep Object

Frequency, amplitude, offset, duty cycle

Sweep Time

0.01S~999.99S/ stepping

Setting Range

Arbitrary setting of start point and end point

Sweep Range

Determined by sweep parameter setting value

VCO Function

Note：VCO (Voltage Control Output)

Modulation signal range to input

0~5V

VCO signal frequency range

0-1000Hz

VCO control object

• Voltage-controlled frequency（VCF）Voltage control range（VCA）Voltage-controlled bias  voltage controlled duty ratio

VCO Feature

Amplitude modulation（AM）or frequency modulation（FM）can be performed by an external analog signal

Modulation function

Modulation Type

AM, FM, PM, ASK, FSK, PSK

Carrier waveform

Sine wave, square wave, triangle wave, sawtooth wave, arbitrary wave (except DC voltage)

AM

Source

Internal（CH2）/ External（Counter）

Modulation Waveform

Sine wave, square wave, triangle wave, sawtooth wave, arbitrary wave

Modulation Depth

0% to 100%

Modulation Frequency

Internal: 1μHz~1MHz;  External: 1μHz~2KHz;

FM

Source

Internal（CH2）/External（Counter）

Modulation Waveform

Sine wave, square wave, triangle wave, sawtooth wave, arbitrary wave

Modulation Frequency

Internal: 1μHz~1MHz;  External: 1μHz~2KHz;

PM

Source

Internal（CH2）/ External（Counter）

Modulation Waveform

Sine wave, square wave, triangle wave, sawtooth wave, arbitrary wave

Phase shift range

0°~360°

Modulation Frequency

Internal: 1μHz~1MHz;  External: 1μHz~2KHz;

ASK

Source

Internal（CH2） Manual

Modulation Waveform

50% Duty Cycle square wave

Keying frequency

1μHz~10MHz

FSK

Source

Internal（CH2） Manual

Modulation Waveform

50% Duty Cycle square wave

Keying Frequency

1μHz~10MHz

PSK

Source

Internal（CH2） Manual

Modulation Waveform

50% Duty Cycle square wave

Keying Frequency

1μHz~10MHz

Burst Function

Carrier waveform

Sine wave, square wave, triangle wave, sawtooth wave, arbitrary wave (except DC voltage)

Pulse Count

1-1048575

Burst Mode

Manual Burst, Internal Burst (CH2), External Burst (Counter）

General specifications

Display

Display Type

3.2-inch TFT color LCD display

Storage and Load

Quantity

20 sets

Location

01 to 20 (Power on by default to enter 01 storage location parameters)

Connector

Interface mode

USB to serial interface

Communication Rate

115200 bps

Communication protocol

Using the command line, the agreement is open

Power supply

Voltage Range

AC100V~240V

Manufacturing technique

Surface mount technology, large scale integrated circuit, high reliability and long service life

Warning Tone

Users can turn on or off through program settings

Operational characteristics

All buttons are operated, and the knob is adjusted continuously.

Environment condition

Temperature：0~40℃  Humidity：﹤80%

Size

150mm (Length)×105mm(Width) ×30mm(Height)

Weight

Mainframe（350g） Accessory（200g）
