300W 25A DIY Led Controller Dimmer DC12V 24V RF Wireless Remote to Control Single Color Strip Light SMD 3528 5050 5630 | Электроника

---

1.The rf Press dimmer,adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for single color led strip.
2.Adopt full Press RF remote control.
3.5 function buttons and 1 dimming ring in the center, all buttons are in the Press form, and the dimming ring has 128 levels in different brightness value.
4.Particularly, there is a sense light in the remote control center. It shows the exactly light which was be Pressed.

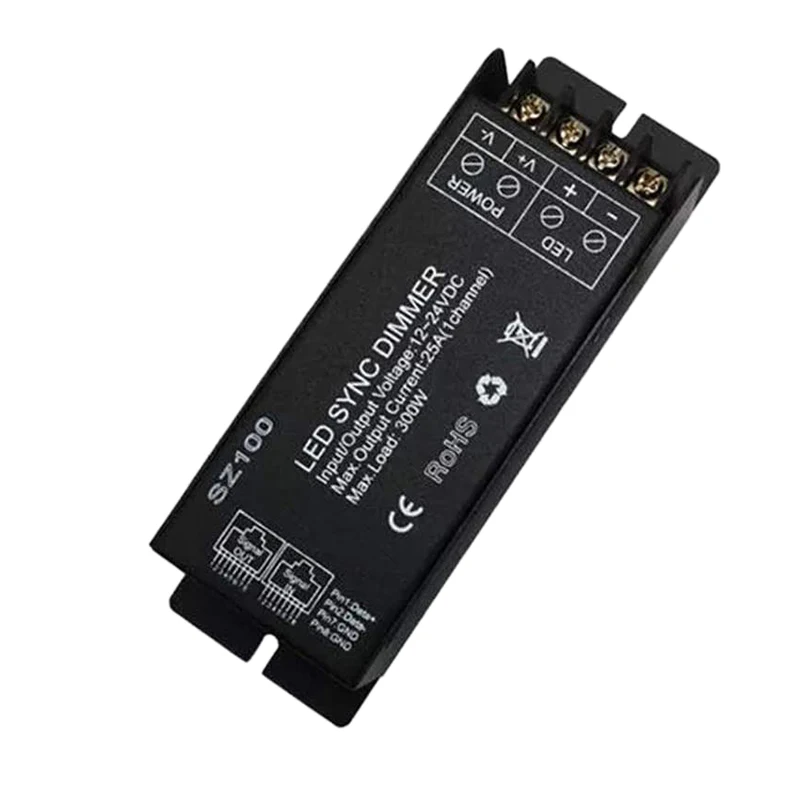

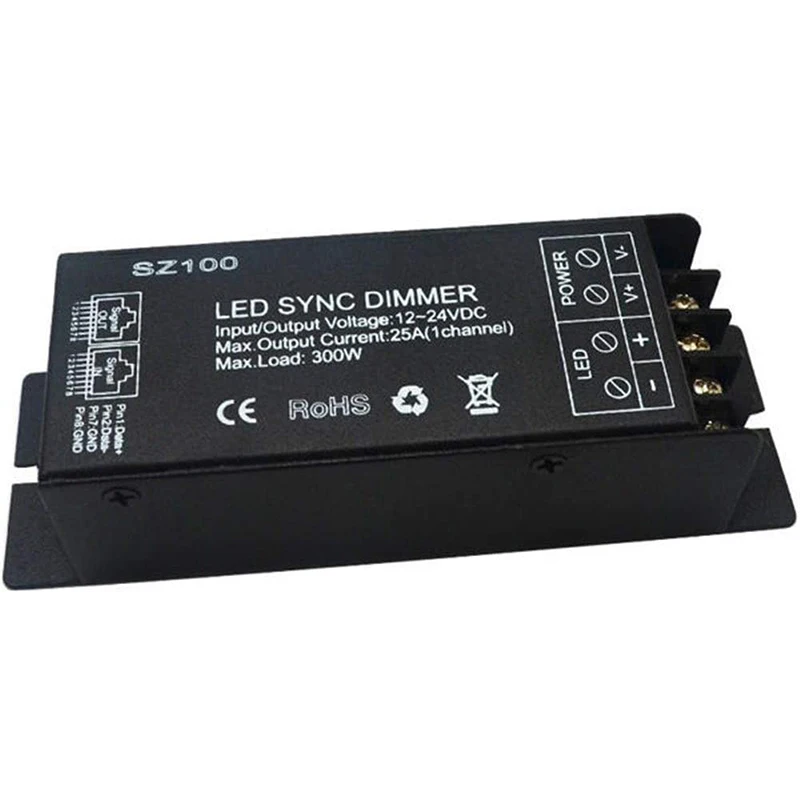

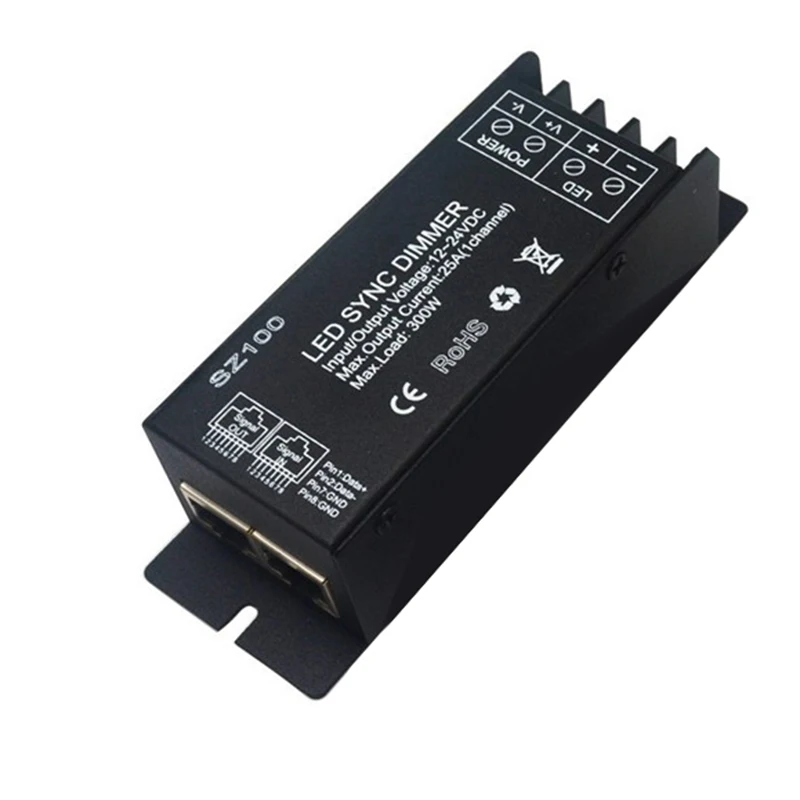

LED controller:
Working voltage:DC12-24V
Working temperature:-20-60℃
Output power:12V less than equal 300W, 24V less than equal 600W
Output current: less than equal 25A*1channel

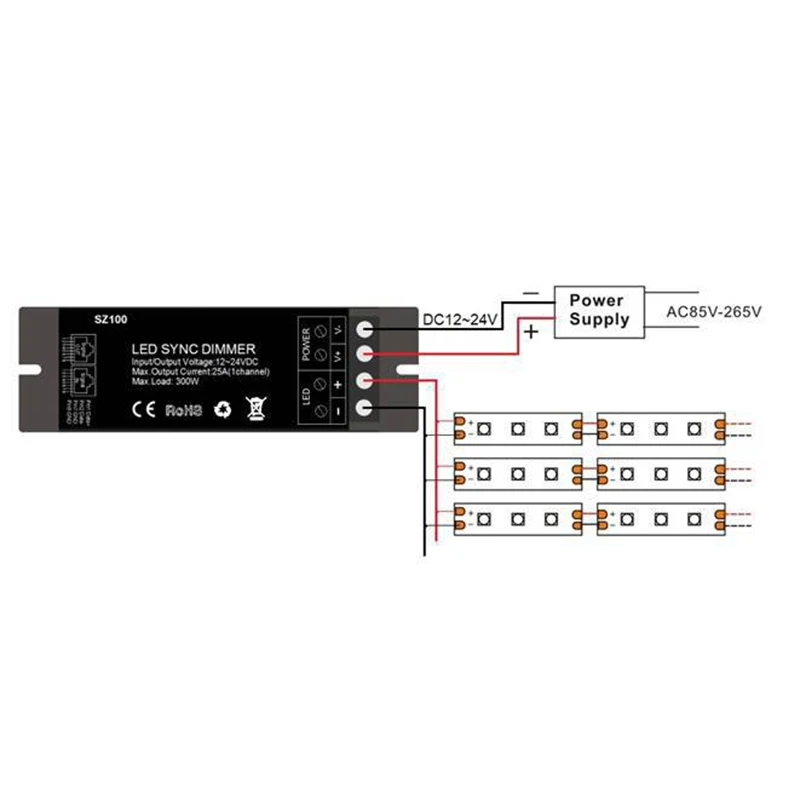

Connecting mode:common anode
Output gray:256 levels
Frequency:433.9MHz

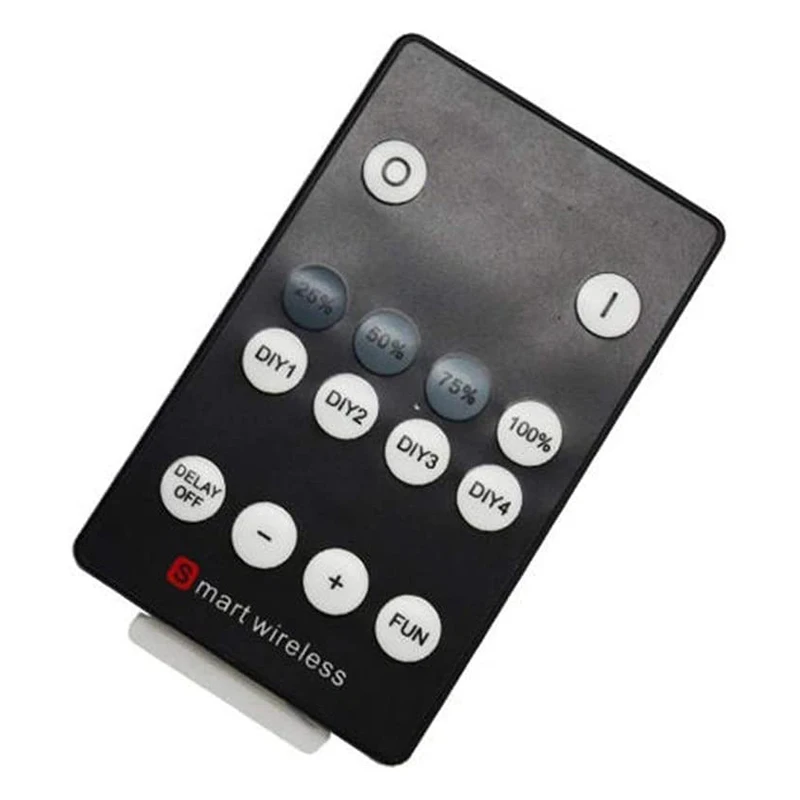

Remote controller:
Working voltage:DC12-24V
Working temperature:-20-60℃
DIY range:brightness 3%-100%
Memory function:yes
Why lamp does not light after power:
(A)Power cord is not properly connected, or there is not output switching power supply.
Connect the power cord properly or replay the power.
(B)Lamp power cord is not connected or short circuit.
Connect lighting power cord.
size:127*41*32mm
Material:metal
colour:black

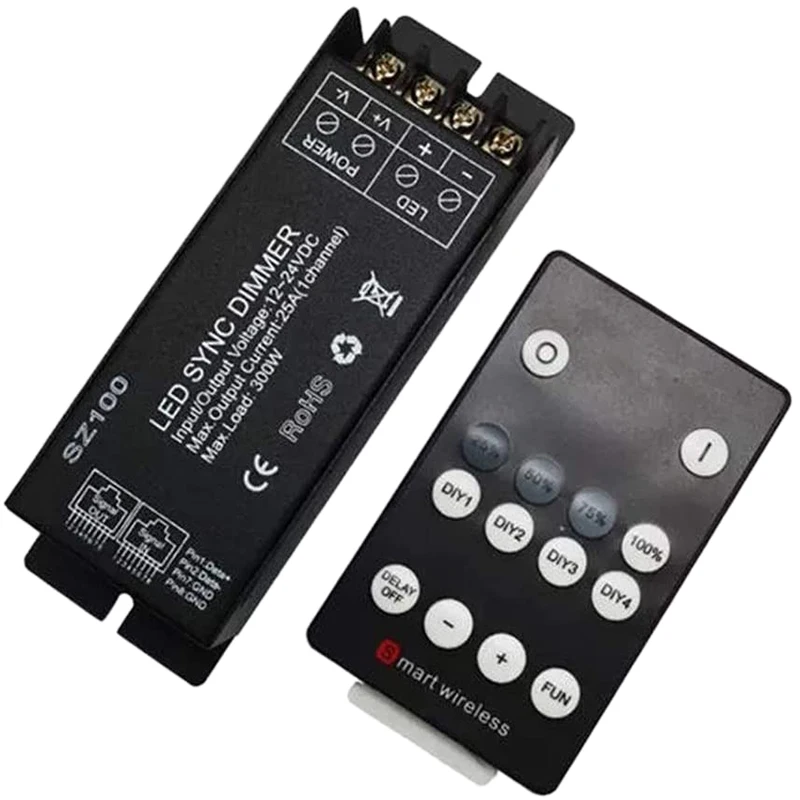

Package Contents:
1 * LED Controller
1 * Romote Controller
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
