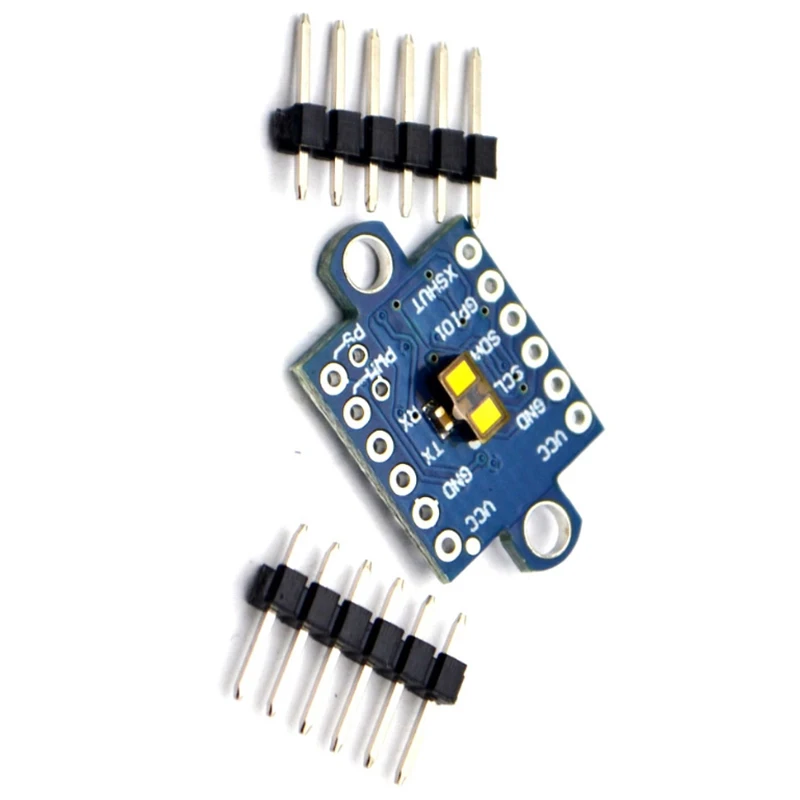

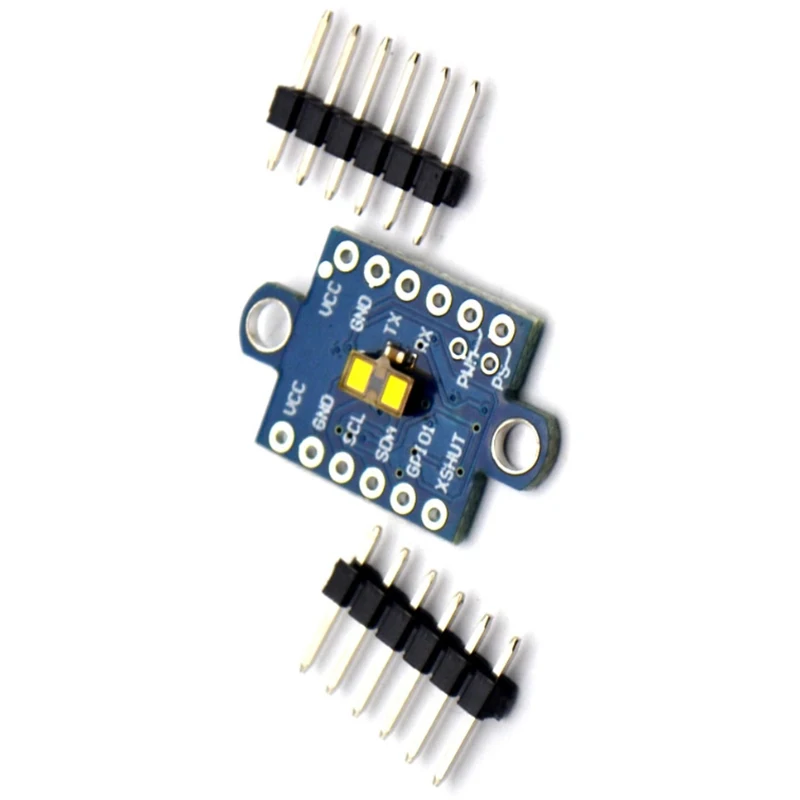

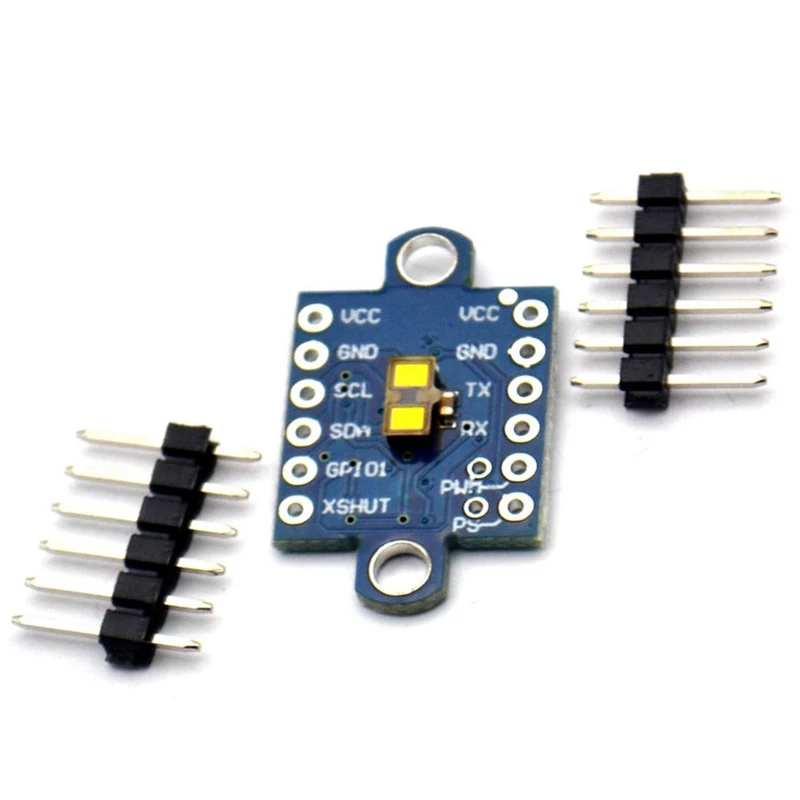

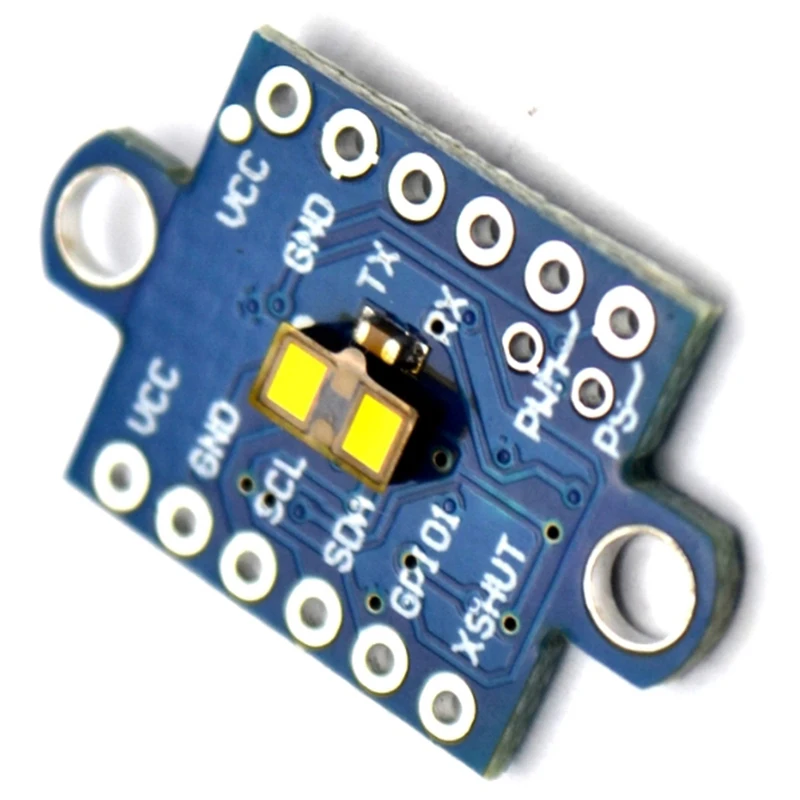

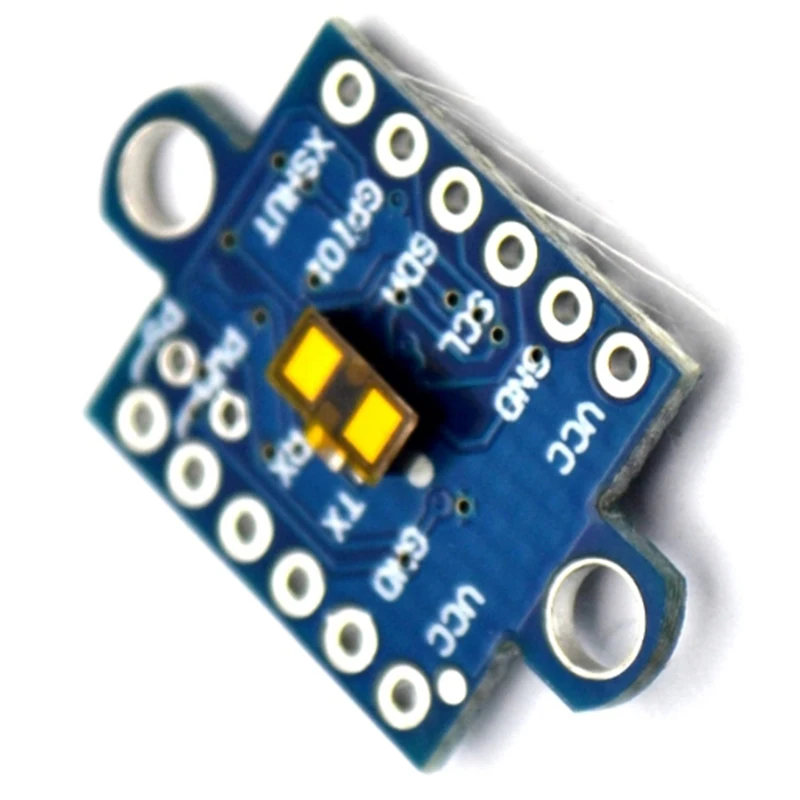

GY-53-L1X VL53L1X TOF Time-Of-Flight Distance Sensor Module |

GY-53-L1X VL53L1X TOF Time-Of-Flight Distance Sensor Module |

color: blue
Material: plastic, metal
GY - 53 - VL53L1x isGY - 53 VL53L0X upgrade version,
Can farther, faster, better anti-jamming.
GY - 53 - VL53L1x ToF time-of-flight laser-distance sensor module PWM output VL53L1x + stm32 serial port
Easy to use, save complex communication, eliminating the complex algorithm, direct output from data.(direct connect more easily with other single chip microcomputer and computer use USB to TTL module can computer view distance data).
GY - 53 - L1X infrared distance measurement module(VL53L1X + STM32)
The module type:GY - 53 - L1X
Using chips:VL53L1X + STM32
(internal power supply: 3-5 v low voltage)
Distance measuring range: 5 cm - 4 meters (dark, long distance mode)
size: 25 mm * 15.6 mm (including mounting holes)
Communication: a serial port output, PWM output, output IIC chip itself.
Provide a serial port and PWM read data code: stm32, arduino, 51 single chip microcomputer.
Provide PC software according to distance, direct connect usb to TTL module, computer to check the data.
The default not welding row needles
Note that due to the infrared will be affected by the outside light, under the bright light will affect the measurement range scope biggest.
The default configuration: serial port baud rate 9600, automatic output, high precision mode.
Please remove the sensor sticker.
If just using the chip model, don't need SCM work, only need to PS GND pin, it can be used to do simple modules.MCU
don't consume current does not affect the measurement.
Package Contents:1set module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
