Описание товара

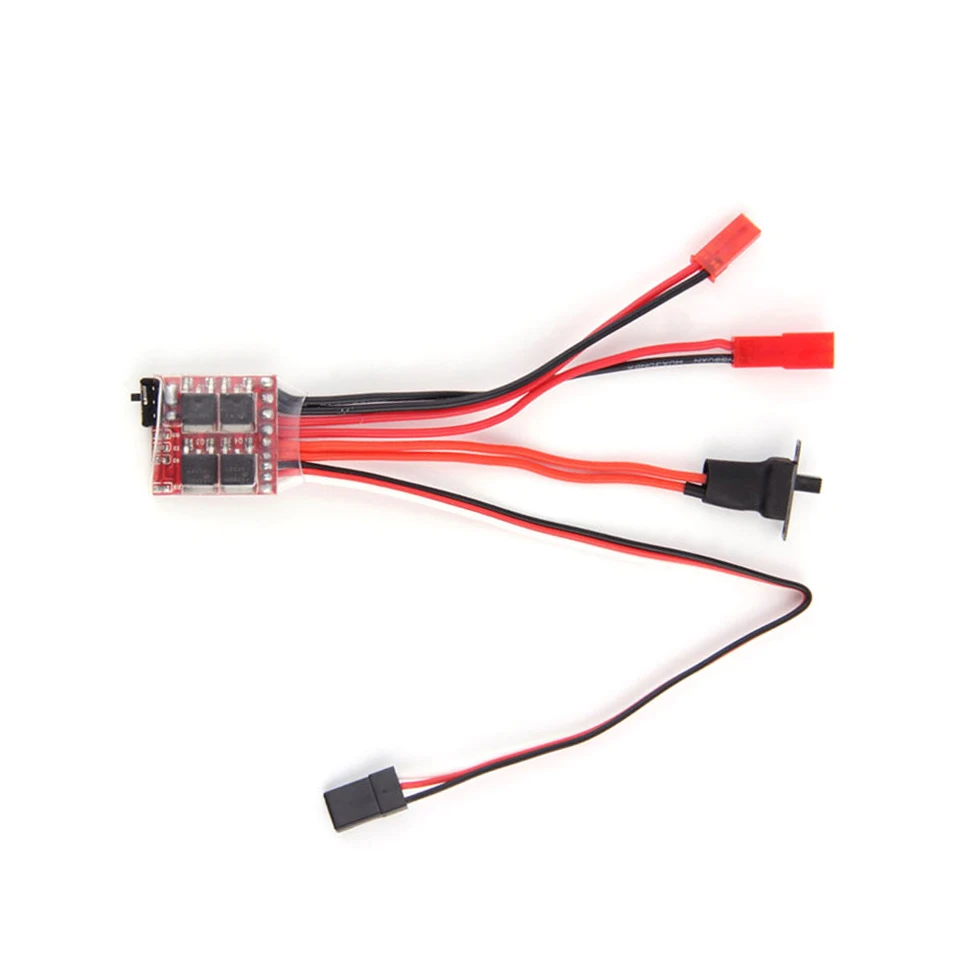

Mini Brushed ESC 20A 30A Brush Electric Speed Controller 4-8V w/ Brake Switch for Fixed Wing 1/16 1/24 1/28 RC Car WPL C24 Q64
Specification:
Item Name: brushless ESC
Working voltage: 3V-9.4V (can directly connect 2S LiPo battery)
UBEC output: 5.7V 1A(for receiver and servo)
Running modes: forward, reverse, brake
Power plug: JST
Input signal type: PPM
Driver frequency: 2KHz
Forward sustained/peak current: 30A/40A
Reverse sustained/Brake current: 20A/40A
Power supply: 2S LiPo battery, 4-7cell Ni-Mh/Ni-cd battery
Adapt motor: 130/180/260/280/380 brushed motor
Applicable: mini rc car, rc crawler, rc boat, fixed wing drone
Size: about 35x22x6mm

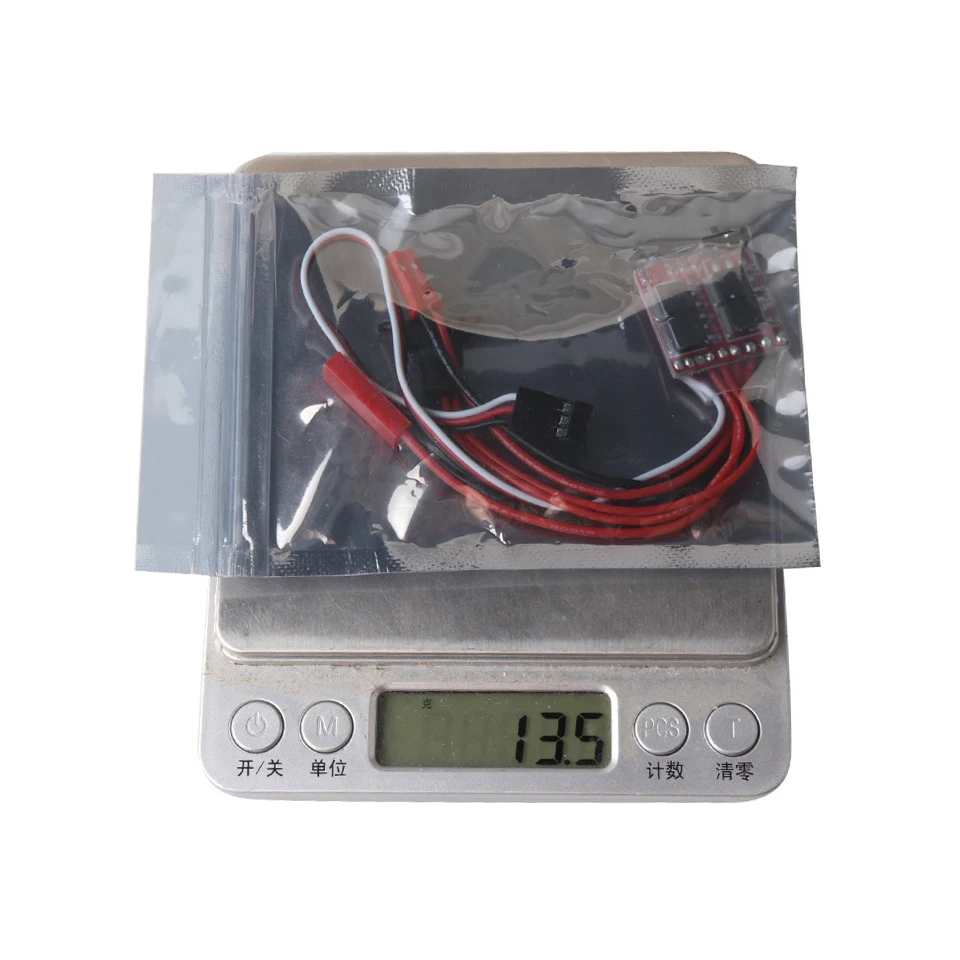

Weight: about 13g

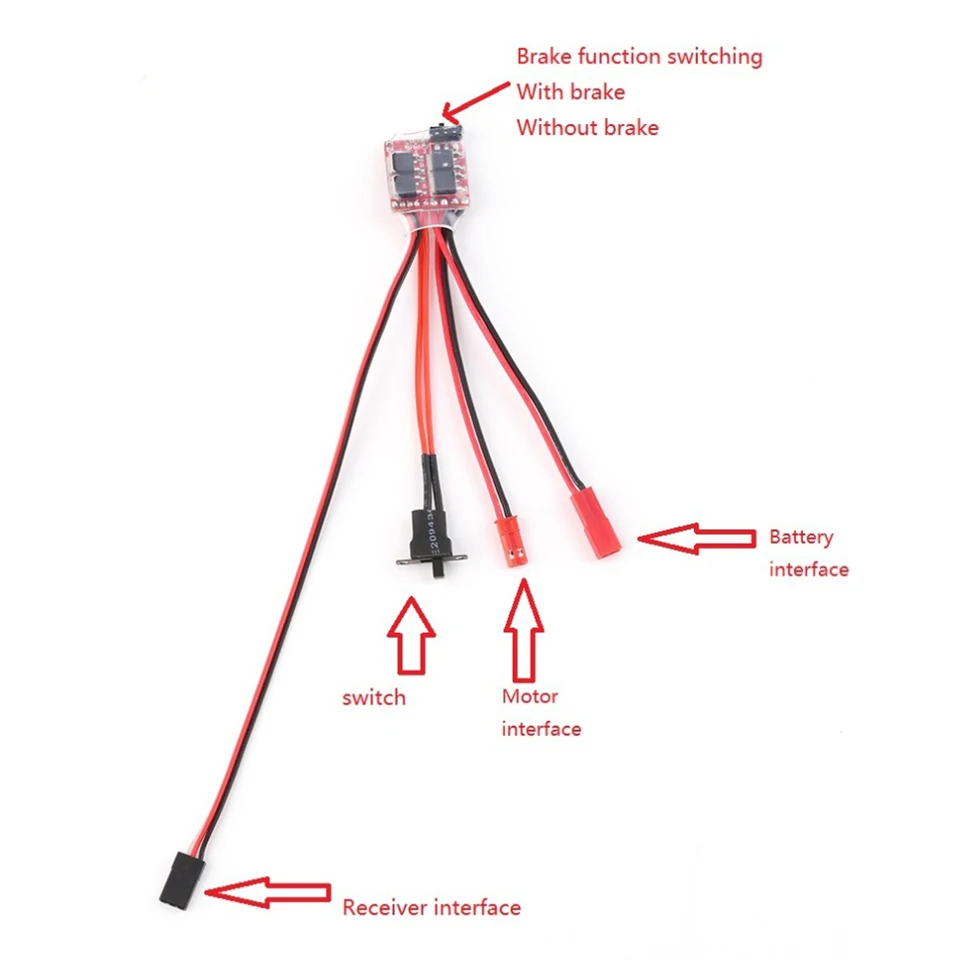

Wiring: Battery (must be red and black); Motor (regardless of + or -); Black red and white three lines: receiver ch2 (usually black outside, white near by sticker)
Adjustment: The ESC is the mid-range. The new control generally needs to fine-tune the throttle to make the ESC not light. It is the neutral position. The throttle adjustment is TH TRIM.
About brake:
1. bi-directional electric adjustment with the brake, the handle upward, the motor is moving forward, when the car wants to brake, the handle is down to the down position, when the motor is not moving, it is in the brake state. If you want to move forward or backward, handle it back and move forward or backward.
2. two-way electric adjustment without brakes, the handle is upward, the motor is moving forward, the handle is in the middle, and the natural speed stops. When the handle is down, the motor reverses and reverses, and the handle returns to the middle, and the natural speed stops. When the vehicle is moving forward, the handle is stopped or backward, the handle is down and the electric reversal is reversed; if the motor is to stop, when the motor is just reversed, the handle is back and the car stops.
Package included:
1 x 20A/30A brushed ESC (optional)
Notes by OK-Studio Store:
20A/30A brushed ESC only, others not included.
There may be some deviation due to manual measurement.
The colors deviation might differ due to different monitor settings, please kindly understand.
We provide you with the best product and service. If you have any problem, please let us know, and we will solve the problem ASAP.
