Описание товара
Please kindly read the following tips before purchasing.
1. The remote area delivery fee is not included in the price of the goods though some are free shipping. If your address belongs to the remote area for DHL,FedEx and so on, you have to pay extra 35.00 USD for it or contact us to choose other shipping methods. 2. About the invoice and declaration value, if you have specific requirements you can also contact us or leave a message in the order. 3. Please pay the tariff and pick up the parcel w hen it have arrived at the local customs in your country ,because we are not responsible for any customs duties and import tax .
Product Description:

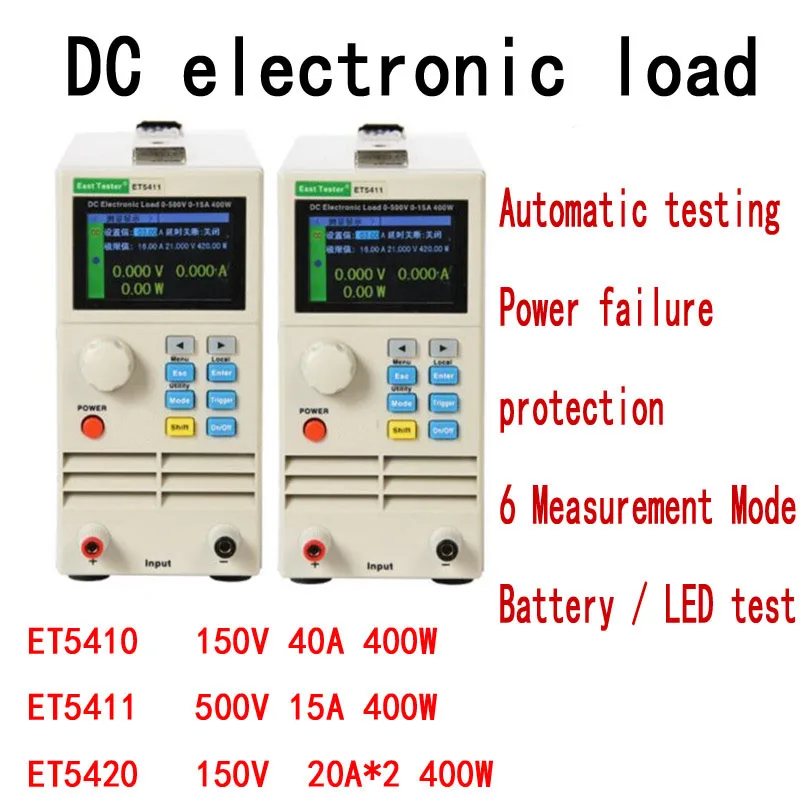

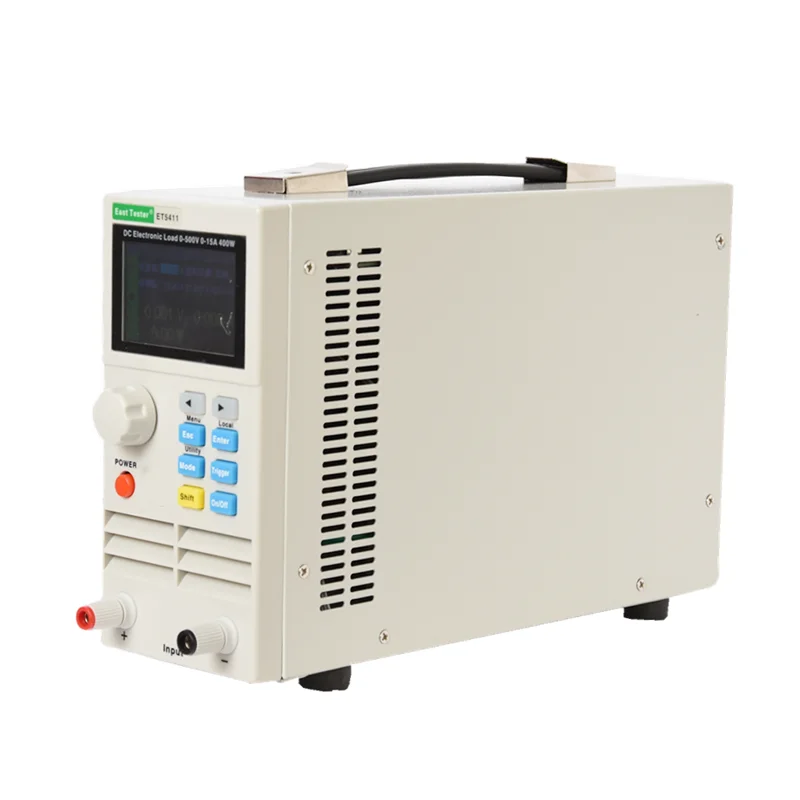

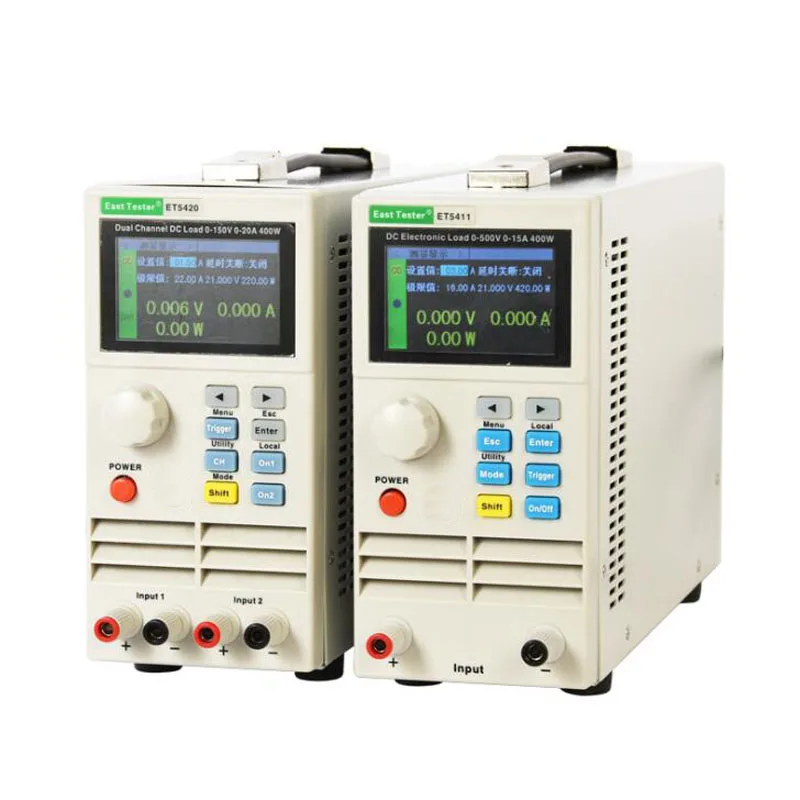

ET54 series single / dual channel programmable DC electronic load, high performance chip, high speed, high precision design, providing 1mV, 1mA resolution, superior performance, can be widely used in chargers, switching power supplies, linear power supplies, production testing Testing and development of batteries and other industries, research institutions, etc.
Features:
humanized design.
2.8-inch TFT LCD display, rich display content, support Chinese and English display;
Simple and convenient operation process, with intuitive interface display system, easy to use;
It has the function of key lock to prevent misoperation.
Main technical indicators:
|
Model |
ET5410 |
ET5420 |
ET5411 |
||
|
channel NO. |
Single channel |
double channel |
Single channel |
||
|
Rated input |
power |
400W |
400W |
400W |
|
|
input voltage |
0-150V |
0-150V |
0-500V |
||
|
Input current |
0-40A |
0-20A×2 |
0-15A |
||
|
Constant voltage
|
range |
0.1~19.999V |
0.1~19.999V |
||
|
Resolution |
1mV |
||||
|
accuracy |
±(0.05%+0.02%FS) |
||||
|
Constant current |
range |
0~3.000A |
0~3.000A |
0~3.000A |
|
|
Resolution |
1mA |
||||
|
accuracy |
±(0.05%+0.05%FS) |
||||
|
Constant resistance |
range |
0.05Ω~10Ω |
|||
|
Resolution |
16bit |
||||
|
accuracy |
±(0.1%+0.8%FS) |
||||
|
Constant power |
range |
0~400W |
|||
|
Resolution |
10mW |
||||
|
accuracy |
±(0.1%+0.1%FS) |
||||
|
Dynamic test function |
model |
CC |
|||
|
T1&T2 |
50μs~3600s;Resolution:1μs |
||||
|
accuracy |
0.1%+5μs |
||||
|
Up/down Rate |
0.000~0.3A/μs(current 0~3.000A) |
||||
|
Battery test function |
Voltage range |
0~120V |
|||
|
Discharge capacity |
240Ah |
||||
|
Resolution |
1mA |
||||
|
Test time |
1s~16h |
||||
|
Measuring range |
|||||
|
Voltage readback |
range |
0~19.999V |
0 ~500.00V |
||
|
Resolution |
1mV |
10mV |
|||
|
accuracy |
±(0.05%+0.1%FS) |
||||
|
Current readback |
range |
0~3.000A |
0~3.000A |
0~3.000A |
|
|
Resolution |
1mA,10mA |
||||
|
accuracy |
±(0.05%+0.1%FS) |
||||
|
Power readback |
range |
400W |
|||
|
Resolution |
10mW |
||||
|
accuracy |
±(0.1%+0.1%FS) |
||||
|
Scope of protection |
|||||
|
Over voltage protection |
> 150V Cut off |
> 500V Cut off |
|||
|
Over current protection |
> 40ACut off |
> 20A Cut off |
> 15A Cut off |
||
|
Overpower protection |
400W |
||||
|
Over temperature protection |
85° |
||||
short circuit protection
|
current(CC) |
≒3A |
≒3A |
≒3A |
|
|
voltage(CV) |
0V |
||||
|
resistance(CR) |
≒40mΩ |
||||
High-performance load:
The basic measurement modes of CC, CV, CR, CP, CC+CV, CR+CV are provided.
Provide professional battery test and LED test;
Dynamic test mode, can test the dynamic power output performance;
Scanning test mode can test the continuity of power output within a certain range.
List mode, which can simulate various loaded state changes;
Short circuit test for simulating load short circuit;
The measurement model of the far end can improve the measurement accuracy when the current is high.
Support external trigger input;
Built-in buzzer alarm;
Power off to maintain data storage function;
Remote operation can be carried out through RS-232 interface and USB Device interface.
With PS2 interface, support external keypad to set data values;
safety protection:
With overvoltage, overcurrent and overpower protection functions, overvoltage and overcurrent parameters can be set flexibly to effectively protect the load.
It has the function of secondary over-temperature protection to realize the double over-temperature protection of software and hardware.
It has the function of intelligent fan speed control, which can effectively reduce the working fan noise.
With output polarity reverse protection;
