SIM7600E-H SIMCOM MINIPCIE CAT4 LTE Module LTE-FDD module Guaranteed 100% New Original SIM7600+ USB Adapter +4g lte Antenna |

Mini PCI-Express MINI pcie pci express PCI-E Wireless WWAN to USB 2.0 Adapter Card with SIM Card Slot Module for Testing Tools

Support sierrawireless, Telit, cinterion, Ericsson, SAMSUNG, China domain, Datang and other brands 3G 4G card, for the Internet through the USB port and the module brush machine, debugging, testing and unlock.


The adapter has integrated with a SIM card slot and 1 or 2 WWAN antenna.The light will be on if it works well as the picture.

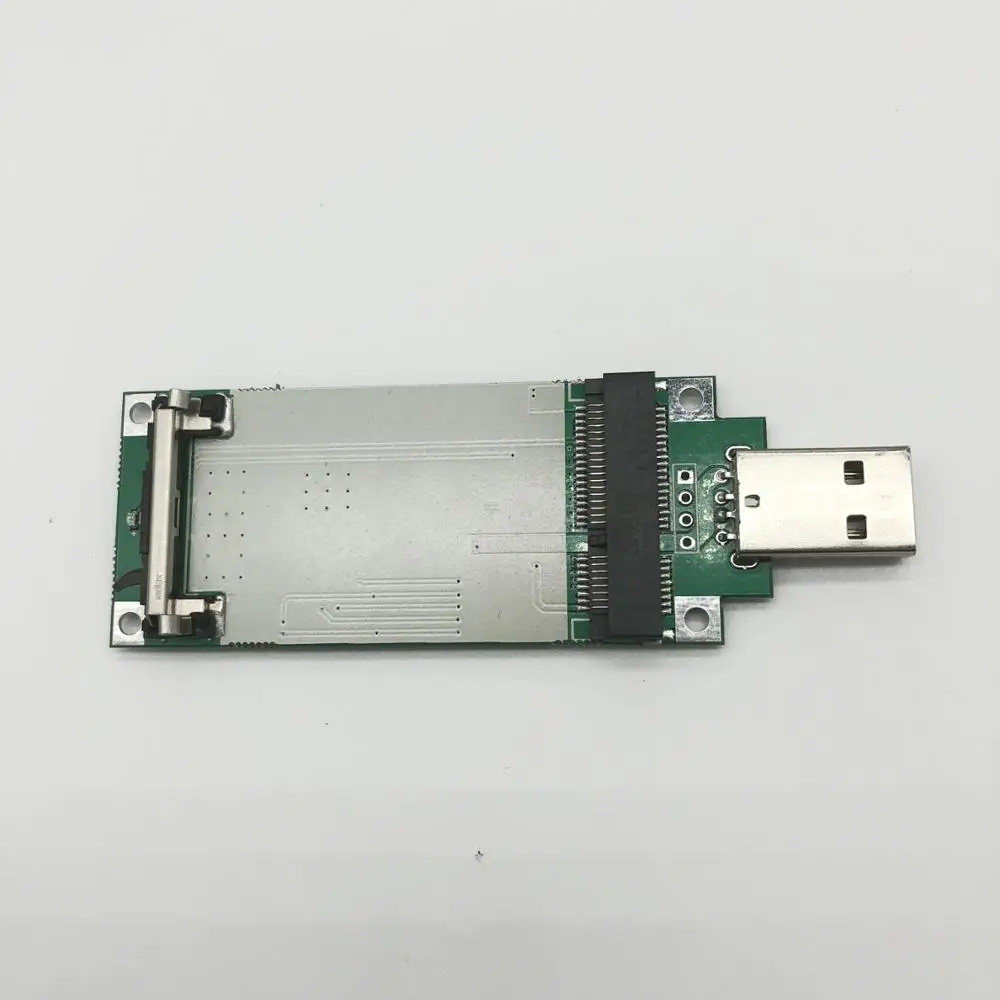

Mini PCI-E to USB Port 52PIN with SIM Slot Module.

Ideal for testing the WWAN cards. You don't need to break or open your laptop to test your WWAN modules.

has integrated with a SIM card slot and 1 or 2 WWAN antenna It can work with most of WWAN modules.

Very easy to use. Don't need extra drivers. Just make sure you have installed the drivers & software for your WWAN card.

It work with desktop computer and laptop computer with WINDOWS OS (XP & VISTA).

With SIM/UIM card slot at the switch interface, it enables you to use 3G module directly when SIM card installed.



2.New version of the product features:

1. There are fixed modules of the lock, so that the user easy to install and improve the reliability and stability of the module work. All connectors and tail fork are used molex original import connector.

2.PCB added four screw holes, so that this adapter can be used for small internal control cabinet.

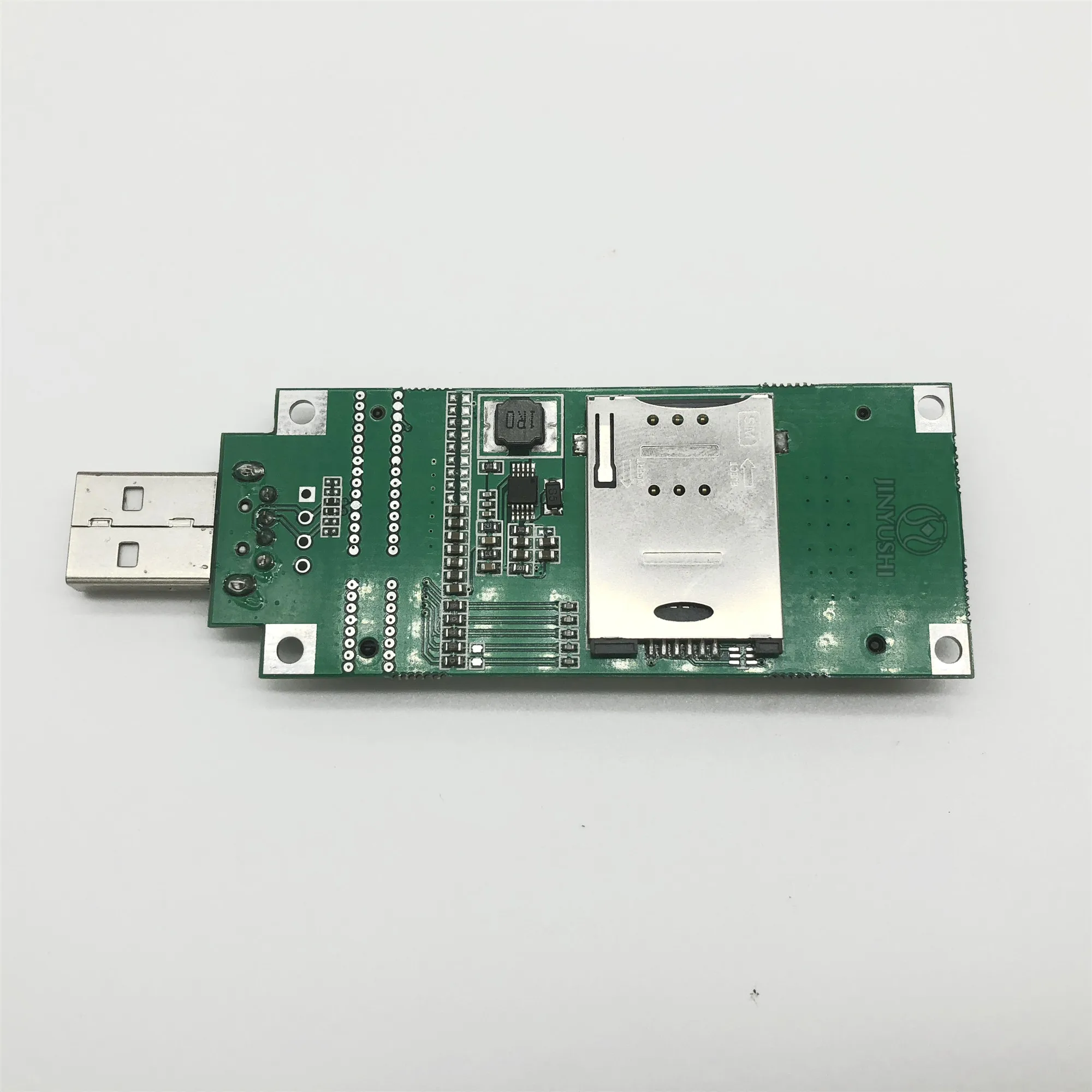

3.SIM card on the side. This product has two options, the side of the ordinary plug SIM card holder, side plug from the bombing SIM card seat. So that users can easily disassemble SIM card. Gently press the SIM automatically pops up.

4. Add USB 4-wire input bay, can be directly welded USB cable. Circuit protection more and more comprehensive.

How it works: Mini PCI-E52pin interface defines USB signal and 3.3V voltage, the adapter is the USB interface 5V voltage through the LDO chip is converted to 3.3V, supply module and USIM / SIM work, the signal bus for the USB signal.



3.Specification Description:

1. Product size specifications: 65 * 31mm

            2.Mini PCI-E design conforms to the 1.30 version industry specification

            3. USB design conforms to USB 2.0 industry specification, backward compatible with 1.1 specification

            4. This adapter is suitable for full-height (30 * 50-51mm) WWAN / 3G / WiFi modules (USB bus)
         5. Live status LED real-time display

         6. The product does not need any software drivers

Special statement: This product is the adapter board, MINI PCI-E into USB, not 3G card, this product does not contain 3G 4G module, if there is no 3G 4G module, is not the Internet! The transfer interface is mainly used for DIY or test module, this component does not contain the shell does not contain the antenna.

4.Compatibility list:

HuaWei: EM730/EM770/EM770V/EM770W/MU609/MU709/MU909/MU709S-6/ME909S-120/ME909U-521/MU909-821/

Sierra Wireless:MC8755/MC8775/MC8780/MC8781/MC8790/MC8090/MC9090/MC8795V//MC8704/MC8705/MC5725/MC5720/MC8355//MC7710/MC7700/MC7750/MC7304/MC7455/MC7430/MC7354/MC7330 and so on

SIMCOM：sim7100,sim7600 Series all mini PCIE Modules such as SIM7100A/SIM7100C/SIM7100E/SIM7100CE /SIM7600C/SIM7600CE SIM5360A/SIM5360E

Ericsson:F3507G/ D E  L L 5530

Novatel Wireless:EU850D/EU870D/ D E L L 5520

Option NV:GTM378/GTM380/GTM382

ZTE：MF210 MF210V1 MF210V2 AD3812 MC2716 ME3620 ME3630 ME3760 ME3610 等等。

LONG SUNG：U8300 U8300W U8300C C5300V U7500E and so on

SIMCOM：sim7100,sim7600 Series all mini PCIE Modules

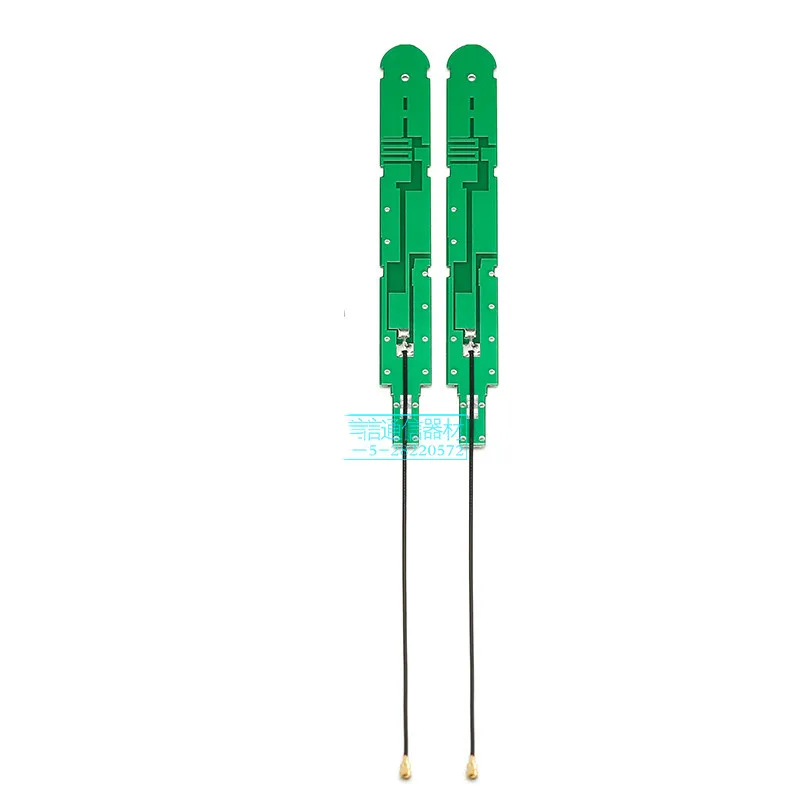

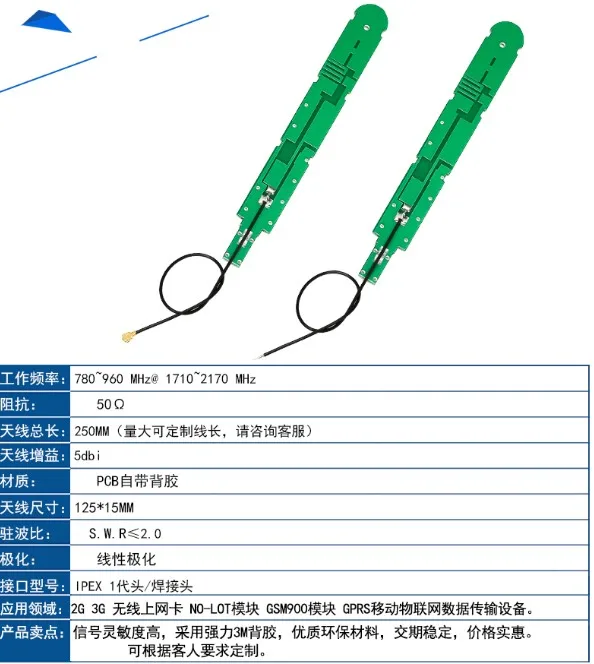

Information for the LTE Antenna as below:

Package list 1: PCIE to usb adapter *1pcs

Package list 2: 4G LTE Antenna used in SIM7600E-H *2pcs

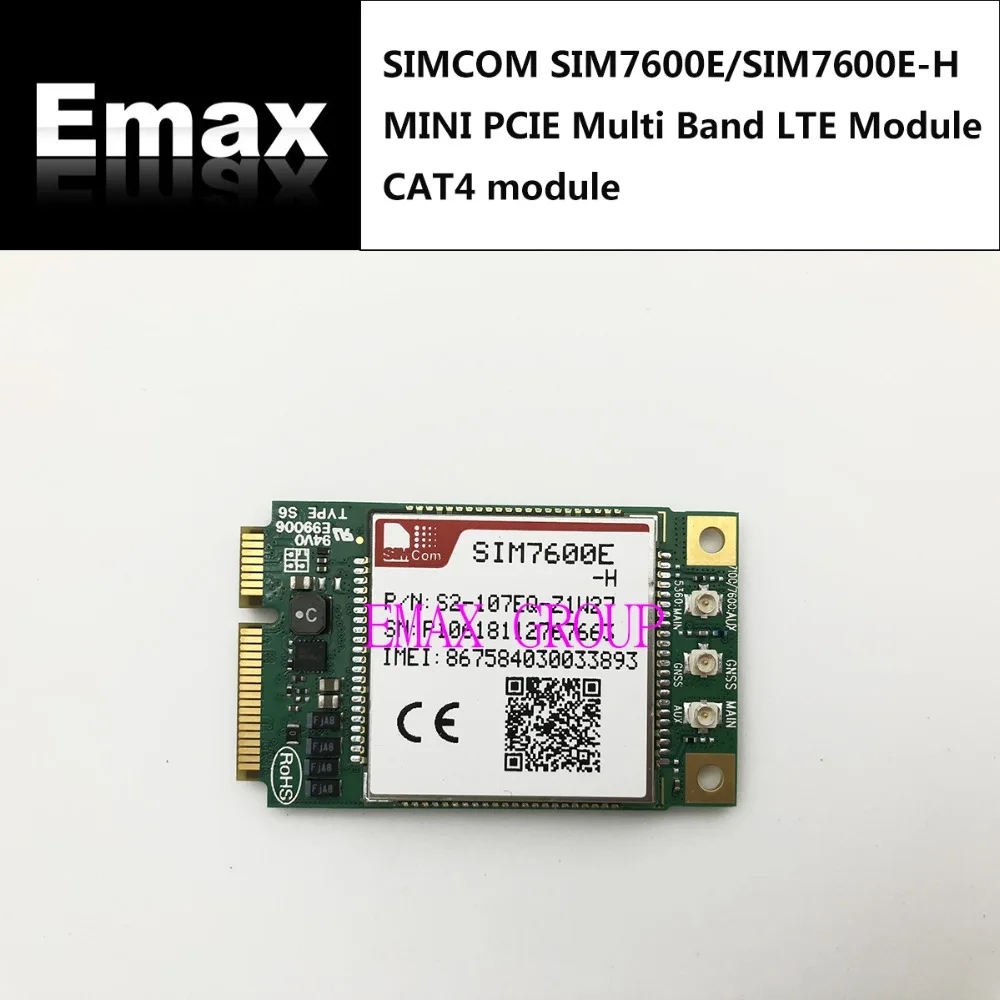

Package list 3: SIMCOM SIM7600E-H PCIE *1pcs
