Topton 10th GEN New Fanless Mini Intel i7 10710U 10510U Desktop PC Windows 10 2*DDR4 M.2 NVMe+2.5''SATA 4K HTPC Nettop HDMI DP |

Key Features

CPU

1. 10th Gen 14nm CPU Intel Core i7 10710U 6 cores 12 threads 1.1GHz up to 4.7GHz 12MB cache TDP 15W Intel UHD Graphics.

2. 10th Gen 14nm CPU Intel Core i7 10510U 4 cores 8 threads 1.8GHz up to 4.9GHz 8MB cache TDP 15W Intel UHD Graphics.

RAM

Support2*DDR4-2133/2400/2666 non-ecc laptop ram Maximum 64GB

Storage

Support 1*mSATA SSD+1*M.2(NVMe) SSD+1*2.5'' SATA HDD/SSD installation together

Graphics

Intel UHD Graphics, support ultra HD 4K resolution

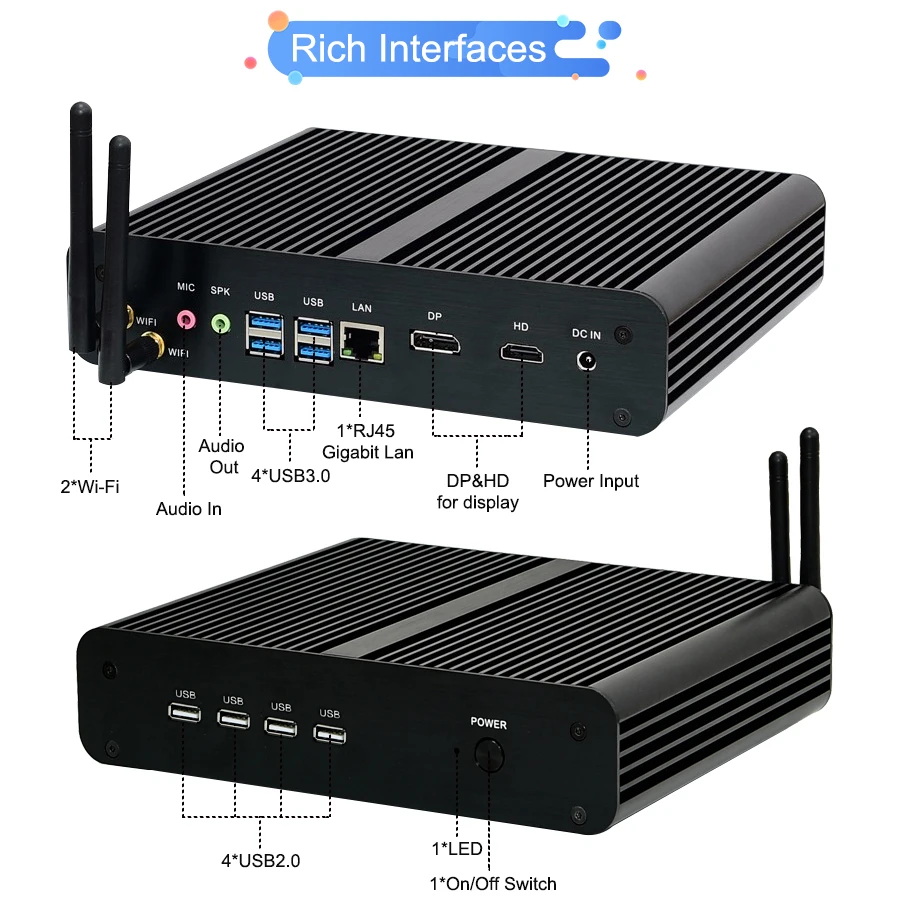

I/O

Mic; Speaker; 4* USB 3.0 port;4* USB 2.0 port; 1* RJ45 Gigabit LAN Port; 1* VGA(DP); 1* HDMI; 1* DC In;

Operating System

Windows10, Linux Compatible, OpenELEC

Language

Multi Language

Feature

Fanless system design, without noise

USB port

4*USB 3.0+4*USB 2.0

Wireless

802.11.b/g/n,300M 2.4G/5G dual band WiFi with 2 Antennas

HD Output

1* HDMI port, 1*DP port, support HDMI+DP dual display

LAN port

1* Gigabit Realtek RJ45 Lan speed up to 1Gbps

Power and Environment

Input

DC100-240V AC/50-60Hz

Output

DC 12V-19V~3A/5A

Operating Temperature

0/70 Centigrade (32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Energy-saving

Support Energy-saving technology, Speedstep

64 bit computing

Support 64 bit computing

Virtualization

Support Virtualization technology

Hyper-threading

Support Hyper-Threading

Consumption

15W~28W

Physical Properties

Material

Brushed Aluminum Alloy

Weight

NW:2.0Kg   GW:2.5Kg

Package Content

1* Mini PC; 1* power adapter; 2* Antennas etc

Warranty

30 days free defective replacement and 3 years free repair
