2 phase hybrid Nema 34 servo stepper motor and driver kit 4.5Nm 6A step AC50-80V LC86H280+LCDA808H | Обустройство дома
История изменения цены
*Текущая стоимость 15 733,07 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-17-2025 | 19981.93 руб. | 20381.48 руб. | 20181 руб. |
| Jul-17-2025 | 16205.10 руб. | 16529.27 руб. | 16367 руб. |
| Jun-17-2025 | 19666.98 руб. | 20059.43 руб. | 19862.5 руб. |
| May-17-2025 | 19509.97 руб. | 19899.61 руб. | 19704 руб. |
| Apr-17-2025 | 15576.80 руб. | 15888.19 руб. | 15732 руб. |
| Mar-17-2025 | 19194.28 руб. | 19578.60 руб. | 19386 руб. |
| Feb-17-2025 | 19037.14 руб. | 19418.93 руб. | 19227.5 руб. |
| Jan-17-2025 | 18880.80 руб. | 19258.81 руб. | 19069 руб. |
Описание товара
Product Description

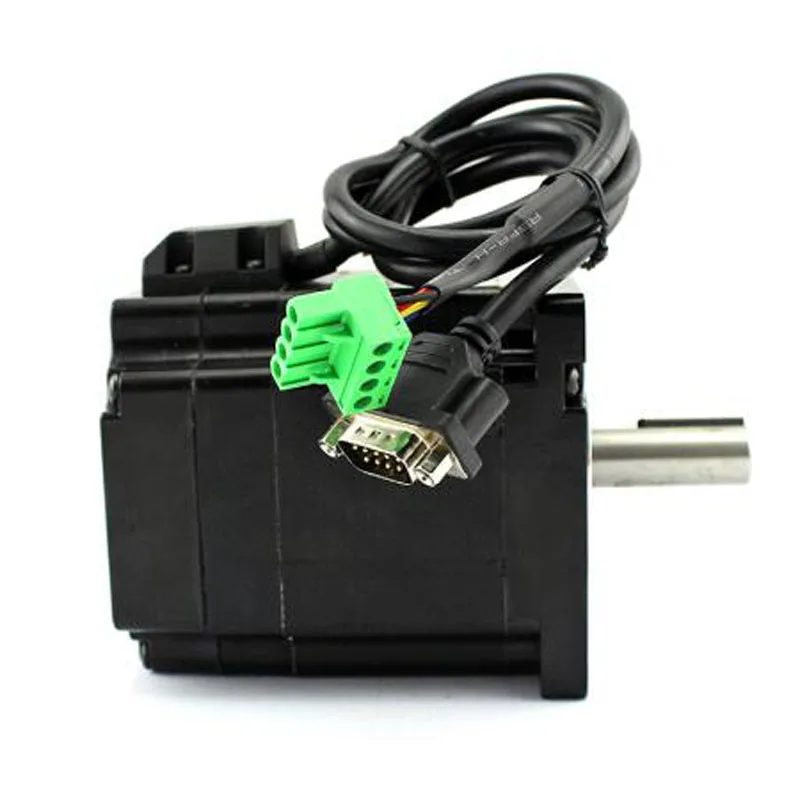

Motor LC86H280 Information
Lichuan’s LC-H2 series 2 phase closed loop stepper motors,they are are designed to match with Lichuan’s 2 phase easy servo drivers including the LCDA257S,LCDA86H and LCDA808H. They are available from NEMA23 to NEMA34 (57,60mm and 86mm) with holding torque from 2Nm to 12Nm. LC86H280 is NEMA34 4.5Nm closed loop stepper motors.1000-line optical incremental encoders.They all have encoder feedback, high speed, high precision.
2 Phase Nema34 Closed-loop Stepper Motor Specifications
|
Motor model |
Step/angle |
Length |
Holding torque |
Current |
Rotor inertia |
Encoder line |
Lead wire |
Weight |
|
° |
mm |
N.M |
A |
g.cm2 |
PPR |
NO. |
Kg |
|
|
LC86H260 |
1.8 |
60+22 |
3 |
6 |
1100 |
1000 |
4 |
2.0 |
|
LC86H268 |
1.8 |
68+22 |
3.5 |
6 |
1400 |
1000 |
4 |
2.2 |
|
LC86H280 |
1.8 |
80+22 |
4.5 |
6 |
1800 |
1000 |
4 |
2.5 |
|
LC86H298 |
1.8 |
98+22 |
6.5 |
6 |
2800 |
1000 |
4 |
3.3 |
|
LC86H2120 |
1.8 |
120+22 |
8.2 |
6 |
3600 |
1000 |
4 |
4.0 |
|
LC86H2128 |
1.8 |
130+22 |
10 |
7.5 |
4200 |
1000 |
4 |
4.5 |
|
LC86H2160 |
1.8 |
156+22 |
12 |
7.5 |
5400 |
1000 |
4 |
5.4 |
2 Phase Nema34 Closed-loop Stepper Motor Size and Wiring Method

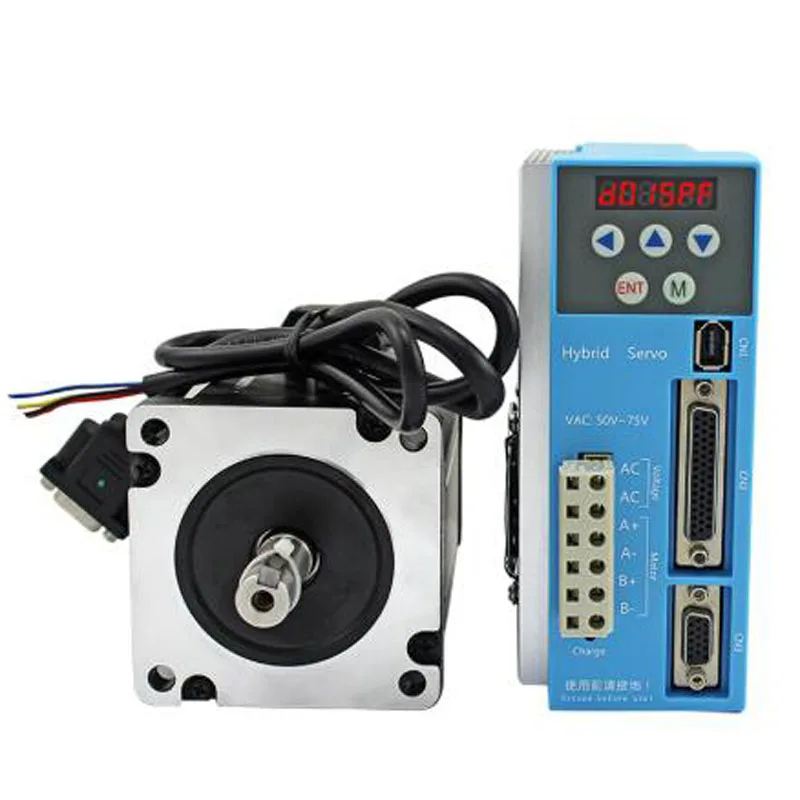

Driver Instroduction:
Lichaun series easy servo drives are based on the latest DSP technology and Lichaun's advanced control algorithm of combing brushless servo and stepper systems. They are featured with closed position loop, offering huge torque, excellent acceleration & quick response,no torque reservation,high standstill stiffness,extra low noise & heating, smooth motor movement,no hunting,noover shooting for almost zero settling time,and no tuning for almost all applications.
Due to combining the features of both brushless servo drives and stepper drives,Lichuan series easy servo drives are suitable for both upgrading conventional stepper systems, and replacing brushless servo systems which have closed loop and high torque requirements.
Clients have successfully implemented LCDA808H driven easy servo systems in applications such asdesktop CNC routers, small CNC mills, laser cutters / engravers, dental mills, electronic assembly & inspection equipments, labeling equipments, pick & place machines, X-Y tables, scientific instruments.
Function:
Voltage input range: 50~80VAC
Max peak current:8A
Subdivision:200~51200ppr
Pulse mode:pulse+direction,CW,CCW
Pulse response frequency:0~200KHz
Closed-loop controls to eliminate lose of steps, stall or movement synchronizatio
High starting torque and quick response
Smooth motor movement with no vibration
Excellent respond time, quick acceleration, and very high high-speed torque (30% over open-loop)
Load-dependent dynamic current output from drive to motor to significantly motor heating deduction
Isolated control inputs of Pulse, Direction and Enable
No tuning for plug and play setup
On-board HMI for easy setup and configuration
In-position and fault outputs to external motion controllers for complete system controls.
Over voltage, over-current, and position-error protection
Servo control for stepper motors with encoders up to NEMA 42
