Overview

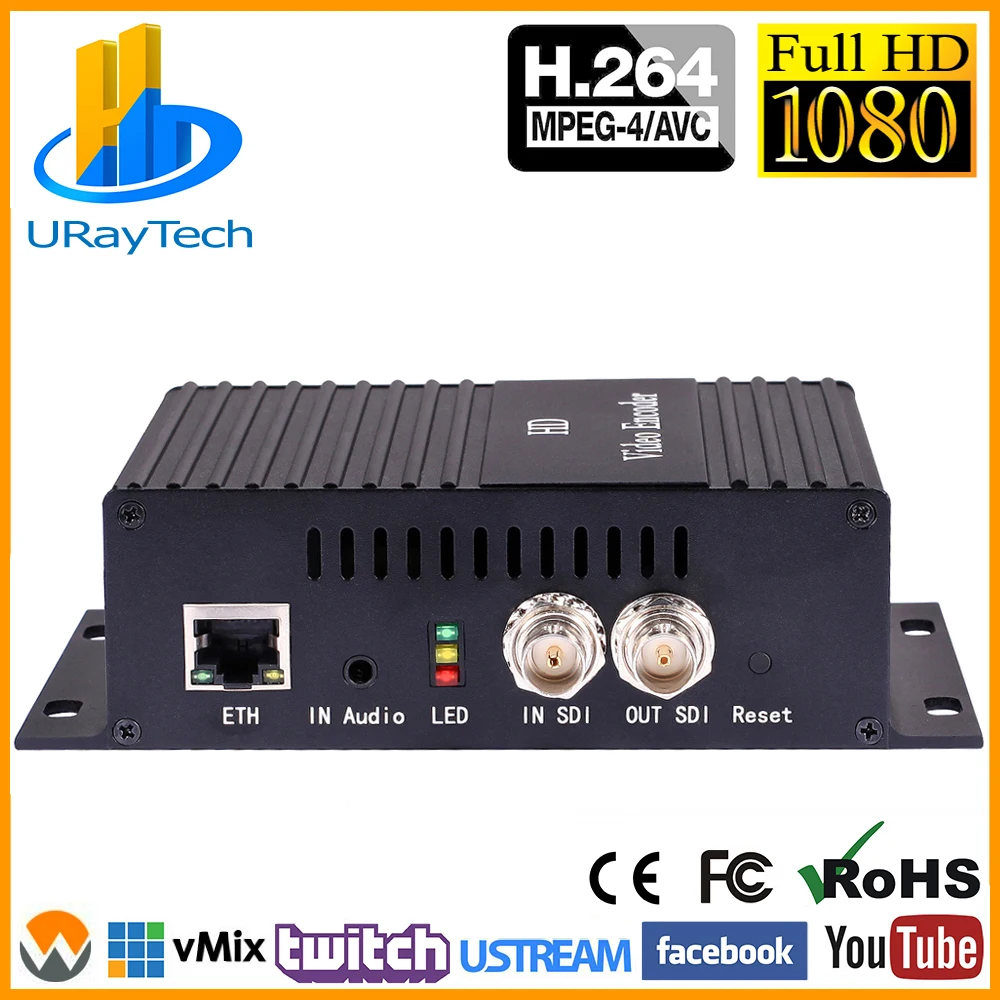

URaytech video encoder(Model No. USE264-1L) is a HD audio and video encoding device with powerful functionality.It supports SDI(audio build-in)and external stereo audio(3.5mm jack)input, H.264 video encoding and AAC /MP3 /MP2 /G.711 audio encoding, 2 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol.Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

If you inputexternal audio,you canchoose SDI embedded audio or external audio as output audio.

We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development.Meanwhile, we can provide manyfree servicesuch as logo printing, language customization, firmware development etc.

Typical Connection

The Feature

•   Embedded HiLinux system, stable and effective

•   Support wide area network remote management(via port forwarding)

•   Support MPEG-4 /H.264 AVC video encoding

•   Support AAC,MP3, MP2, G.711 audio encoding for selection

•   The bitrate of output video stream is adjustable from 16kbit/s to 12mbit/s(CBR or VBR bitrate controlling mode)

•   Support HTTP, SRT, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol

•   Support insert image, logo, text on the output video stream

•   Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)

•   Support different protocol transmission for the 2 output video streams

​•   Supportchoose SDI embedded audio or external audio as output audio

​•   Support1 channel SDI local loop out

•   Support upgrade device by upgrading new firmware

•   Provide SDK and API and CGI for secondary development

•   Network interface full-duplex mode with 1000M speed

•   English webpage operating interface, language is customizable

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

•   Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack

•   Provide many kinds of customization(logo print, languagecustomization, firmware or function customization etc)

•   Multi platforms live streaming

This SDI encoder is easy to be operated. Turn your SDI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes.It supports multi-stream output, 2 video streams output simultaneously.You can push multi video stream to multi-platform at the same time.

•   Multi type video stream URL play

Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.

Control Panel

1.  Status Display

2.  Preview

3.  Network Setting

4.  Video Stream Setting

5.  Audio Setting

6.  OSD Setting

7.  Color Setting

8.  Image Setting

9.  Smart Encoder Setting

10.  ONVIFSetting

11.  Firmware Upgrade
