New Display Solar TPMS Car Tire Pressure Monitoring System Alarm Auto Smart Control External Wireless Tyre Pressure Sensor

Notice: Please push left button over 3 minitus to turn on monitor, if it does not work, please try again after charging.

Parameter

1.Monitoring system body

• Operating voltage: 3.7-5V

• Storage temperature:-30°C-90°C

• working temperature:-30°C-85°C

• RF Emission frequency:433.92MH±50KHz

• RF Signal sensitivity:-90dbm

• Display mode:LCD Color

• Bright screen current:≤6mA

• Black screen current:≤4mA

• Size:85*95MM

2. External Sensor

• Battery life:24 months

• Operating voltage:2.1-3.6V

• Storage temperature:-30°C-90°C

• working temperature:-30°C-85°C

• Temperature resolution:±2°C（25°C）

• Pressure range:0-5.0Bar

• Pressure resolution:±0.1Bar

• Waterproof grade:IP67

• Transmitted power:≤10dBm

• Emission frequency:433.92MHz

• Size:21mm*17mm

• weight:≤8.0g

• lithium battery:CR1632（Model）

Features:

• Solar power charging;

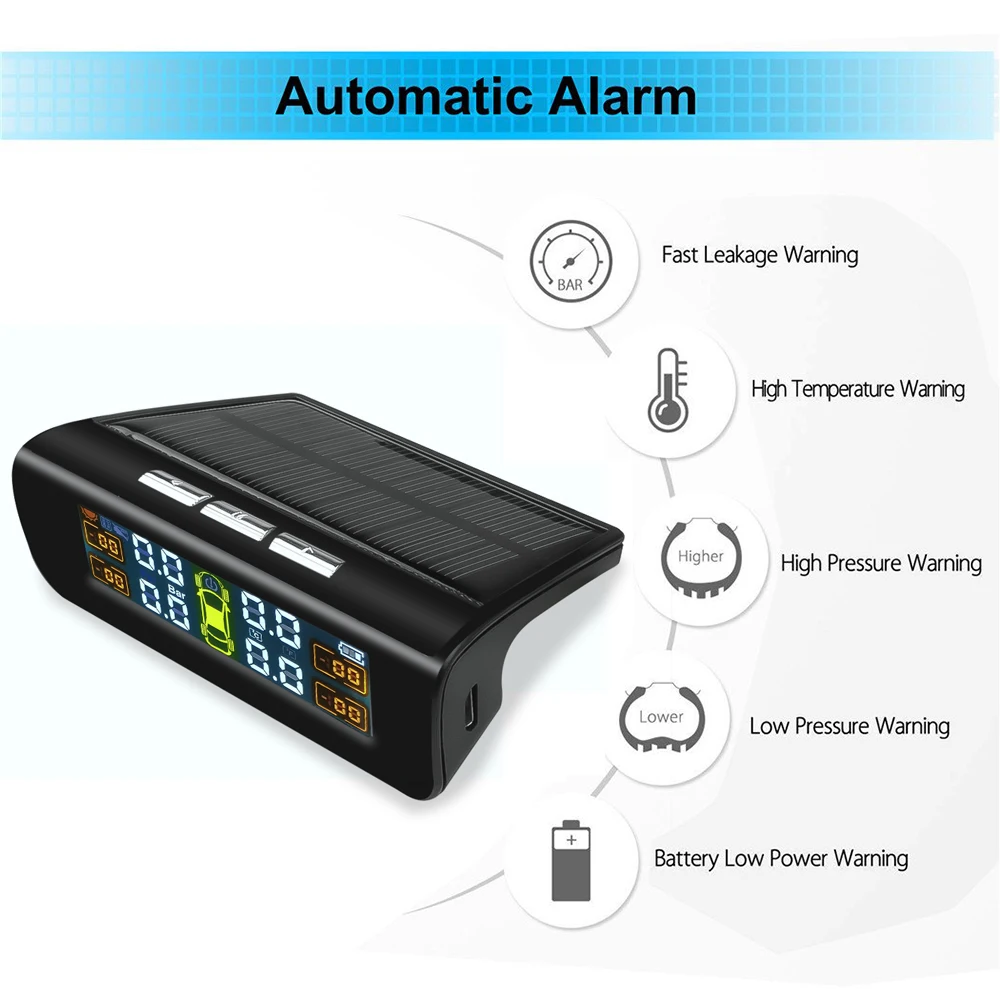

• High and low pressure, leak alarm;

• LCD display screen, Simple user interface

• High accuracy, Using Freescale imported chips;

• Real-time monitoring tire pressure and temperature;

• Smart start: parking automatically sleep, the car starts automatically wake up.

• Two units (PSI / Bar) changeable, you can set the one you like.

• Sensors/' battery Changeable

• Solve the sensor does not work:Match sensor(Vent)

• Long press //'//'menu key//'//' 3 seconds to //'//'U/S//'//',then short press //'//'menu key//'//' several times to enter//'//'LID//'//' interface,it shows ID of four tires and car icon.

• Short press //'//'left/right select key//'//' to learn ID opertion.Select tire you plan to learn ID of sensor by press//'//'menu key//'//',default setting is //'//'FL//'//'>//'//'FR//'//'>//'//'RR//'//'>//'//'RL.

• When tire is selected,display new //'//'ID//'//' in receiver after active sensor///'s ID(internal sensor active by charging/vent tier).

• Do the same operation to match other three sensor.When all sensor are matched,short press //'//'menu key//'//' to save and go to //'//'Ex//'//'.

• Solar power charging

• LCD displaying

• Adhere to windscreen for installation

• Operating frequency: 433.92Mhz ± 50KHz

• Operating voltage: 3.7-5 V

• Working temperature: -20 ℃ -75 ℃

• Adhere to windscreen for installation

• Operating frequency: 433.92Mhz ± 50KHz

• Operating voltage: 3.7-5 V

• Working temperature: -20 ℃ -75

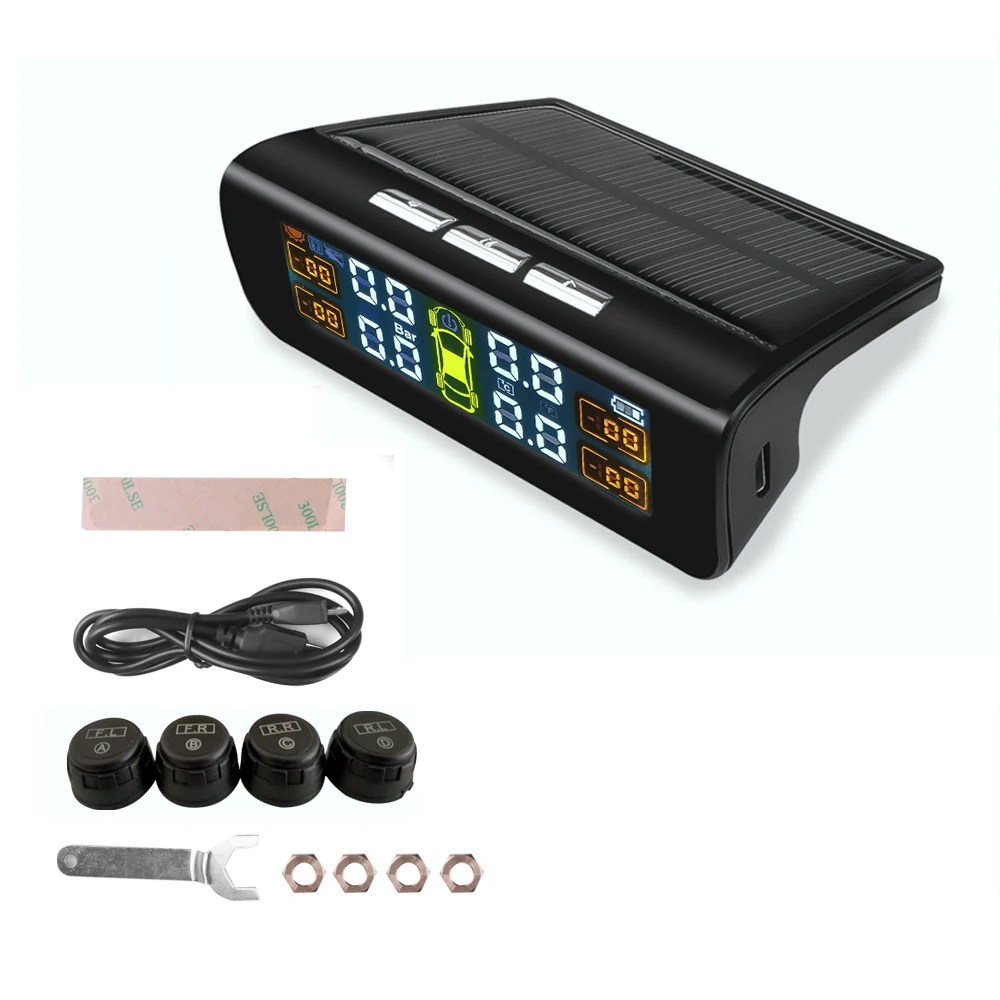

• 1 set Solar Charging Tyre Pressure Monitoring System

• 4 External sensors

• 1 USB cable

• 1 set accessories (tool)
