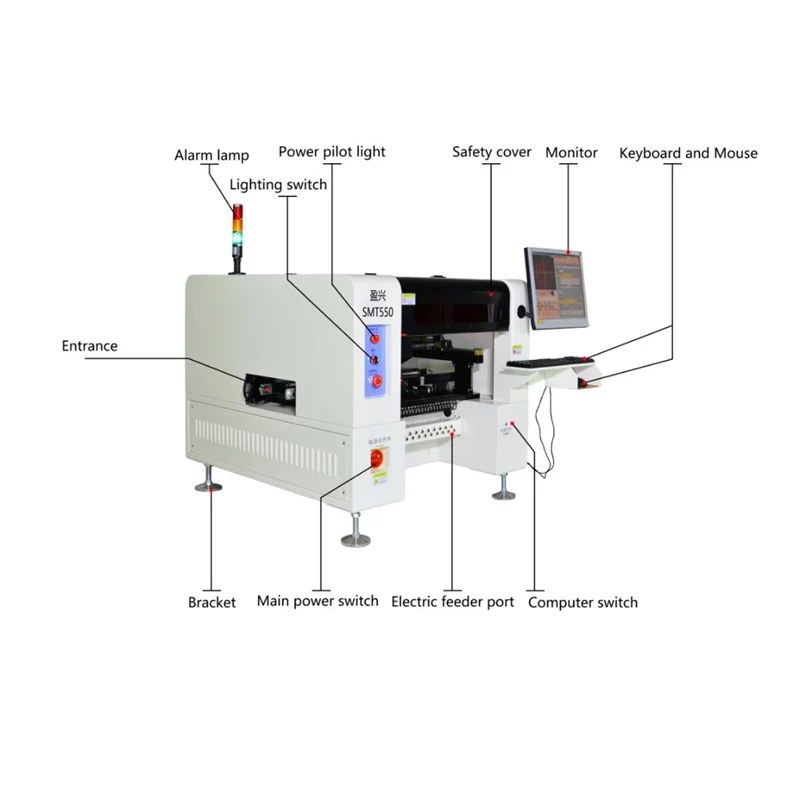

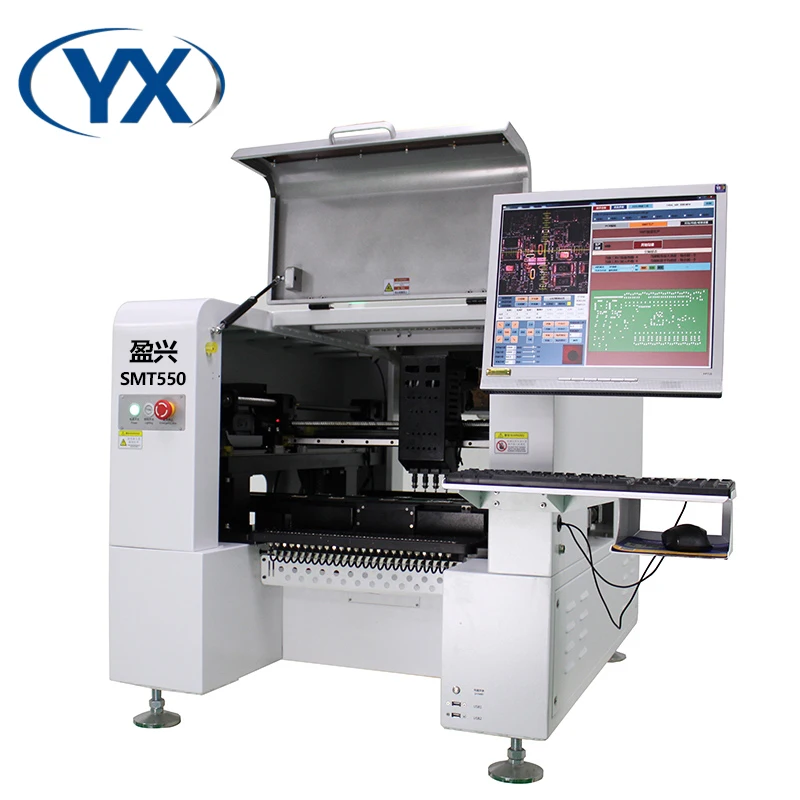

Maximum circuit board area:

400*290mm

Number of mounting heads:

4

Maximum movement range of Z axis:

20 mm

Maximum mounting rate:

9,500 PCS/hour

Average mounting rate:

8,000 PCS/hour

Positioning accuracy:

0.01 mm

Buffering range of suction nozzle:

4.5 mm

Power supply:

220V/110V, 50 Hz

Compressed air:

0.6-0.7 Mpa

Average power:

400 W

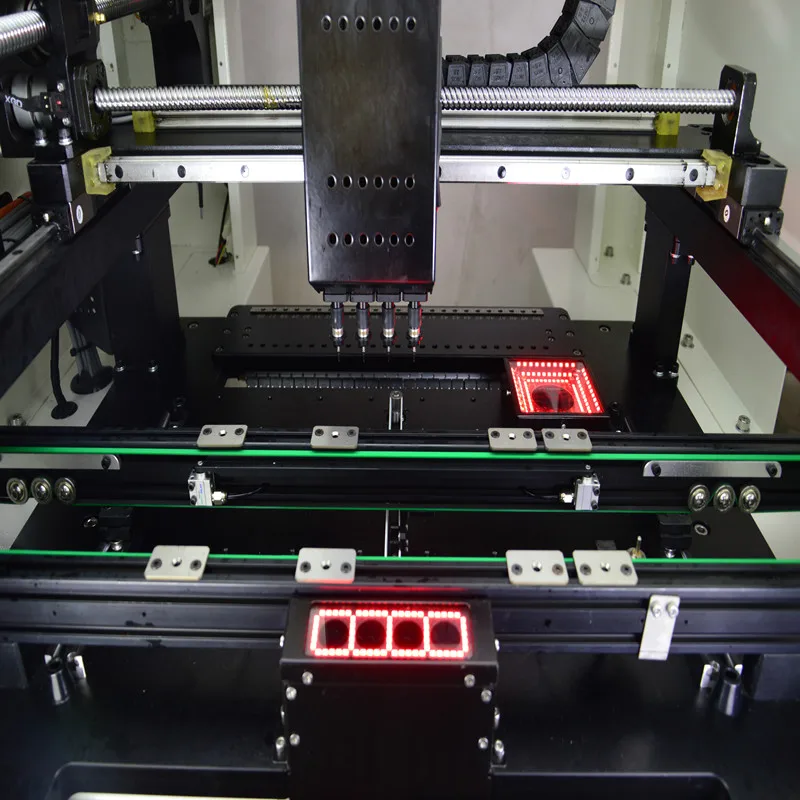

Recognition Mode:

Four Heads Synchronized Recognition

Number of cameras:

a Mark camera, four high-speed cameras, a high-definition camera

Product weight:

210KG

PCB access mode:

automatic Left-in and right-out access, supporting left-right device connection function

Quantity of trays:

Up to 48 non-feeder feeding components are supported, each of which can specify its coordinates within the mounting range.

Complex speed to mount resistance and Chip:

6000/h

Mounting accuracy range:

0201-40*40mm,Pin spacing 0.3mm

Chip(Matching which support electric feeder can mount the 0402,0201)

Quantity of feeders:

50 PCS

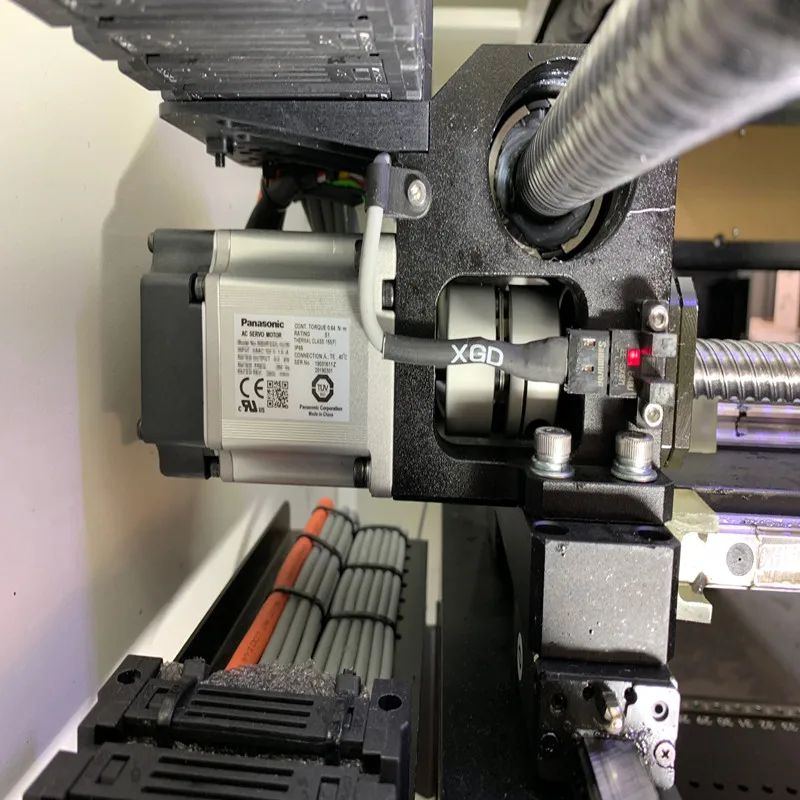

Service motor:

Panasonic servo motor

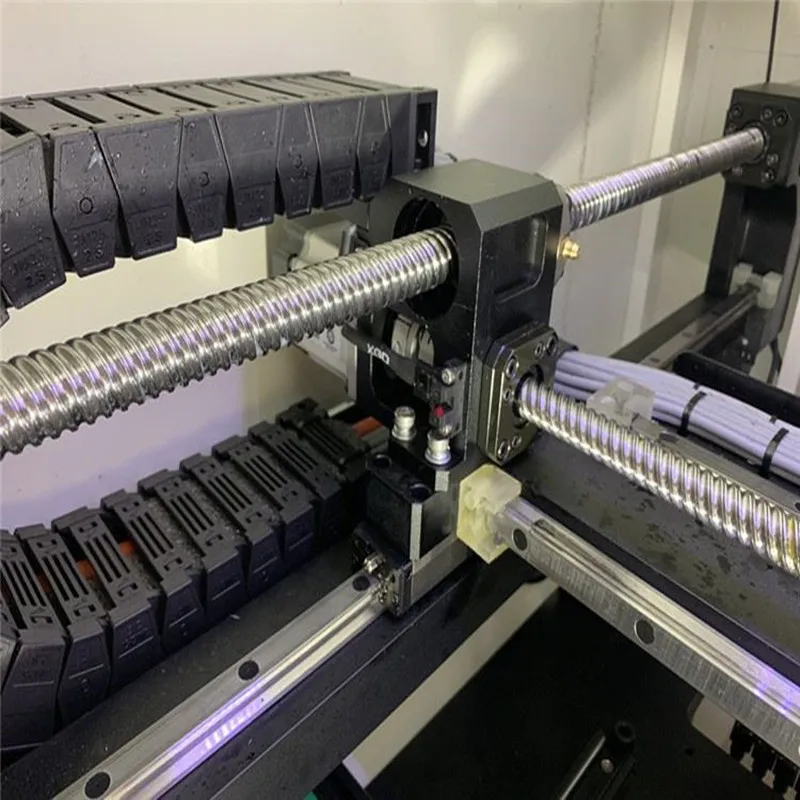

Guide rail:

Taiwan TBI Linear Guide rail

Driving mode:

Taiwan TBI ball screw

Nozzle Vacuum Source:

Japan CKD High Speed On-off Vacuum Generator with Vacuum Damage

Minimum air capacity of pump:

80-120 L/min, volume more than 60 L

Gas quality requirements:

oil-water separation device, dust filter device, air pressure stabilization device

Dimension:

900×1140×900mm
