100А 20А AC 80~260V Счетчик энергии точный вольтметр амперметр Киловатт-час Ватт Напряжение Ток Монитор Тестер Электрический On.

100А 20А AC 80~260V Счетчик энергии точный вольтметр амперметр Киловатт-час Ватт Напряжение Ток Монитор Тестер Электрический On.

Description

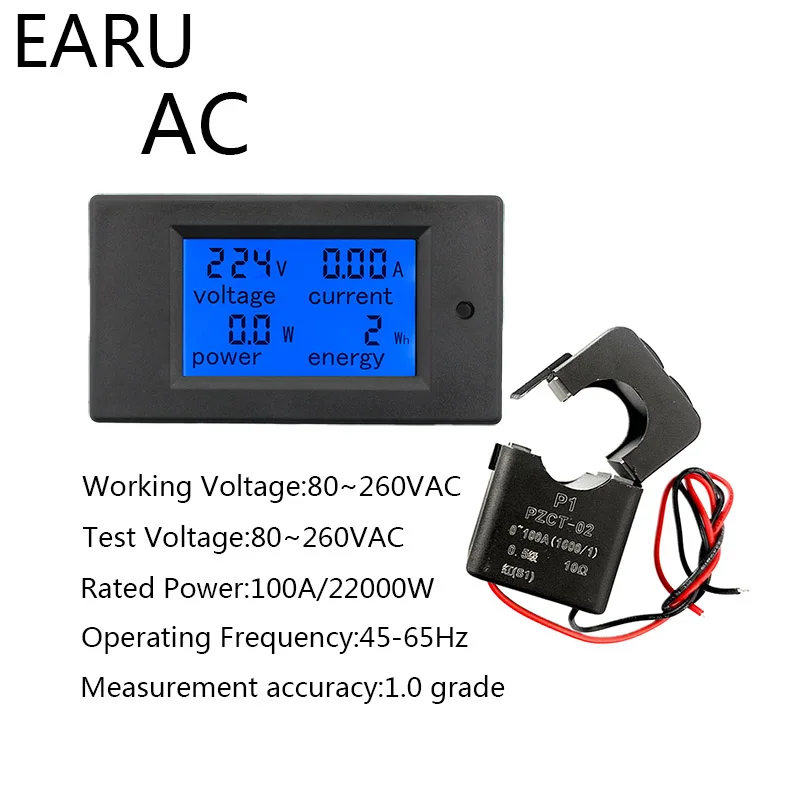

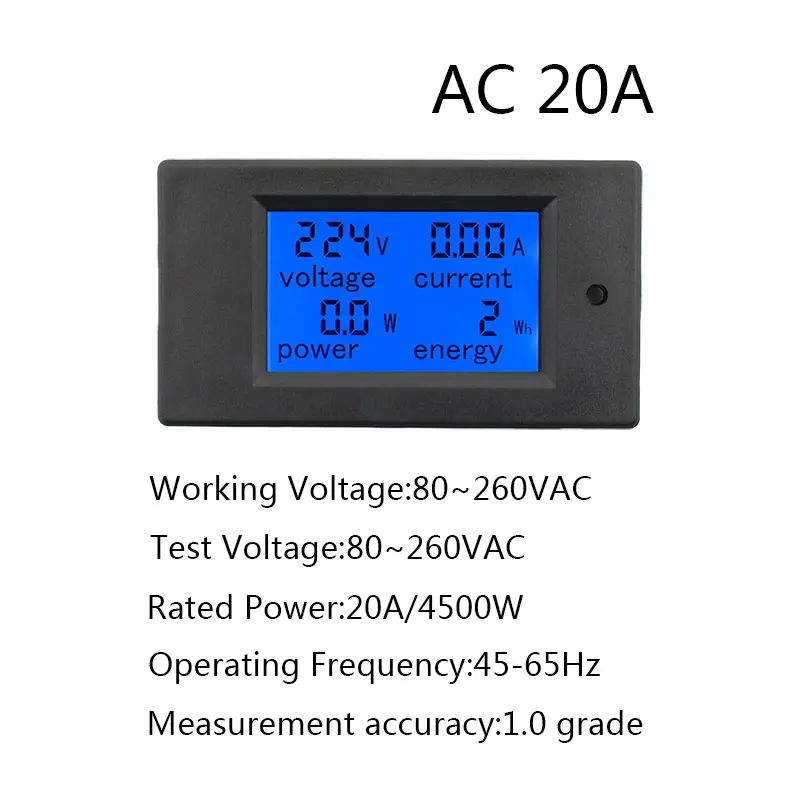

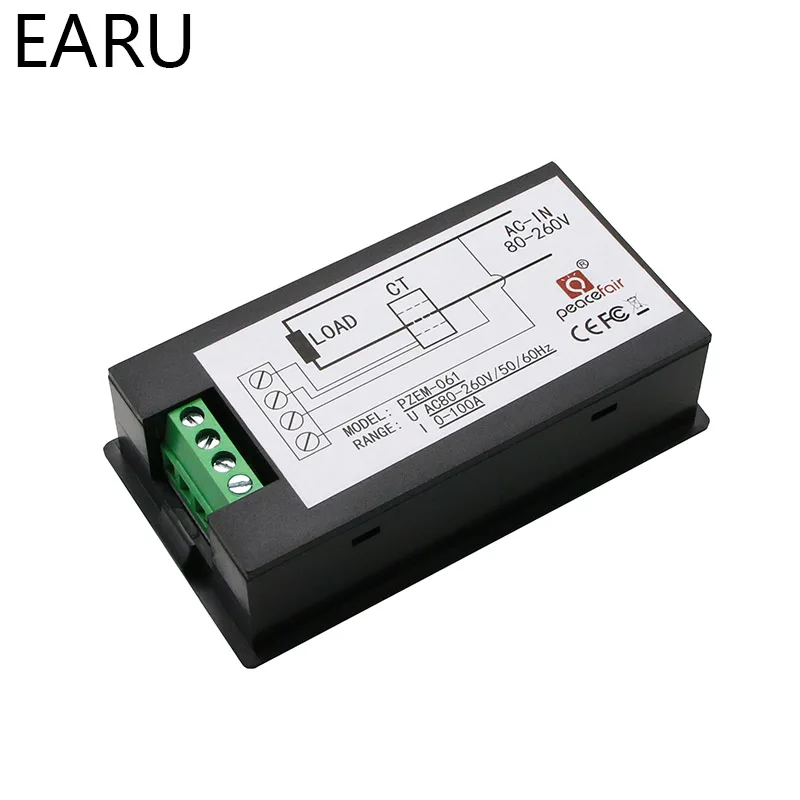

100A 20A Power Meter Monitor Digital LED Tester Accurate kWh Watt Energy Meter Voltage Current Power Voltmeter Ammeter

Latest AC 100A 20A power meters monitor Volt Amp kWh watt digital cambo meter with case,100% brand new and high quality

Specification:
- The working voltage: 80-260VAC
- Test voltage: 80-260VAC
- power: 100A (20A) /22000W
- Working frequency: 45-65Hz
- The measurement precision: Class 1

About Function:
- Measurement and monitor the electrical parameters(voltage, current, kwh, watt)
- Overload alarm function(more than watt alarm threshold, backlight flashing)
- Power alarm threshold preset function(can set up their own power alarm threshold)
- Power(kwh)button reset function
- When power off ,store the data, when on ,continue the date
- Large screen LCD liquid crystal screen full display function(voltage, current ,kwh,watt)
- Backlight function

About Display:
Display interface. By the large screen LCD display LCD monitor voltage and current,kwh,watt,electric parameters
1. Watt: the measurement range of 0-22kW
  less than 1kW: 0.0-999.9W
  less than 10kW: 1000-9999W
  less than 22kW: 10.0-22.0kW
2. kwh: the measurement range of 0-9999kwh
  less than 10kWh:0-9999Wh
  more than 10kWh:10-9999kwh
3. The test voltage range of 80-260V
  Display format 80-220V
4. Current test range:0-100A/ 0-20A
  Display format: 0.00-99.99A

About Button:
- Backlight control
can turn on/off backlight by short press
- Power reset
Step 1: long press the button (about 5 seconds),til display flicker, then release the button
Step 2:if short time press the button again, the power(kwh)reset zero and exit flicker
Step 3:if long time press button for 5 seconds until it is no longer flicker, power(kwh)data is not cleared and exit

- Set the alarm(watt)
Step 1: long press the button, till the LCD screen display "SET CLr",release the button
Step 2: show the alarm (watt)value,short time press, value (number)increase
              don't press the button for 3 seconds, the setting switch to other bit
Step 3: long time press the button(about 5 seconds)---->save the threshold watt value
threshold setting watt range:0-22.0kW

Notices:
1. Suitable for indoor ,not outdoor
2. should not exceed te rated power

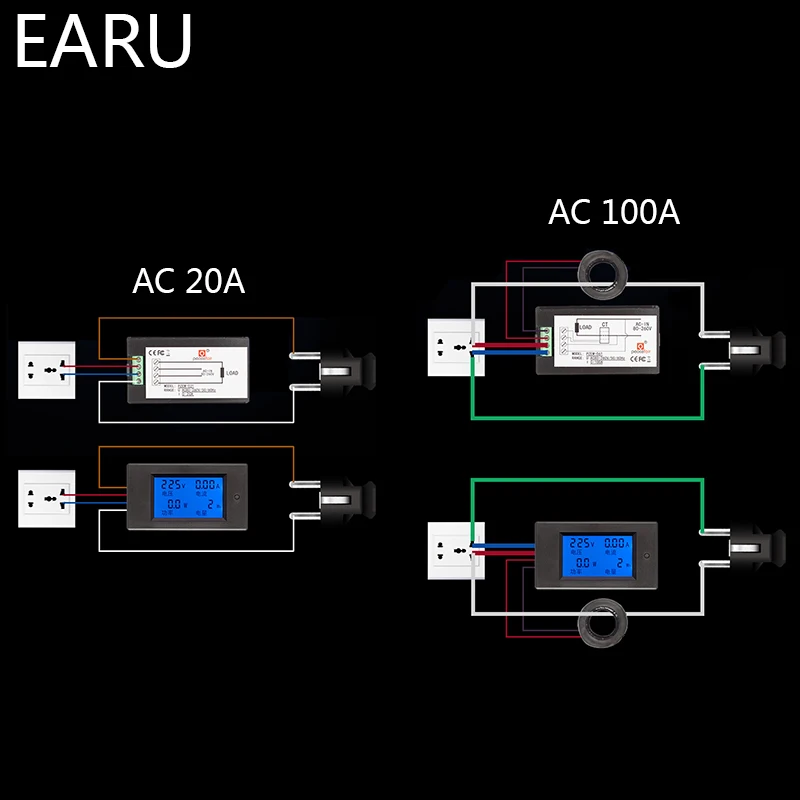

3. wiring can not be wrong

Package Includes:
1  x  AC Meter
1  x  CT( 20A is without CT Coil)
