Характеристики
DC-DC power supply module boost step-up voltage converter Voltage regulator XL6019 adjustable output |
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-15-2025 | 0.54 руб. | 0.76 руб. | 0 руб. |
| Aug-15-2025 | 0.82 руб. | 0.37 руб. | 0 руб. |
| Jul-15-2025 | 0.21 руб. | 0.29 руб. | 0 руб. |
| Jun-15-2025 | 0.29 руб. | 0.29 руб. | 0 руб. |
| May-15-2025 | 0.50 руб. | 0.80 руб. | 0 руб. |
| Apr-15-2025 | 0.58 руб. | 0.53 руб. | 0 руб. |
| Mar-15-2025 | 0.9 руб. | 0.95 руб. | 0 руб. |
| Feb-15-2025 | 0.14 руб. | 0.76 руб. | 0 руб. |
| Jan-15-2025 | 0.79 руб. | 0.26 руб. | 0 руб. |
Описание товара
Module Properties: non-isolated step-up
Rectification: Non-Synchronous Rectification
Input range: Limits: 3-40V, recommended values: 3V-35V
Output Range: Limits: 5-45V, recommended values: 5V-40V (via rotary potentiometer)
Input Current: Limits: 0-5A, recommended values: 0-3A
Conversion efficiency: up to 94%
Open frequency: 220KHz, the second generation of switching power supply technology
Output ripple: less than 100mV
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Working temperature: Limits: -40 to +150 degrees Celsius, the recommended values: -20 to +85 degrees Celsius
Reverse polarity protection: protection against reverse input 40V
Size: 50MM 28MM 13MM
With back protection, import TDK inductor, with a connecting column, the output 5V/12V/24V can be adjusted, performance beyond LM2577. Using conventional topology BOOST as a constant voltage output, the internal integration of MOSFET, peripheral devices, low system cost, built-in over temperature protection, over current protection of the full set of reliability protection circuit, high reliability.
1, the use of conventional topology BOOST complete set of constant voltage output, the internal integration of MOSFET, peripheral devices less, the system cost is low;
2, wide voltage range input, the input voltage up to 35V;
3, the output voltage can be adjusted, the highest can support 40V;
4, built-in over temperature protection, over current protection of the full set of reliability protection circuit, high reliability;
5, system conversion efficiency can reach more than 90%, easy to heat design;
6, TO263-5L standard package, suitable for 30W within the boost application.

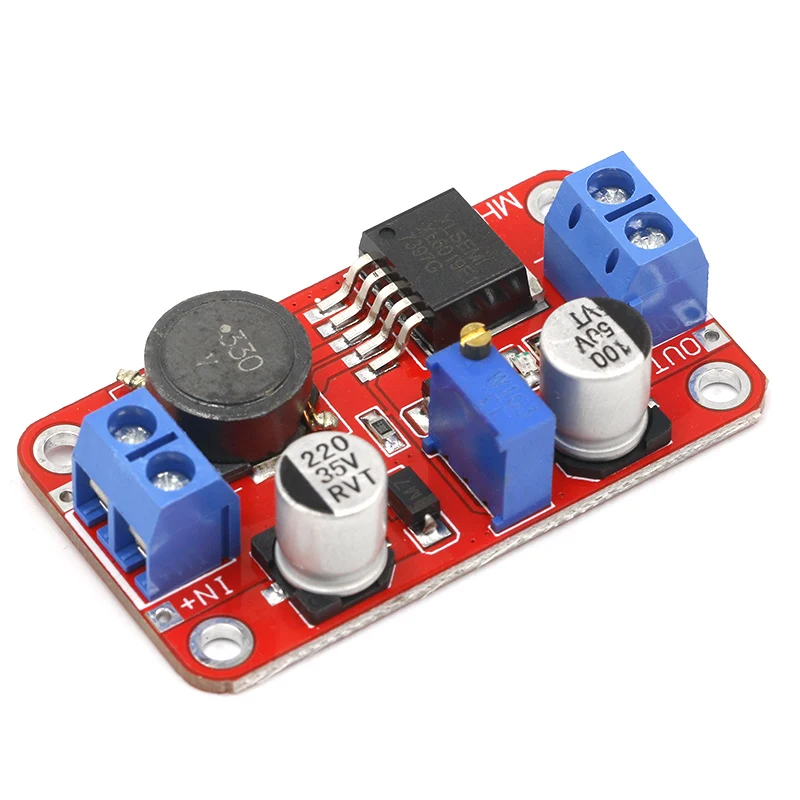

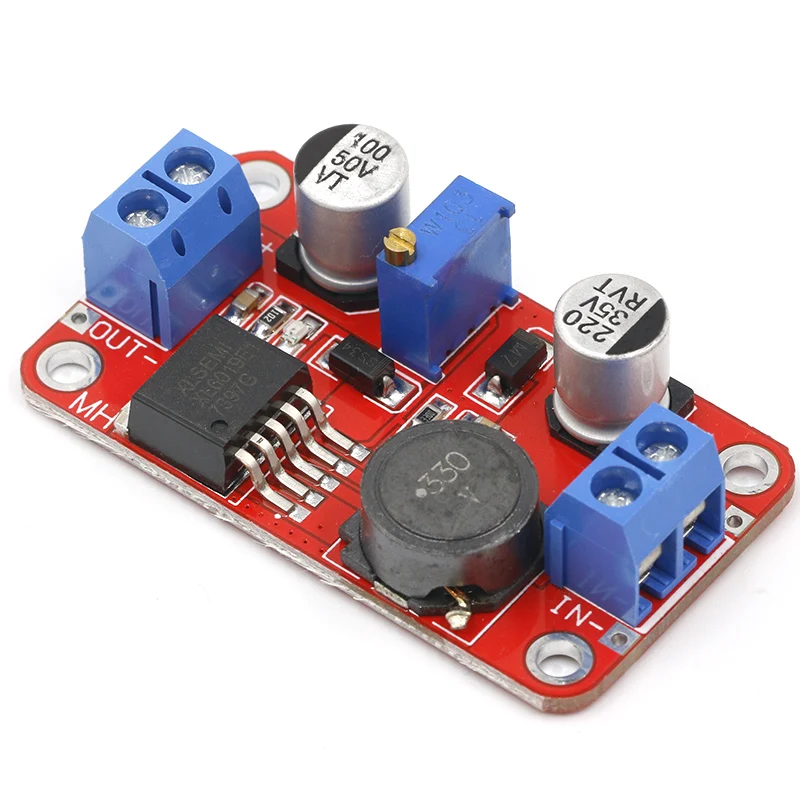

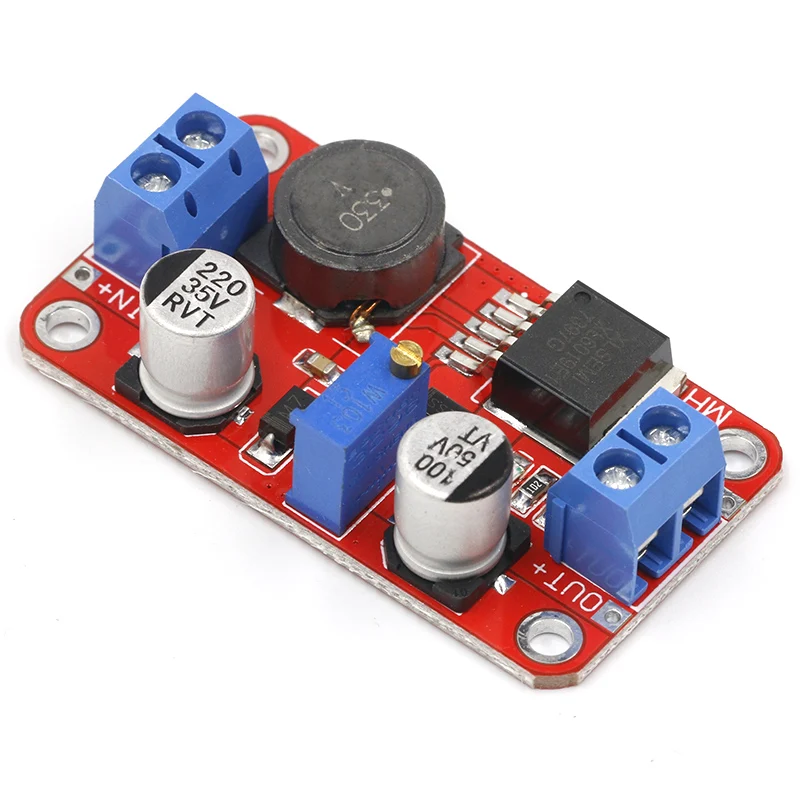

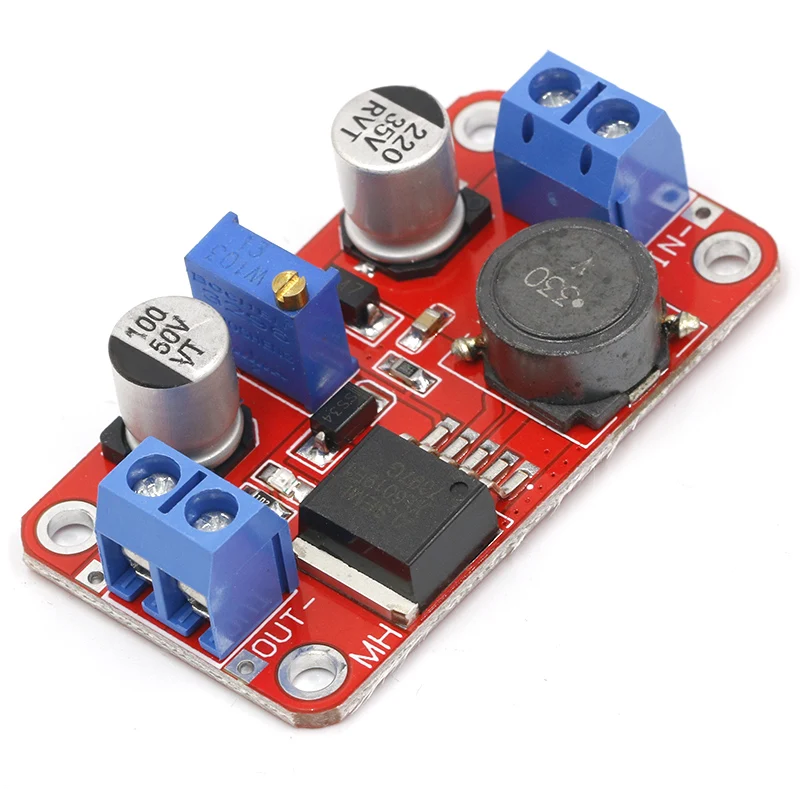

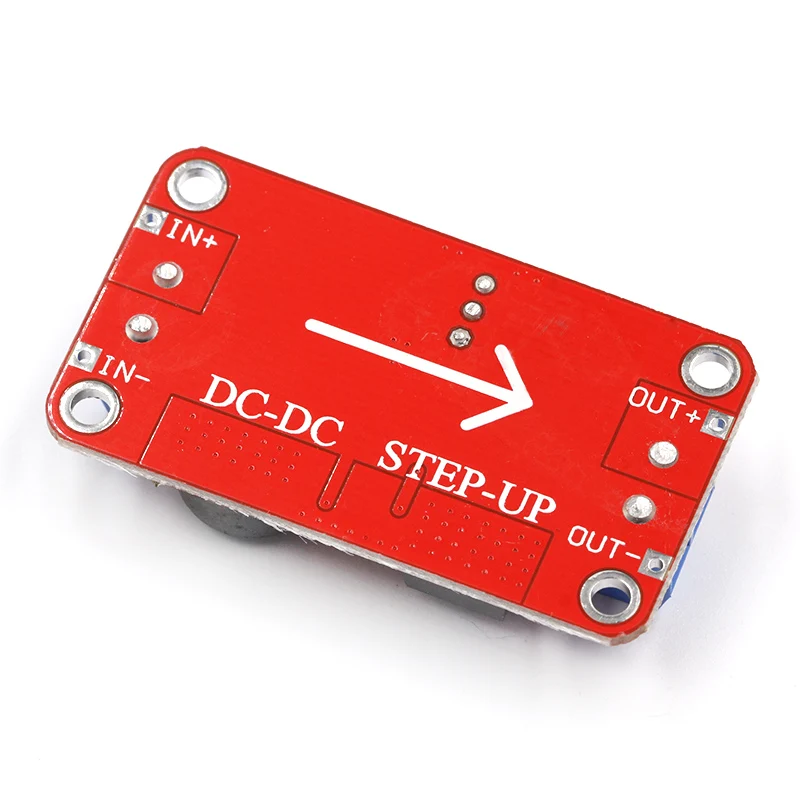

XL6019 DC-DC Booster module Power supply module
Performance:
1.conventional constant voltage output topology BOOST fully integrated solutions, integrated MOSFET, fewer external components, lower system cost 2,.wide voltage range input,the input voltage up to 35V 3. output voltage is adjustable,supports up to 40V 4.built-in over-temperature protection, overcurrent protection circuit full set of reliability, high reliability 5.the system conversion efficiency of over 90%, to facilitate thermal design 6.TO263-5L standard package,suitable for 30W boost applications within.Instructions:
1. Power (3-35V), power indicator light, the module is working properly. 2. Adjust the blue potentiometer knob (counter-clockwise general boost, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.NOTE:
1. Current work long hours is recommended for use in less than 2.5M, while adding bulk Heat sink (10W output above); because it is boosting module, in order to ensure stable output Set, please keep the minimum 1.5V differential.
