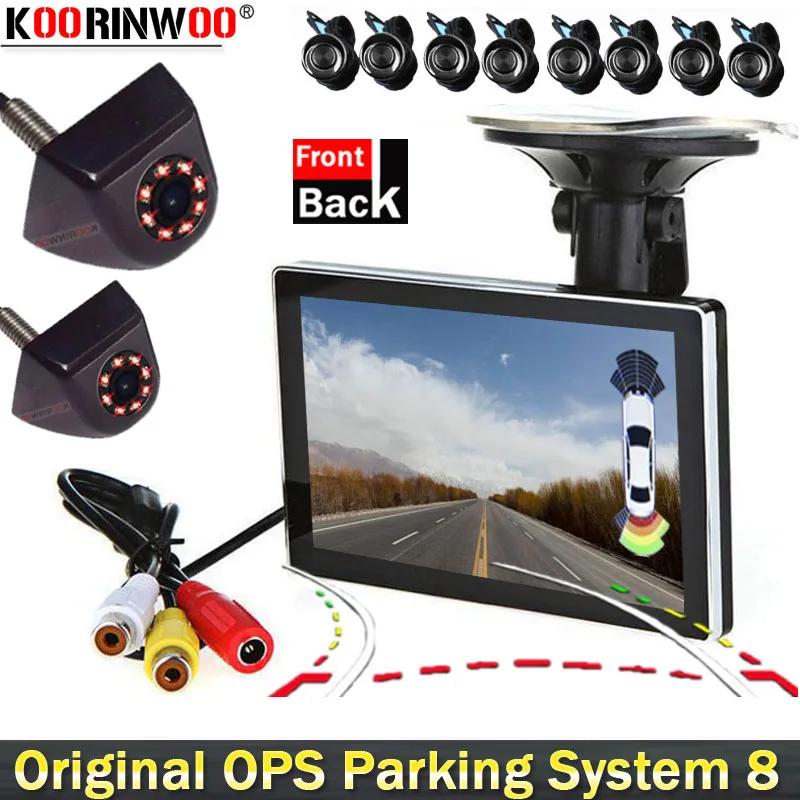

Koorinwoo Sucker Screen 8 System Car Parking Sensor Dynamic Trajectory Line Color Camera HD Dash Cam With Video Rca |

Koorinwoo Sucker Screen 8 System Car Parking Sensor Dynamic Trajectory Line Color Camera HD Dash Cam With Video Rca |

1. If you are from Russian Federation, please leave a full name as the receiver name. Otherwise, you may not receive your items because of the regulation of your customs.

2. If you are from Saudi Arabia, please send the copy of your ID card. According to rule of Saudi Arabia, ID card is a must to do customs clearance.

Koorinwoo Latest Original Parktronic 8 OPS System Car Parking Sensors Radar Alarm Probe bibi Car-detector 4 Front 4 back

• Dual Core CPU
• Brand: Koorinwoo
• Step-up buzzer alarm
• Detective distance from 0.3-2m
• Can be connected with camera and any rearview monitor and display distance on the monitor
• Votage 12V

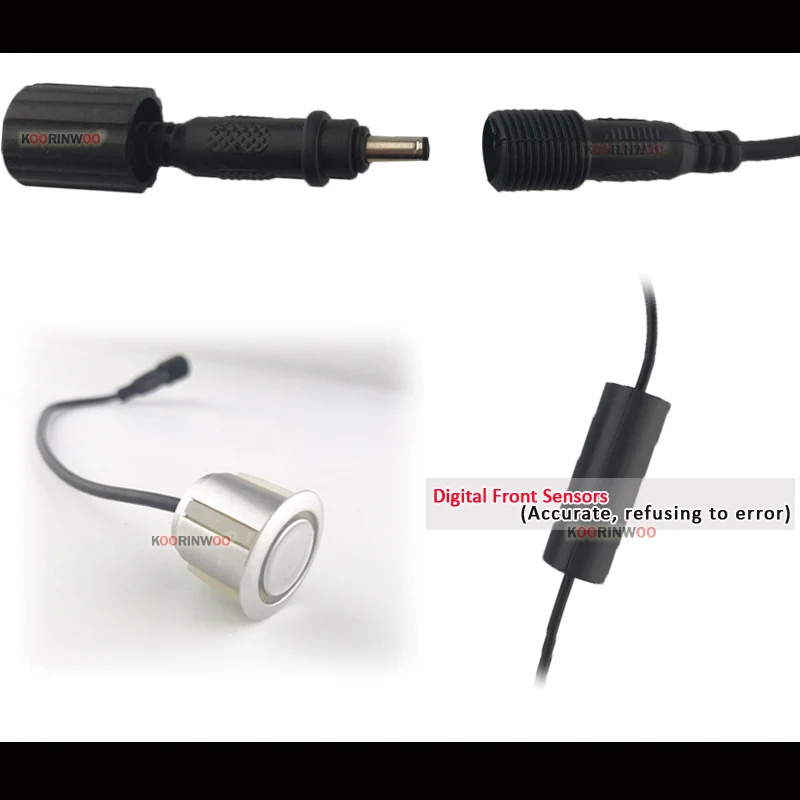

• Sensor diameter:18.5mm (If you want diference diameter sensor and color, please contact us when you order)
• alarm volume 65dB
• Storage temperature:-40~60 degree Celsius
• Operation temperature:-40-60 degree Celsius
• Sound-BIBI

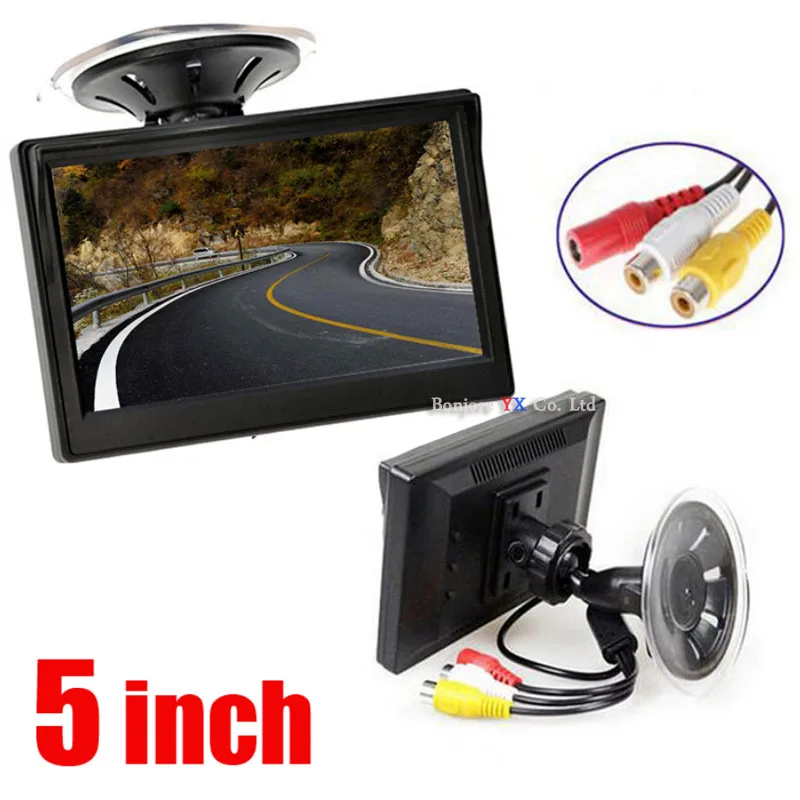

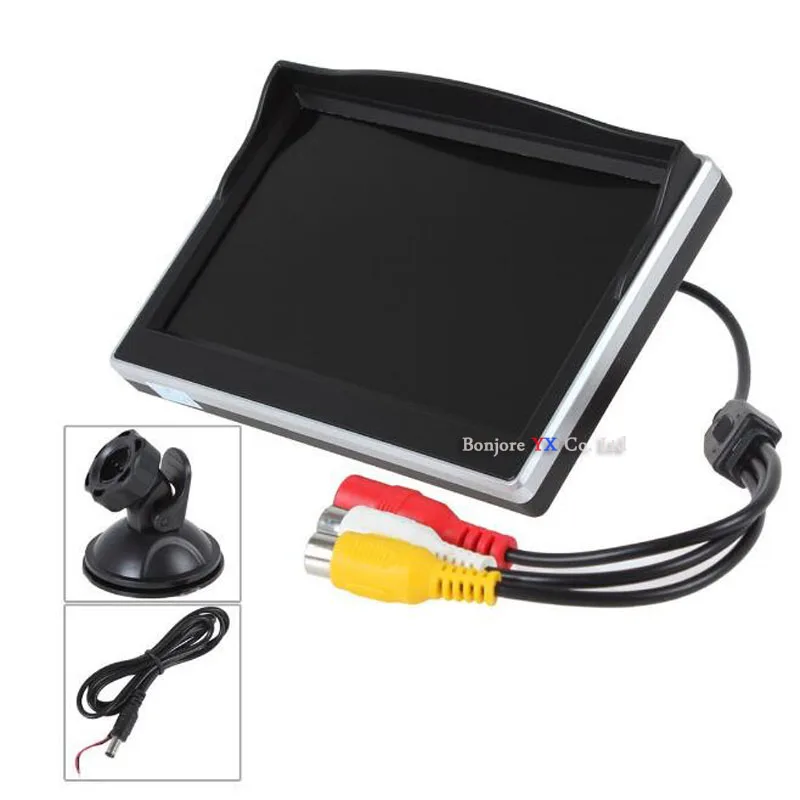

Car LCD Monitor

• - High quality and good durability
• - With small size, convenient to carry
• - High definition
• - Support automatically start detection while reserving
• - Can connect with reversing camera, DVD, VCD etc.
• - With a stand holder which has adhesive sticker at the bottom for sticking it in the car
• - Video System: Both NTSC/PAL
• - Support multi-role display
• - Resolution: 800*480
• - Size: 4.3 inch TFT LCD
• - Display format: 16 : 9
• - Power Supply: DC 12V
• - Power Consumption: 3W

• Image device For sony 1/4-inch colour CCD
• TV system PAL or NTSC(Default)
• Resolution 720 TV lines
• Electric Shutter NTSC: 720Lines.25Field/sec
• Effective pixels 720X 680
• Minimum illumination 0.3Lux
• Viewing angle 150 -170º
• S / N ratio> 48dB (AGC-OFF)
• Video output RCA connector, 1.0vp-p, 75ohm
• Current consumption ≤ 120mA
• Power supply DC8V-12V
• Operating temperature -30 to 65 degrees centigrade, RH95% Max.
• Storage temperature -35 to 70 degrees centigrade, RH95% Max.
• Other items automatic white balance, AGC and BLC
• Water-proof Yes, to IP68 standard

Working principle :

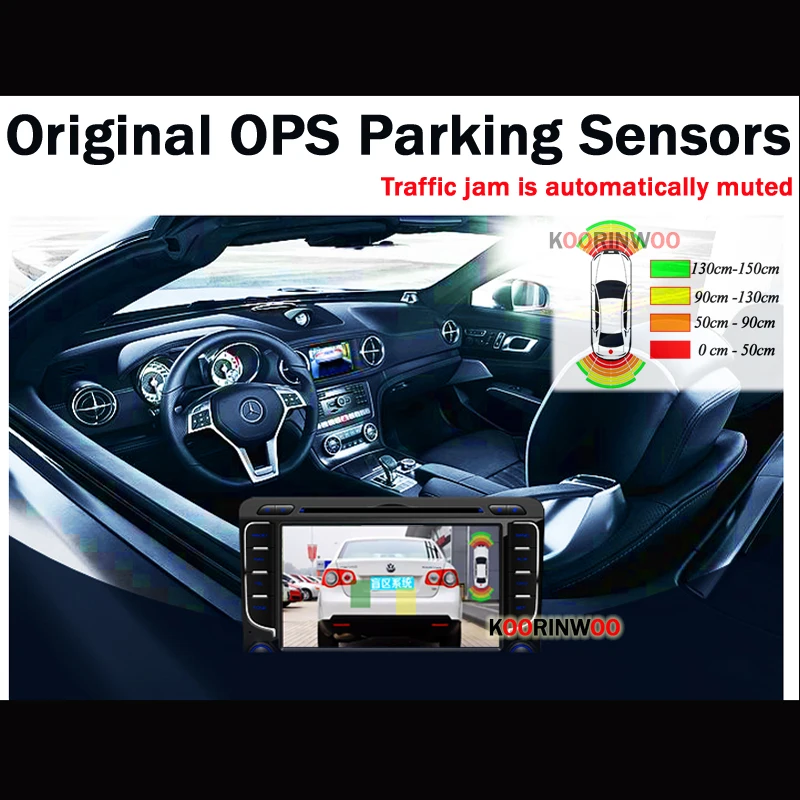

8 Sensors time-sharing work and alarm / intelligent simulation obstacle orientation / traffic jam automatic mute / automatic switching image

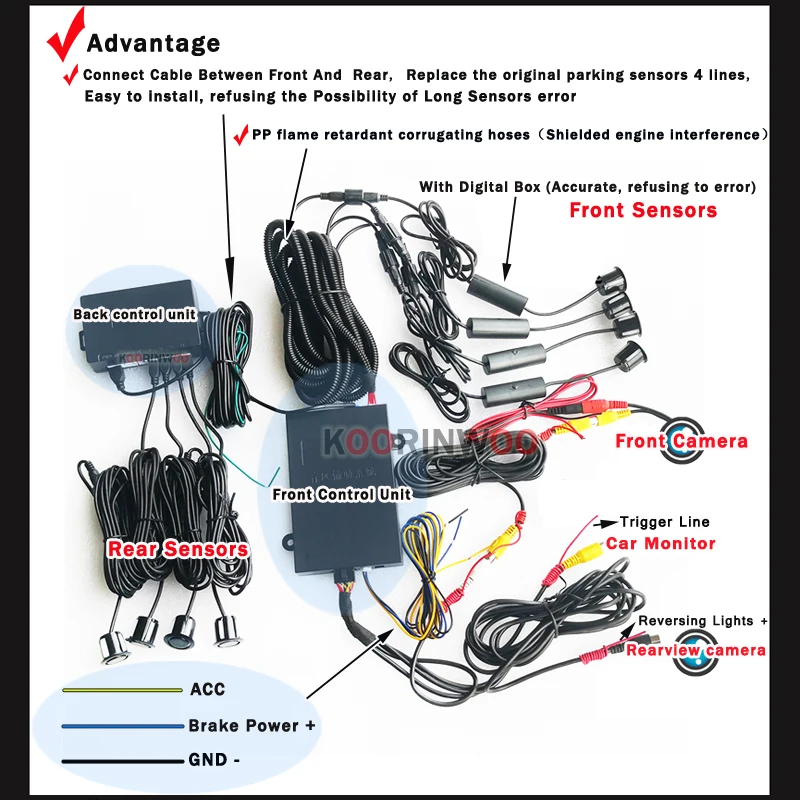

• 1: When you reverse, rearview Camera works, Front  + Rear Sensors work at the same time, the 3D simulation box automatically simulates the obstacle position after the vehicle, the Control Unit inset speaker make sound alarm;
• 2: Turn Back D Gear From R Gear, the front camera works for 8 seconds;
• 3:  When you are braking, the front camera and sensors will work automatically. After the brake is released, the camera will continue to work for 8 seconds and then turn off;
• 4: When an obstacle is detected in front of the vehicle, the front camera is automatically turned on; the control box make sounds, the alarm sounds silent for 2 seconds; when the distance changes, the sound alarm is restarted;

• 1 x  Car Monitor with power cable
• 1 x  Front camer with video cable and power cable
• 1 x  Rearview camera with video cable and power cable
• 1 x User manual+ Box
