Magnetite Failure Detector and-1 Magneto-Fluid Magneto-particle Fault Detector

My brief description

CDX magnetic particle detector is a new magnetic particle fault location equipment, designed and manufactured independently by our company, taking advantage of the advantages of domestic and foreign counterparts. The extra magnetic field magnetization makes the detector small in size and weight. Highly integrated circuits enable a device to perform multiple functions.

Functional choices:

Probe type: also known as "cattle shoe magnet probe" or "cattle hide welding probe". This is an angular magnetic head of the rotating council, equipped with a working lamp, especially suitable for detecting faults in parts with facial abnormalities, and Complex shapes? Pole distance: 20-16mm; Lift power: AC≥ 5kg, DC≥ 18kg; Weight: 1kg. The equipment manufactured with this detector is called a magnet anode detector or a steak welding detector. Because of the use of screw tubes, the probe found a wide range of applications.

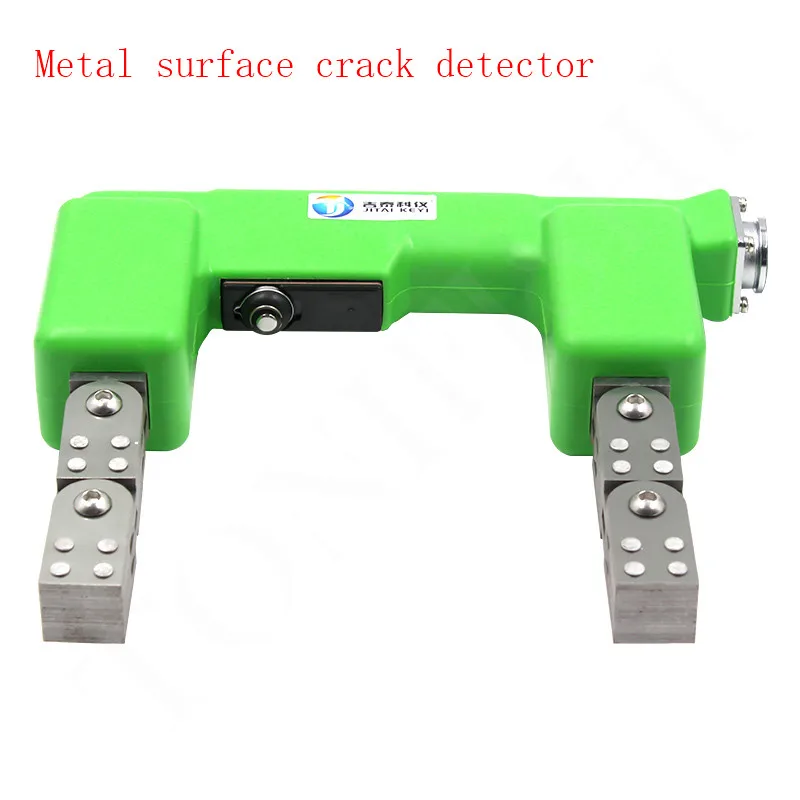

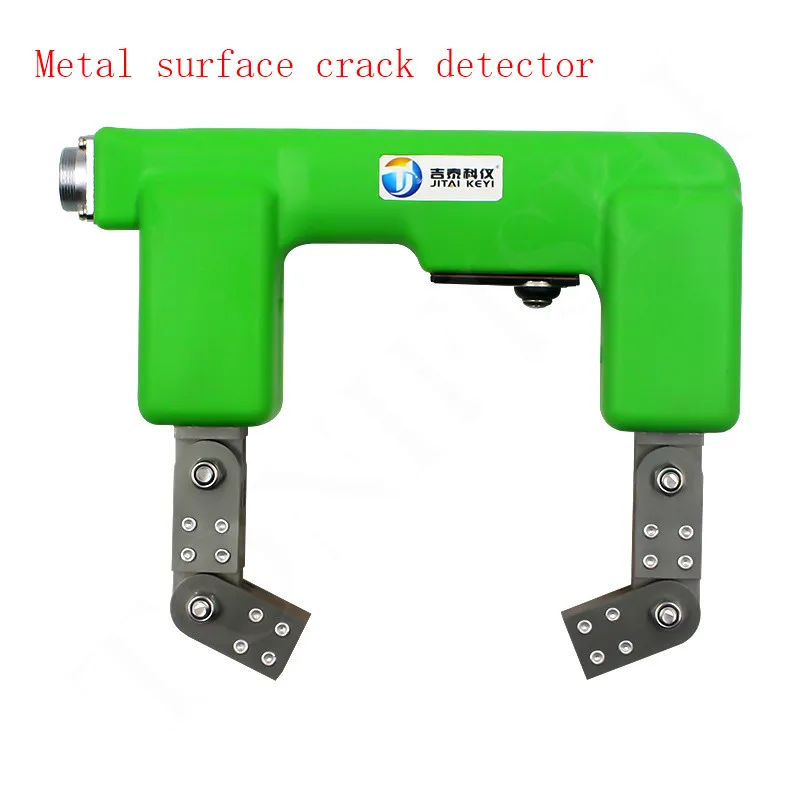

D-type detector: also known as YOKE electromagnetic detector, with various screw tubes and strong magnetic force; polar distance: 60-22mm; lifting power: AC77KG, DC≥ 18kg; weight: 1.6kg; equipment manufactured using this independent detector is called Y-type detector. Electromagnetic UGO and detector are shown by high magnetic force and strong magnetic force.

E detector type: also known as annular magnetic cross detector or transmission field detector, can detect mixed magnetic defects for a period of time. The operation of rollers and working lights can improve FAL detection speed. Yes Polar distance: 1100 mm, lift power: kg and weight: 2 kg. The device manufactured with this independent detector is called rotating field tomography detector. The detector uses two cross-disk longlines and magnetic resonance phase technology to produce a composite rotating field. Over time, the composite rotating field can be used for combined magnetization. Almighty God, one job at a time. Fault detection is carried out rapidly under high quality inspection.

Type O detector: also known as ring detector, inner diameter 150 mm, midfield and GE; 180OE. Weight: 3 kg! The device made with this independent detector is called the finger ring tomography detector. Its design principle is to form a strong magnetic field by activating coils. It is suitable for detecting faults or desulfurization of complex working parts, including shafts, strips, pipes and Vanes.

Technical performance

One Power supply: CA 220 V + 10% 50 Hz 5A

Two Output: AC 36 V 10A can be selected to adjust from A.D.E.O.

Three Fault detection speed: & GE; 6m/m

4. Increase in temperature of the probe: 606060.8451

5.A: Suggested magnetization and long-term continuous operation of LE; 3S and closing time 5S

Six Detector weight: 6.6 kg
