SN04-N2 DC NPN NO 5MM DC 10-30V SN04 Inductive Proximity Sensor Detection Switch

Features:

• This is an inductive proximity switch sensor with 5mm detection distance.
• When the object approaches the sensing area of the switch, the switch can quickly emit electrical commands without contact or pressure required, accurately reflecting the position of the moving object.
• The switch stays open, and closes when it detects object in detection distance.
• Quick response, high reliability, strong anti-interference capability.
• Widely used in automatic control system for detecting, positioning control, counting, automatic protection and more.

Specification:

Model: SN04-N2

Detection Distance: 5mm ± 10%

Detection Object: Iron/Magnetic Metal (Detection distance of non-magnetic metal will reduce)

Response Frequency: DC: 0.5kHz, AC: 25Hz

Power Supply Voltage: DC10-30V

Output Mode: NPN 3-wire normally open (NPN NO)

Output Current: 300mA

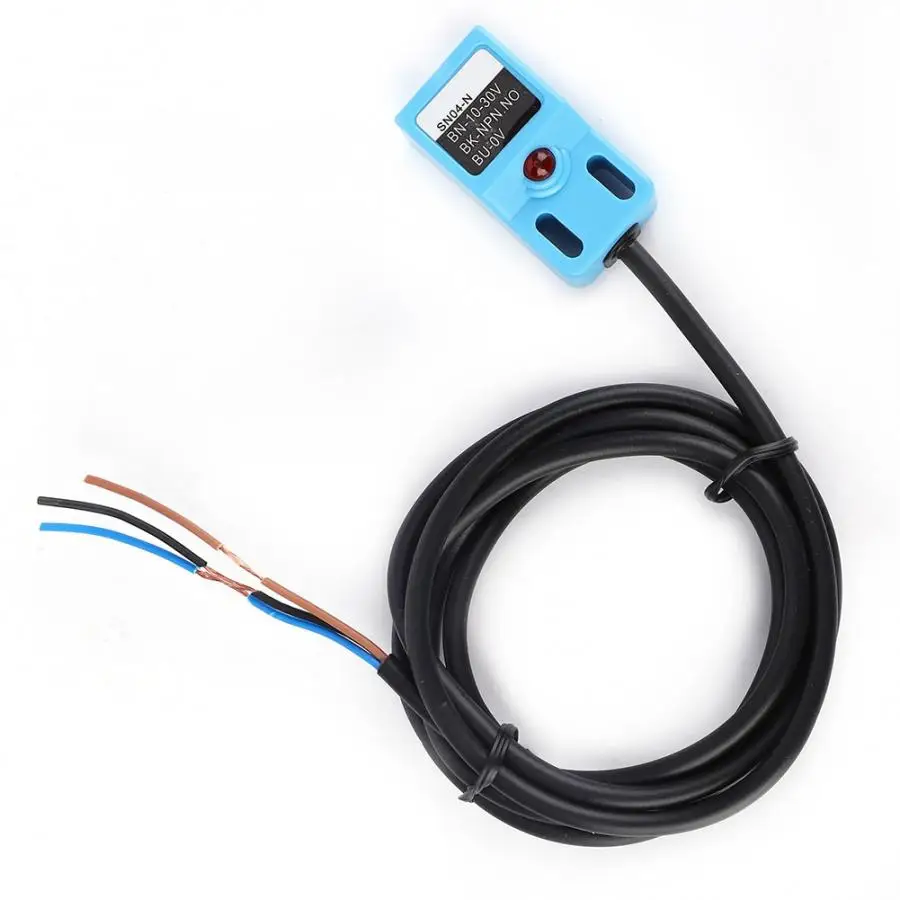

Cable Length: 1.2 meters

Temperature Range: -25~60°C

Insulation Resistance: >50MΩ (DC500 megohmmeter)

Shell Material: ABS

Detection Surface Material: ABS

Package List:

1 x Inductive Proximity Switch

1 Pack of Screws
