Good character Plasma cutting machine china / Plazma metal | Инструменты
История изменения цены
*Текущая стоимость 521 796,79 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 620937.36 руб. | 651984.13 руб. | 636460.5 руб. |
| Aug-18-2025 | 615719.25 руб. | 646505.8 руб. | 631112 руб. |
| Jul-18-2025 | 516578.23 руб. | 542407.8 руб. | 529492.5 руб. |
| Jun-18-2025 | 605283.52 руб. | 635547.67 руб. | 620415 руб. |
| May-18-2025 | 527014.15 руб. | 553365.79 руб. | 540189.5 руб. |
| Apr-18-2025 | 594847.75 руб. | 624589.95 руб. | 609718 руб. |
| Mar-18-2025 | 589629.11 руб. | 619110.13 руб. | 604369.5 руб. |
| Feb-18-2025 | 584412.37 руб. | 613633.9 руб. | 599022.5 руб. |
| Jan-18-2025 | 579194.99 руб. | 608154.81 руб. | 593674 руб. |
Описание товара
Good character Plasma cutting machine china / Plasma cutting / Plazma metal
Application
it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical,
war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.It is suitable for
all kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed.
Applies for aluminum plate, stainless steel, galvanized sheet, White Steel plate, Titanium plates,
and so on like the sheet metal.Plazma metal

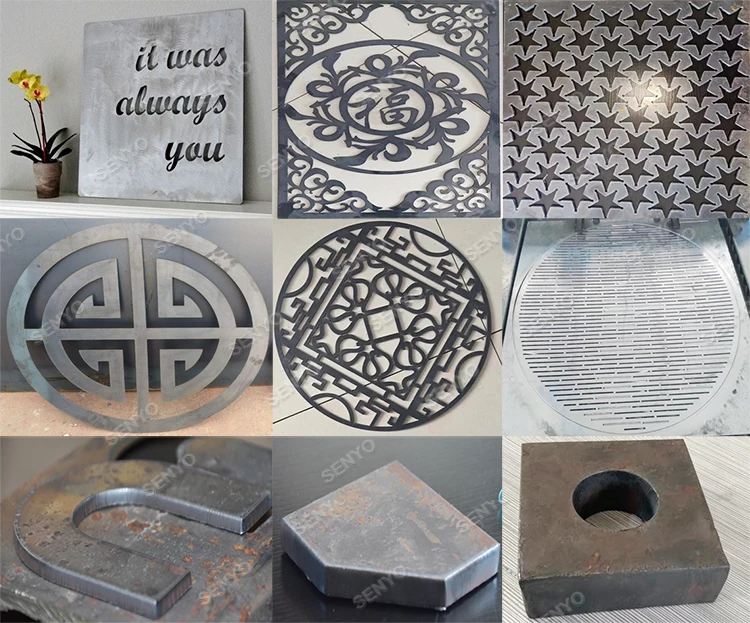

Application Materials: Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal,
spring steel, gold, silver, etcPlazma metal
Application Industry:Sheet metal, kitchenware, components, decorations industry
Machine Features
1).The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.
2). The gantry structure, Y axis used dual-motor dual-driven system, X, Y, Z axis all use dual-straight rail that make
the machine driving smoothly with high-precision.Plazma metal
3). Aiming at cutting three dimension LED character, trough metal panels and floor cutting,the accuracy can reach good indicators. Equipped with other advertise equipment (blister machine, engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.Plazma metal
4). Cutting mouth is small, tidy,and avoid a second dressing processing.Plazma metal
5). It can apply to iron shee the aluminium sheet, the galvanized sheet, hundred steel plates, metal plates and so on.
6). High cutting speed, high precision, and low cost.Plazma metal
7). The numerical control system disposes high, the automatic striking arc, the performance is stable.
8). Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,
also can change software to read AUTOCAD softwares produce DXF form documents.

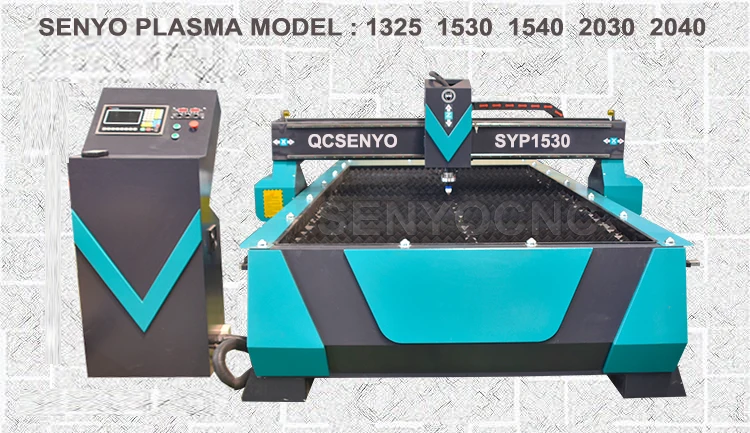

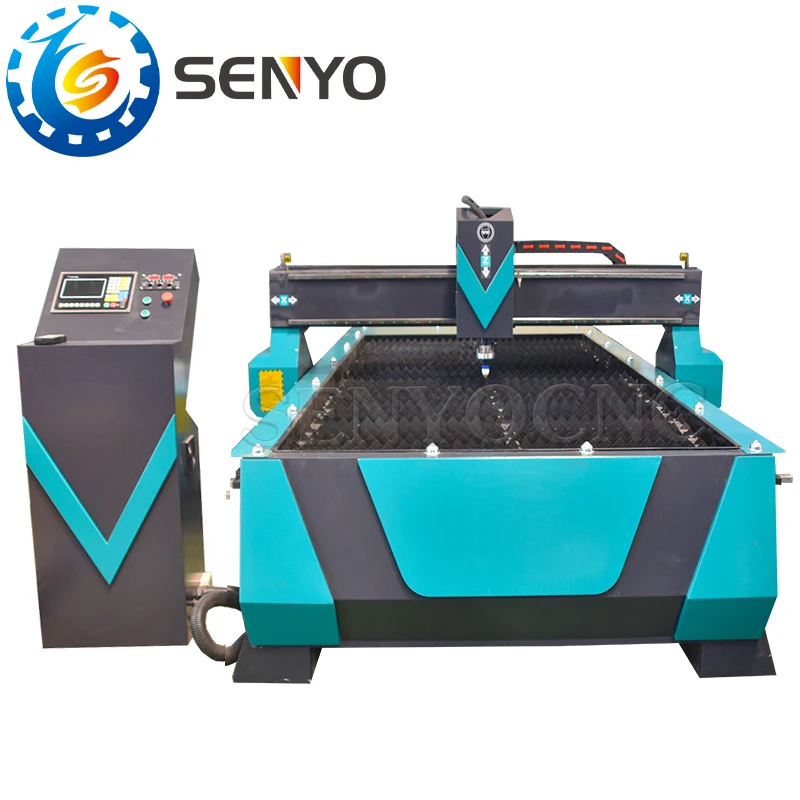

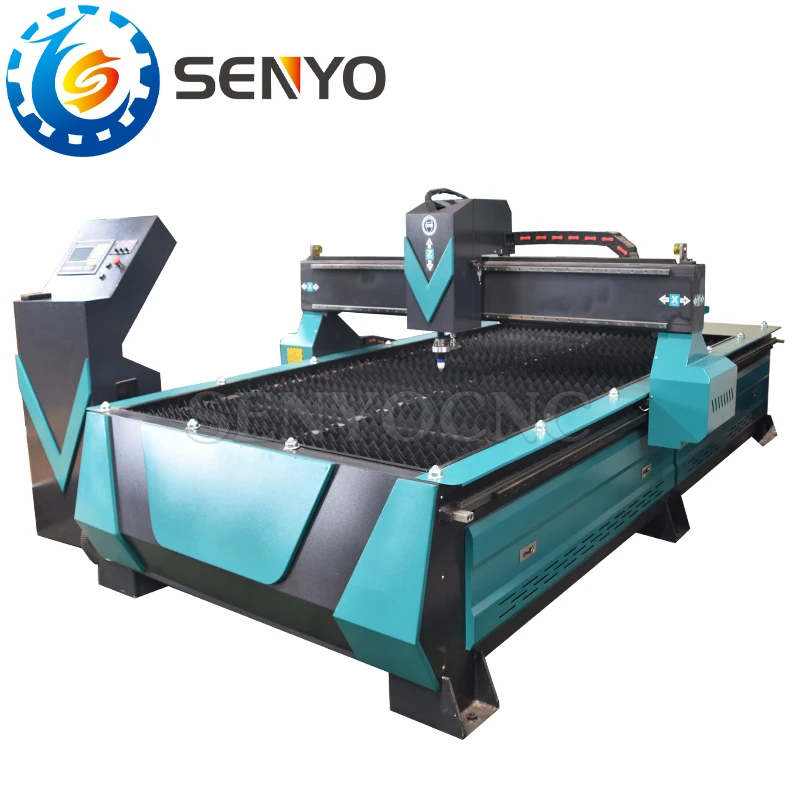

Product DescriptionPlazma metal

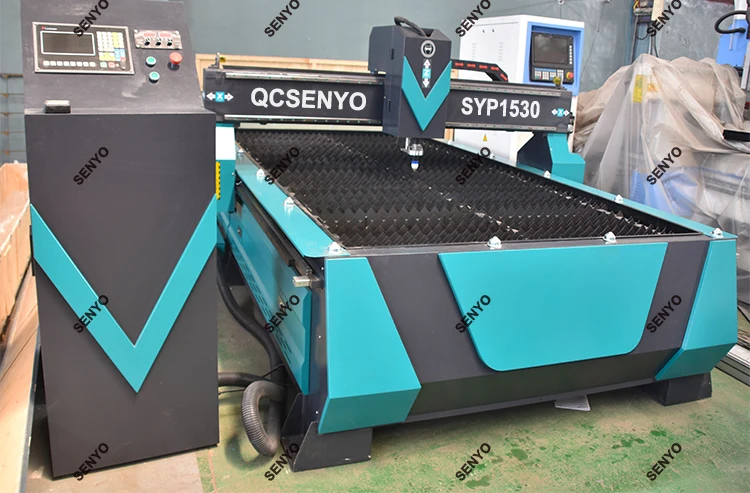

Detailed Images
Parameters
| No. | Description |
SY1530 (Optional:1325/1540/2030/2040/2060,other size can be customized) |
| 1 | Working Size |
1500*3000mm (Optional:1300*2500/1500*4000/1500*5000/1500*6000 /2000*3000/2000*4000/1500*5000/1500*6000/2000*5000/2000*6000mm,other size can be customized) |
| 2 | Z Axis Clearance | 150mm(200 And Higher Is Optional) |
| 3 | Table Type | Knife table (Teeth table And Water table can be optional) |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Stepper Motor And Drivers(Servp motor is optional) |
| 6 | Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |
| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Non-Contact Arc, Arc Pressure Adjuster |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm |
| 13 | Operating System | Starfire Controller/Start Controller/JiaoDa fangling controller |
| 14 | Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal |
Company Information
We owns more than 500 square meters of researching and office space,
more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,
American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada,
Australia, Europe, South east Asia, Africa etc,more than 120 countries and areas, and supply
OEM service for more than 30 manufactures.
Our Products includes All kind ofPlazma metal
1. Plasma cutting machine.
2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.
3. Fiber cutting machine.
4. CNC knife cutting machine.
5. Cnc router machine.
6. Co2 laser machine and so on.
We can also customized non-standard assist equipment as your detailed work requirements.
Our Services
SENYOCNC provides 24 months warranty for the machine. starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price.
3. Email/ Skype/ MSN/ Trade manager online to support.
4. Life-long technical support and free after-sale service.
5. Professional technical team and salesperson help you with troubleshooting procedures.
6. Free and professional training at our factory.
7. Door-to-door service if necessary.
Plazma metal
Welcome contact me anytime ! I will reply you as soon as possible !
