60W DIY Engraving Electric Soldering Iron Adjustable Temperature EU/US/UK Plug Welding Heat Pencil | Сварочное оборудование

60W DIY Engraving Electric Soldering Iron Adjustable Temperature EU/US/UK Plug Welding Heat Pencil | Сварочное оборудование

Electric Soldering Iron Kit 60W 110V 220V Adjustable Temperature Welding Iron EU/US/UK Plug

Plug: US/EU/UK
Total length of iron:190mm/7.48"
Thermal iron length:70mm/ 2.75"
Handle diameter:20mm/0.8"
Cable length: 1400mm / 55.1"
Carry case: 265*140*55mm
Power: 60W
Voltage: 110V/220V
Material: rubber handle, metal

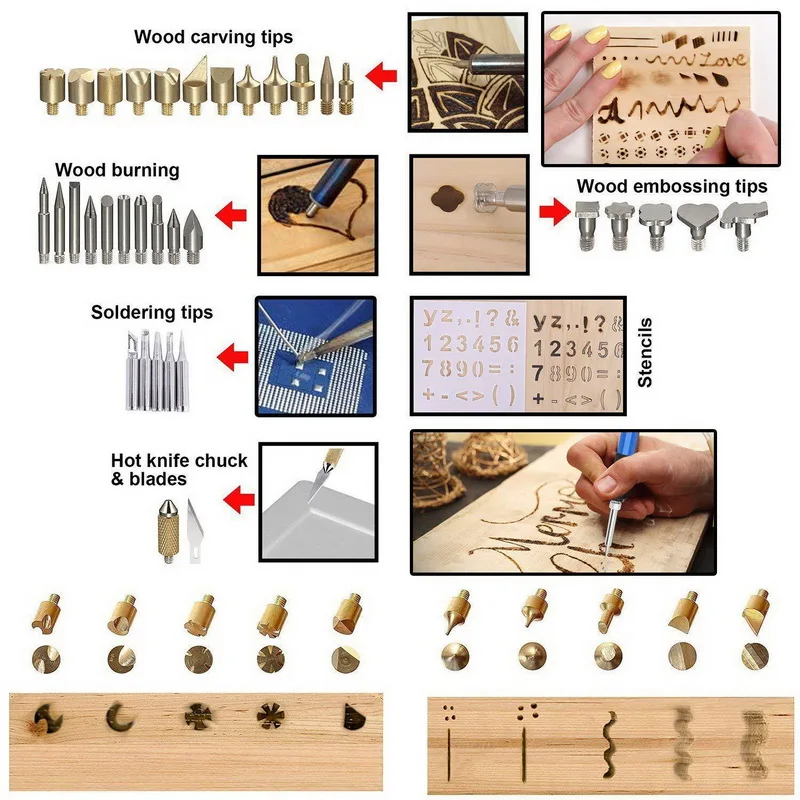

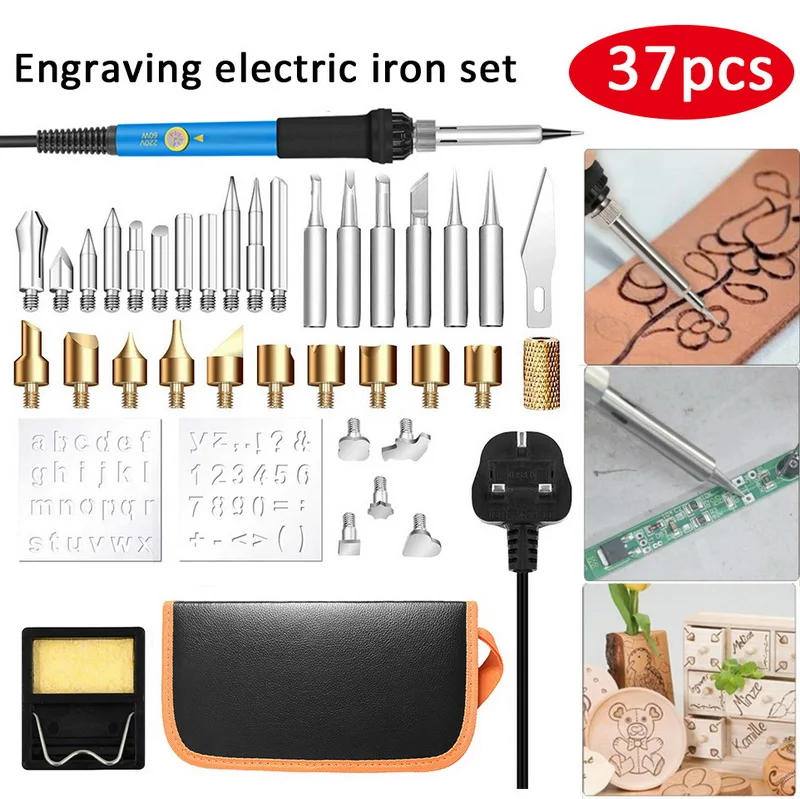

Package list:
1 x Adjustable temperature electric iron
5 x Interchangeable universal soldering iron head
1 x Wood burning head converter
10 x Assorted Wood Carving Tips
5 x Assorted Wood Embossing Tips
10 x Assorted Wood Burning & Soldering Tips
1 x Hot Knife Chuck
1 x Blade
1 x Letters Stencil
1 x Number & Basic Symbols Stencil
1 x Mini soldering Iron Holder
1 x Tool Bag
1 x Sponge

1. WIDELY USE: The wood burning kit for pyrography and creative projects. Works on wood, leather, cork, for carving, and for soldering (soldering tips not included) and so on.
2. A GREAT KIT FOR THE NOVICE OR THE EXPERT: Our kit contains 1xAdjustable temperature electric iron, 5xInterchangeable. universal soldering iron head,1xWood burning head converter,10xAssorted Wood Carving Tips,5xAssorted Wood Embossing Tips,10xAssorted Wood Burning & Soldering Tips,1xHot Knife Chuck,1 x Blade,1xLetters Stencil,1xNumber & Basic Symbols Stencil,1xMini soldering Iron Holder,1xInstructions,1xTool Bag. Ideal for the beginner, the competent, and the expert artist.
3. HEAT UP QUICKLY AND EFFICIENT : This 60W woodburner with inner-heated ceramic technology heats up fast. Adjustable temperature from 100~450°, high- temperature resistant.
WARM TIPS:
1.It is a normal phenomenon that produce smoke when you are using this product. Use in a well ventilated space recommended.
2.Please wear a work glove to replace tips.
3.The metal tips will become crisp and easy to break in the high temperature, please replace the tips after the temperature becomes lower.

Instructions
1. For the selection of suitable solder, the low melting point solder wire for soldering electronic components should be used.
2. Flux is dissolved in 75% alcohol (by weight) as a flux with 25% rosin.
3. The soldering iron should be tinned before use. The specific method is: heat the soldering iron. When the solder can be melted, apply flux, and then evenly spread the soldering iron on the soldering iron to make the soldering iron evenly eat. A layer of tin.
4, the welding method, the pads and components of the pins are polished with fine sandpaper, coated with flux. Dip a proper amount of solder with a soldering iron tip and contact the solder joint. After the solder on the solder joint is completely melted and immersed in the component lead, the soldering iron tip gently lifts up the solder joint along the lead of the component.
5, the welding time should not be too long, otherwise it is easy to burn the components, if necessary, you can use the tweezers to clamp the pins to help dissipate heat.
6, the solder joint should be sinusoidal peak shape, the surface should be bright and smooth, no tin thorn, moderate amount of tin.
7. After the welding is completed, the residual flux on the circuit board should be cleaned with alcohol to prevent the flux after the carbonization from affecting the normal operation of the circuit.
8. The integrated circuit should be soldered at the end, the soldering iron should be grounded reliably, or the residual heat should be used after the power is turned off. Or use an integrated circuit socket, solder the socket and then plug the integrated circuit.
9. The soldering iron should be placed on the soldering iron frame.
Plug: EU/US/UK
Soldering iron: 240*11mm
Iron tips: 6.5*47mm
Iron stand: 40*65mm
Sponge: 60*60mm
Working voltage: 220V/110V
Power: 60W
Temperature range: 100-450°
Quantity: 1pcs/2/3/4/5pcs of each set
Package list:
1*soldering iron
5*soldering iron kit: 1*soldering iron, 5*iron tips, 1*rosin, 1*iron stand, 1*sponge
Notes:
1. Please allowed 1-3mm differences due to manual measurement, thank you!
2. Due to the difference between different monitors, please understand that the picture may not reflect the actual color of the item.
1. Heat up quickly: The 110V/220V 60W soldering iron features an advanced heater to heat up to the targeted temperature quickly, and adjustable temperature range is from 100 to 450°.
2. Venting hole: With large venting hole, makes it much more energy-efficient.
3. Good quality: The soldering iron is made of silicone, plastic and red copper, which can resistance to beat, corrosion and heat resistant.
4. Handle: Plastic handle with silicone protective cover, heat resistant, structure is ergonomically designed for comfortable grip.
5. Application: Ideal for hobbies, kits, radios, and electronics work and so on.
6. Adjustable temperature: Easy to adjust temperature with the temperature adjust knob,  and the adjustable temperature range is from 100 to 450°.
7. Safety: Comes with a insulating power cable, heat resistant and insulating, ensuring safety.
