Характеристики
30A 12V/24V MPPT Auto Solar Charge Controller 390W/780W USB Port LCD Display Regulator | Обустройство дома
История изменения цены
*Текущая стоимость 5 883,12 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 7471.91 руб. | 7620.67 руб. | 7545.5 руб. |
| Jul-18-2025 | 6059.8 руб. | 6180.13 руб. | 6119.5 руб. |
| Jun-18-2025 | 7354.80 руб. | 7501.4 руб. | 7427.5 руб. |
| May-18-2025 | 7295.7 руб. | 7441.68 руб. | 7368 руб. |
| Apr-18-2025 | 5824.22 руб. | 5940.31 руб. | 5882 руб. |
| Mar-18-2025 | 7177.46 руб. | 7321.18 руб. | 7249 руб. |
| Feb-18-2025 | 7118.85 руб. | 7260.52 руб. | 7189 руб. |
| Jan-18-2025 | 7060.57 руб. | 7201.12 руб. | 7130.5 руб. |
Описание товара

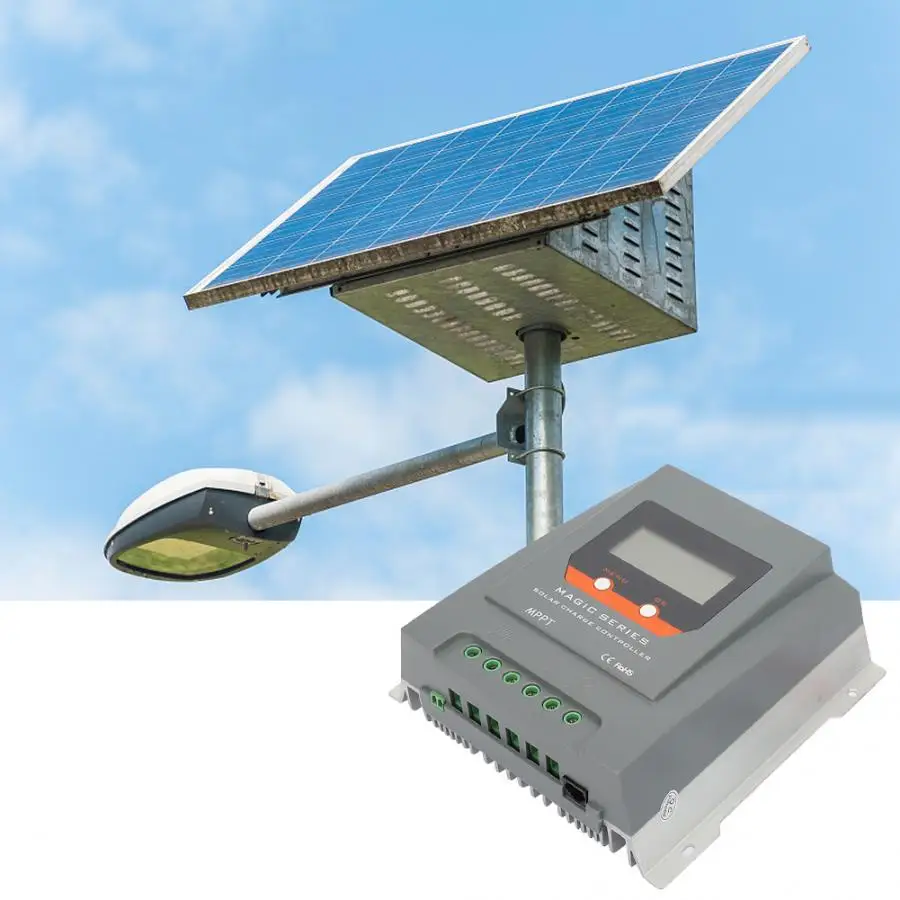

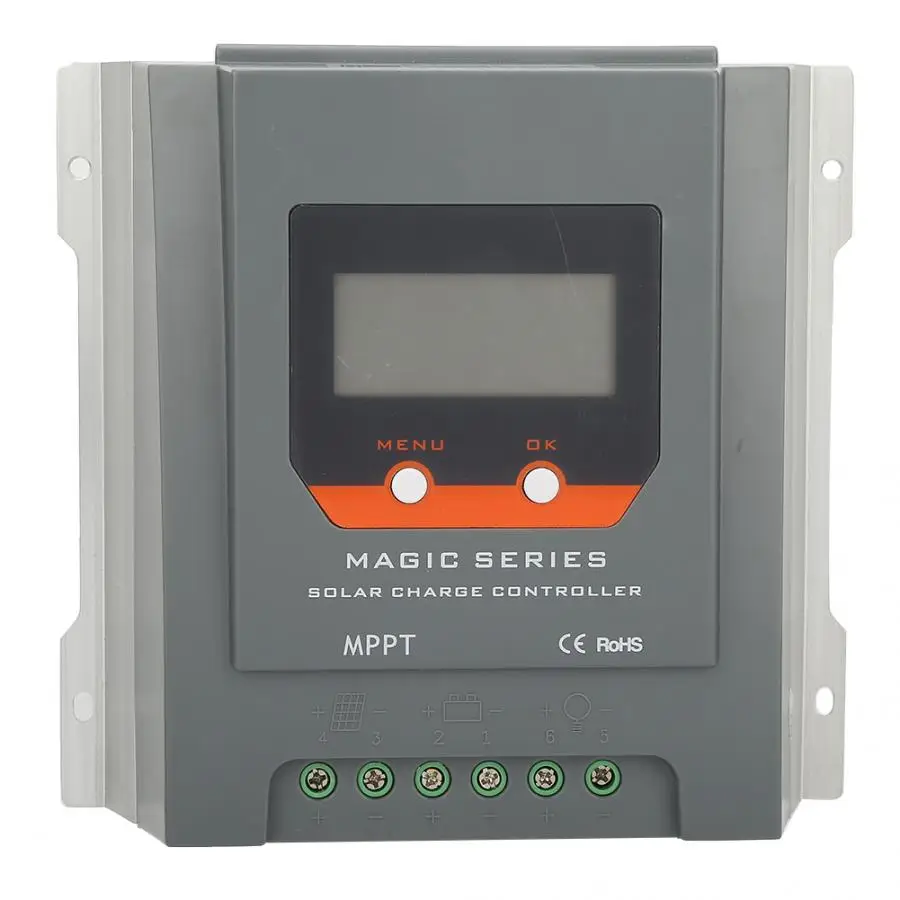

30A 12V/24V MPPT Auto Solar Charge Controller 390W/780W USB Port LCD Display Solar Charge Regulator
Features:
- Innovative maximum power point tracking technology (MPPT) with maximum power point tracking efficiency >99%.
- Full digital control technology, charging conversion efficiency up to 97%.
- LCD screen dynamically displays the operating data and working status of the device.
- Automatic identification of 12V/24V system voltage.
- External temperature sensor for more accurate temperature compensation.
- Built-in over-temperature protection mechanism, when the temperature exceeds the set value, the charging current decreases linearly with temperature, thereby reducing the temperature rise of the controller and avoiding high temperature damage of the controller.
- Real-time electricity statistics recording function.
- Choice of battery type, working mode and protection method.
- Four-stage charging: MPPT, strong charge, balanced charge, float charge.
- 2 USB interface (EU series) current-limiting charging mode, when the solar panel power is too large, the charging current is greater than the rated current, the controller automatically reduces the charging power, and works at the rated charging current.
- Comprehensive electronic protection.
Specification:
| Model | MT3075 | |
| Battery Parameters | System Voltage | 12V/24V automatic recognition |
| Maximum Charging Current | 30A | |
| MPPT Charging Voltage | <14.5/29.0V 25℃ | |
| Boost Voltage | 14.5/29.0V 25℃ | |
| Equalization Voltage | 14.8/29.6V 25℃(Liquid) | |
| Float Voltage | 13.7/27.45V 25℃ | |
| Low Volt.Disconnect | 10.8~11.8V/21.6~23.6V,SOC1~5(default 11.2/22.4V) | |
| Reconnect Voltage | 11.6~12.8V/23.2~25.6V | |
| Overcharge Protect | 15.5/31.0V | |
| Maximum volt on Bat.terminal | 35V | |
| Temp.Compensation | -4.17mV/K per cell(Boost, Equalization),-3.33mV/K per cell(Float) | |
| Battery Type | Liquid,Gel | |
| Panel Parameters | Maximum volt on PV terminal | 55V |
| Maximum input power | 390/780W | |
| Dusk/Dawn detect volt. | 8.0/16.0V | |
| MPPT tracking range | (Battery Voltage+1.0V)~Voc*0.9 | |
| Load | Output Current | 30A |
| Work mode | Standard,D2D,Street lamp mode(2~9hours),Manual | |
| System Parameters | Maximum tracking efficiency | >99.9% |
| Maximum charge conversion | 97.00% | |
| Self consumption | 7mA | |
| Ambient temperature | -20~+50℃ | |
| Storage temperature | -25~+80℃ | |
| Ambient humidity | 0~100%RH | |
| Protection degree | IP32 | |
| Maximum Altitude | 4000m |
Size: 189 x 182 x 58mm / 7.44 x 7.17 x 2.28in
1*Controller

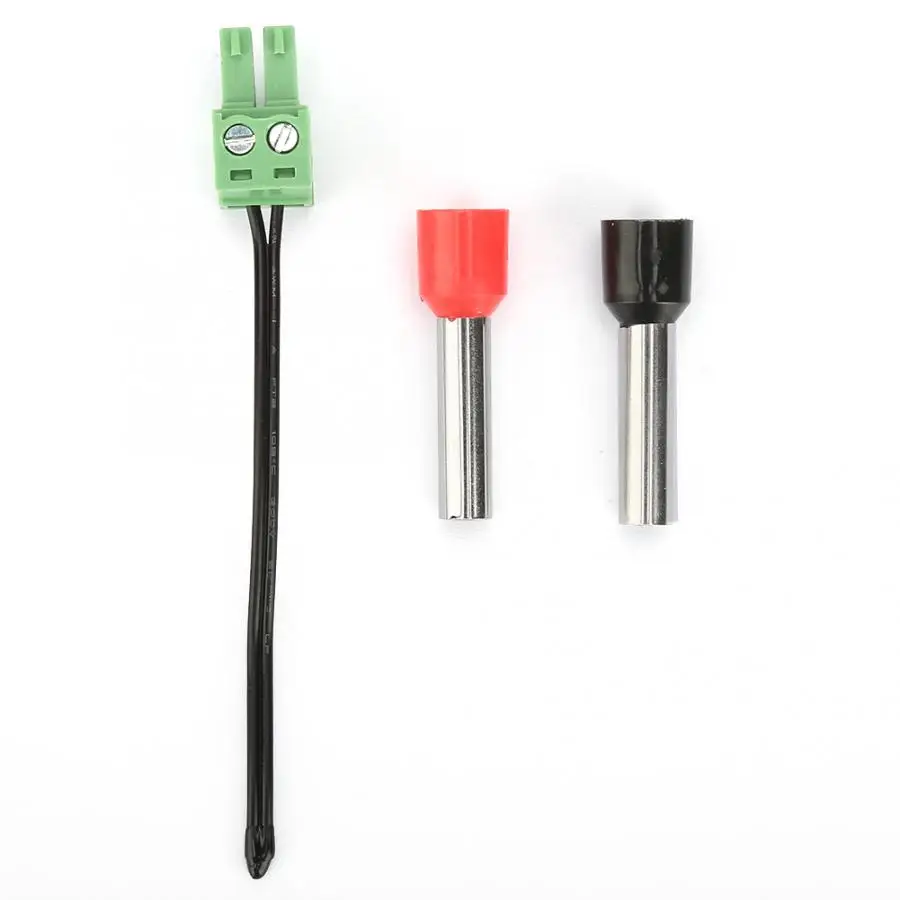

1*Temperature Probe
6*Connection Terminal
1*Users Manual
