NEWST 170 Degree Wide Angle Door Eye Camera 700TVL Bullet Mini CCTV Camera with 7"lcd Monitor Door Hole Camera System

NEWST 360 Degree Panoramic Cctv Camera.... Price $44.00 Amazing $27.99 SHRXY 7  LCD CCTV CAMERA LED              .. Price $60 Amazing $34.99

d Held Metal Detector Wter-resistant Desig

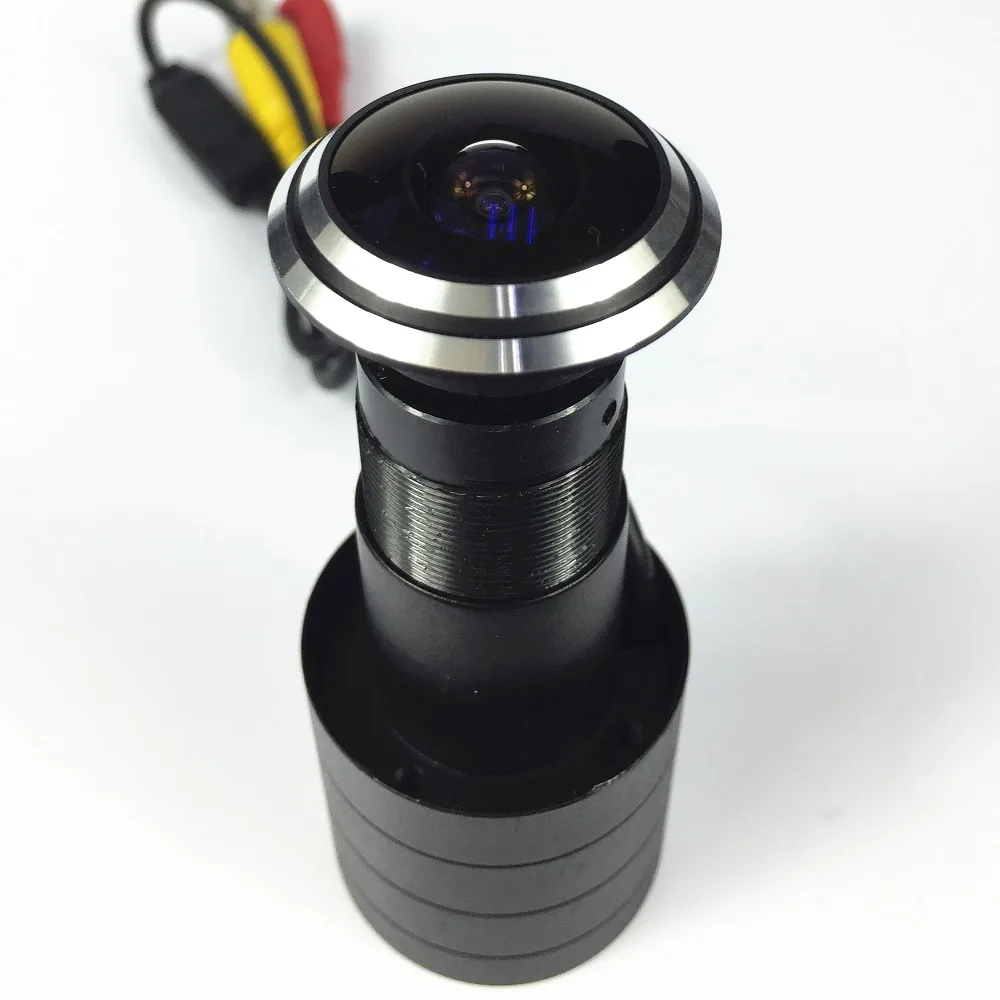

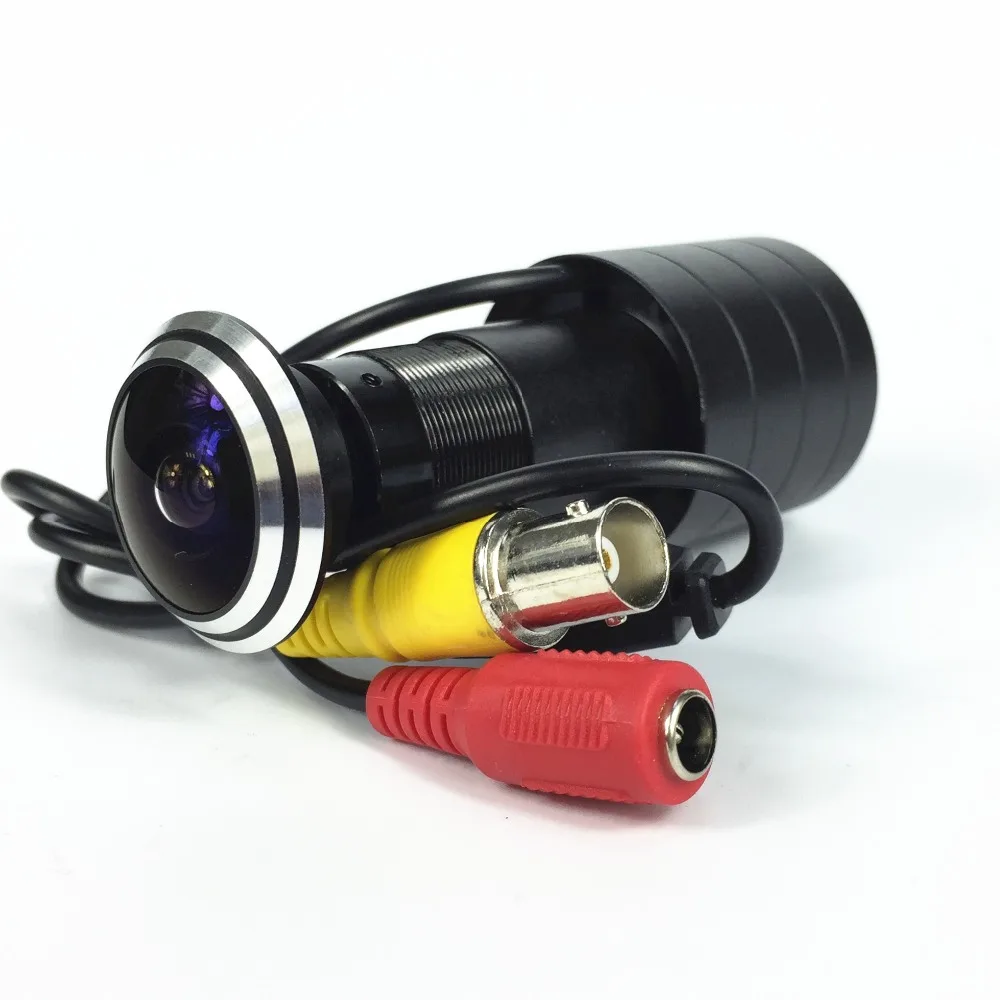

Door eye cameraFeatures:

mage Sensor: 1/3" Sony Super HAD CCD II
DSP: Effio-E (4140+811/810)
Horizontal Resolution :700TVL

Effective Pixel:NTSC:976(H) X494(V) PAL:976(H) X582(V)

Min. Illumination :0.001 Lux (F1.2)/ 0 Lux IR On
Signal System: NTSC/PAL
Lens: Standard 1.8mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75MA

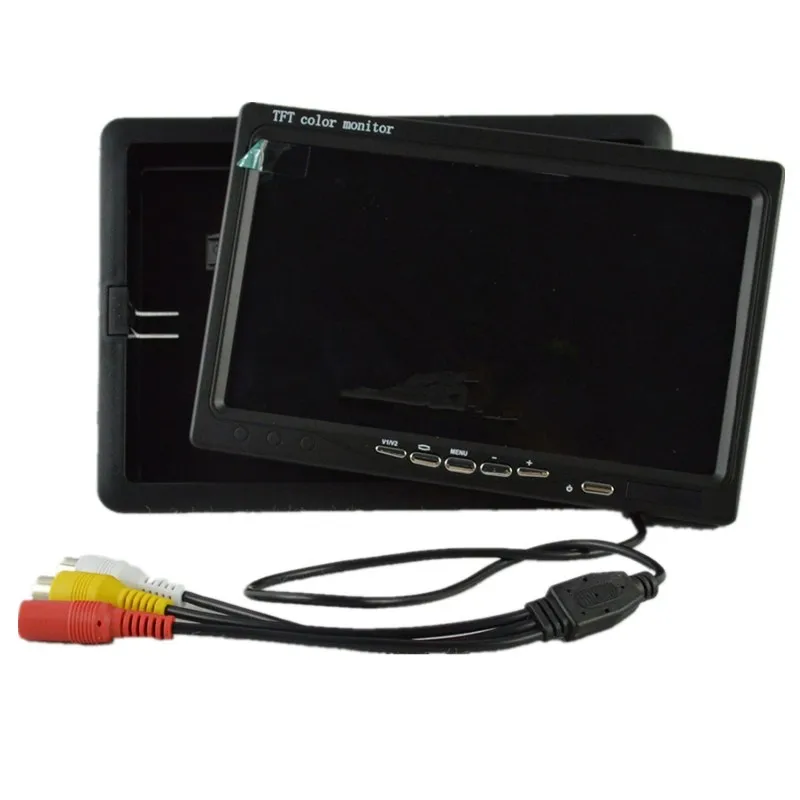

7" LCDparameters:

1, Screen size: 7 inches TFT-LCD high-definition digital LCD display desktop

2. Resolution: 800 x 480, supports up to 1024 * 768, 1280 * 1024

3, the color system: PAL / NTSC

4, the power supply voltage: 9 ~ 35V

5, Brightness: 400 Contrast Ratio: 350: 1

6, Color: Black

7, power consumption: 7W

8, operating temperature: -20   - + 65

9, storage temperature: -25   - + 85

10, the display function: automatic switching of visual function

11, Interface: AV2 video input (external reversing the priority function), a VGA computer standard interface

12, the screen up and down, left and right rotation

13, LCD screen Aspect Ratio: 16: 9 (can be set to 4: 3)

14, a wide viewing angle: 70/70/50/70 (left / right / up / down)

15 Dimensions L * W * H: 173 × 113 × 21mm

16, the headrest frame size L * W * D: 193X134X30mm

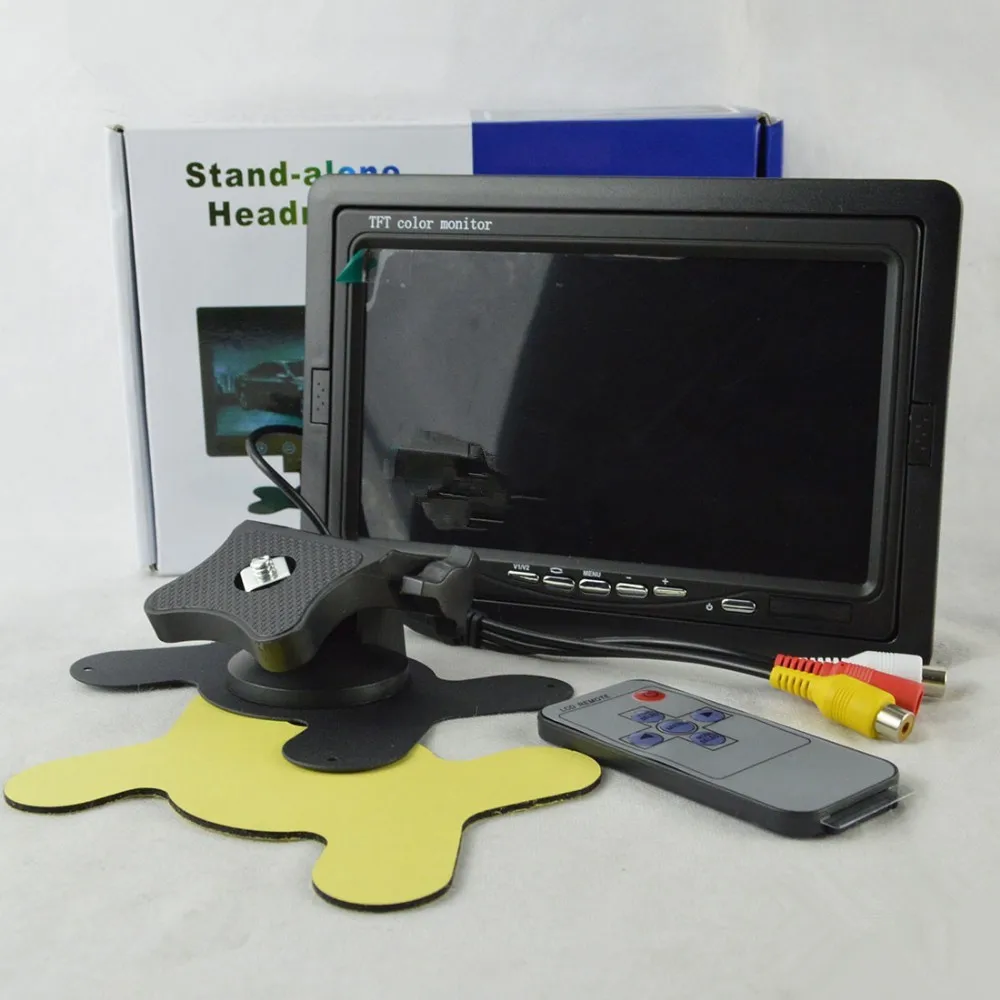

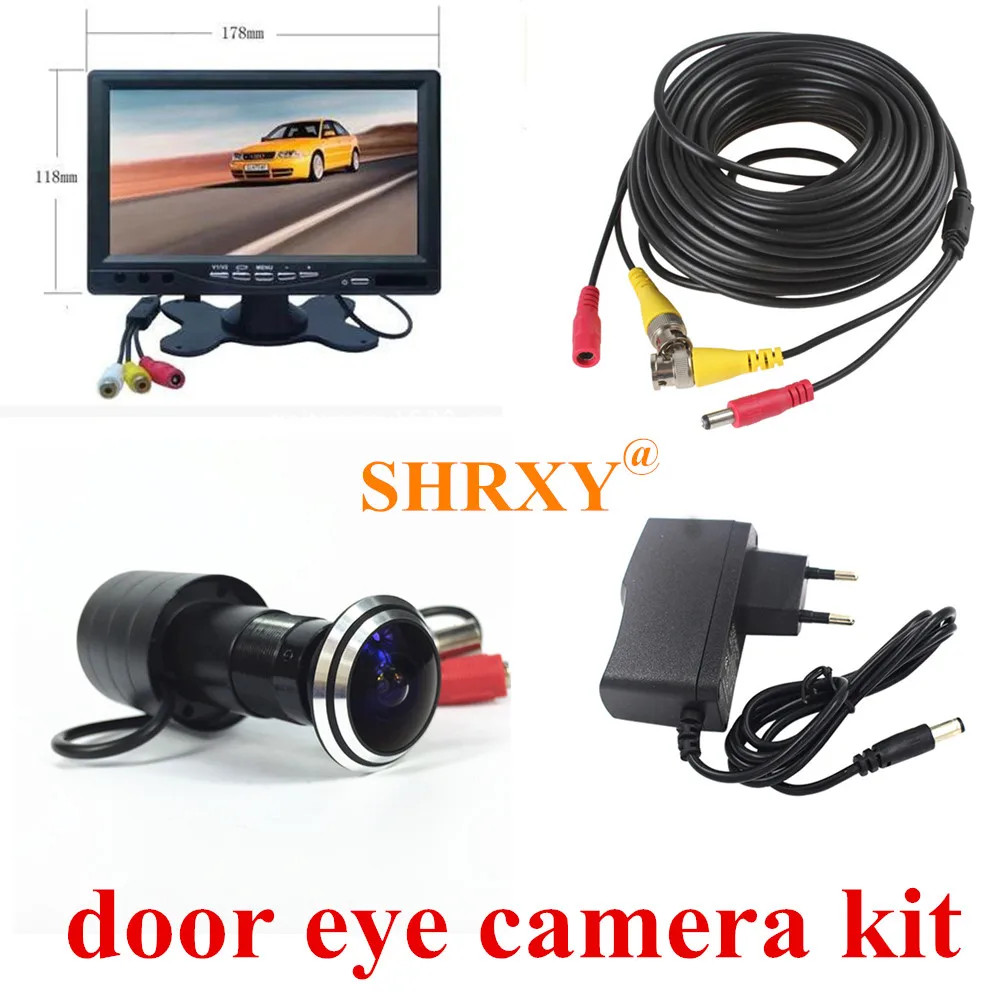

1 xRetail Box

1 x7 inch LCD TFT(Including stents, gong silk)

1 x5M   2in1Cable

2x12V power adapter

Note:1.8mm lens, PAL SYSTEM,Black housing color default for this camera.The camera does notfeel infrared.

Trouble and Solution:

1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.

2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.

3. The picture background color changes continuously
The fluorescent lamp\'s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.

4.The picture smear too mass
The power supply\'s voltage unstable
Connecting cables not connect correctly or have high impedance.

Trouble and Solution:

1. No Picture after providing power
May be the power supply voltage abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the conecting cable and monitors whether be connected correctly or not.

2. The picture level direction have flowing interference ripples
May be caused by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.

3. The picture background color changes continuously
The fluorescent lamp\'s electromagnetic field cause color roll. This is proper phenomenon of the cameras.
Reduce the fluorescent lamp numbers or increase the distance between the camera and the fluorescent lamps can
improve it.
Use Power supply external sync. Camera can solve it.

4.The picture smear too mass
The power supply\'s voltage unstable
Connecting cables not connect correctly or have high impedance.
