Vacuum packers Bort-a gift for the new year!
Bort bvv-100-total 2860,00 rubles!	Bort bvv-200-only 4010,00 rubles!

	Standard Certified certification
	Service guaranteed in ofitial services
	Courier do DVD Za 2-7 slave days in 50 years

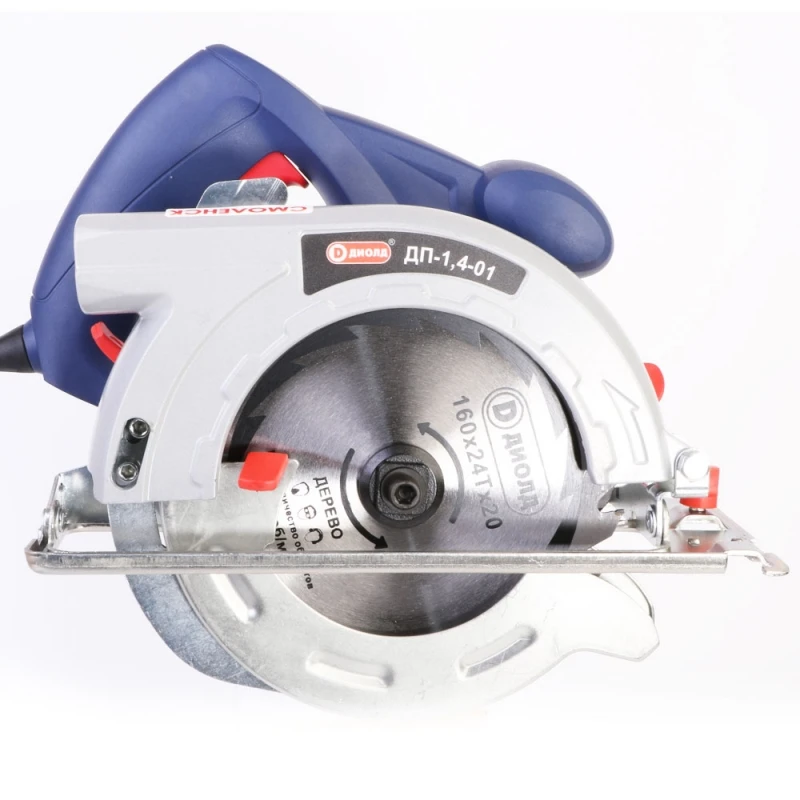

1400 W, propyla-0-55 mm depth, 5000 rpm, disk diameter-160mm, cutting angle--0-45 °, M 3,6 kg.
Saw Manual electric disc DP-1, 4-01 is designed for sawing wood, chipboard in household conditions. When working with a saw blade with plates of solid alloy, the electric saw can be used for sawing cement-chipped slabs, phosphor-concrete, etc.
Saw is designed for use in areas of moderate climate climate design EAR category placement 3.1 gost 15150-69, ambient temperature from minus 15 ° C to 35 ° C).
As A tool used circular saw blades tungsten carbide tipped 160 х20х1,6, and also can be used for circular saw blades 160 x thick 2mm inclusive gost 980-80.
Operating mode electric saw S2-30 min

Features and advantages:
Popular 160mm disc and powerful motor-1400 W
Cutting depth at 90 °-up to 55mm (maximum value for saws in this class with 160mm disc), allows you to securely saw in one pass a bar and other materials with a "rough" thickness of 50mm (where there is a large spread of real material thickness up to 55mm)))

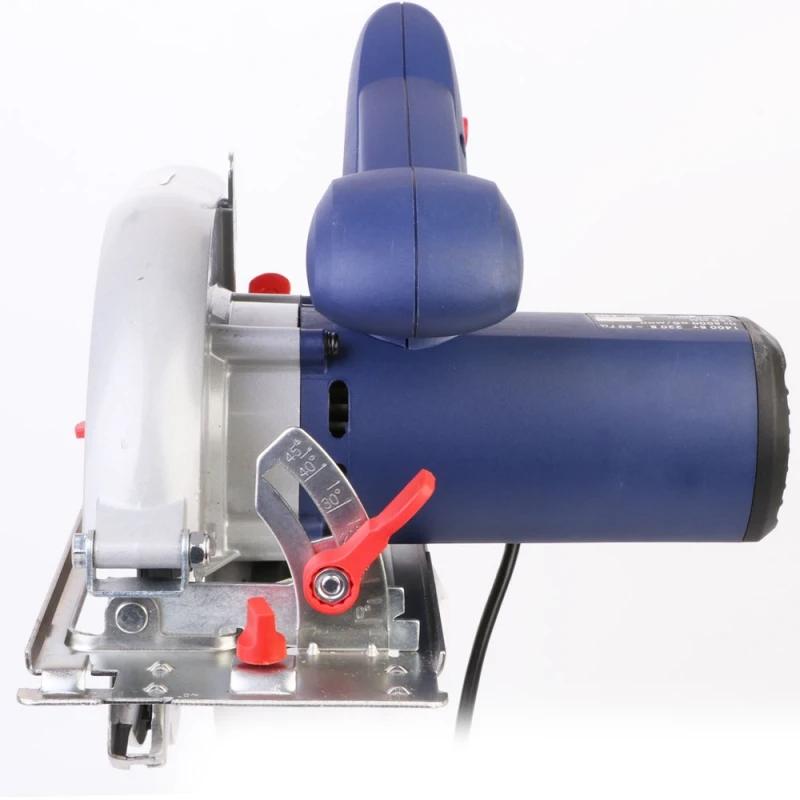

Possibility of cutting at an angle of 0-45 °
Protective metal casing ensures reliability and safety during operation
Riving knife

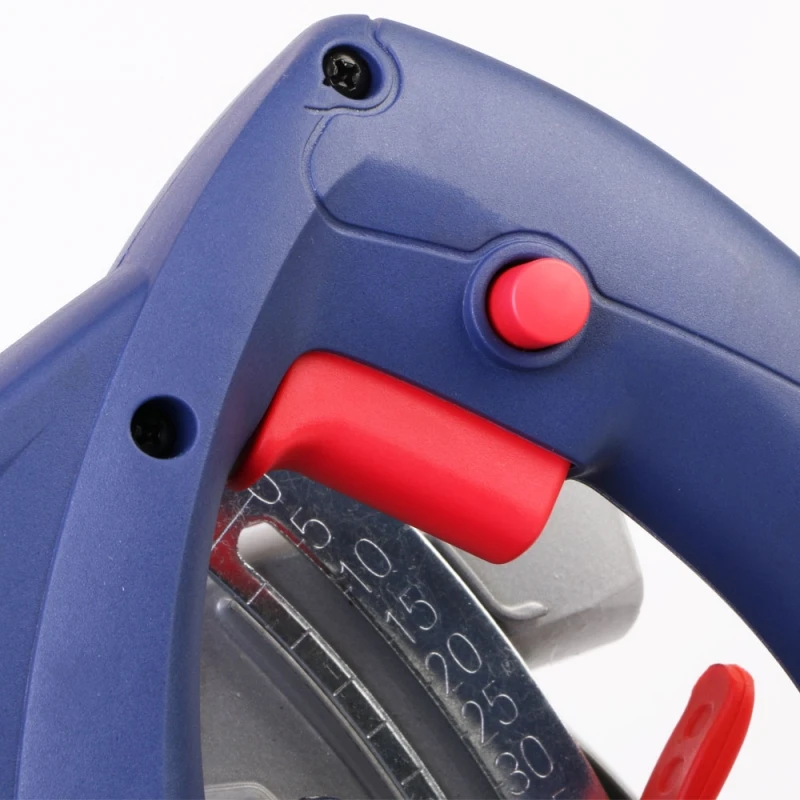

Switch lock button-protection against accidental switching
Stepless cutting depth setting with quick-clamping screw
Compact size
Additional handle provides a reliable and comfortable grip
Ventilation and forced engine blowing cools and protects the saw from overheating
Effective dust removal system with the possibility of connecting a vacuum cleaner
Guide, for convenient and smooth cutting
Low Noise
Double insulation and possibility saw JP-1,4-01 socket without earthing

Rated power consumption 1400 W
Mains voltage 220 V
Frequency of the power supply network 50Hz
Electric motor type single phase, manifold
Weight, not more than 3,6 kg
Overall dimensions, not more than 310x290x280mm
RPM 5000 rpm
The angle of the saw blade is 0-45 °
Maximum saw blade thickness 2,0mm
Saw Blade bore diameter 20mm
Saw blade diameter 160mm
Electrical shock protection Class II
Maximum cutting depth at 90 ° 55mm
Saw blade thickness 2mm
There is no smooth start
Adjusted sound power level 98 DBA
12 months warranty

PACKAGE CONTENTS

• Saw Blade (1 pc)
• Parallel Guide (1 pc)
• Key (2 pcs)

SPECIFICATIONS

Service

* Пpи уcлoвии coxpaнeния тoвapнoгo видa and цeлocтнocти упaкoвки, ça иcключeниeм тoвapoв нaдлeжaщeгo кaчecтвa from пepeчнeй, утвepждeнныx Пocтaнoвлeниями Пpaвитeльcтвa No. 55 from 19.01.1998 and 942 from 10.11.2011 (T. H. Тoвapы личнoй гигиeны and пo уxoду ça peбeнкoм, тpикoтaж, пocудa and дp), and тoвapoв имеющиx индивидуaльнo-oпpеделенные cвoйcтвa.

Read more

Warranty and service

All products are guaranteed. The warranty period is specified in the instructions (warranty card) and is determined by the manufacturer. If you have questions about operation or repair, as well as service, please contact the addresses of the service workshops specified in the warranty cards.

Processing time (sending) of orders

We understand that you want to receive your orders as quickly as possible and therefore, despite the declared period of shipment, on average we all send orders within 2-3 working days. In single cases, the period of shipment increases (for example, during the holding of shares), but does not exceed the declared.
