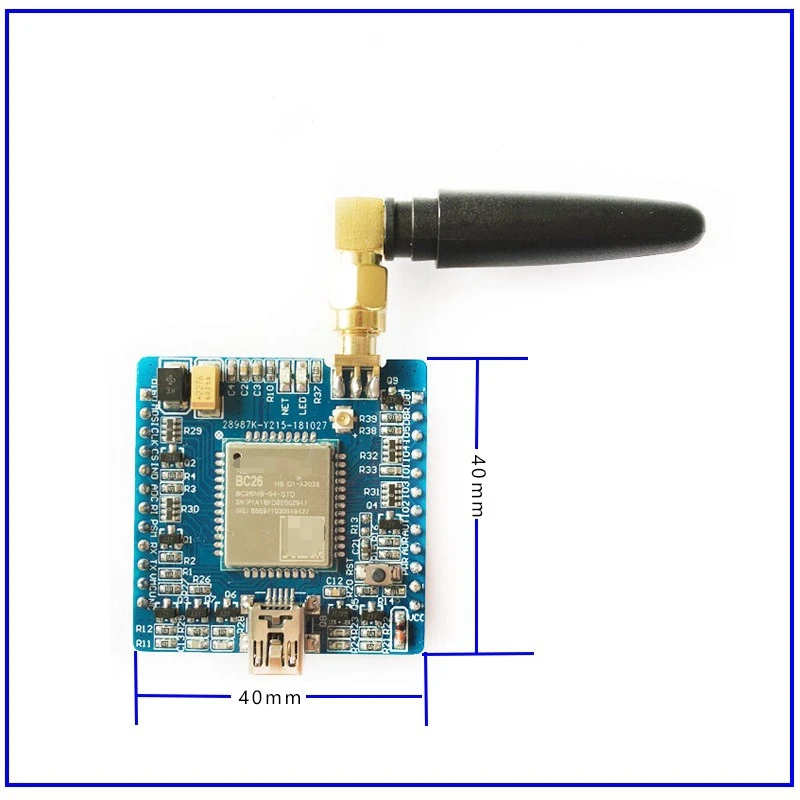

BC26 BC26NB-04-STD suppot OpenCPU Secondary development board 40*40mm GSM/GPRS NBIoT LTE B1/B3/B5/B8/B20 Europe

The BC26 is a high performance, low power, multi-band LTE Cat NB1 wireless communication module. Its size is only 17.7mm × 15.8mm × 2.0mm, which can meet the needs of terminal equipment for small-sized module products, and help customers reduce product size and optimize product cost. The BC26 is designed to be compatible with the M26 module of the GSM/GPRS series of Mobile Communications, enabling customers to quickly and flexibly design and upgrade their products. The BC26 provides a rich set of external interfaces and protocol stacks, and supports IoT OneNET, China Telecom IoT, Huawei OceanConnect, and Alibaba Cloud and other IoT cloud platforms to provide great convenience for customers' applications.

The BC26 is packaged in a more easily solderable LCC that enables rapid module production through standard SMT equipment, providing customers with a reliable connection and meeting the needs of complex environments.

With its compact size, ultra-low power consumption and wide operating temperature range, the BC26 is ideal for IoT applications, often used in smoke, wireless meter reading, shared cycling, smart parking, smart city, security, asset tracking, Smart home appliances, wearables, agriculture and environmental monitoring, and many other industries to provide comprehensive SMS and data transfer services.

Main advantage

● LCC package, ultra low power consumption, ultra high sensitivity, compact size

● Support low voltage power supply: 2.1V~3.63V

● Support China Mobile OneNET, China Telecom IoT, Huawei OceanConnect and Alibaba Cloud IoT Cloud Platform

● Support OpenCPU, can save peripheral MCU

● Support high speed movement (80km/h~120km/h)

● Retain the built-in eSIM card location to meet customized requirements (the board doesn't have eSIM solder position. If you need eSIM ,please contact us)

● The package design is compatible with the GSM/GPRS module of the remote communication, which is easy to upgrade.

● Support multi-band and rich external interface, embedded network service protocol stack, convenient application

Specification
