Характеристики
1500mm*3000mm 1530 cnc plasma cutting machine/plasma cutter with rotary | Инструменты
История изменения цены
*Текущая стоимость 597 887,25 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 759316.10 руб. | 774502.18 руб. | 766909 руб. |
| Jul-18-2025 | 615824.64 руб. | 628140.59 руб. | 621982 руб. |
| Jun-18-2025 | 747359.31 руб. | 762306.72 руб. | 754832.5 руб. |
| May-18-2025 | 741380.66 руб. | 756208.96 руб. | 748794 руб. |
| Apr-18-2025 | 591908.96 руб. | 603746.74 руб. | 597827 руб. |
| Mar-18-2025 | 729422.97 руб. | 744010.58 руб. | 736716 руб. |
| Feb-18-2025 | 723443.64 руб. | 737912.54 руб. | 730677.5 руб. |
| Jan-18-2025 | 717464.77 руб. | 731813.70 руб. | 724638.5 руб. |
Описание товара

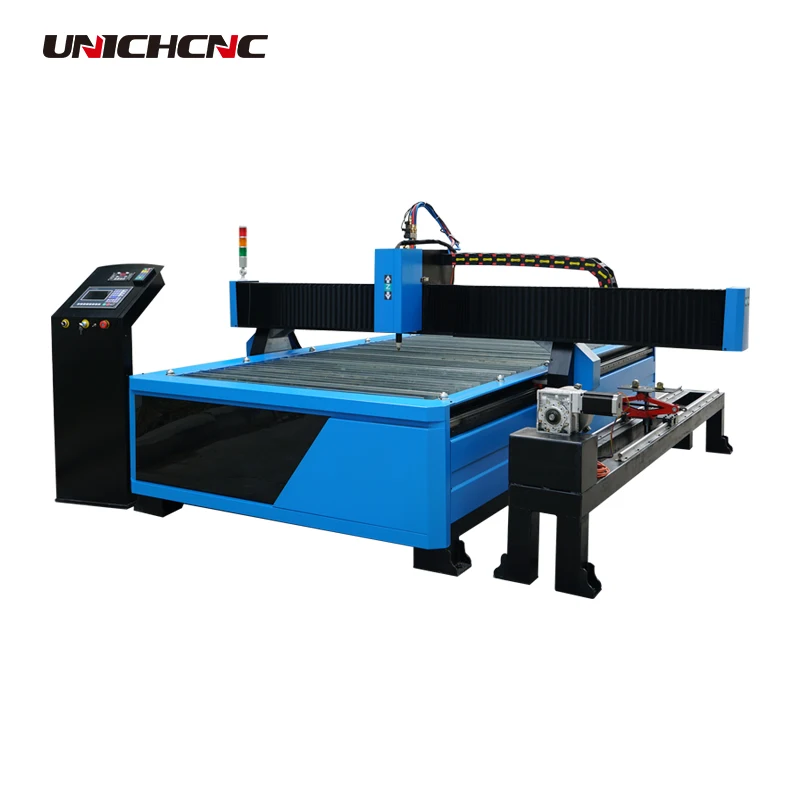

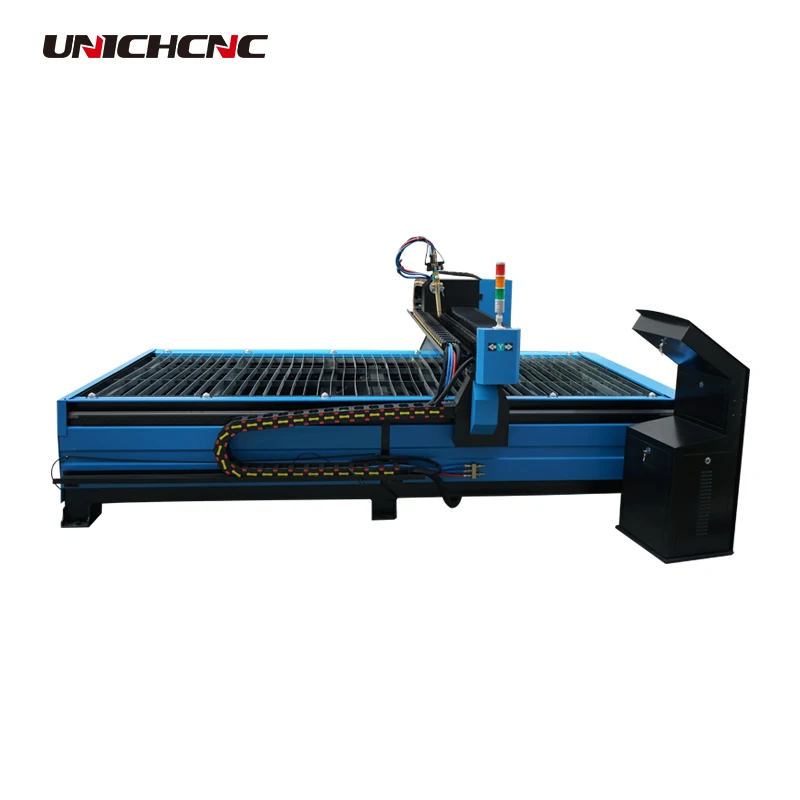

1500mm*3000mm 1530 cnc plasma cutting machine/plasma cutter with rotary
Hot Sale
Our Machines
Plasma cutting machines with rotary:can cut steel plate and pipes.
Technical parameters
|
Item |
Optional |
|
Working area |
1300*2500/1500*3000/2000*4000mm ; Could be customized |
|
Cutting method |
Plasma cutting / Flame cutting |
|
Plasma power |
Chinese Huayuan 63/100/120/160/200A (USA 45/65/85/125/200A for choose) |
|
Control system |
Starfire controller and torch height controller(THC) |
|
Nesting Software |
Fastcam |
|
Machine frame |
General duty frame |
|
Working table |
Blade table/Sawteeth table |
|
Cutting thickness |
0-30mm according to different plasma laser power 30-150mm flame cutting |
|
Resolution |
0.03 |
|
Repeatability |
0.05mm |
|
Max running speed |
0-32000mm/min |
|
Max working speed |
0-10000mm/min |
|
Motor and driver |
Stepper motor and leadshine driver |
|
Command |
G code (*uoo,*nc,*mmg,*plt) |
|
Working supply |
380V, 3 phase,50/60HZ(220V for option) |
|
Guarantee |
2 year |
|
Optional |
Rotary / Drilling head |
Main Parts
1.Buring torch and cutter head:high automation,easy operation,high accuracy,high reliability.
2.Motor:standard stepper 450A,optional servo motor,hybrid servo motor.
3.Driver:standard leadshine driver860,optional according to motor
4.Gear rack:the transmission part adopts the precission gear rack,the operation is stable and the precision
is high.
5.Rail and slider:machine standard configuration is Hiwin square rail and sliding block.
6.Fastcam:operated easily and flexibly,support more than 10 languages.
7.Assembly Parts:cutting nozzles.
8.Exhaust fan:clean smoke produced by the machine.
Optional Cutting Head
1.flame cutting head(optional:can cut 30-100mm metal)
2.drilling head(can drill diameter hole <=20mm and auxiliary cutting)
3.mark head(can mark words on metal)
Our company
Certification
Payment
T/T 30% payment for deposit, after the machine finished, we will take the testing videos for you to check the machine,
after you satisfied the machine you pay the left 70% payment. Then we will delivery the machine.
