DESCRIPTION

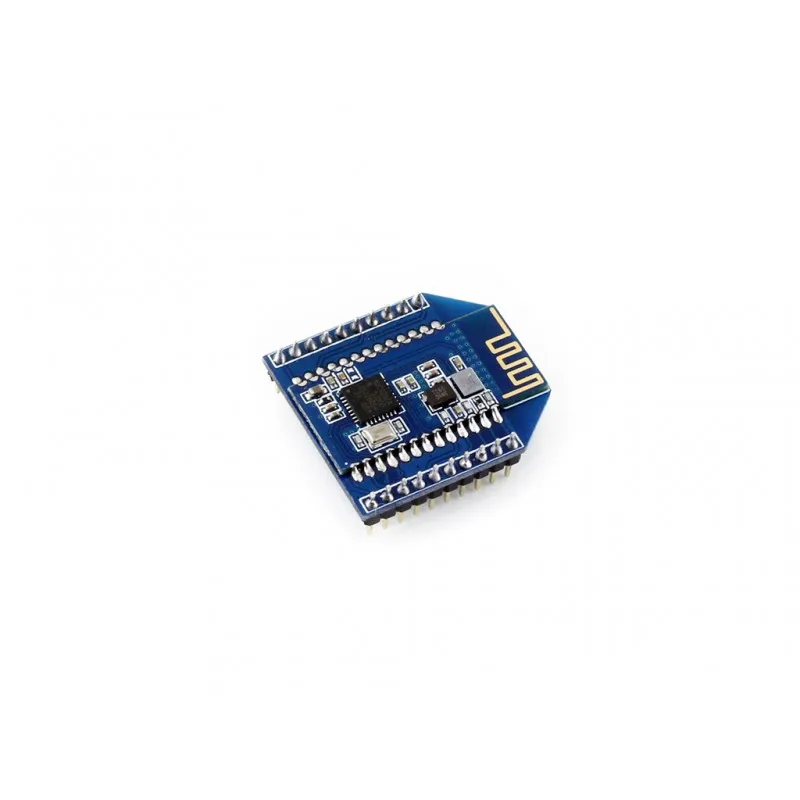

Dual-mode Bluetooth module evaluation kit

Overview

This kit comes with the Dual-mode Bluetooth module, and the XBee USB Adapter for easy testing with PC.

Dual-mode Bluetooth is a wireless module that allows bi-directional transparent data transfer between the TTL serial and Bluetooth devices. It is designed to be master/slave-in-one, also, it supports iBeacon. You can easily operate the module via AT commands, like: set baudrate, change broadcast name, and IO control, etc.

Features

• Dual-mode Bluetooth, completely compatible with iOS and/or Android devices
• Works as a full-duplex serial pipe after pairing, requires no Bluetooth protocol knowledge
• Fully configurable via AT commands
• XBee interface
• Comes with iOS and Android demo code, like: mobile robot remote control, data acquisition, device status monitoring, etc.

Specifications

• Bluetoothversion: Bluetooth Specification V4.0 EDR and BLE
• Frequency range: 2.4GHz ISM
• Modulation: GFSK (Gaussian Frequency Shift Keying)
• Communication distance: SPP 50m, BLE 100m (ideal condition)
• Sensitivity: ≤-84dBm (0.1% BER)
• Antenna: onboard antenna
• Transfer speed: about 40% serial speed for SPP, about 30% serial speed for BLE
• Packet length: 60 bytes for SPP, 20 bytes for BLE
• Serial buffer: 512 bytes
• EDR service: L2CAP, SDP, RFCOMM, SPP
• BLE service: ATT, GATT, LE Service: 0xFFE0, Char: 0xFFE1
• Power consumption
  • SPP: avg 13mA
  • BLE: avg 9.5mA
  • Standard: 10-17mA
• Power supply: 3.3V 50mA
• Operating temperature: –5°C ~ 80°C

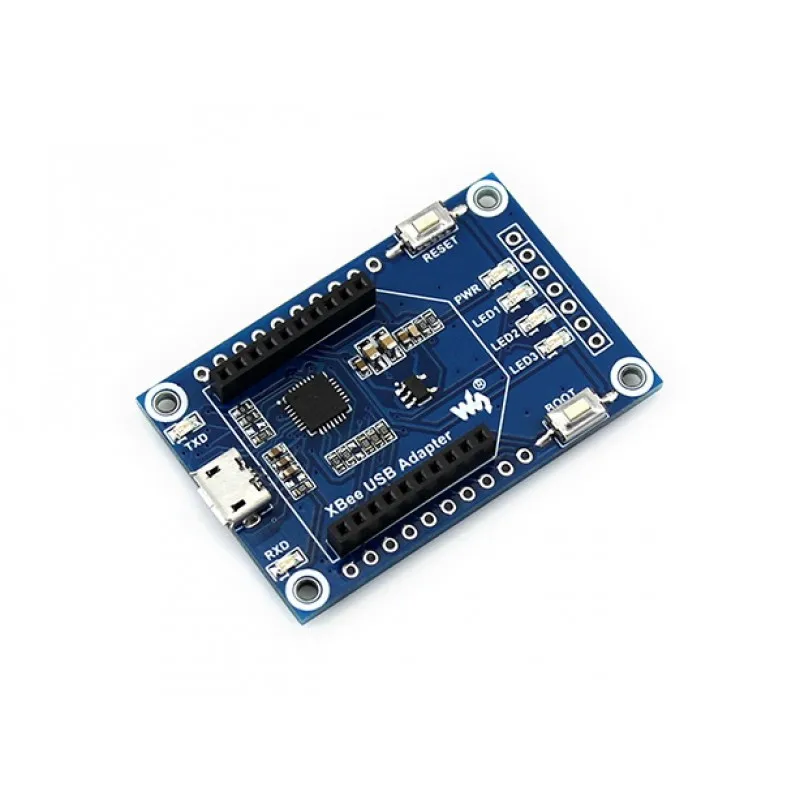

XBee USB Adapter Overview

XBee USB Adapter is a UART communication board which supports XBee connectivity, features UART interface, USB interface, and onboard buttons/LEDs, provides an easy way for developing/debugging.

It can be used in the following situations :

• Test XBee modules: onboard buttons/LEDs for easy testing
• Program/Configure XBee modules: make it easy to program/configure the XBee modules frequently
• USB to UART module: features CP2102, provides UART interface and power output interface, connect it to your system easily

Note : XBee modules above refer to modules with XBee-compatible interface, like: Core2530 (B), Dual-mode Bluetooth, etc.

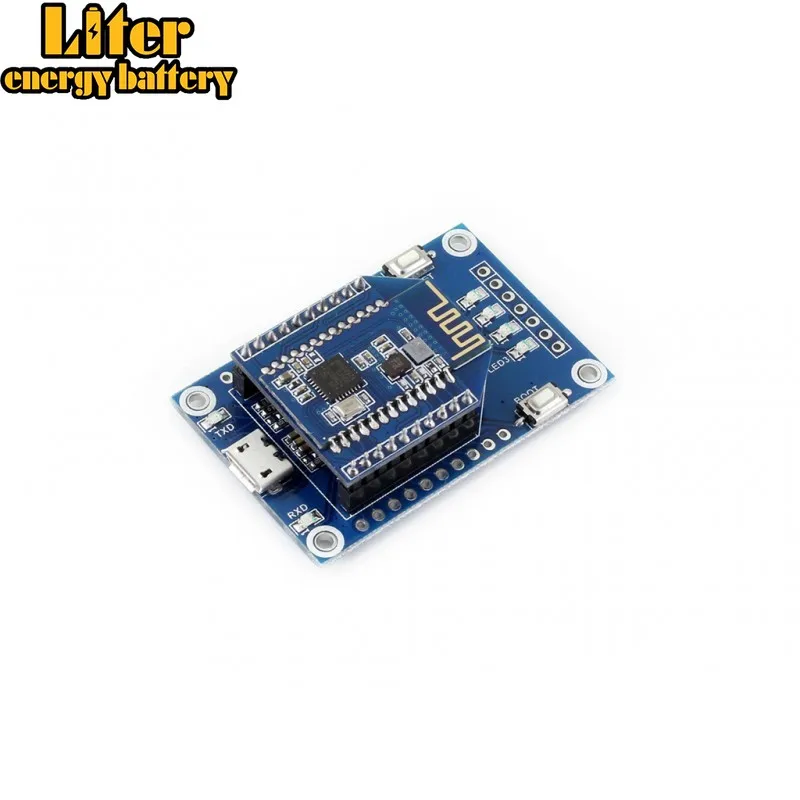

Photos

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

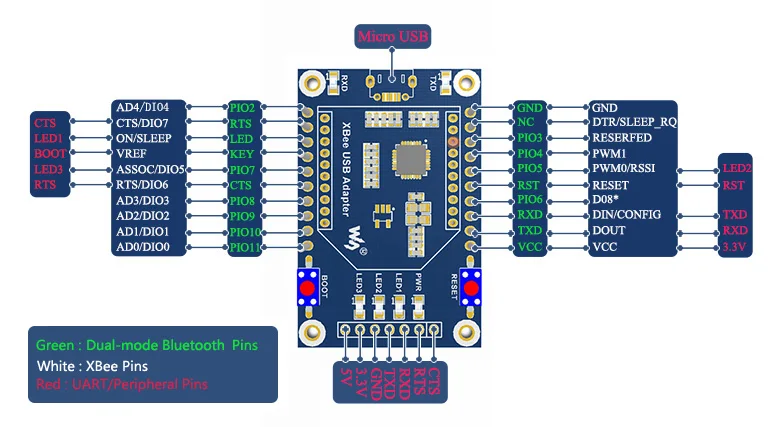

Pin Definition

Development Resources

Wiki : www.waveshare.com/wiki/Dual-mode Bluetooth

Wiki : www.waveshare.com/wiki/XBee_USB_ Adapter

PACKAGE CONTENT

1. Dual-mode Bluetooth x 1
2. XBee USB Adapter × 1
3. 40-pin male pinheader & 40-pin female pinheader x 1
4. USB Type A Plug to Micro B Plug Cable x 1
