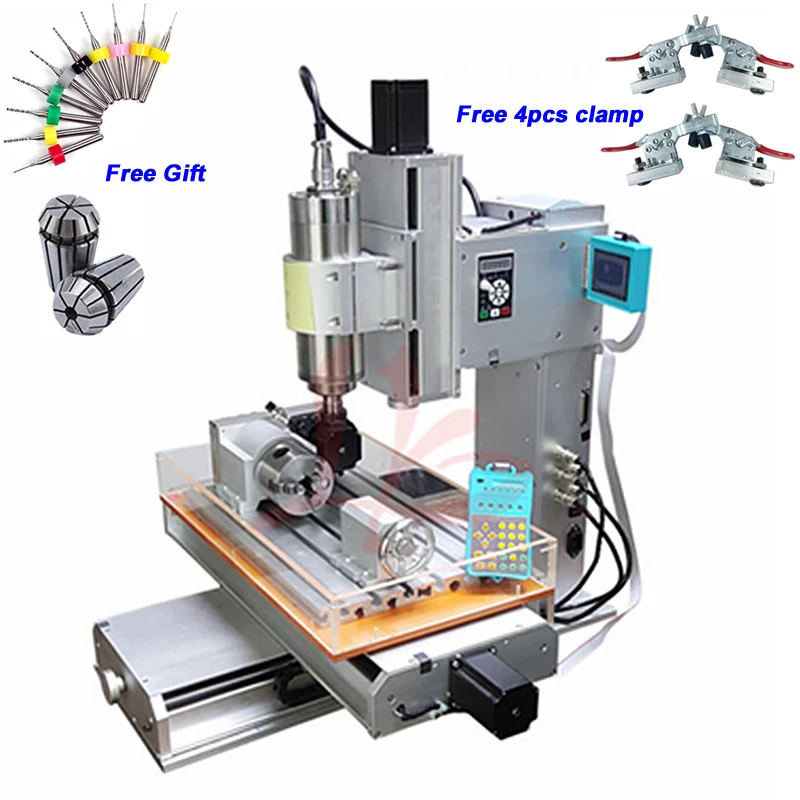

1.5KW 2.2KW 4 Axis Vertical CNC Router 3040 Metal CNC Engraving Milling Machine

Free Gift

10 pcs 3.175mm drill bits (0.3-1.2mm)

2 pcs ER11 OR ER16 (Send randomly)

4 pcs CNC Clamp

Specifications

Model	Column type 3040 CNC Machine 1.5KW /2.2KW
Attribute	4 axis machine
X Y Z axis	√

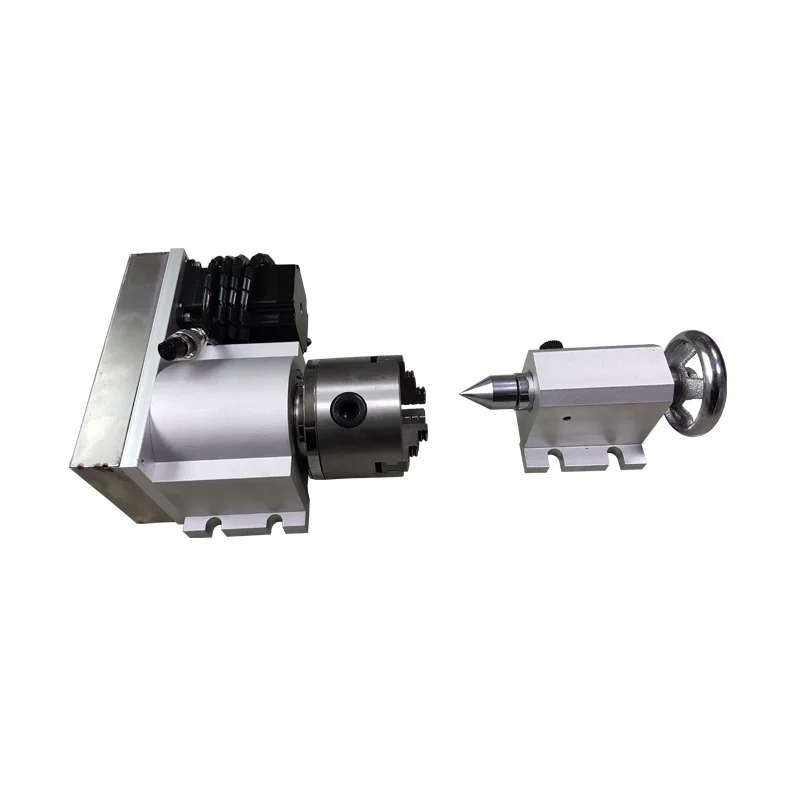

A axis (4th axis)	√
B axis (5th axis)	ⅹ
Net Weight	60KG
Gross Weight	86kg
Product Dimention	520(H)X660(L)X580(W) mm
Effective work area	300x400x(150)mm
Precision ball screw	1605
XYZ rail material	Hard chrome shaft
XY rail diameter	20mm
Z rail diameter	16mm
XYZ axis torque	57*78  250 OZ/IN (2.2N/CM)
4th and 5th	57*56
4th and 5th transmission ratio	1:6
Repeat positioning accuracy	0.01mm
Working precision	0.02mm
Processing speed	0-4000 mm/Min
A-axis B-axis rotation speed	0-180 rpm/min
XY table maximum load	50kg
XY+A+B axis table maximum load	15kg
Tailgate material	Stainless steel
Switching Power Supply	Integrated 24V 350W
Spindle power	1500W /2200W water-cooled frequency spindle
Spindle converter	1500W / 2200W
Input Power	220V / 110V power supply
Output Current	Drive 4.5A (peak 5A)
Drive motor	57*78 stepper motors (two-phase 4 wire)
Outside packing	80*70*85 (cm)

Packing list

1. 4 axis vertical CNC machine with 4th axis *1

2. Water pump *1

3. Water tank *1

4. Mill bits *2

5. Power cable *1

6. Wrench *3

7. CNC Clamp *4

8. 25 pin Parallel port cable *1

9. Water pipe *2

10. Tool box *1

11. Software CD (if not get, please contact us, we will send you download link)

Features

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.3. Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.4. Manual data input processing path and enter the path to run automatically.5 You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control6. Max 5A stepper motor drive current, eight-speed adjustable.7. Up to 16 segments, higher accuracy, run more smoothly.8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices. Why buy  from us : CE approved. Video support. English manual available. Mach 3 software send with the machine as a CD. Can engrave material which hardness below 45.Easy operating: It can work with 3 axis / 4 axis / 5 axis, just as you like ! Integrated high-speed micro computer intelligent control chip. With external digital LCD monitor and handwheel controller. The working process can be tracked, recorded in the digital LCD monitor automatically. Mach 3 software Built in frequencey converter and without controller box.Higher precision because: Cross slippery platform design rather than gantry design. Aluminum base sheet is heavy which can make sure no vibration when work. With auto-checking function. 1500w water-cooled spindle. Ball screw

Item pictures
