This is a great set of easy-reassembling LCD controller kit which is used to turn a unused LCD panel into a desktop/PC

monitor. It will be a surprise that your unused LCD will be of good use, and no longer be a waste.  Or it is a very interesting
things to make a monitor successfully by yourself.  M.RT2270 is a LCD control board, it supports between 14 and 19 inch LCD panel with single /dual LVDS interface.And the resolution is up to 1920x1080.

Note:

 Please leave a message of your LCD model and version when you make the payment ,thanks !

Description:

M.RT2270 is a monitor control board. It can support LED/LCD panels which resolution is up to 1920x1080

M.RT2270 can synchronize with computer automatically.Synchronization require the synchronous signal which horizontal

and vertical syncare separated.

M.RT2270 can support dynamic contrast control,headphone input and Digital volume control simultaneously.

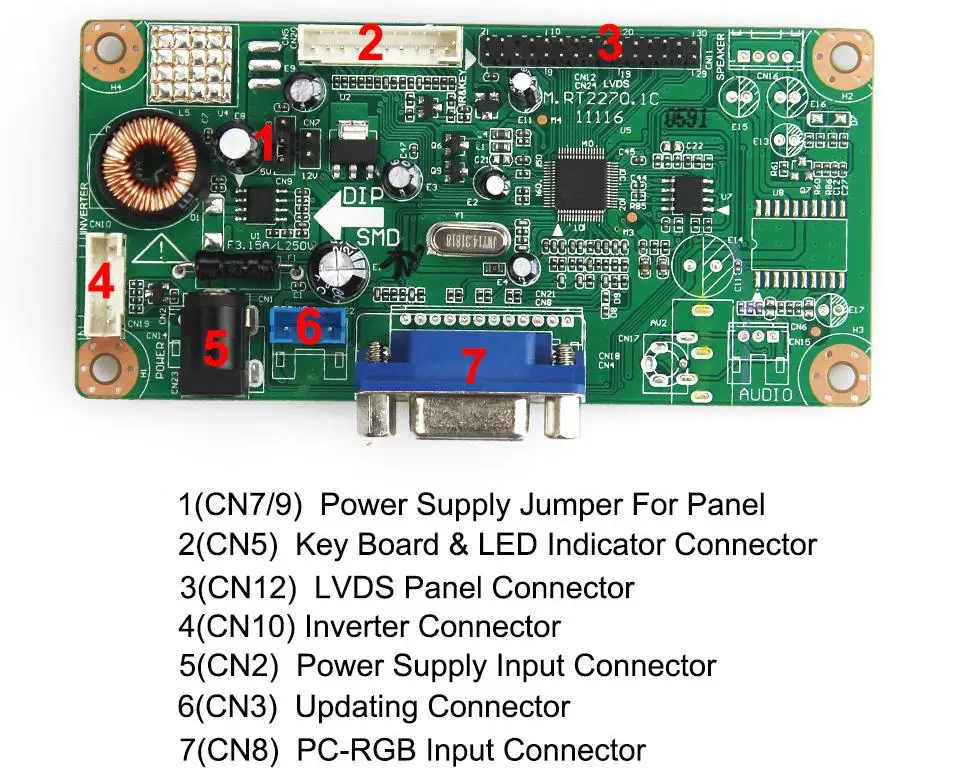

M.RT2270 is with interface show in below:

 Board Size:4.21in(L)*2.03in(W)*0.71in(H)

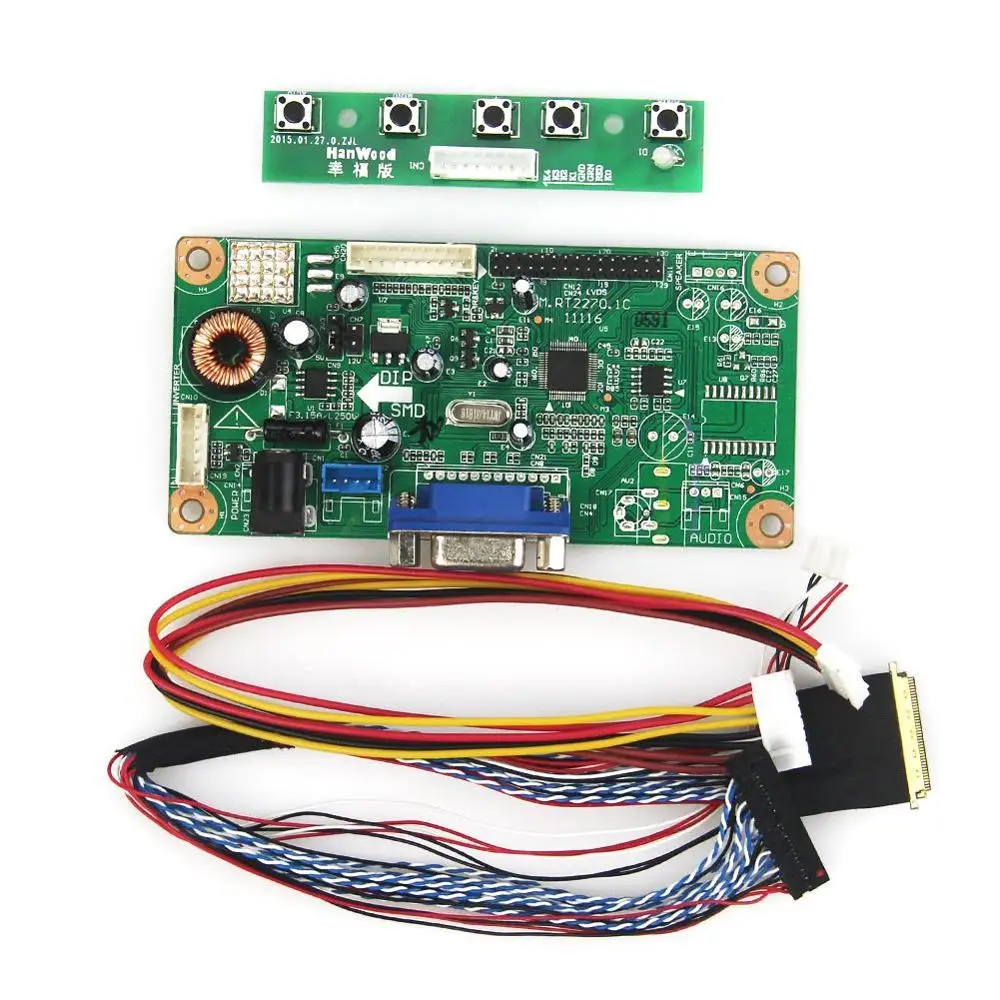

Package Including:

  1x LCD/LED Controller Board(M.RT2270)

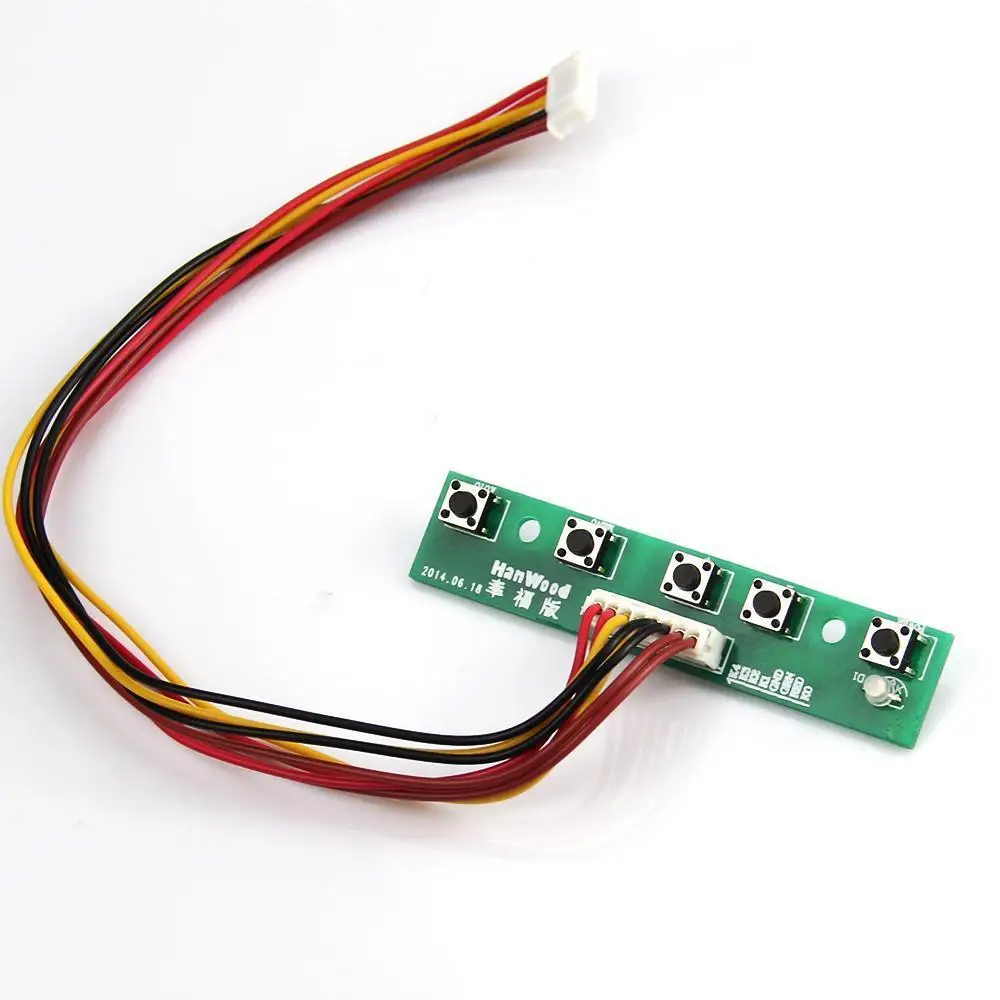

  1x Keypad with Cable

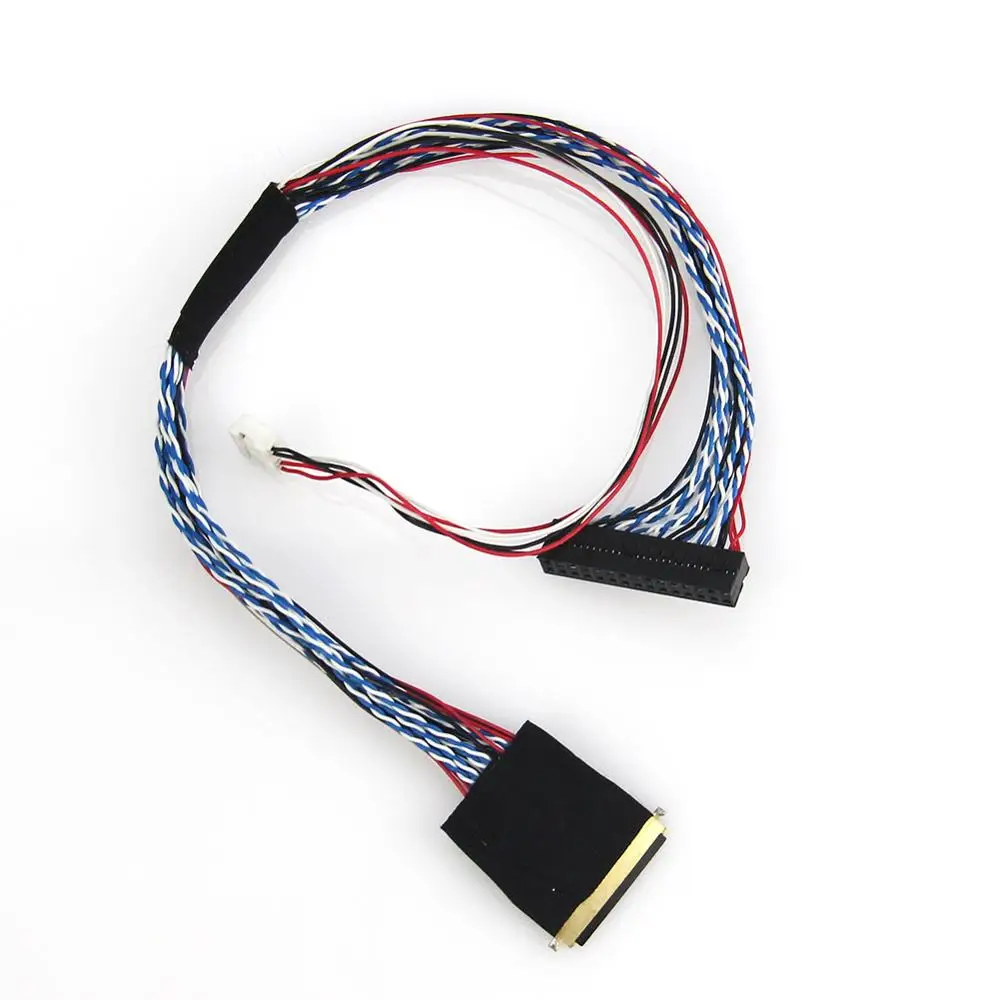

  1x LVDS Cable

Buyer Tips:

 Please make sure the vertical and horizontal driver inside your LCD still works,this board can not fix it if it doesn't work.

 * Please order directly if your LCD model number is same as our title, or please DO leave us a message with your LCD model and version hen you are ordering.

   Q: How to find my LCD model number and version number?

   A: Normally the label on LCD backside includes information such as LCD model and  version number.

 * Please prepare VGA cable and power adapter for the controller board you bought. They aren't included in the kit.

 * This board requires DC 12V 3.3A input power for LCD size under 17inch, and DC12V 4A for LCD between 17 to 22 inch.
    The LCD cannot be lit up if the power current is not applied as stated.

 Please pay attention to the working supply for controller board as the following:

 The supply as left picture showed can work but the right one doesn't!!

 * To protect this board from damage, high quality power adapter is recommend, you can buy from our store as well with
    clicking below links:

Install Tips:

 * Keep the backside away from metal subjects when the power is applied, or it may cause short-cut or damage of main IC.

 * Since the driver and voltage varies from different LCDs, please do not any change jumpers on the board, or use the kit for other LCD with different model number , otherwise you may damaged your LCD.  Please consult us if you have any other question or want to use the kit for other LCD panel.

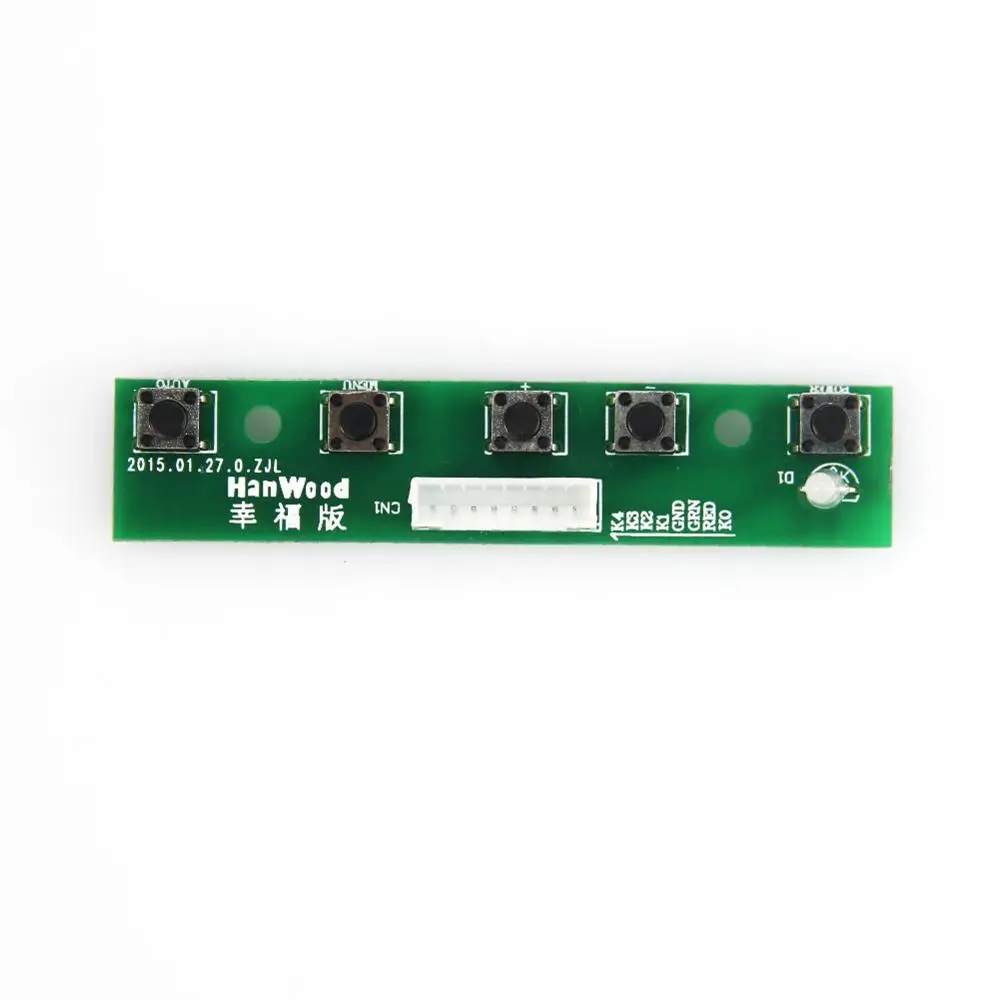

 * link the key button board, (starts from left side, and leave some pins on the right blank)

 * Connect LVDS with the LCD connector and control board (connect the marked LVDS area with 1st pin), and then insert
   the VGA input  signal(Default VGA input) .

 *Apply with DC 12V power

 *Complete connecting kit.

 Here is the assembled LCD set:

 Now enjoy the success of DIY monitor, our professional engineer will always be happy to support you
 if there is any question, thank you!

 You can also view our video guide on youtube, thank you!

  The link of introduce : //youtu.be/s9xpn80muEk
