Описание товара

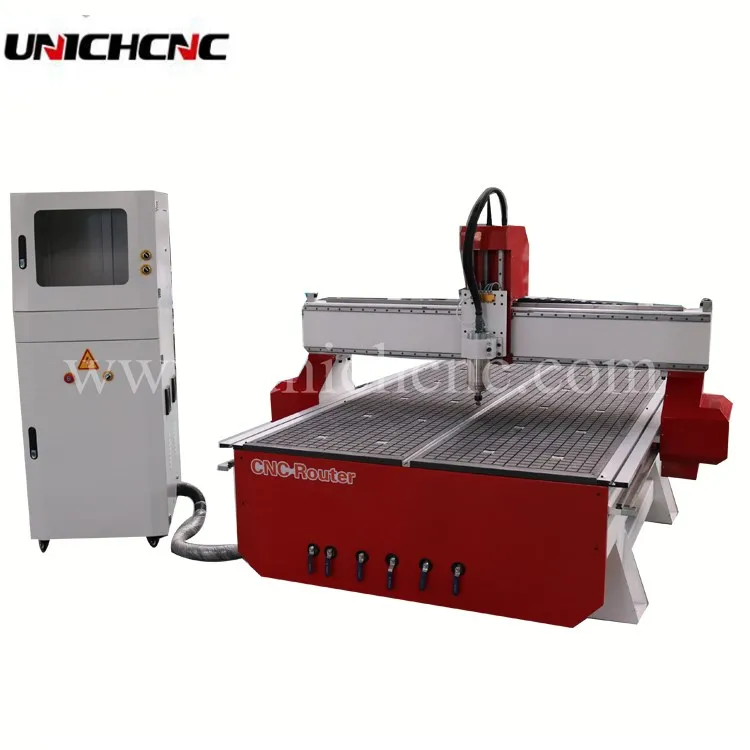

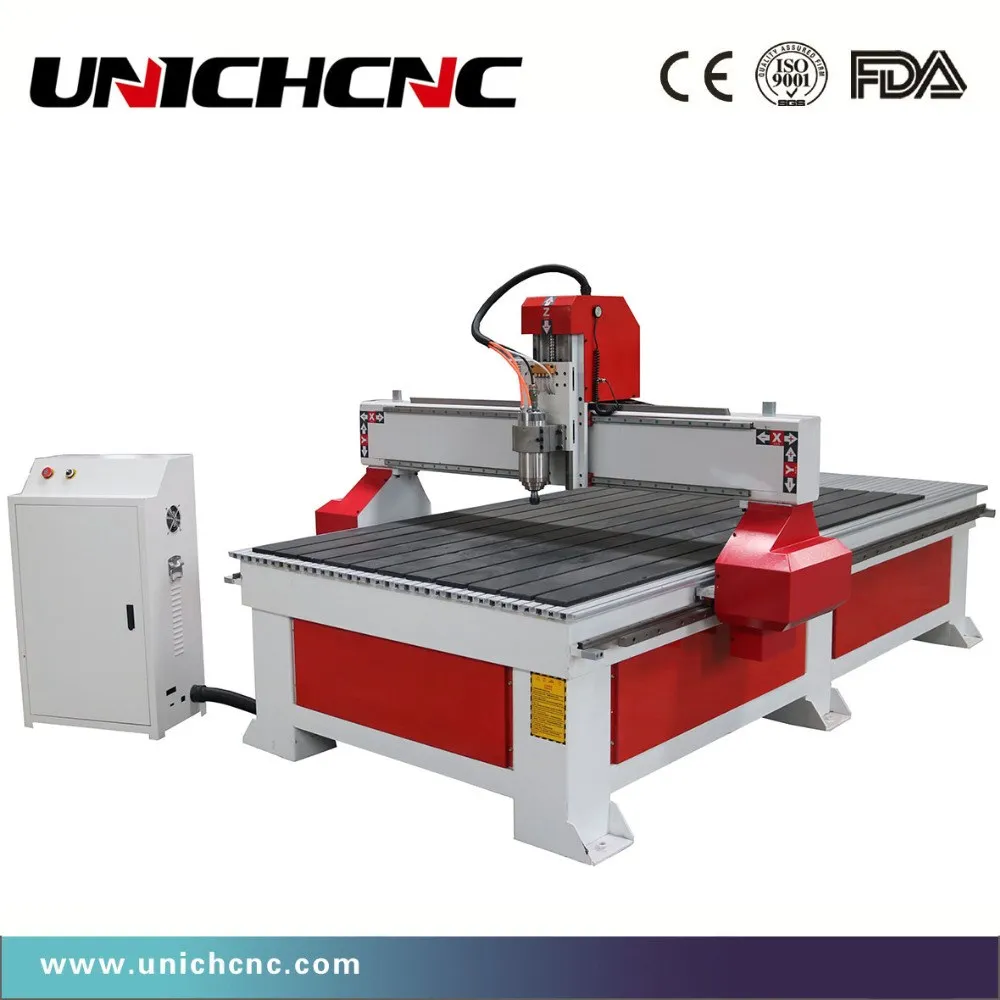

cnc router 3d/ 5 axis cnc router
My skype: unichcnc04_6 Whatsapp: 008613218977181 Email: export01(@)unichcnc.com
our spring festival sale promotion machine type:
EXW price: 3200USD.
![{%]2PDAP5)X_0G)]KUGX36A.png](http://sc01.alicdn.com/kf/UTB8_caHnYnJXKJkSahG760hzFXaf/223285094/UTB8_caHnYnJXKJkSahG760hzFXaf.png)

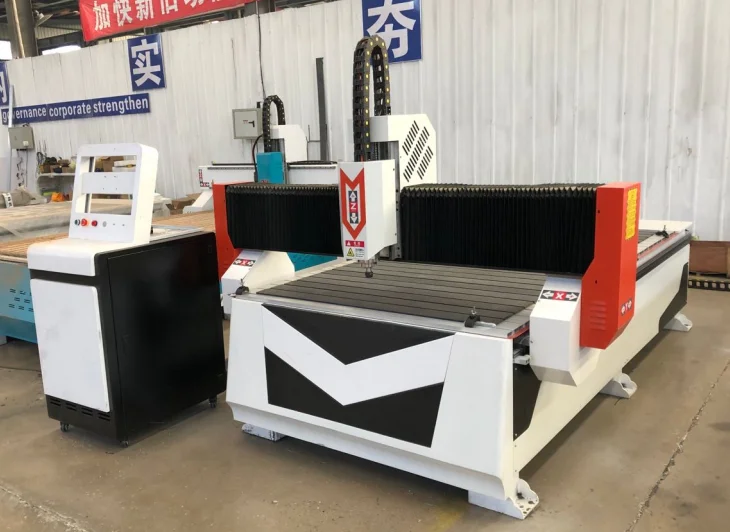

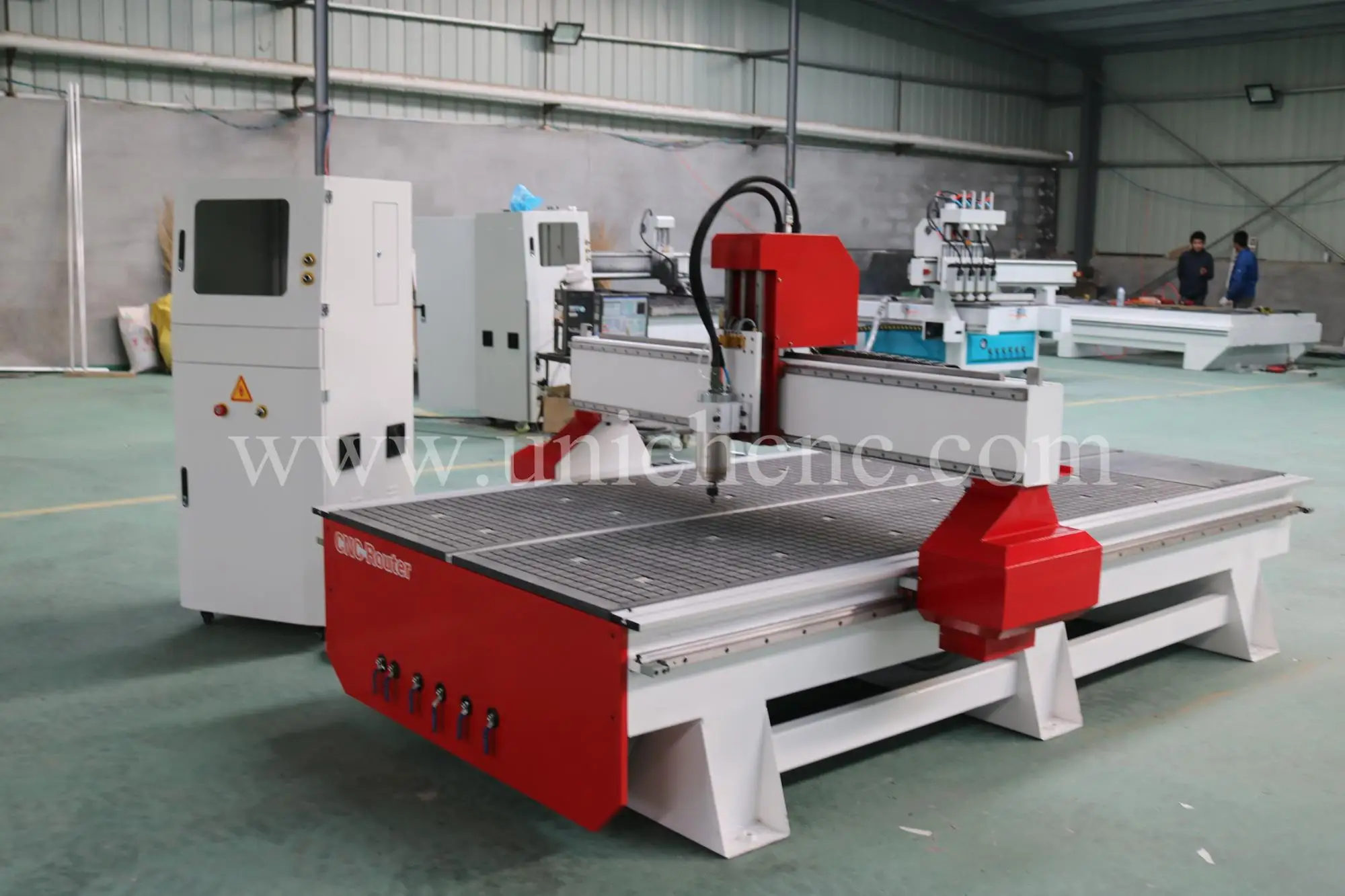

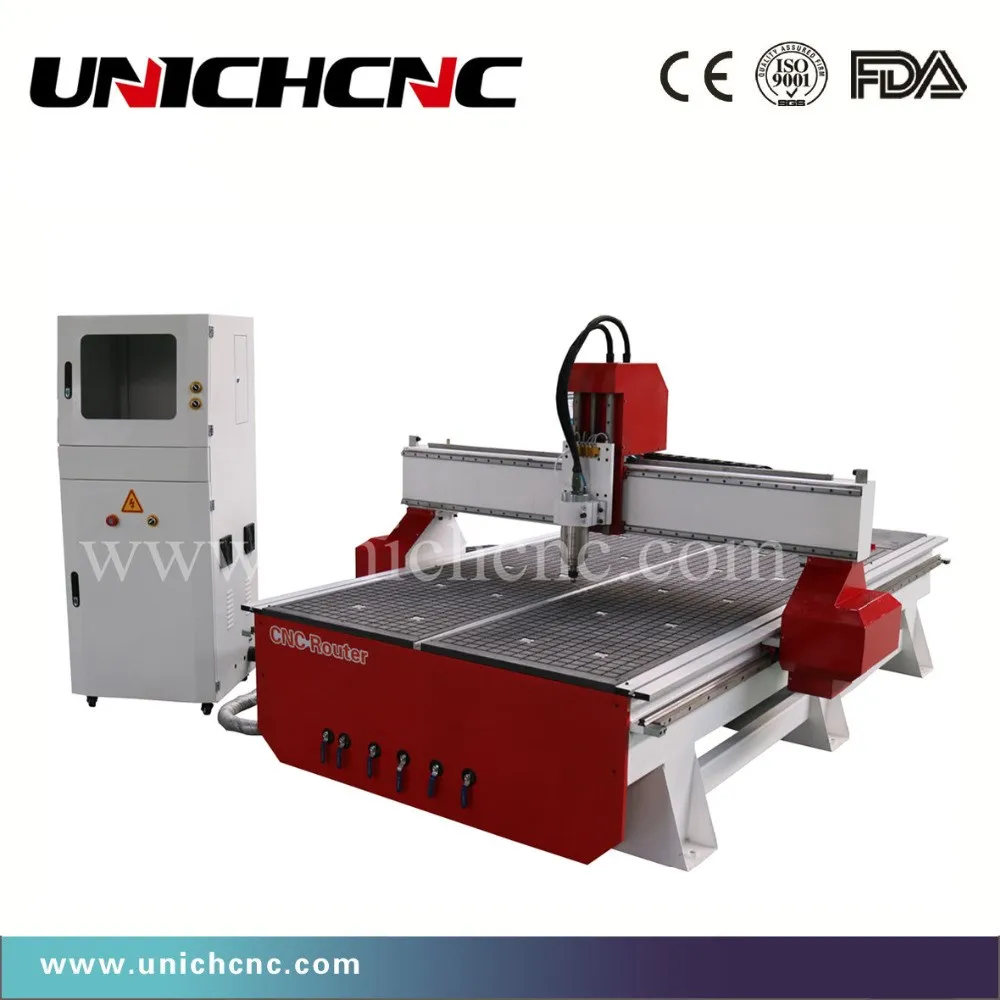

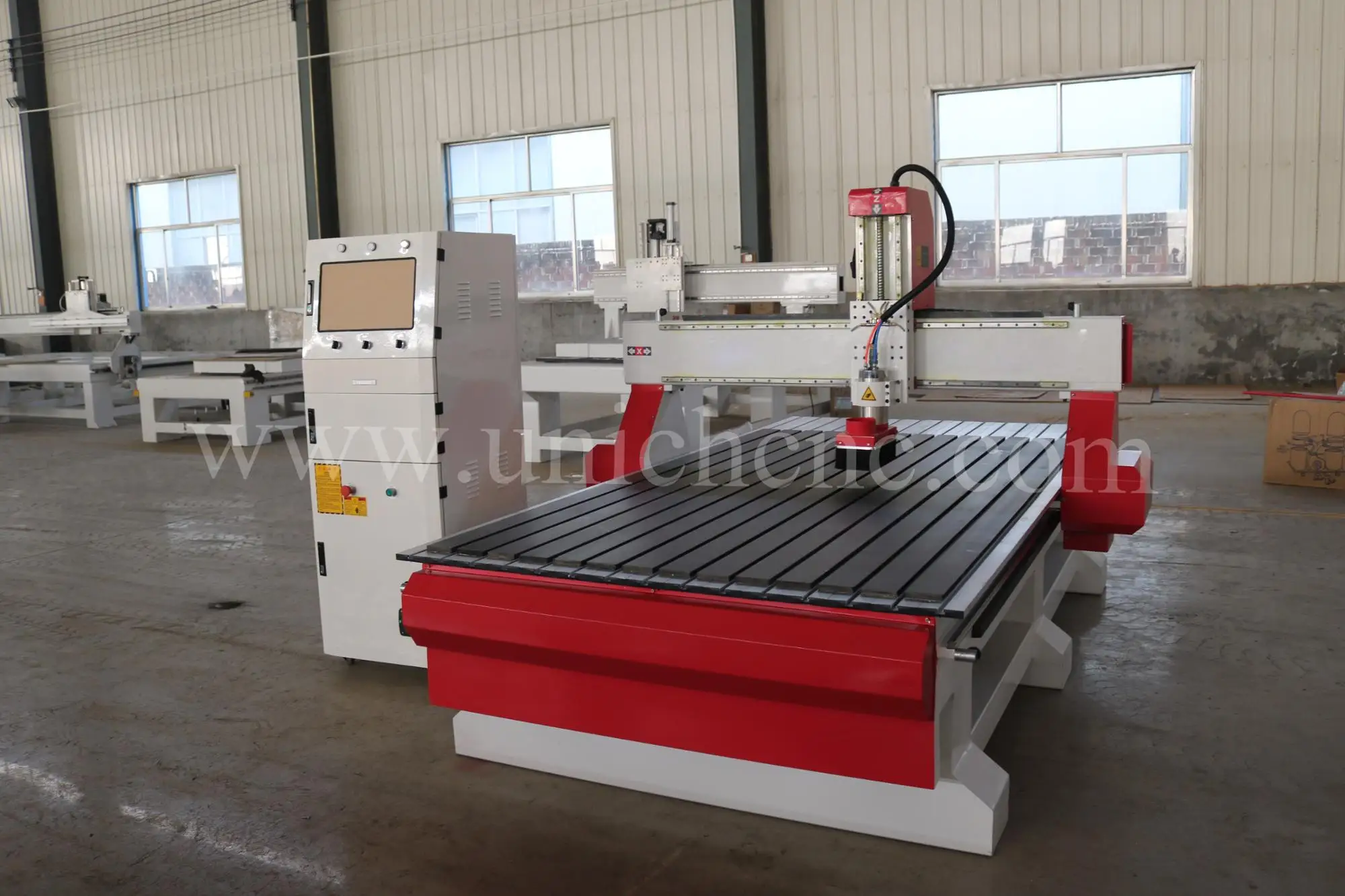

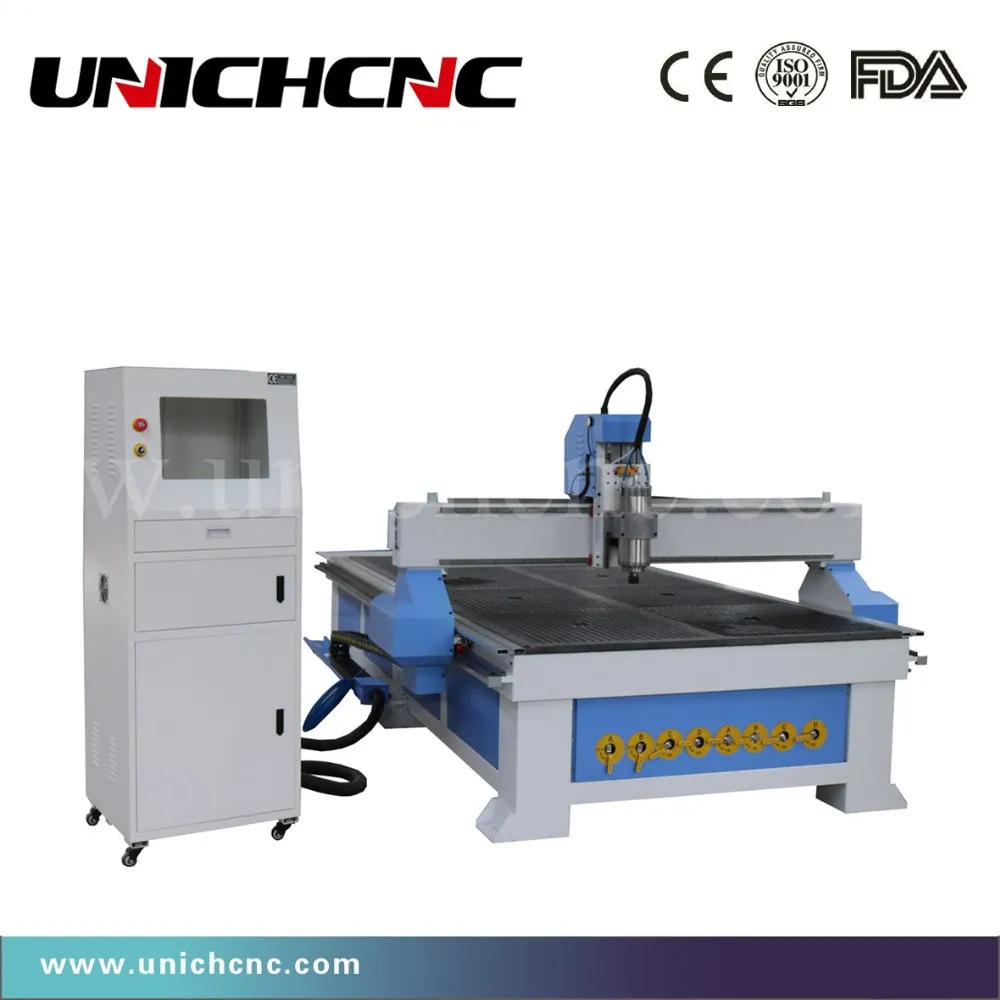

LXM1325 CNC router pictures

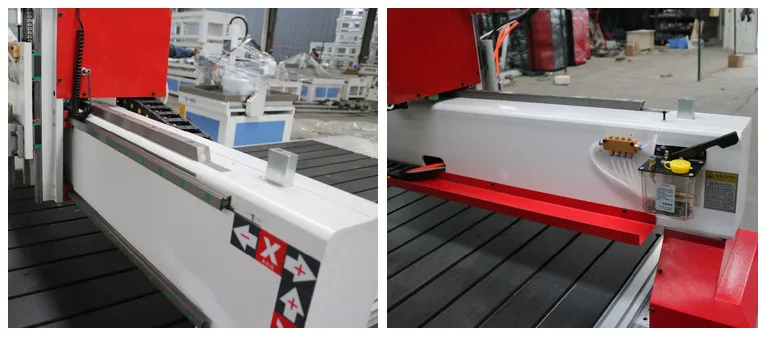

With heavy duty frame:
1 Strongest Machine frame,it can reach 1300KG
2 The thickness of iron can reach 10mm
3 New design and solid side plate.
Machine with the T-SLOT table cnc machine
Main features wood carving machine
| 1. Spindle | Changsheng water cooled spindle 3.0kw 5.5kw and Italy HSD Air Cooling Spindle are optional |
| 2. Inverter | Taiwan Fuling Inverter It can output 150% of rated torque at zero speed, and it can have “point to point” and relative distance control functions for position control. |
| 3. Motor and Drive | Stepper Motor and leadshine driver, big power. run with smaller noise, lower heating, smoother movement and have better performances at higher speed |
| 4. Control system | Mach 3 controller, could plug u disk directly DSP controller for cnc router,USB connect,can be use without computer. |
| 5. Transmission system | Taiwan TBI Ball Screw and Gear and Rack, Taiwan HINWIN or ABBA Linear Rail |
| 6. Working table | T-slot and Vacuum Table |
1325 cnc router parameter
| Model | LXM1325 wood cutting machine |
| Working Area | 1300*2500*200mm |
| Working Table | T-SLOT table, acuum table&5.5kw vacuum pump is optional |
| Framework | Heavy duty lathe bed |
| Spindle Motor | 3.5kw air cooling spindle 4.5kw air cooling spindle 3.5kw air cooling spindle |
| Rotating Speed | 2,4000rpm |
| Working Mode | Stepper motor, Servo motor and drive is optional |
| Guide Rails | Taiwan HIWIN Square linear guide rails for X,Y,Z Axis |
| Drive Mechanism | Rack Gear for X,Y axis,Z axis TBI ball screw transmission |
| Repositioning Accuracy | ± 0.0254mm |
| Max Motion Speed | 50,000mm/min |
| Max Engraving Speed | 25,000mm/min |
| Engraving Tools | ER25 collect (Ø12.7mm, Ø6mm) |
| Dictate Format | G code,*uoo,*mmg,*plt,*nc |
| Interface | USB |
| Flash Memory | 128M |
| Operating Voltage | 220V/380V 50/60HZ |
| Control System | Mach3 controller (DSP off-line or NC-Studio option) |
| Support Software | Type3/ArtCAM/UcanCAM optional |
| Dust collector | 3.0kw two bags |
| Lubrication system | Auto |
| Net Weight | 1300kgs |
| Gross Weight | 1500kgs |
| Packing Size | 2030*3170*2060mm |
| Packaging | Standard Plywood Case for Export |
| Delivery Time | 7-10 Working Days |
| Payment Terms | T/T |
| Machine Color | Red&white,Red&Black, Blue&white |
Main parts
1325 cnc router parts wood cnc router

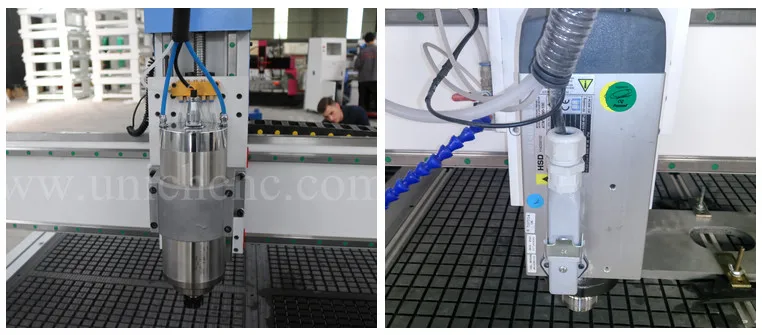

How choose air and cooled spindle:
| Spindle | Advantages | Disadvantages | Application |
| Water | Cooling effect is good | 1 use water pump 2 if water tube is block,will replace spindle | 1 Temperature can’t be too cold.it will be >5 degree 2 Work capacity is big |
| Air | Convenient use,don’t need water pump | Cooling effect is worse than water | 1 Temperature <5 degree 2 small work capacity |

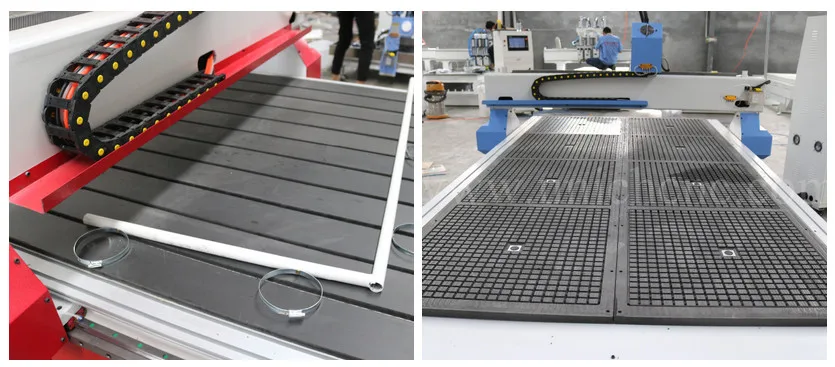

With Vacuum table:
When we board processing, open the vacuum valve, carved plate fixed directly, than fixed by hand to save
a lot of time, more reliable and fixed, suitable for use in wood processing, large plate relief sculpture.
T-slot table: suitable for Small size and Irregular materials, hollowed-out engrave Uneven carving.
![KHYC8(0`6D8K$PEZJ]TBYC.jpg](http://sc01.alicdn.com/kf/HTB18ZefhCBYBeNjy0Feq6znmFXao/223285094/HTB18ZefhCBYBeNjy0Feq6znmFXao.jpg)

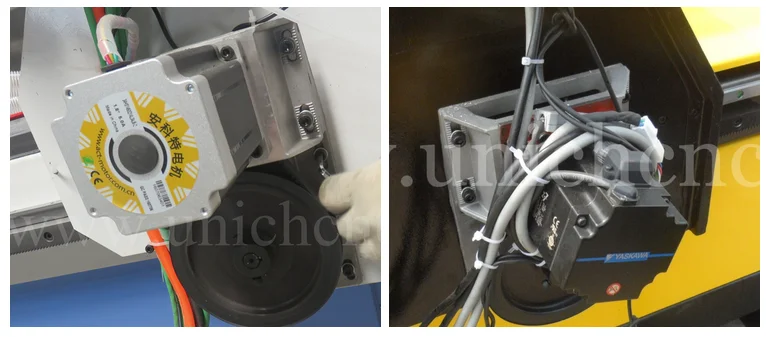

Stepper motor: Price is economic.
Servo motor: Higher position precision, bigger Torque.
![S9]F(]JH1I9B}AYC8BI0]FG.png](http://sc02.alicdn.com/kf/HTB1AGGZjYSYBuNjSspi760NzpXaF/223285094/HTB1AGGZjYSYBuNjSspi760NzpXaF.png)
Gantry move:
Packaging & Shipping
Production Samples
Furniture, cabinets, wardrobe, panel, office, solid wood furniture, wooden door, Windows and doors
2. Wood products: acoustics, game cabinets, computer desk, sewing machine, Musical Instruments
3. Board processing: insulation, plastic chemical parts, PCB
4. Decoration industry: acrylic, PVC, density board, artificial stone, organic glass, plastic, aluminum and
copper of soft sheet metal ornamental milling cutting processing.

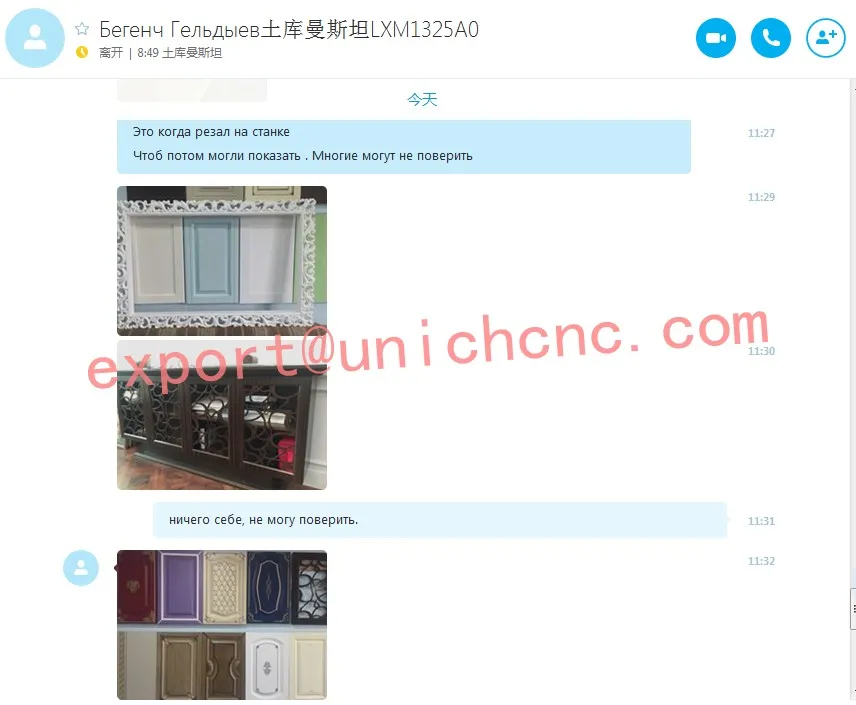

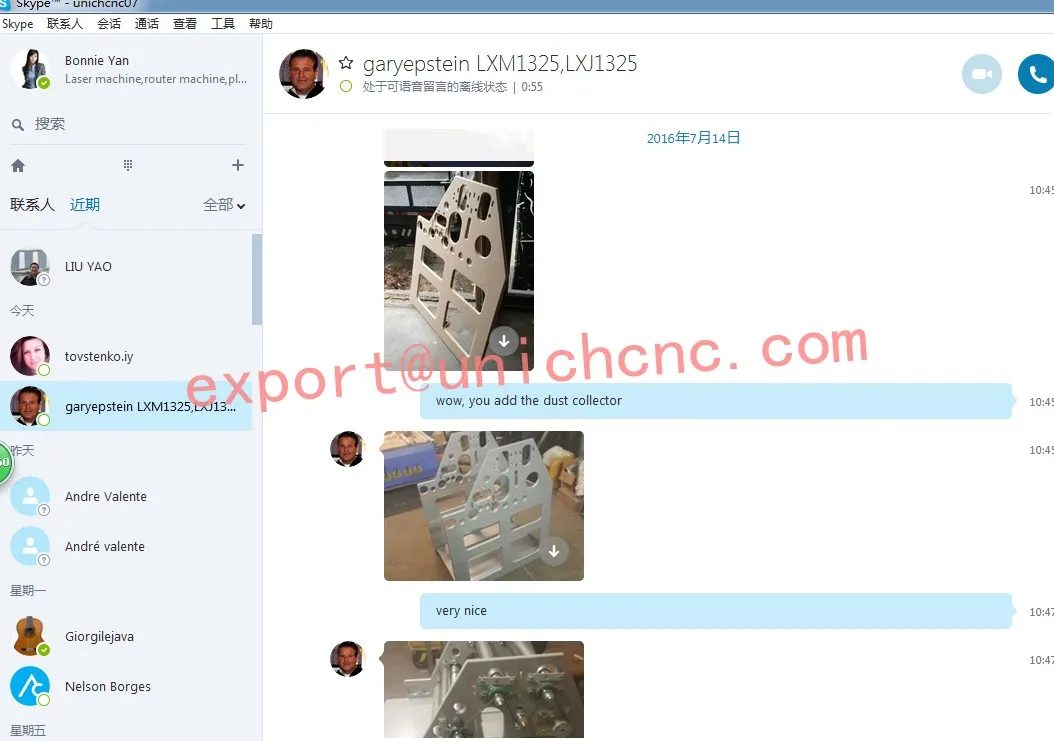

Other customers's feedback
![oly~lgd[4$4p($en][s3tnv.jpg](http://sc02.alicdn.com/kf/HTB1lfawcRjTBKNjSZFuq6z0HFXaZ/223285094/HTB1lfawcRjTBKNjSZFuq6z0HFXaZ.jpg)

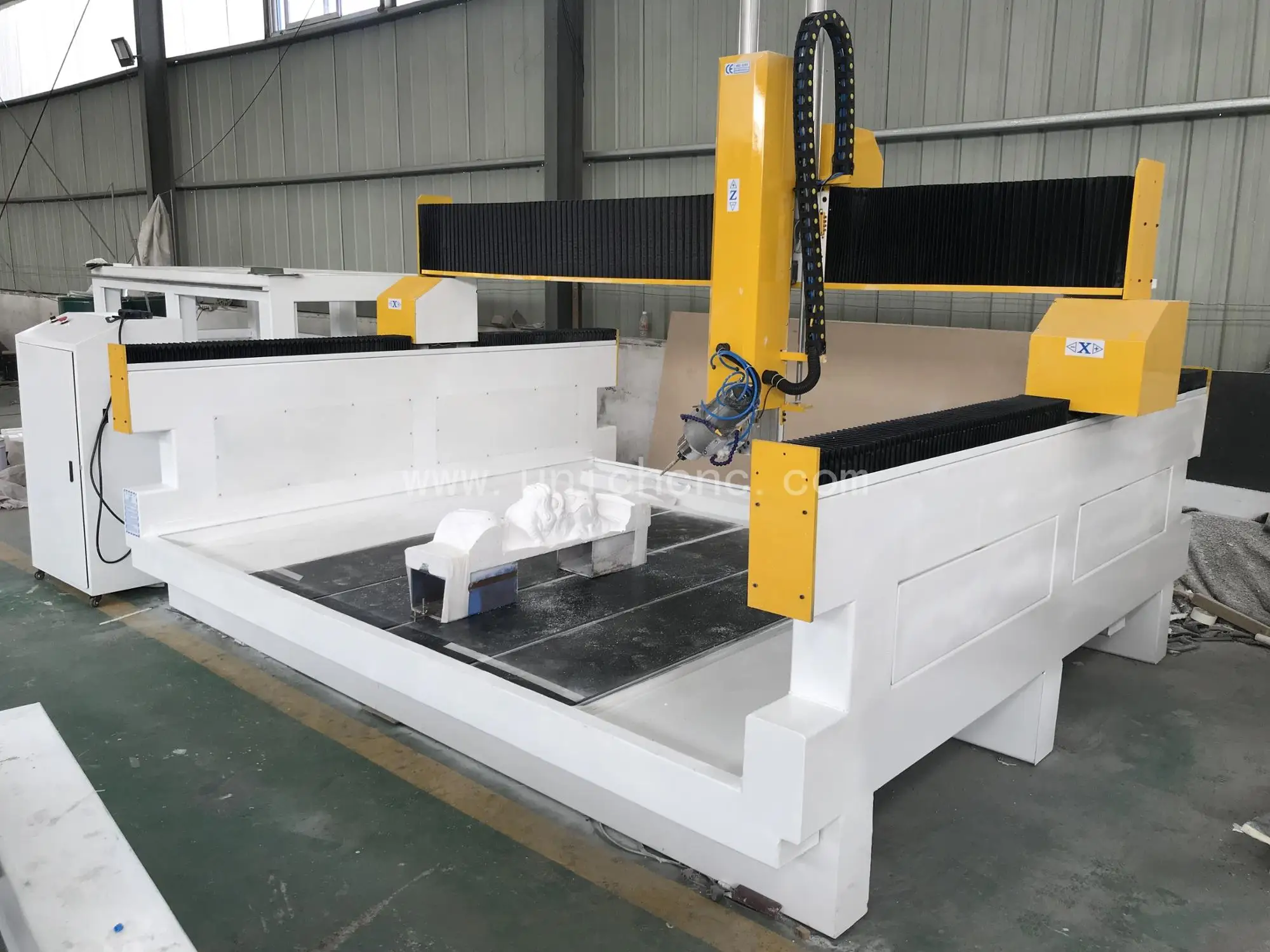

our company high conguration cnc machine
| 1325 professional 4 axis cnc machine with 180 degree swing head |
 |

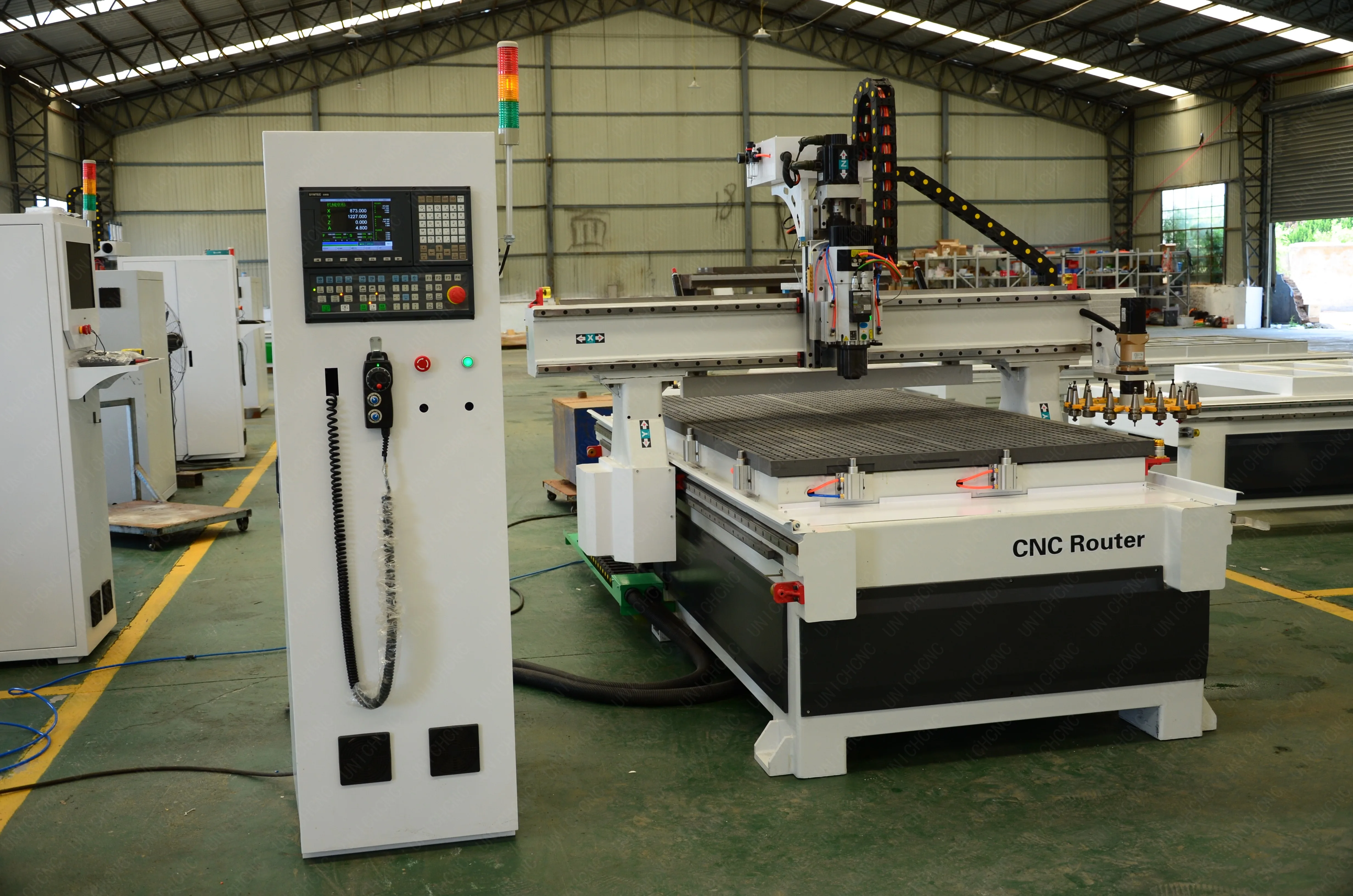

| Disc ATC cnc router machine

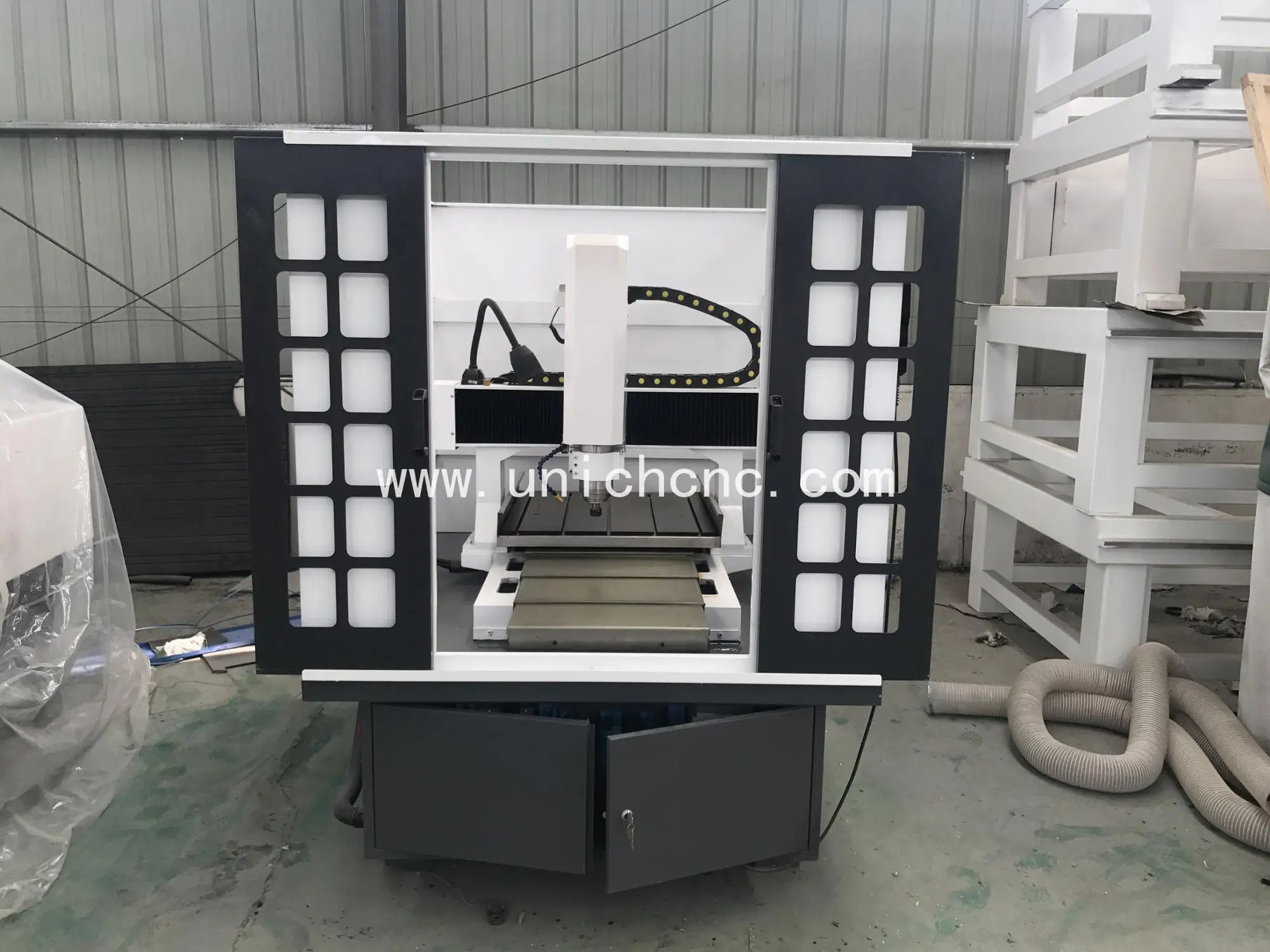

LXM0606M full closed professional metal engraving machine |
 |
| Sales man | Maggie Meng |
| Tel | +86-13218977181 |
| Skype | unichcnc04_6 |
| | 008613218977181 |
| | export01(@)unichcnc.com |
| Website | www.unichcnc.com |
| Jinan Unich Machinery Co.,Ltd | |
