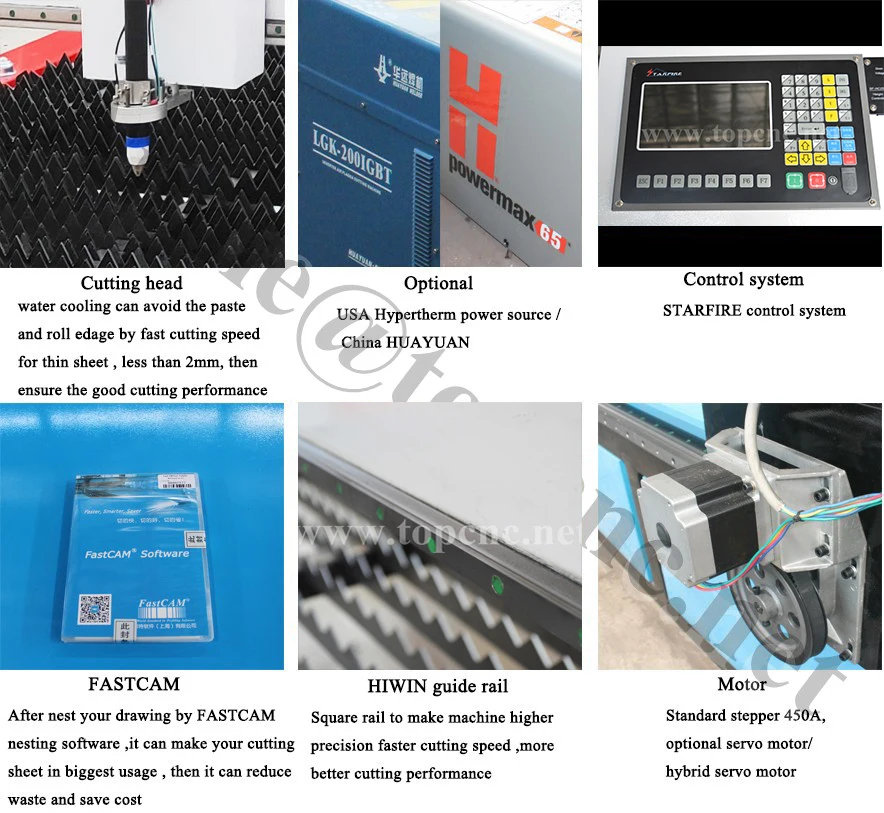

u Start controller with THC function and handle.

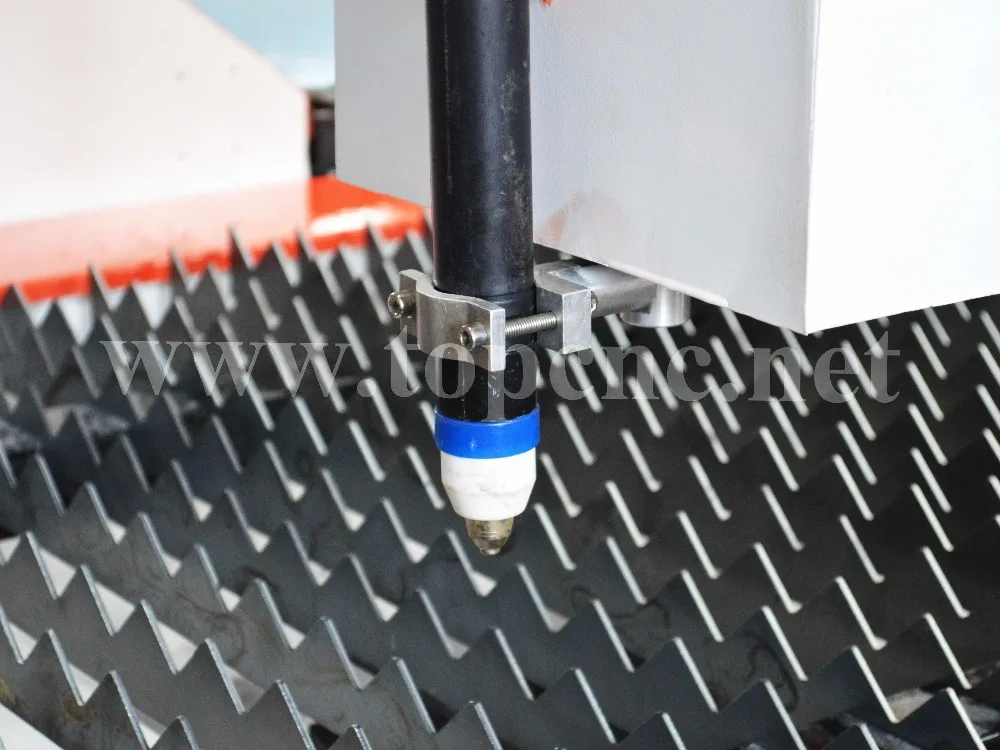

u We set the automatic high arc pressure adjusting device: when the plate shape changes a little during processing, the spearhead will adjust itself to avoid damage of the plate.

u Different power: 100A /160A /200A for different thickness cutting.

u Cutting mouth is small, tidy,and avoid a second dressing processing.

u All the working area and specifications can be customized according to your requests.

u Max cutting speed can reach to 18m per minute while precision keep within ±0.3mm

u High configured CNC system,auto arc-striking and stable performance.

u Support FASTCAM nesting software.

u Plasma power and cutting torch adops famous brand which gains national patent.

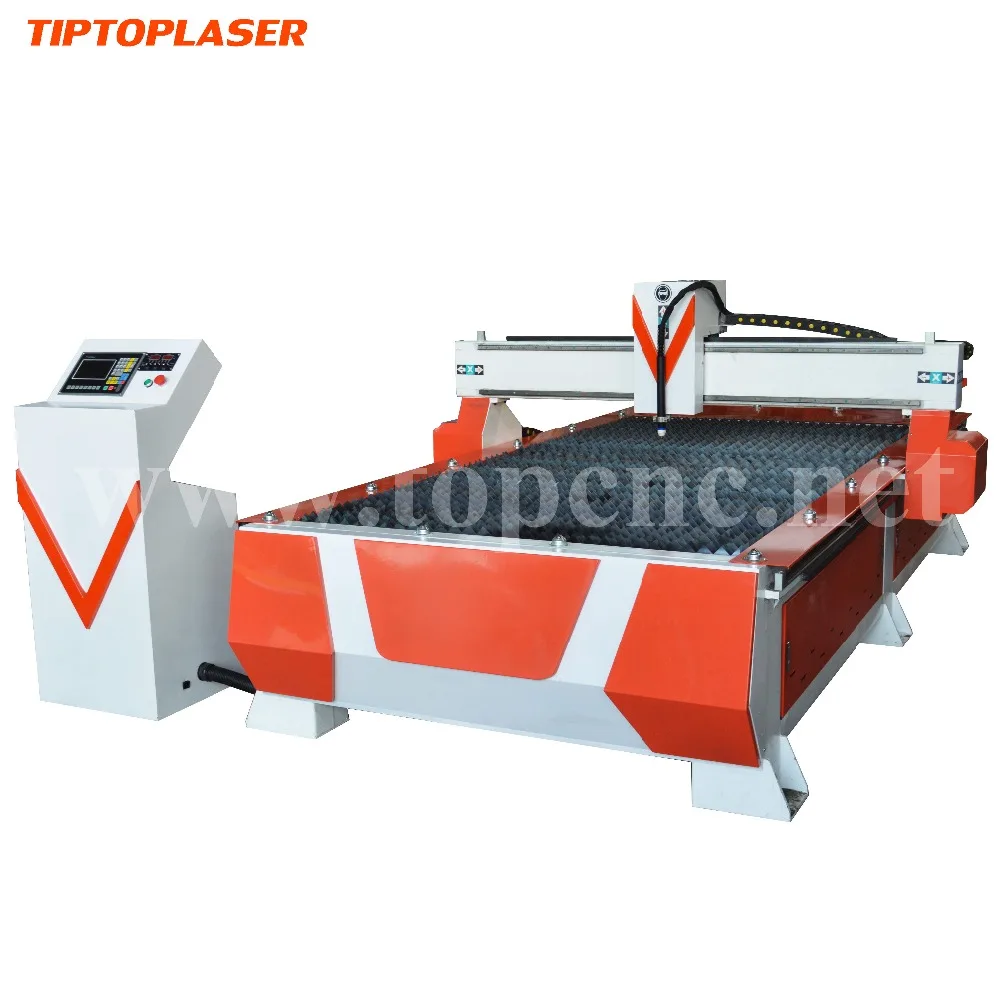

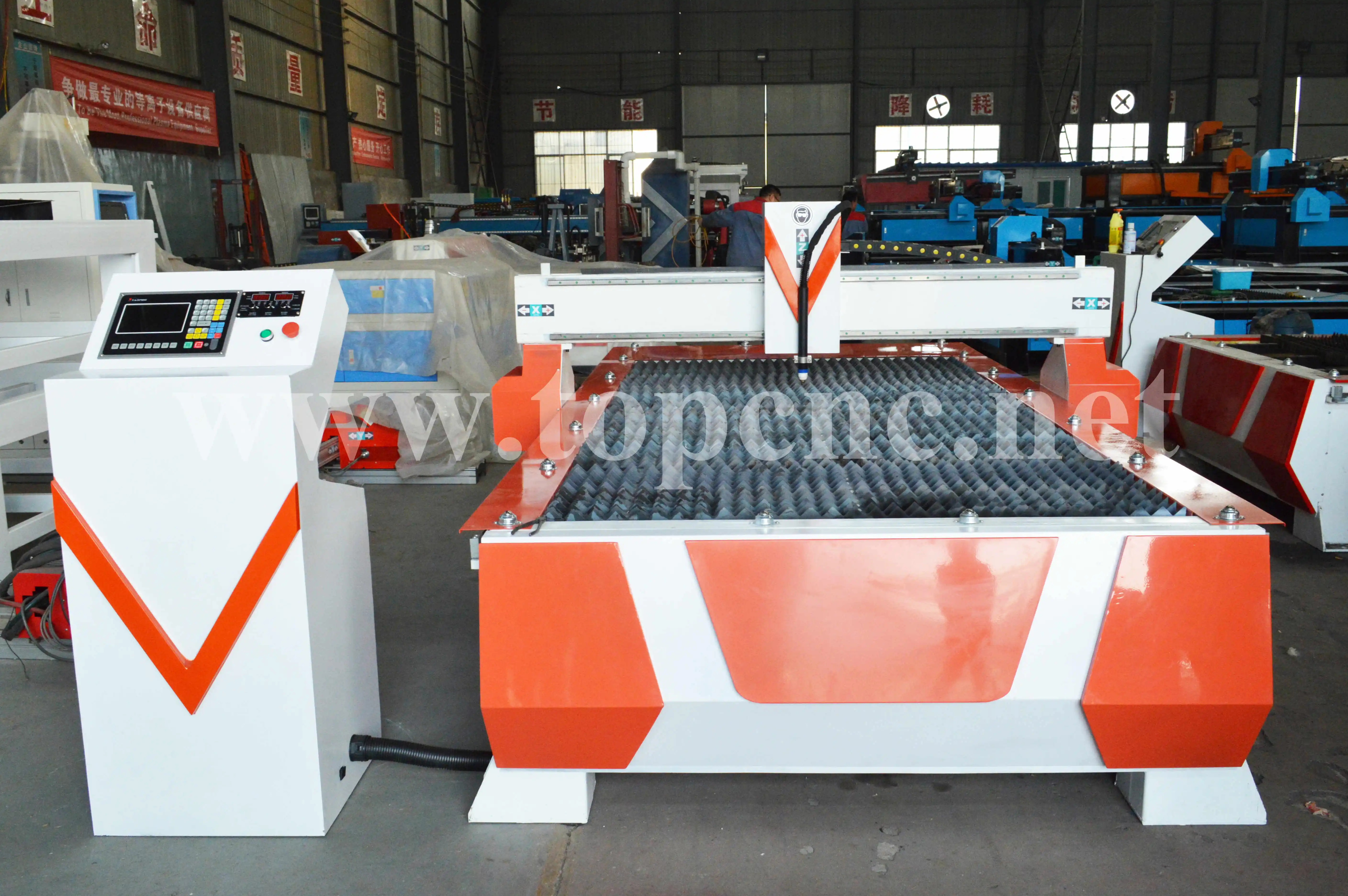

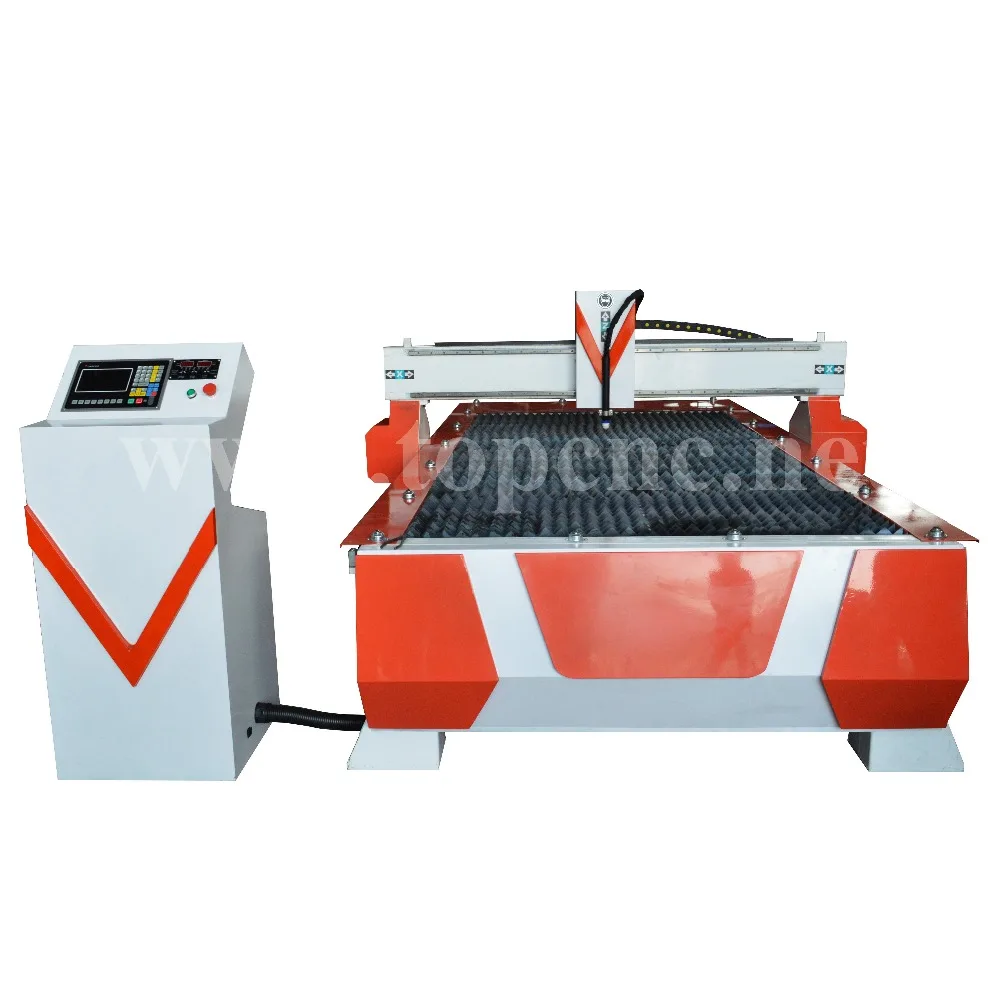

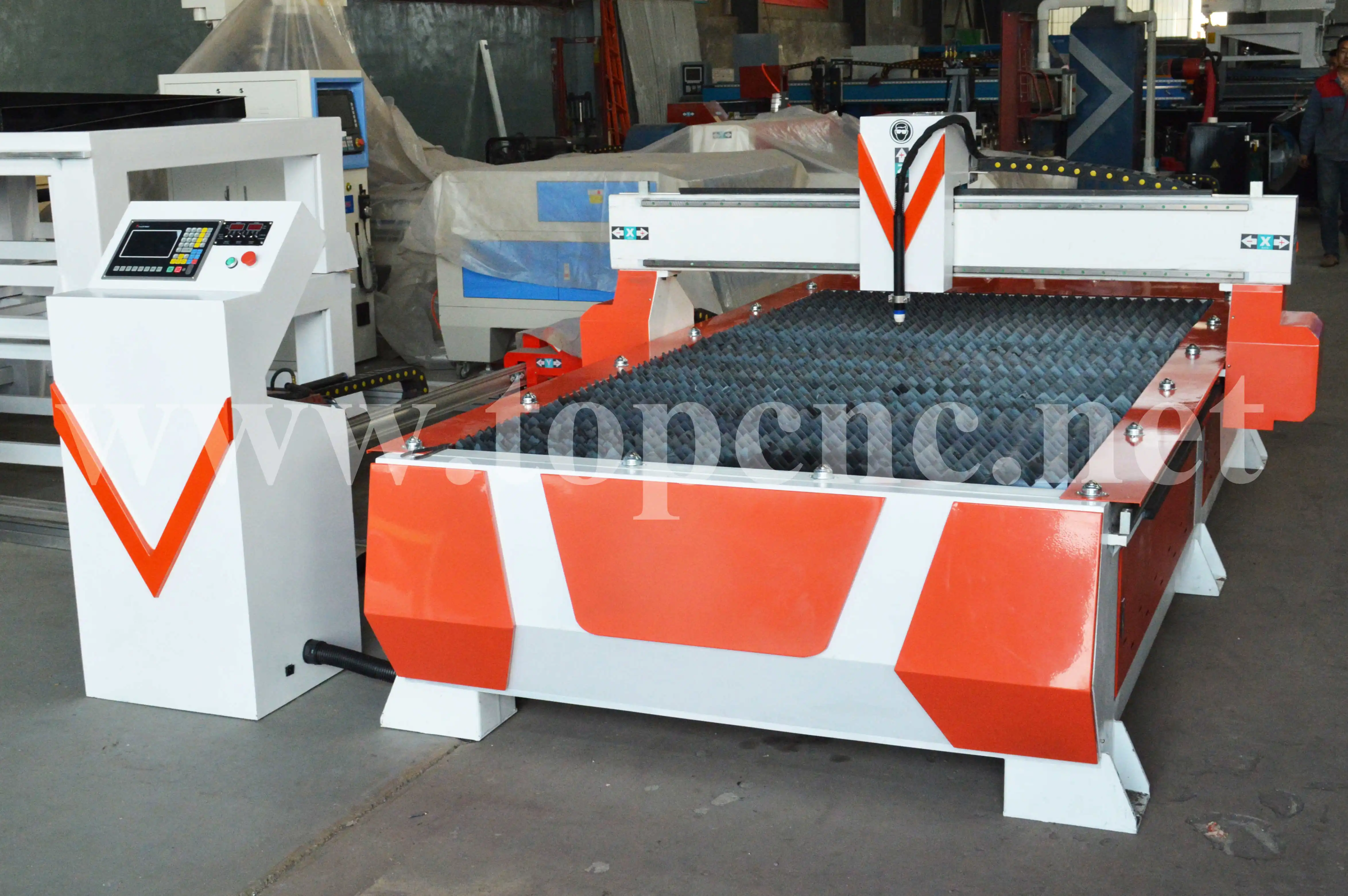

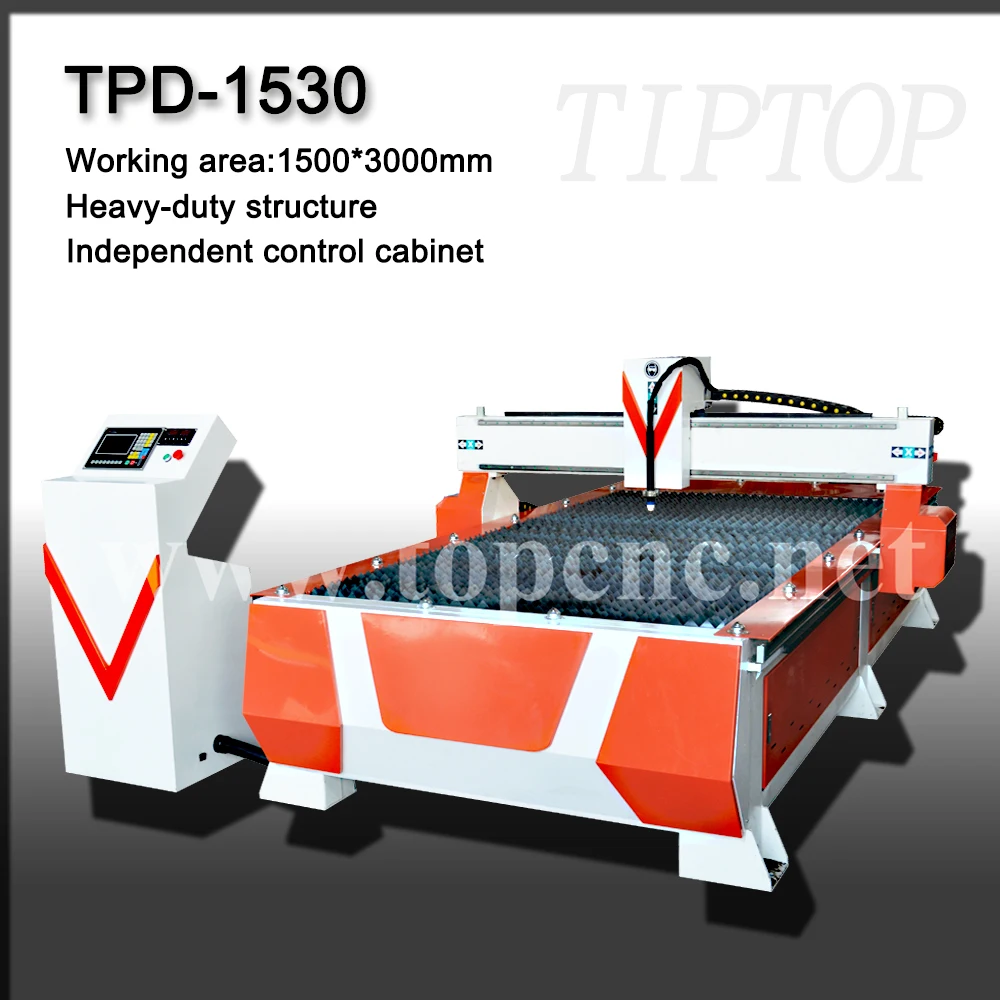

Model

TPD-1530

Effective Cutting Width (X axis)

1500mm optional

Effective Cutting Length (Y axis)

3000mm optional

Motor Mode

Step Motor (optional Servo Motor)

Transmission

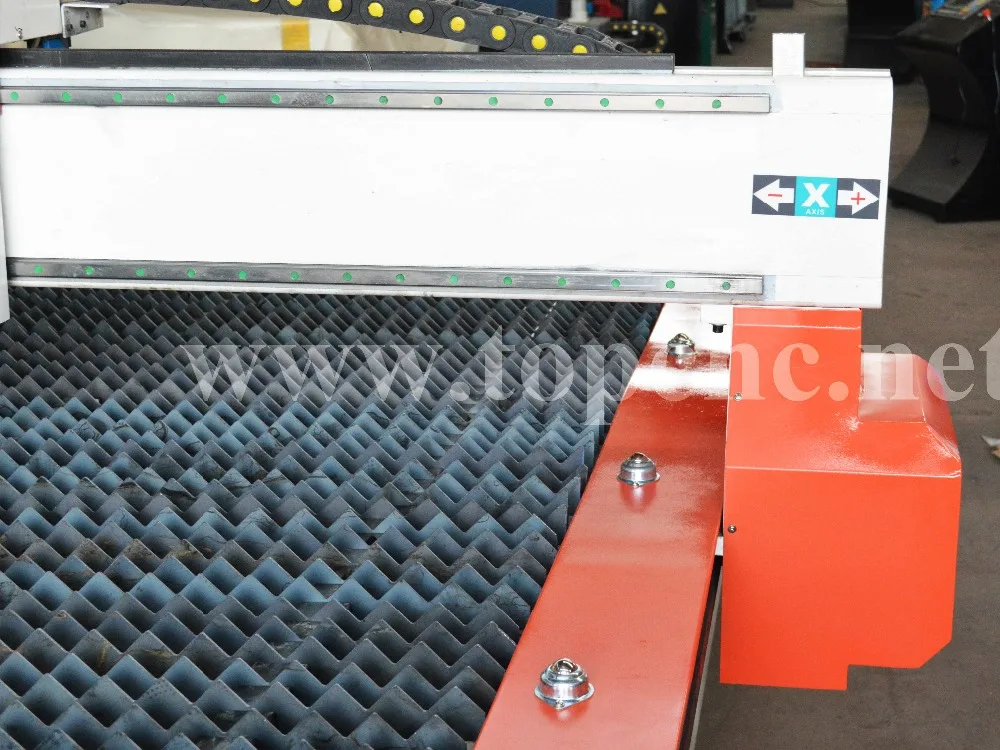

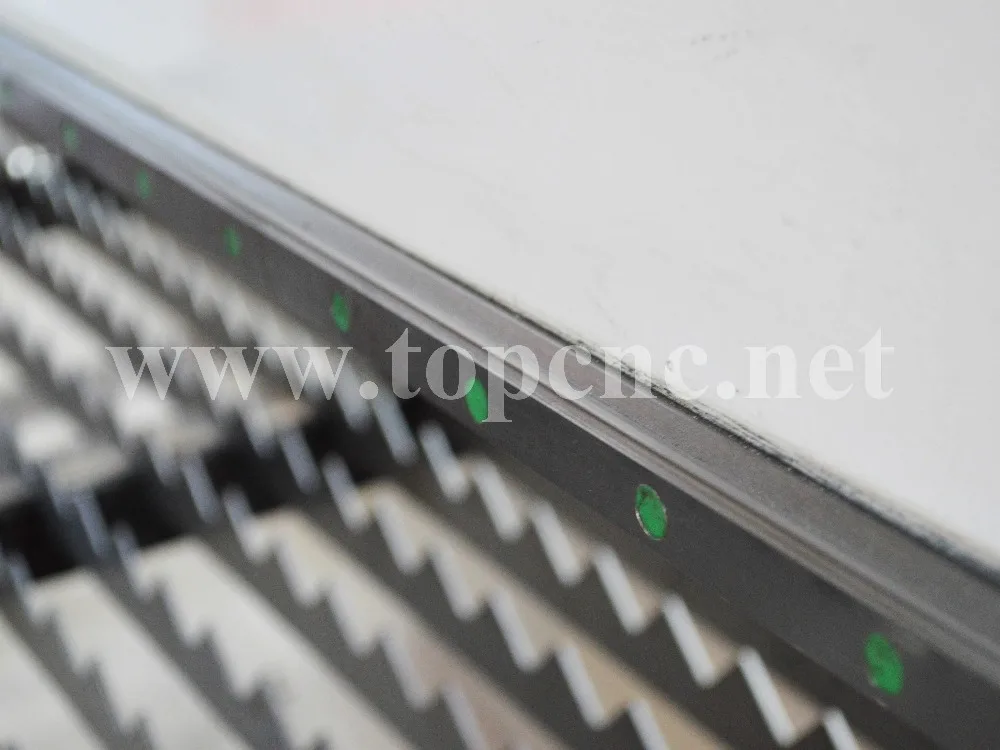

High quality helical rack

Lifting body

1set

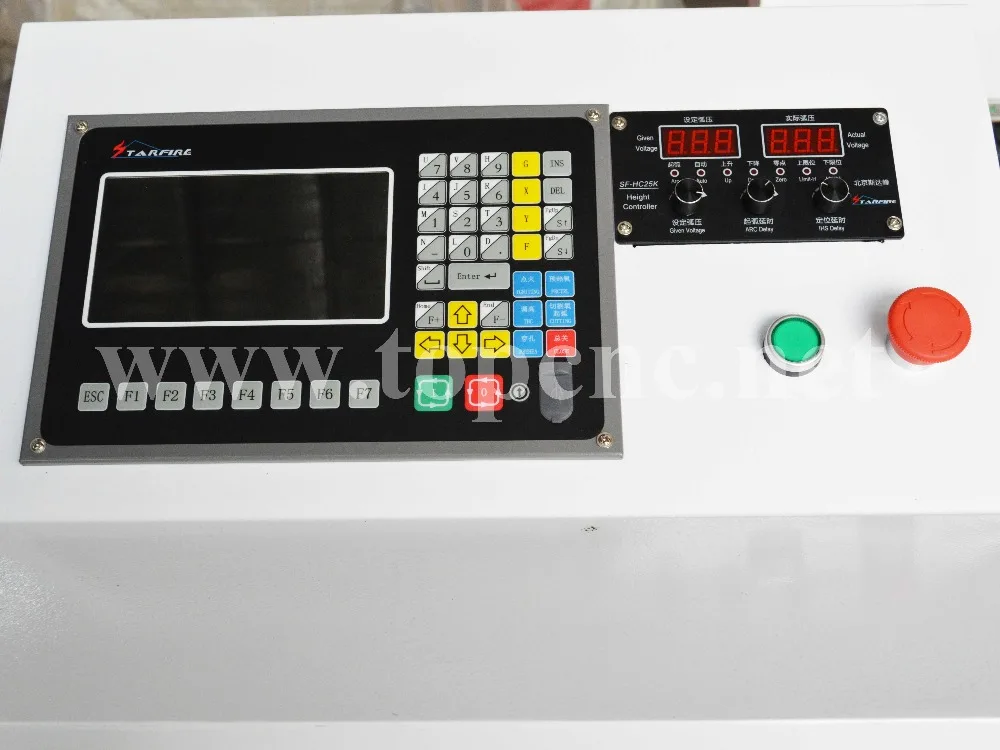

Control system

Starfire control system

File transmission

USB transmission

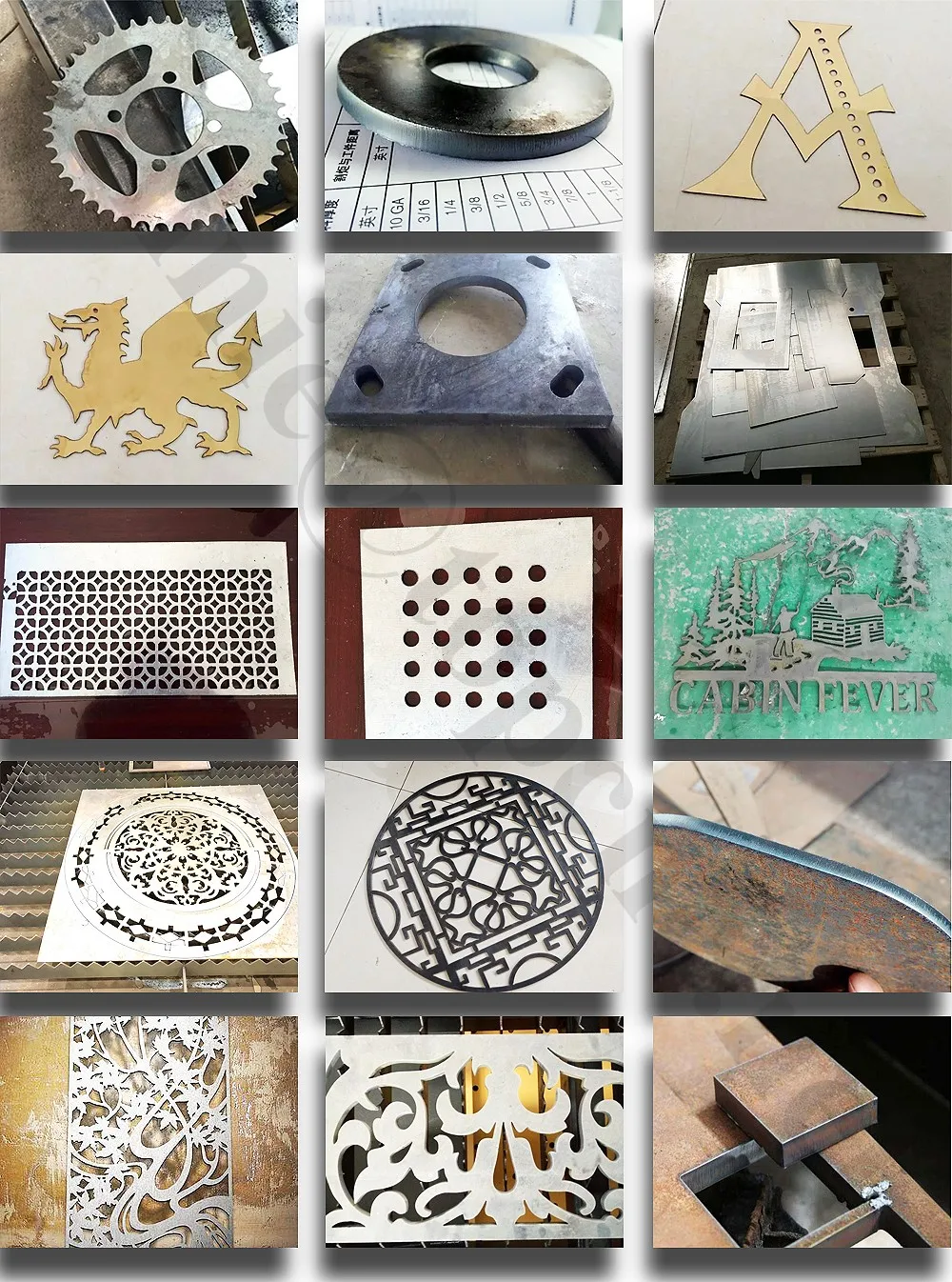

Cutting shape

Steel plate and rotary for steel tube

Software

Fastcam software with Nesting function

Plasma power source

Huayuan , 63A 100A 120A 160A 200A

Hypertherm , 45A 65A 85A 105A 125A 200A

Cutting thickness

According to the plasma power source

Height regulating device

Arc voltage height

Cutting speed

0-10000mm/min

Cutting precision

±0.3mm

Control ccuracy

±0.01mm

Support software

Fastcam /Type3/autocad etc.

Working Temperature

-5~60°CRelative Humidity, 0-95%.

Power Supply Voltage

380V±20%(220V optional,but we need custom for you)

Packing Weight

3920x2280x1890mm

Packing Size

1800kg

Packing

Standard 3 layer export package

* Outside plywood package with metal belt
* Middle size foam
* Inner side waterproof film
