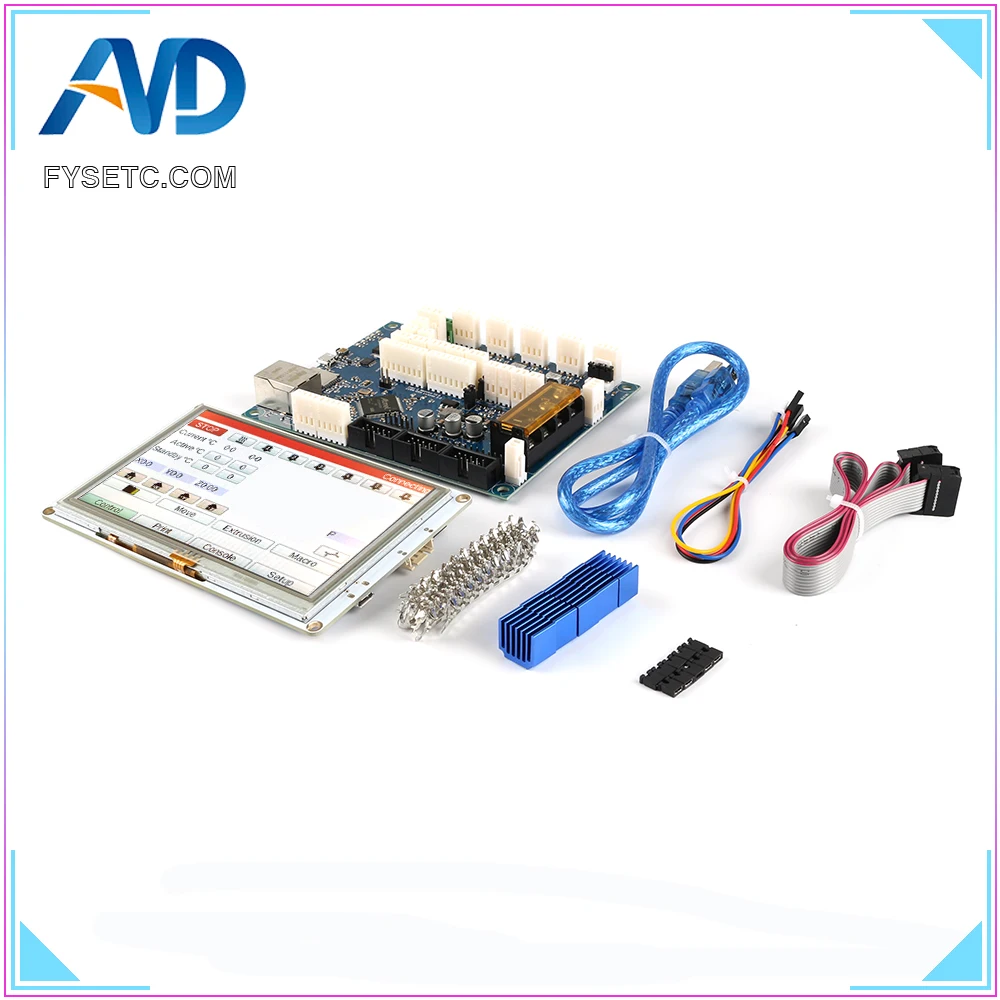

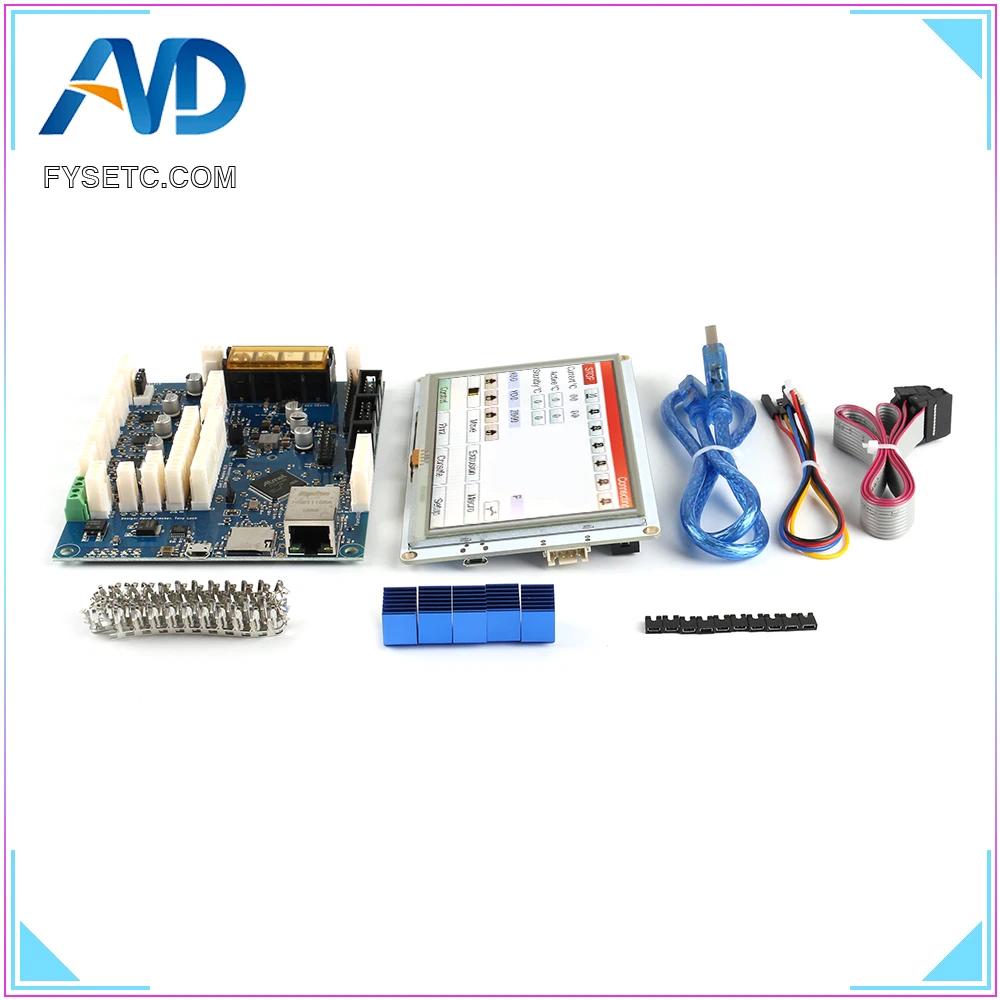

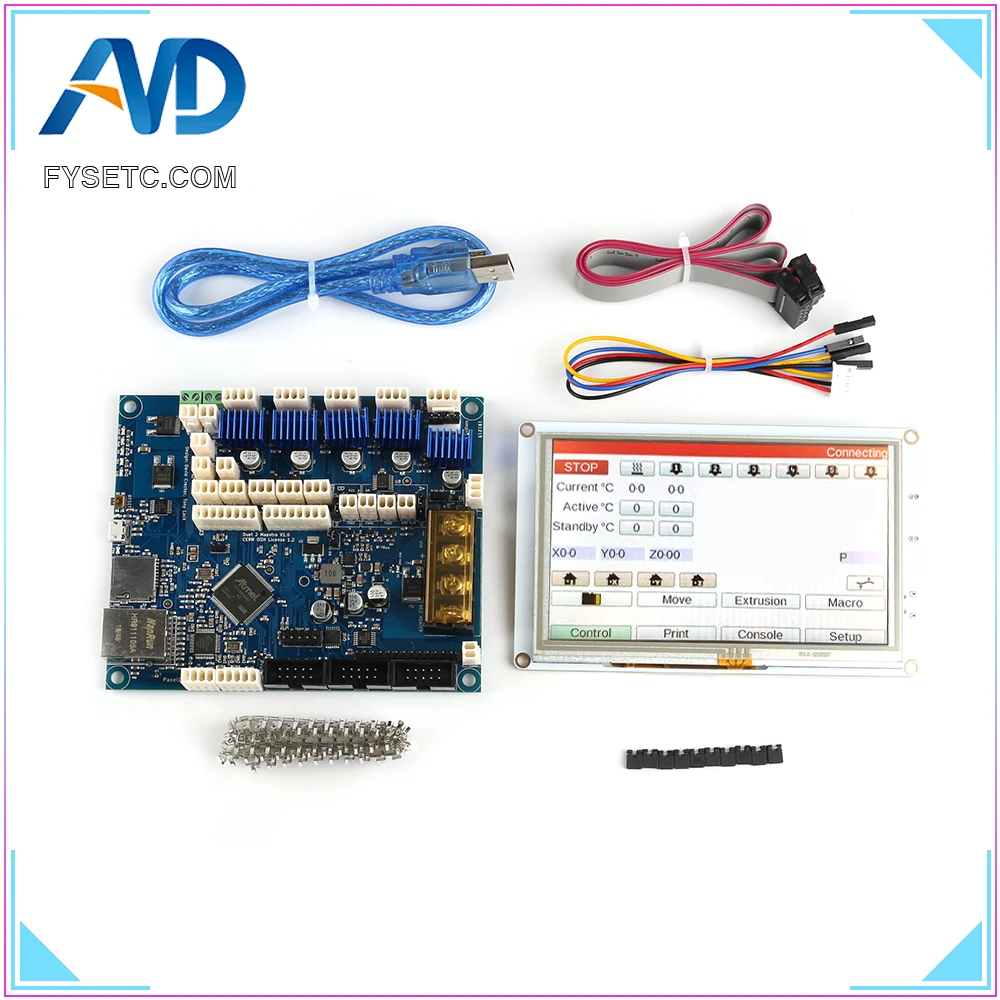

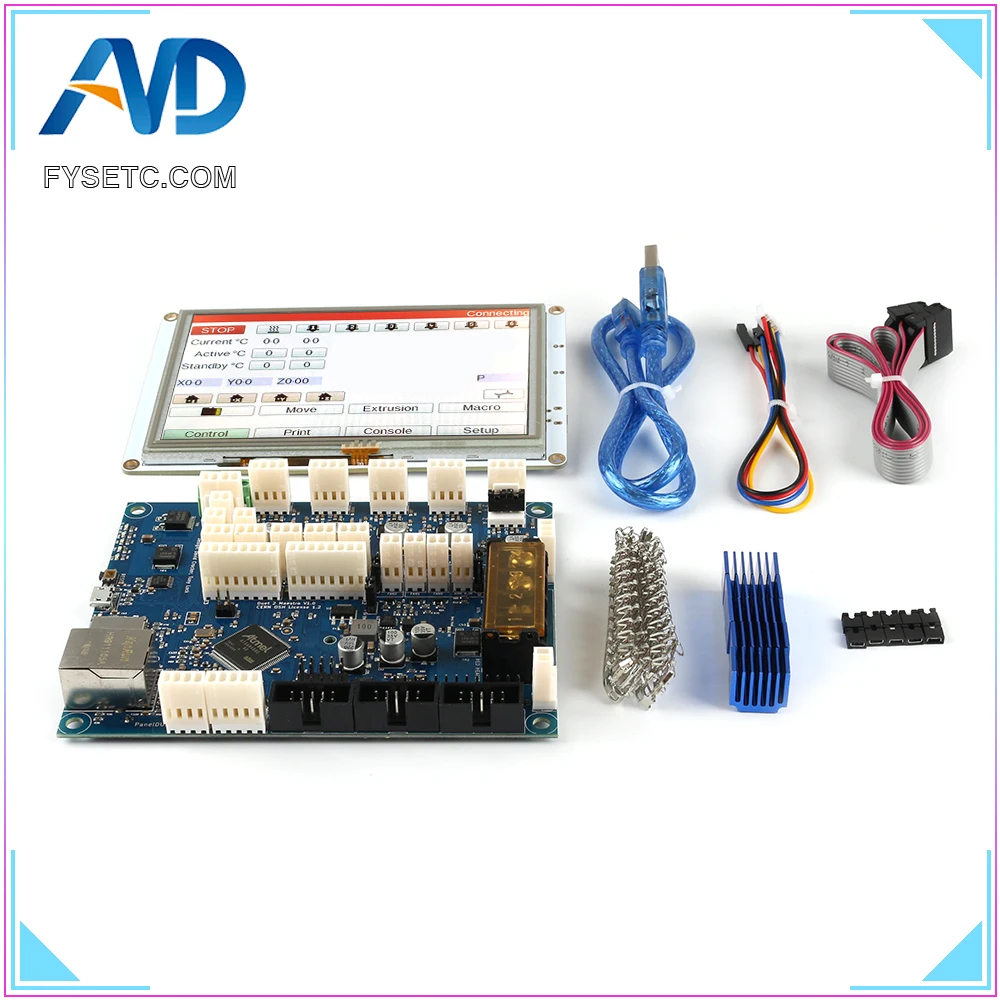

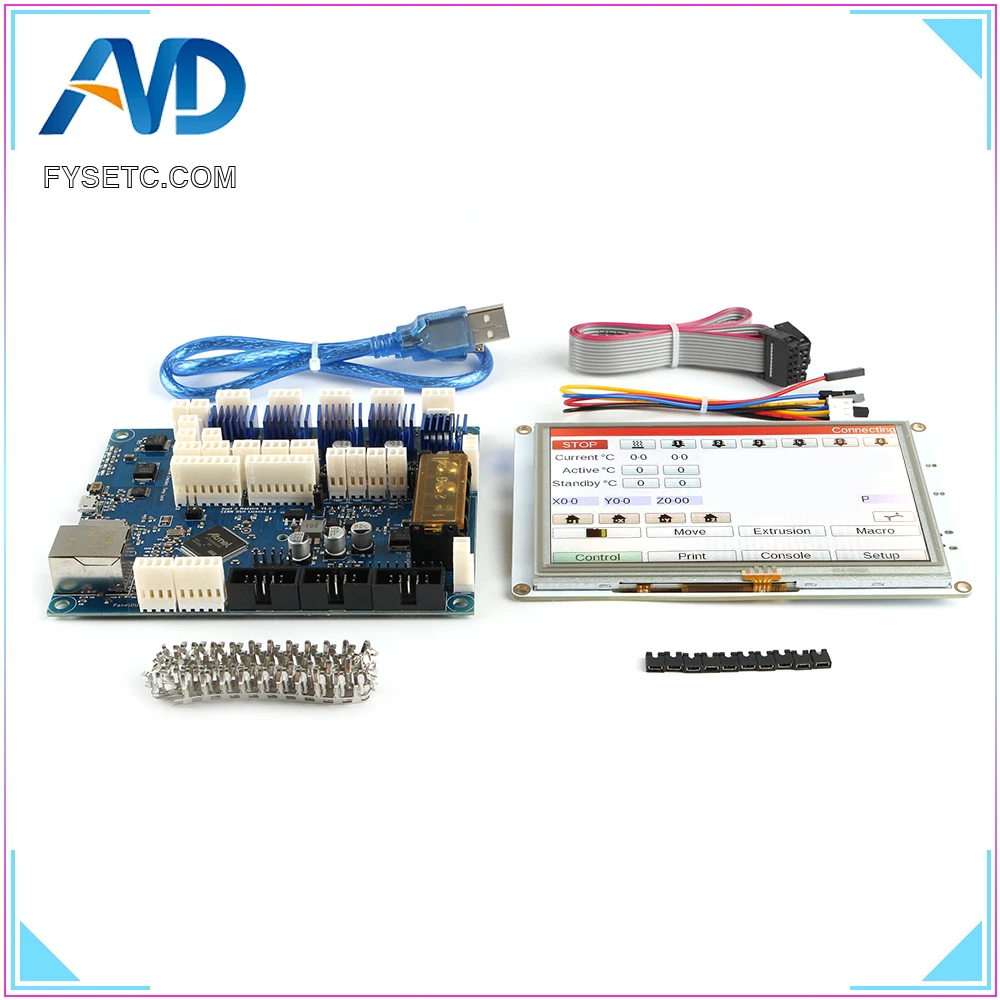

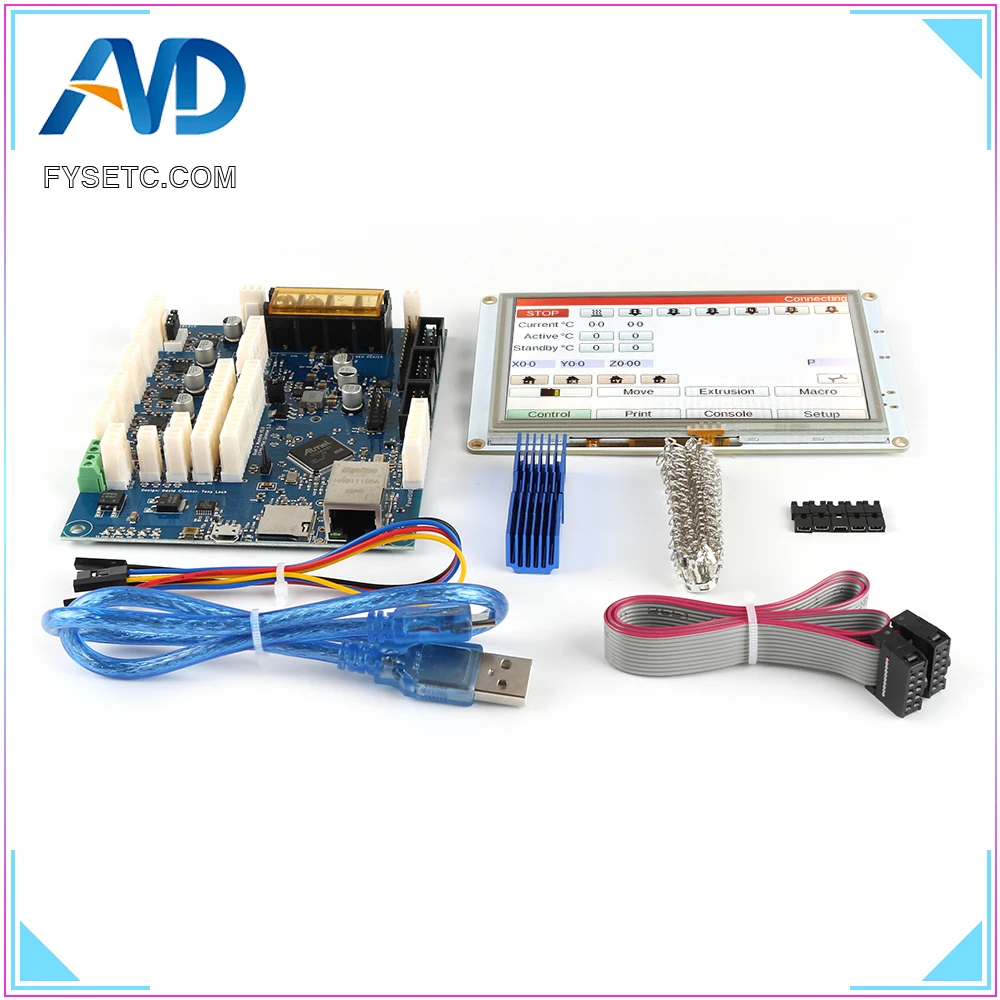

Clone Latest Duet 2 Maestro Advanced 32 Bit Electronics With 5'' 5 inch PanelDue 5i Integrated Colour Touch Screen Controllers

The Duet 2 Maestro is an advanced 32 bit electronics for the control of 3D printers and other CNC machines. it is part of the second generation family of Duet 3D electronics controllers that includes the Duet 2 WiFi and Ethernet. As part of the Duet 2 family the Maestro share core similarities with the other Duet 2 boards however there are key differences.   Features highlights include open-source RepRapFirmware, 120MHZ Arduino ARM processor, and Trinamic “Silent” motor drivers with unprecedented 256 microstep resolution. Connectors are not included. ​ Duet 2 Maestro Features: Input Voltage: 12V to 28V Voltage Monitoring: Monitors Vin Power-Loss Recovery: Supported Processor: 120MHZ Arm Cortex M4 (ATSAM4S8C) Motor Drivers: 5 X Trinamic TMC2224, providing up to 1.6 A current per motor, and 256 microstepping. Endstop Support: 5 X (can be with open source filament monitoring add-ons) Heated Bed Support: Up to 18 A Current Temp Sensor Support: 4 X capable of thermistor or direct PT1000 support. Fan Support: 3 X Voltage controlled fans, 1 X always-on. Selectable 5V/Vinput. Servo Support: 1 X Additional Motor Support: 2 X TMC stepsticks may be added.  Ethernet Support: 100mbps Wired Ethernet WebInterface: Included LCD/TouchScreen Support: Compatible with PaneldDUE, in future firmware update. Compatible Firmware: RepRapFirmware, DC42 Forks   The PanelDue 5i is colour touch screen controllers for the Duet and other 3D-printing electronics that support it. This integrated version is a custom-made high-quality 5 inch TFT LCD panel from a leading manufacturer.   Features: Resolution of  800×480 pixels on a 5 inch LCD. 5V power from host 3D printer controller. 2-wire async serial interface with 3.3V signal level (5V tolerant input). Connections to the onboard micro SD card socket as well as the PanelDue serial and power connections are all available via a 10-way ribbon cable.  A 300mm long ribbon cable (maximum recommended length) is supplied. 4-wire cable to connect the PanelDue to your controller board for the serial and power connections. This cable is also supplied (1m long)   We are designing an integrated touch display for 4.3'' and 7'', please pay attention to our store!   Package listing: 1pc duet 2   Maestro  1pc Paneldue screen -Integrated 1pc 4pin cable 1pc 10pin flat cable 1pc USB
