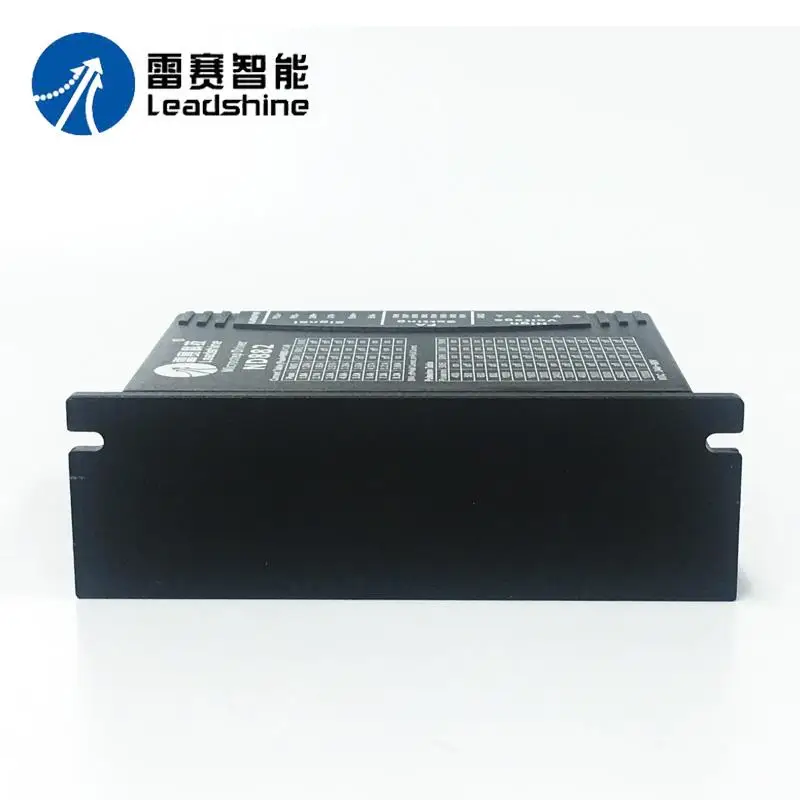

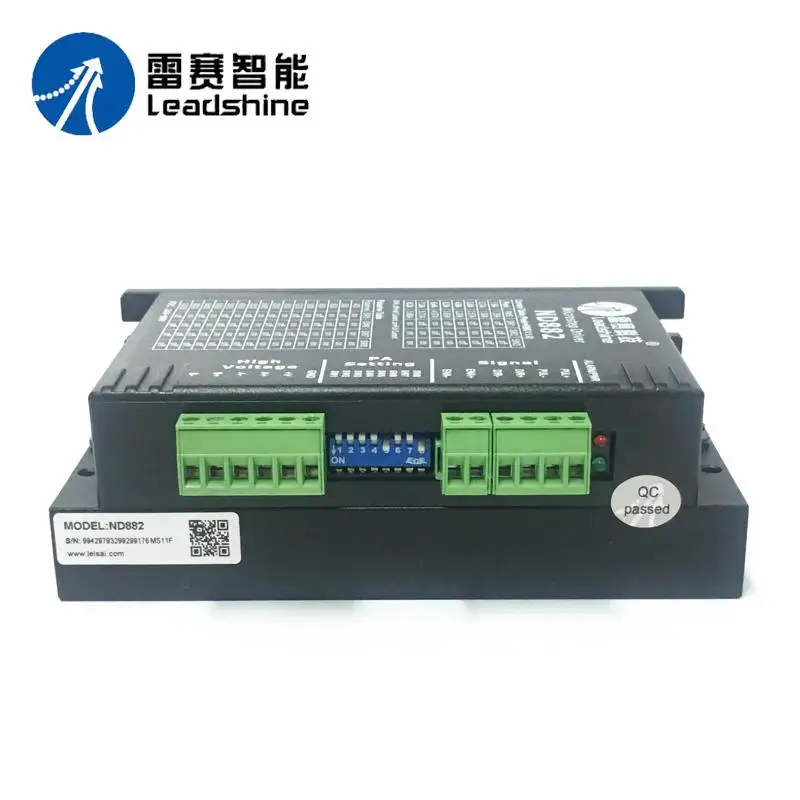

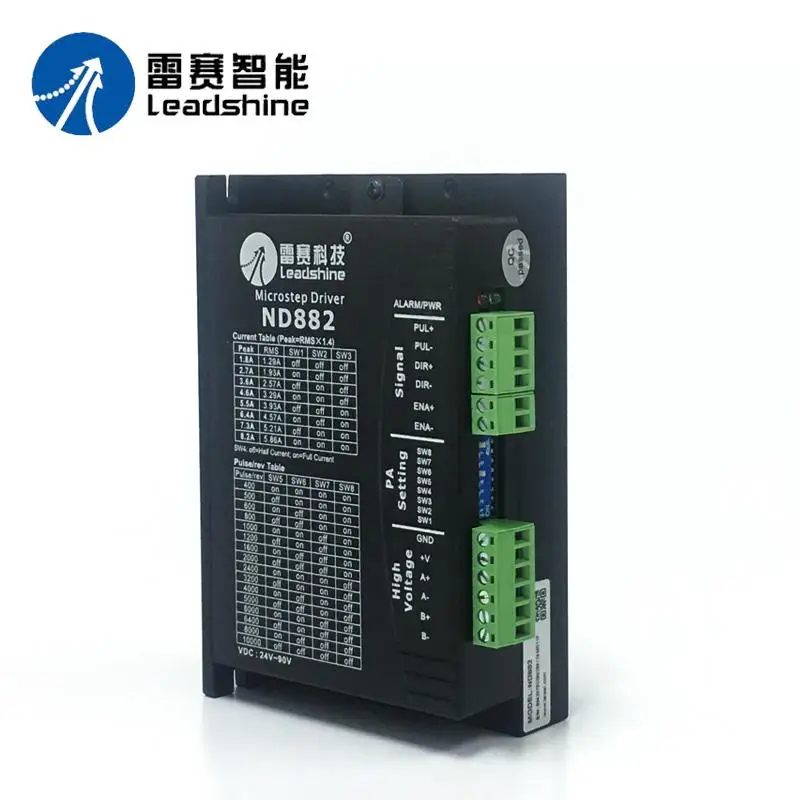

Leadshine ND882 stepper driver replace old MD882 8.2A 24-90V for NEMA 34 motor CNC parts | Обустройство дома

Explain

ND882

Small value

Typical value

value

Company

Output current

1.8

-

8.2(mean value)5.86)

A

Input power supply voltage

24

68

90

VDC

Control signal input current

7

16

MA

Stepped pulse frequency

0

300

KHz

Pulse Low Level Time

1.5

Mu s

insulation resistance

500

M Omega

Peak value(A)

average value(A)

SW1

SW2

SW3

1.80

1.29

Off

Off

Off

2.70

1.93

On

Off

Off

3.60

2.57

Off

On

Off

4.60

3.29

On

On

Off

5.50

3.93

Off

Off

On

6.40

4.57

On

Off

On

7.30

5.27

Off

On

On

8.20

5.86

On

On

On

Step number/circle(1.8 degrees /Whole step)

SW5

SW6

SW7

SW8

400

On

On

On

On

500

Off

On

On

On

600

On

Off

On

On

800

Off

Off

On

On

1000

On

On

Off

On

1200

Off

On

Off

On

1600

On

Off

Off

On

2000

Off

Off

Off

On

2400

On

On

On

Off

3200

Off

On

On

Off

4000

On

Off

On

Off

5000

Off

Off

On

Off

6000

On

On

Off

Off

6400

Off

On

Off

Off

8000

On

Off

Off

Off

10000

Off

Off

Off

Off

Name

function

PUL+(+5V)

Pulse control signal: Pulse rising edge is effective;PUL-High power time4-5VLow level0-0.5V In order to reliably respond to impulse signals, the pulse width should be greater than2.5 Mu s If adopted+12Vor+24VSeries resistance is needed.

PUL-(PUL)

DIR+(+5V)

Directional signal: high/Low-level signal, in order to ensure the reliable commutation of the motor, the direction signal should precede the pulse signal at least.5 mu sSet up. The initial direction of operation of the motor is related to the connection of the motor, and any phase winding is exchanged (e.g.A+,A-Switching) can change the direction of the initial operation of the motor.DIR-High power time4-5VLow level0-0.5V

DIR-(DIR)

ENA+(+5V)

Enabling signal: When the signal is in high-level state, the driver makes the motor coil current flow through and locked; when the signal is in low-level state, the driver makes the motor current-free and relaxed. It is only useful in some special occasions. It is not used in general. It can be disconnected. The driver keeps the motor running as usual.

ENA-(ENA)

Name

function

GND

DC power supply ground

+V

DC power supply positive pole,+24V - +90VAny value is acceptable, but the recommended value+68VDCAbout.

A+,A-

Electric machineryAPhase coil.

B+,B-

Electric machineryBPhase coil.
