3 Axis Digital Readout pieces 900*450*500mm Linear Scale Encoder DRO CNC Milling Machine | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Sep-18-2025 | 0.86 руб. | 0.96 руб. | 0 руб. |
| Aug-18-2025 | 0.65 руб. | 0.58 руб. | 0 руб. |
| Jul-18-2025 | 0.41 руб. | 0.85 руб. | 0 руб. |
| Jun-18-2025 | 0.53 руб. | 0.31 руб. | 0 руб. |
| May-18-2025 | 0.28 руб. | 0.33 руб. | 0 руб. |
| Apr-18-2025 | 0.78 руб. | 0.26 руб. | 0 руб. |
| Mar-18-2025 | 0.17 руб. | 0.63 руб. | 0 руб. |
| Feb-18-2025 | 0.36 руб. | 0.85 руб. | 0 руб. |
| Jan-18-2025 | 0.55 руб. | 0.67 руб. | 0 руб. |
Описание товара

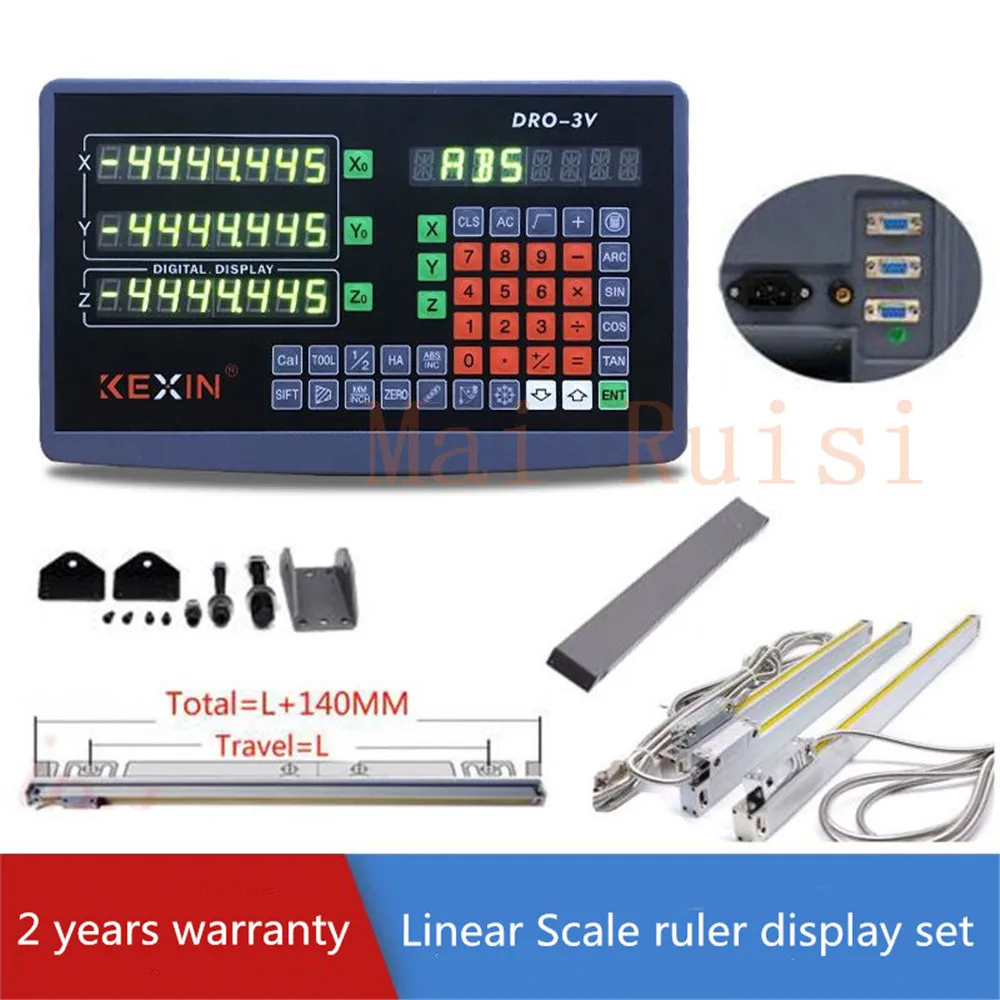

Package Included : 1 x 3 Axis Digital Readout 3pcs Linear Scale 900*450*500mm (If you want to buy Customized Length , please let me know ) 1 x Accessory kit (include scale cover, L connecting bracket, scale cover, screw bag and so on.) 1 x English User Manual
Features
a) The signal line is protected by multi-layer isolating wire and metal soft shell.
b) The linear scale body is made of aluminum alloy, anodized, the head of the scale is die-cast, corrosion-resistant.
c) The sensor adopts precision measuring grating as the measuring datum.
d) Sliding parts have excellent repeatability.
e) The display screen have a good capacity of resisting disturbance, durable keyboard, easy to change
Application field
The digital readout is applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Keep the manual for future references.
Digital Readout Specifications :
| Supply Voltage range | AC 80V~260V; 50~60Hz |
| Power consumption | 15VA |
| Operating temperature | 0~45 degree centigrade |
| Storage temperature | -30~70 degree centigrade |
| Relative humidity | Less than 90% |
| Readout allowable input signal | TTL square wave |
| Allowable input signal frequebcy | Less than 5M Hz |
| Max resolution of digital display length | 5µm |
| Min resolution of digital display angle | 0.0001/pulse |
| Weight | 1.2kg |
| Dimensions | 295*170*65mm (11.6"*6.7"*2.56") |

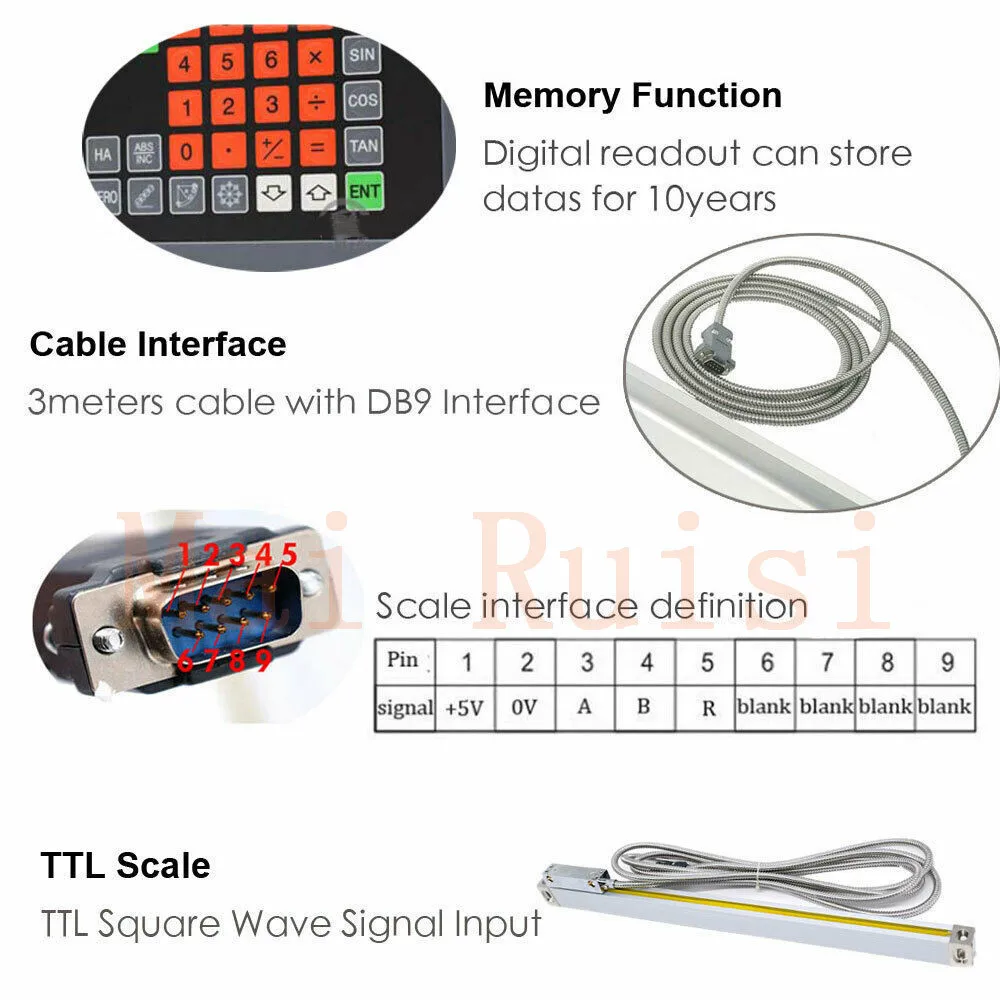

| Linear Scale | DB9(RS232) |
| Display Advantage | Having a good capacity of resisting disturbance,durable keyboard,easy to change |
Features & Advantages :
| Display language | English |
| Backup data for power fail | power off Memory by E2PROM for ten years |
| Lifetime | five million times |
| The Power source and signal | resisting disturbance, durable keyboard, easy to change |

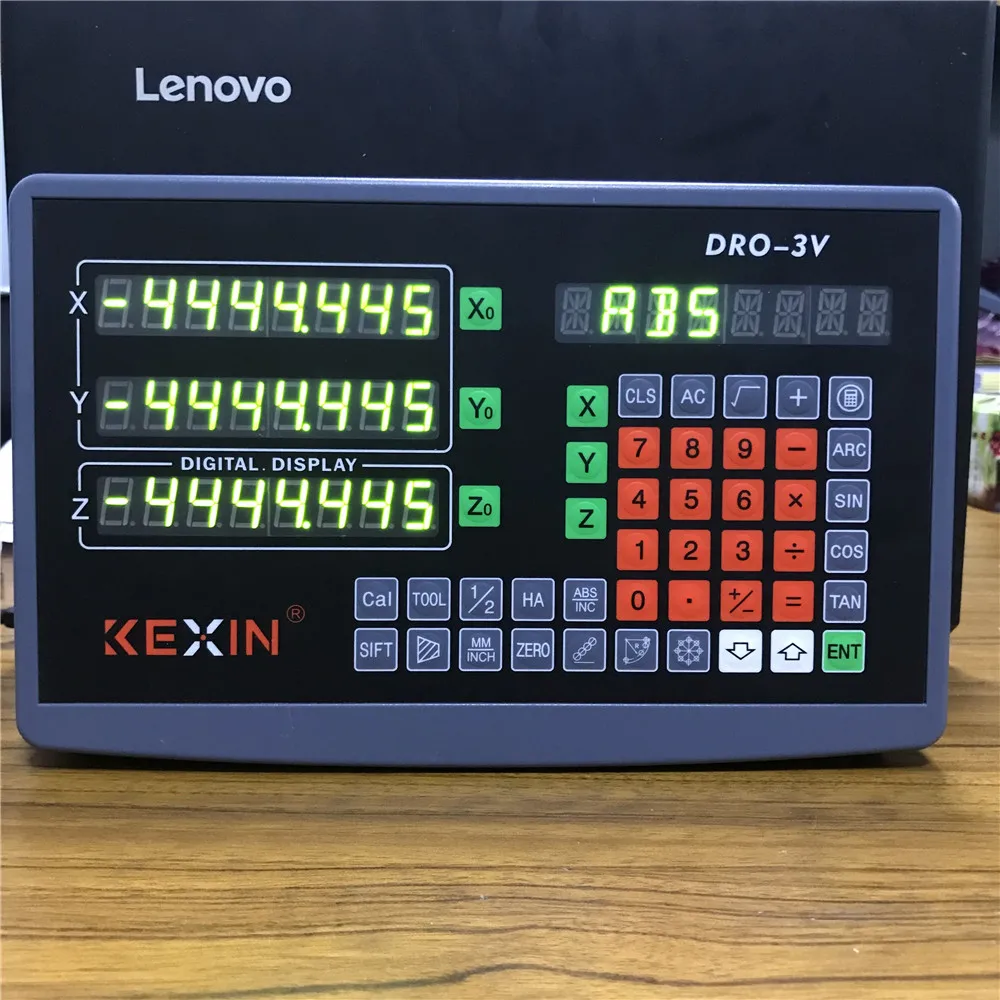

| Basic Function | 8 bit LED High-definition nixie tube mm/inch mode, ABS/INC coordinate conversion, zero clearing, reset, liner error compensation, center of 1/2, R arc function(RAC), vibration filtering, digital filtering, sleep mode, divide circle evenly (PCD), 200 sets sub datum function, drilling of oblique line, taper measurement, Anti-interference resistance, high speed, high resistance to vibration |
| Special functions | Linear drilling PCD function R function Smooth R function The simple R function Chambering (applicable to: Milling machine,Boring machine) Tool conpensation Machining of oblique plane Calculator, etc |
More Choice :
| Digital Readout Displayer | 1 /2 /3 /4 /5 Axis |
| Linear Scale travel (L0=0~3000mm) | 50/100/150/200/250/300/350/400/450/50/550/600/650/700/750/800/850 /900/950/1000……. |
| Resolution | 5um/1µm |
We also supply 1um/0.001mm resolution linear scale, please leave a message , We will give you the most favorable price.
