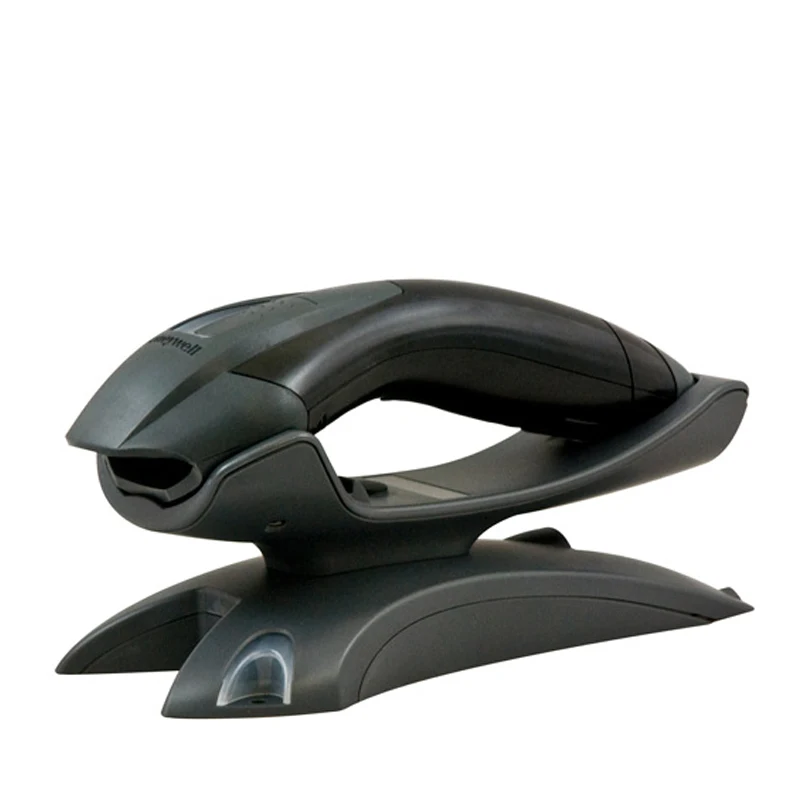

Oringinal Honeywell Voyager 1202G Wireless Single-Line Laser Barcode Scanner with Bluetooth and 1800 mAh Li-Ion Battery Black | Компьютеры

Oringinal Honeywell Voyager 1202G Wireless Single-Line Laser Barcode Scanner with Bluetooth and 1800 mAh Li-Ion Battery Black | Компьютеры

Product Details

The Voyager 1200g (wired) and 1202g (wireless) barcode scanners give you able-bodied performance and flexibility for a wide variety of hands-free and handheld scanning applications. Regardless of the model you choose, these Voyager scanners deliver aggressive scan performance on virtually all linear barcodes.

• Decode poorly printed, smudged, faded and other difficult-to-read barcodes with ease.
• Scan high-density barcodes, too, with resolution down to 3.5 mil. In most cases, that eliminates the need to purchase specialty scanners.

And take advantage of the Voyager scanner’s class-leading, hands-free presentation scanning. It maximizes throughput with updated object detection and automatic in-stand detection and configuration.

• Single shock-mounted PCB delivers greater impact resistance.
• Recessed button is protected by an integrated rubber co-mold that minimizes the impact of accidental drops.
• Designed with a protected, scratch-resistant glass window and an IP42-rating.

The Voyager 1202g wireless model incorporates a Bluetooth® Class 2 radio. You’ll have unrestricted movement up to 10 m (33 ft) from the base, and up to 30 m (100 ft) with a clear line-of-sight between scanner and base.

And if you ever misplace a scanner, the Voyager’s paging system uses visual and auditory signals to help you find the missing device quickly.

Specifications

MECHANICAL

Dimensions (LxWxH)
1200g: 66 mm (3.0 in) X 180 mm (7.1 in) X 97 mm (3.8 in)
1202g Scanner: 180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
1202g Base: 200 mm x 67 mm x 97 mm (7.9 in x 2.6 in x 3.8 in)

Weight
1200g: 125 g (4.4 oz)
1202g Scanner: 180 g (6.3 oz) (includes battery)
1202g Base: 125 g (4.4 oz)

ELECTRICAL

Input Voltage
1200g: 5 V +/- 5%

• 5 W (1 A @ 5 V with power supply); 2.5W (0.5 A @ 5 V with USB)
• 0.625 W (0.125 A @ 5 V)

Standby Power
1200g: 0.45 W (90mA @ 5 VDC)
1202g Scanner: N/A
1202g Base: N/A

Battery
1200g: N/A
1202g Scanner: 1800 mAh Li-ion minimum
1202g Base: N/A

Expected Operation Time
1202g: 12 hours

Expected Charge Time
1202gi: 4. hours

Number of Scans
1202g: Up to 45,000 scans per charge

Host System Interfaces
1200g: Multi-Interface / Includes RS232 (TTL +5V, 4 Signals) / KBW / USB (HID Keyboard, Serial, IBM OEM); RS-232C (+/-12V) and IBM RS485 supported via adapter cable
1202g Scanner: N/A
1202g Base: USB, Keyboard Wedge, RS232, IBM 46xx (RS485)

BLUETOOTH
1452g Radio/Range: 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 2: 10 m (33 ft) line of sight
1452g Radio/Range: Up to 3 Mbps

ENVIRONMENTAL

• Charging: 5°C to 40°C (41°F to 104°F)
• Non-Charging 0°C to 50°C (32°F to 122°F)

Storage Temperature
1200g: -20°C to 60°C (-4°F to 140°F)
1202g: -5°C to 35°C (23°F to 95°F)

Humidity
0 to 95% relative humidity, non-condensing

Drop
Designed to withstand 30 1.5 m (5 ft) drops to concrete

Environmental Sealing
IP42

Light Levels
0 to 70,000 lux (6,500 foot-candles)

SCAN PERFORMANCE

Scan Pattern
Area Image (640 x 480 pixel array)

Motion Tolerance
Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus

Scan Angle
Horizontal 37.8°; Vertical 28.9°

Symbol Contrast
35% minimum reflectance difference

Pitch, Skew
±60°, ±70°

Decode Capability
Reads standard 1D and GS1 DataBar symbologies. (Note: Decode capabilities dependent on kit configuration)
