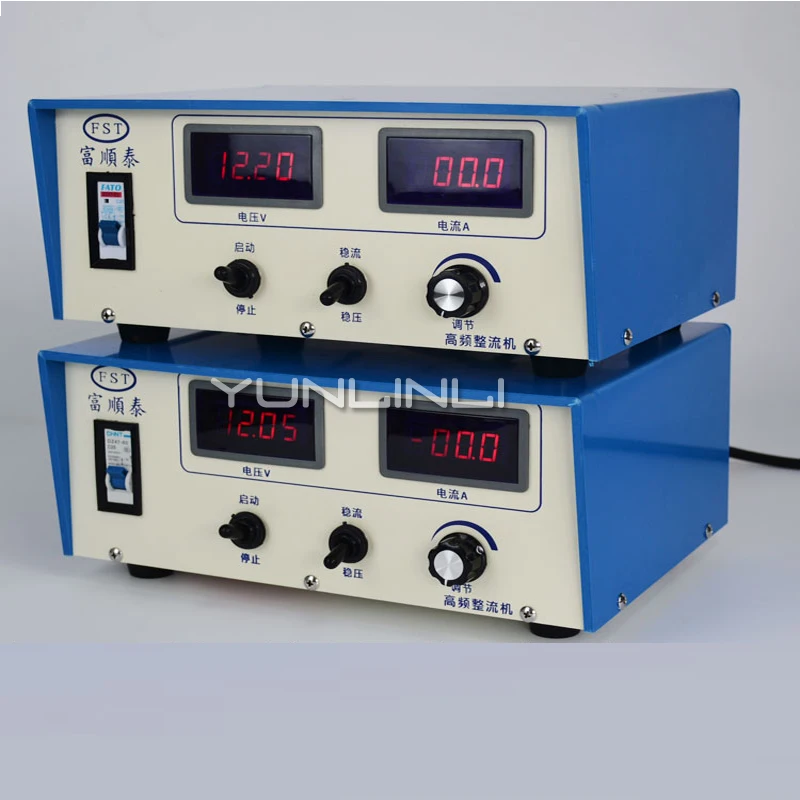

High-frequency Electroplating Rectifier Air-cooled Brush Plating Electrolysis Oxidation Electro-erosion 100A-12v | Инструменты

High-frequency Electroplating Rectifier Air-cooled Brush Plating Electrolysis Oxidation Electro-erosion 100A-12v | Инструменты

33743

 Terms of use
1, the altitude does not exceed 3000 meters
2, the ambient temperature is -15 ° C to 40 ° C, the air temperature is not more than 90%
3. There is no serious conductive dust around, no flammable and explosive dangerous goods medium.
4. There is no place for severe vibration and impact.
5. The input power of the equipment must be connected through an external air switch and grounded.
6. The current output copper bar is located at the rear of the panel. The cross section of the copper bar selected when connecting the power supply to the plating tank shall not be smaller than the cross-sectional area of the copper strip, the conductive paste shall be applied to the plane joint, and then tightened with high-strength stainless steel screws. .
7. Before use, please choose the working mode: such as voltage regulation or steady current, the steady current mode is generally used for continuous plating of automatic lines, and the constant voltage is suitable for hanging plating or barrel plating.
8. The power switch start working indicator is on, the current and voltmeter values are all in zero state, and the output adjustment knob on the power supply device is adjusted to make the output reach the desired value: voltage regulation, power supply voltage change or negative change can be Keep the output voltage constant. The output current can be kept constant during steady current, power supply voltage change or load change.

Operation and maintenance instructions
1. Under normal operation, the power supply operation indicator is steady green, and the protection red light flashes to indicate that the power supply is in the protection alarm state. In the protection state, the current and voltage output are zero. The power switch breaker must be disconnected and restarted to resume normal operation.

2. Temperature protection: If the fan fails or the power supply is overloaded for a long time, the internal temperature may rise to above 85 °C. The normally open contact of the temperature relay is closed, so that the control circuit protects the alarm and the power supply is protected. After that, the switch breaker can be turned on again to work.
3. Overcurrent protection: When the current output exceeds 15% of the rated current, it will enter the protection state.
4. Always disconnect all switches before turning on the power, and then proceed as follows: external air switch - work (knob adjustment)
