Sogood Wireless Solution Store
Магазина Sogood Wireless Solution Store работает с 03.06.2014. его рейтинг составлет 93.12 баллов из 100. В избранное добавили 513 покупателя. Средний рейтинг торваров продавца 4.7 в продаже представленно 3920 наименований товаров, успешно доставлено 1574 заказов. 465 покупателей оставили отзывы о продавце.
Характеристики

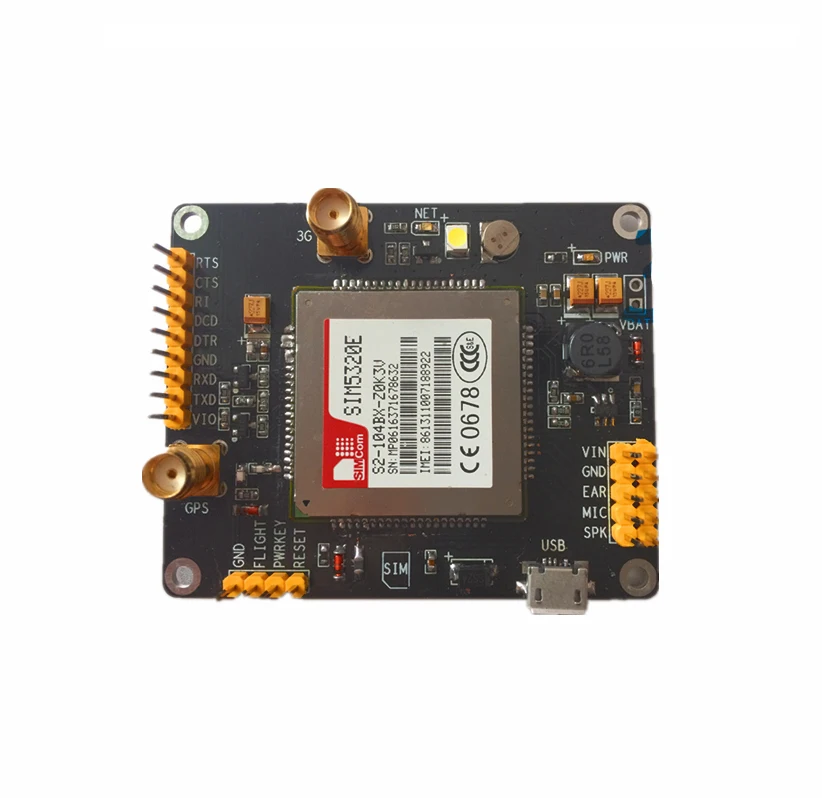

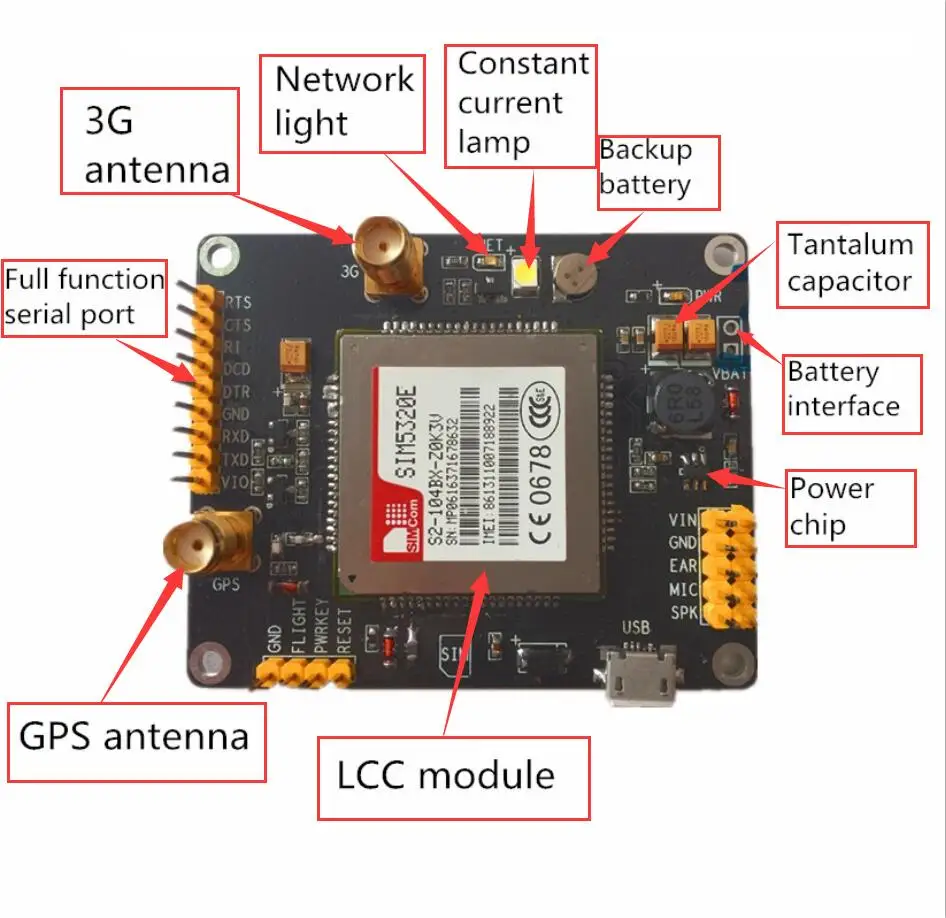

SIM5320E breakout board EVB Board Development Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE |
История изменения цены
*Текущая стоимость 3 537,17 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Aug-18-2025 | 4492.49 руб. | 4582.76 руб. | 4537 руб. |
| Jul-18-2025 | 3643.0 руб. | 3716.24 руб. | 3679.5 руб. |
| Jun-18-2025 | 4421.12 руб. | 4509.18 руб. | 4465 руб. |
| May-18-2025 | 4386.89 руб. | 4474.95 руб. | 4430 руб. |
| Apr-18-2025 | 3502.85 руб. | 3572.14 руб. | 3537 руб. |
| Mar-18-2025 | 4315.3 руб. | 4401.54 руб. | 4358 руб. |
| Feb-18-2025 | 4280.59 руб. | 4366.37 руб. | 4323 руб. |
| Jan-18-2025 | 4244.34 руб. | 4329.39 руб. | 4286.5 руб. |
Описание товара
|
WCDMA/HSDPA Module
The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module in a SMT package whichsupports HSDPA up to 3.6Mbps for downlink data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. Withabundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS,the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range ofproducts like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.
Product details
| General features • SIM5320A： Dual-Band UMTS/HSDPA 850/1900MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz • SIM5320(J)E： Dual-Band UMTS/HSDPA 900/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz • SIM5320J： Dual-Band UMTS/HSDPA 850(800)/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz • GPRS multi-slot class 12 • EDGE multi-slot class 12 • Output power - UMTS 850/1900: 0.25W - UMTS 900/2100: 0.25W - GSM850/GSM900: 2W - DCS1800/PCS1900: 1W • Control Via AT Commands • Supply voltage range: 3.4~ 4.2V • Operation temperature: -30℃ to +80℃ • Extended operation temperature: -40℃ to +85℃ • Dimension: 30 * 30 * 2.9 mm • Weight: 5.6g Specifications for Data transfer • HSDPA - Max. 3.6Mbps(DL) •WCDMA - Max.384Kbps(DL), Max.384Kbps(UL) • EDGE Class: - Max. 236.8Kbps(DL),Max.118Kbps(UL) • GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL) • CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call • Multi-PDP connect application | Other features • USB Driver for Microsoft Windows2000/XP/Vista/7/8/10 • USB Driver for Windows CE/Mobile • USB Driver for Linux /Android • Firmware update via USB • MMS • TCP/IP • MUX protocol over UART • FTP/FTPS/HTTP/HTTPS/SMTP/DNS • FOTA Interfaces • USB2.0 • UART • SIM card • SPI • I2C • Keypad • Constant current sink • GPIO • RTC • ADC • Mic/Receiver ** • PCM ** Specifications for SMS • Point to point MO and MT • Text and PDU mode Support embedded Script Language • LUA Script Language • Embedded AT * Specifications for GPS/Location • CELL assistant Location (No GPS) • A-GPS: MS-Based, MS-Assisted • Stand-alone GPS • QUALCOMM XTRA GPS mode | Certifications SIM5320A • FCC • PTCRB • IC • ROHS, • REACH SIM5320E • CE • GCF • ROHS • REACH • NCC • CCC • CTA SIM5320J(E) • Telec • JATE Carrier Approvals SIM5320A • AT&T, Rogers SIM5320E • TIM, Orange, Vodafone SIM5320J • Docomo SIM5320JE • SoftBank |
We can also supply other series SIM5320 series from SIMCOM.Just feel free to search in our store if you need other kind.
SIM5320E breakout board*1pcs
1. We can ship to all over the world.Items will be shipped within 1-3 business days after we verify your payment.
2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.
3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express such as DHL UPS FEDEX EMS TNT and so on.
4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don't receive the item within thirty days, please contact us, and then I will help you track it
We Sogood Wireless Solution have very much stock to support your mass prodution.
So just not forget come back to us when the samples competitive for you.
Best Service and Competitive price will not let you down!
