2pcs/lot SIM7000E SIMCOM B3/B8/B20/B28 NBIoT Module LTE CAT-M1(eMTC) competitive with SIM900 and SIM800 |

---



External LTE Antenna   Buy it Now External GSM Antenna   Buy it Now Internal 4G 3G 2G Antenna   Buy it Now GPS Antenna   Buy it Now 2.4G 5.8G Antenna   Buy it Now LTE GPS Combo Antenna   Buy it Now Lora Antenna   Buy it Now Extension Cable   Buy it Now USB Transfer Adapter   Buy it Now SIM Card Slot   Buy it Now U.FL SMA Connector   Buy it Now NGFF M.2 Module Accessories   Buy it Now





eMTC( CAT-M1) Module



The SIM7000X is Multi-Band LTE-FDD module solution in aSMT type which supports LTE CAT-M1(eMTC) up to 375kbpsdata transfer. It has strong extension capability with rich interfacesincluding UART, USB2.0, GPIO etc. The moduleprovides much flexibility and ease of integration for customer's application. The package of SIM7000X is compatible with SIM900 and SIM800F. AT commands of SIM7000X are mostly compatible with SIM800F. This also minmize the investments of customers, and enables a short time-tomarket. It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring , E-health, mobile pos terminals and sharing bike.

Product advantages



With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000X can extend battery life to 10 years SIM7000X provides deeper coverage enhancement compared to GSM The package and AT commands of SIM7000X mostly are compatible with SIM900 and SIM800F.

Product details



General Features SIM7000A: • Quad-Band FDD-LTE B2/B4/B12/B13   SIM7000E: • Quad-Band FDD-LTE B3/B8/B20/B28 • GPRS/EDGE 900/1800Mhz • Output power - GSM900: 2W - DCS1800: 1W   • Control Via AT Commands • Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V • Operation temperature: -40℃ to +85℃ • Dimensions: 24 X 24 X 2.6mm • Weight: 3.0g • GNSS (GPS,GLONASS )-SIM7000A • GNSS (GPS,GLONASS,BeiDou and Galileo)-SIM7000E   Date • LTE CAT-M1(eMTC) - Uplink up to 375kbps, Downlink up to 300kbps • NB-IoT - Uplink up to 66kbps, Downlink up to 34kbps • EDGE Class - Uplink up to 236.8Kbps, Downlink up to 236.8Kbps • GPRS - Uplink up to 85.6Kbps, Downlink up to 85.6Kbps   Specifications for SMS • Point to point MO and MT • Text and PDU mode

General Features • USB Driver for Microsoft Windows XP/Vista/7/8 • USB Driver for Windows CE/Mobile • USB Driver for Linux/Android • Firmware update via USB • TCP/IP • UDP • PPP • SMS • EMAIL • FTP/HTTP/SSL • VoLTE * • FOTA *   Interfaces • USB2.0 x1    (high-speed) • UART x2    (7-wire UART and 2-wire UART • interface multiplex from GPIO) • SIM card x1    (1.8V and 3V) • I2C x1 • GPIO x5 • ADC x1

Consumption • Power off: 7uA • PSM: 9uA • Sleep: 1mA • Idle: 11mA   Certifications SIM7000A • RoHS • REACH • FCC • Verizon • PTCRB • GCF（doing) • AT&T（doing)   SIM7000E • CE • RoHS • REACH

​We can supply all series of SIM7000 series included SIM7000G.Just feel free to search in our store if you need other kind.

​

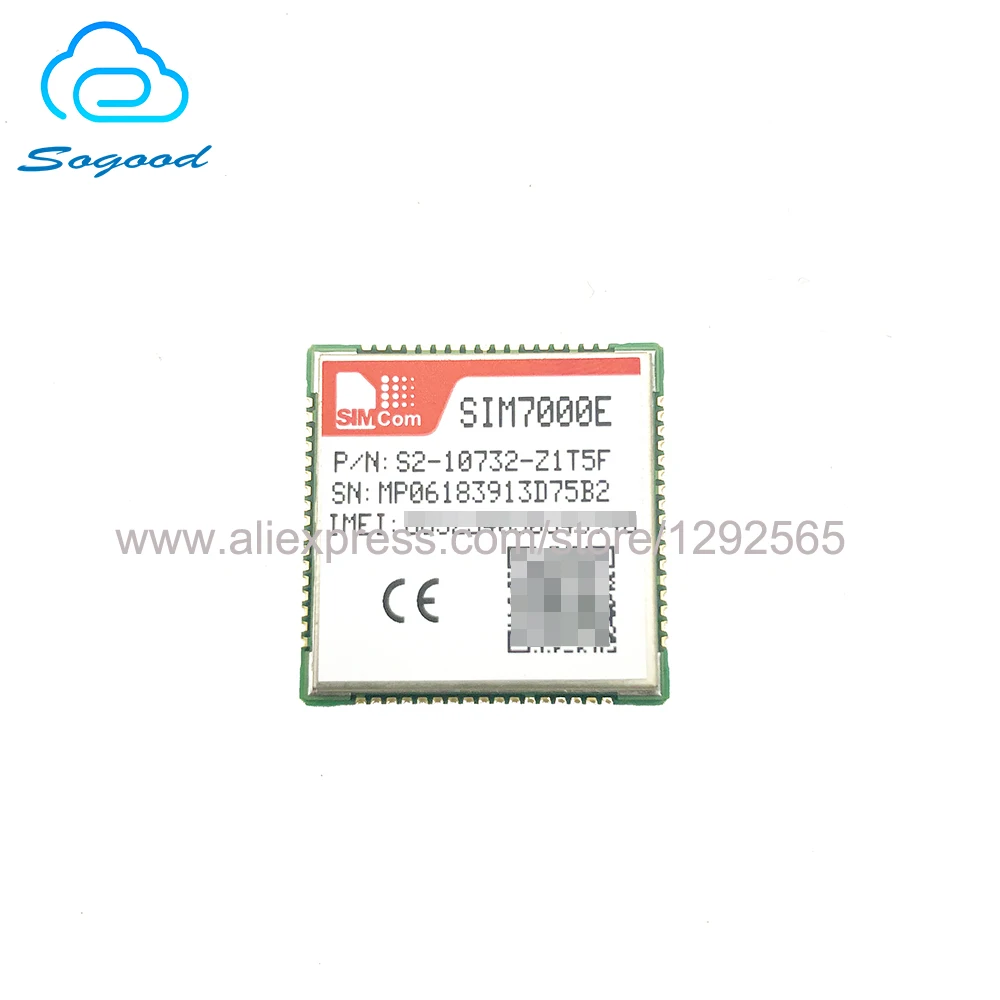

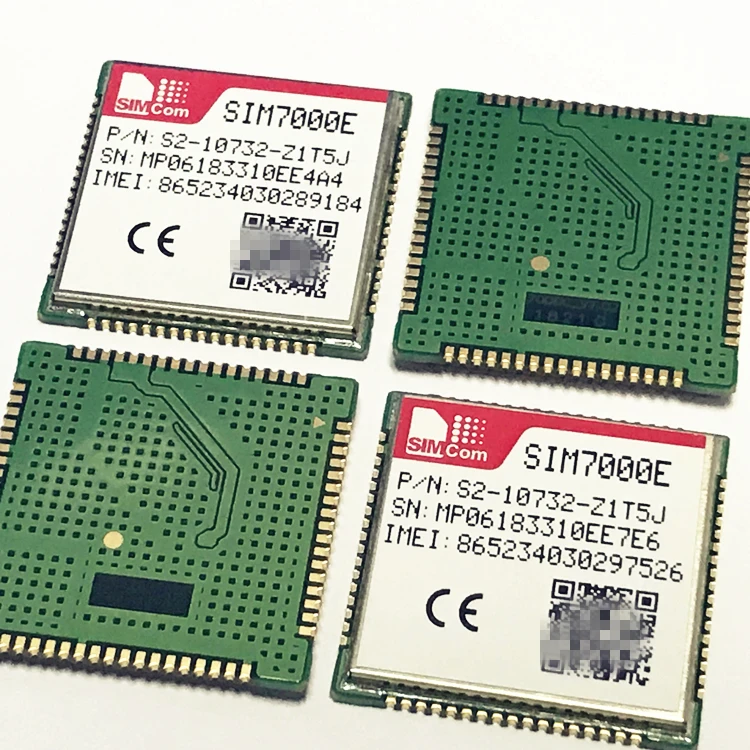

SIM7000E SMT Type *2pcs





1. We can ship to all over the w​orld.Items will be shipped within 1-3 business days after we verify your payment.

2. Please tell me your current address after your payment within 1-2 days; otherwise, we will ship your item based on your Escrow address, so make sure it is correct.

3. Before ordering please contact us to confirm your preferred shipment method. Normally, it takes 7-30 business days for arrival by Air Mail, and takes 3-10 business days by Express such as DHL UPS FEDEX EMS TNT and so on.

4. Sometimes it would be longer because of the bad weather, a waste of time in customs clearance. Thus please wait patiently when you do not receive your item on time. If you don't receive the item within thirty days, please contact us, and then I will help you track it

We Sogood Wireless Solution have very much stock to support your mass prodution.



So just not forget come back to us when the samples competitive for you.



Best Service and Competitive price will not let you down!
