Описание товара

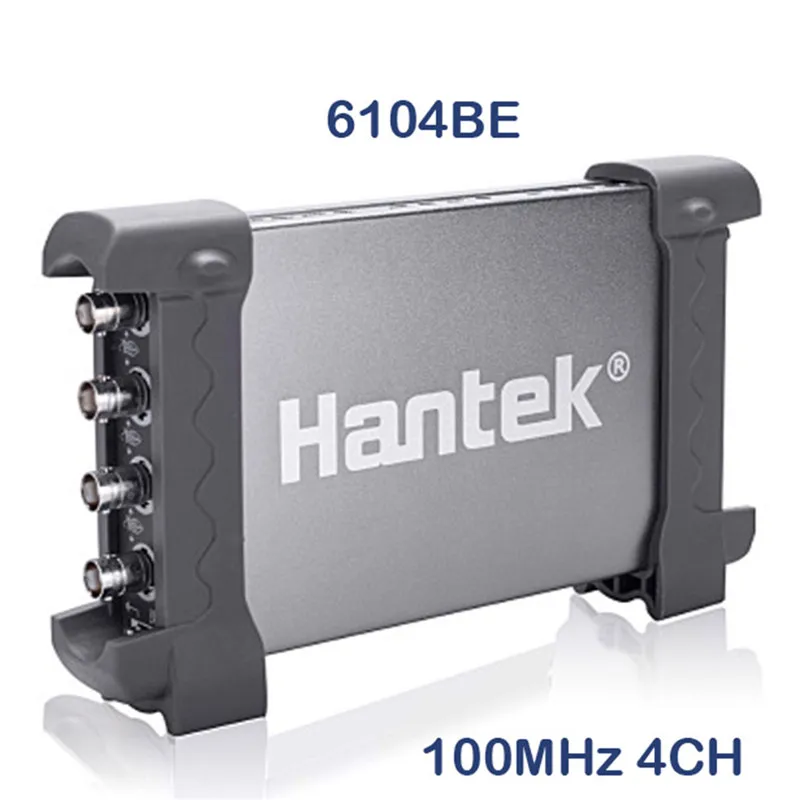

6104BE Handheld Digital Osciloscopio Automotive Diagnostic-tool Portable USB PC oscilloscope 100MHz 4 Channels 1Gsa/s
Feature:
Standard equipped of automotive measurement function;
First Diagnosis: Intake manifold vacuum &ignition,Petrol fumes adjusting valve vacuum &ignition,Idle exhaust ignition, Starting exhaust ignition
Ignition: primary and secondary
Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
USB 2.0 interface plug and play, and no need extra power supply;
Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodisedaluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.
4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
The waveform data could be output to EXCEL,BMP,JPG.
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display. FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples
Specifications:
Brand Name: Hantek
Material: Aluminium Alloy + Plastic
Model: Hantek6104BE
Bandwidth: 100MHz
Oscilloscope Probe Model: PP-90 / PP-150 / PP-200 / PP-250 (Corresponding)
Item Size: Approx. 210 * 125 * 37mm / 8.3 * 4.9 * 1.5in
Item Weight: Approx. 453g / 16.0oz
Package Size: Approx. 25 * 18.5 * 11cm / 9.8 * 7.3 * 4.3in
Package Weight: Approx. 1310g / 46.2oz
Characteristic:
| Model |
Hantek6104BE |
| Bandwidth |
100MHz |
| Channel |
4 CH |
| Real-time Sampling Rate |
1GSa/s |
| Memory Depth |
64K |
| Time BasePrecision |
±50ppm |
| Time Base Range |
2ns/div-1000s/div (1-2-4 sequences) |
| Input Impedance |
1MΩ 25pF |
| Input Sensitivity |
2mV/div~10V/div |
| Vertical Resolution |
8Bit |
| Vertical Displacement Range |
2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; |
| DC Gain Accuracy |
±3% |
| Bandwidth |
20MHz |
| Trigger Mode |
Edge, Pulse, Video, Alternative |
| Trigger Source |
CH1, CH2, CH3,CH4 |
| Waveform Signal Process |
+,-,x,÷,FFT, Invert |
| Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
| Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Volume |
175mm * 105mm * 25mm |
| Weight |
0.9KG |
|
|
|
