Описание товара
Product Description

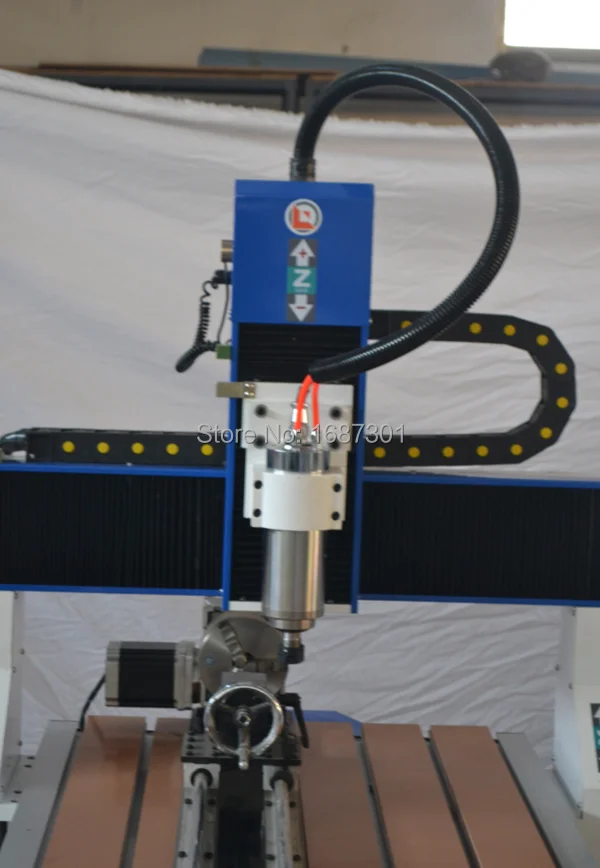

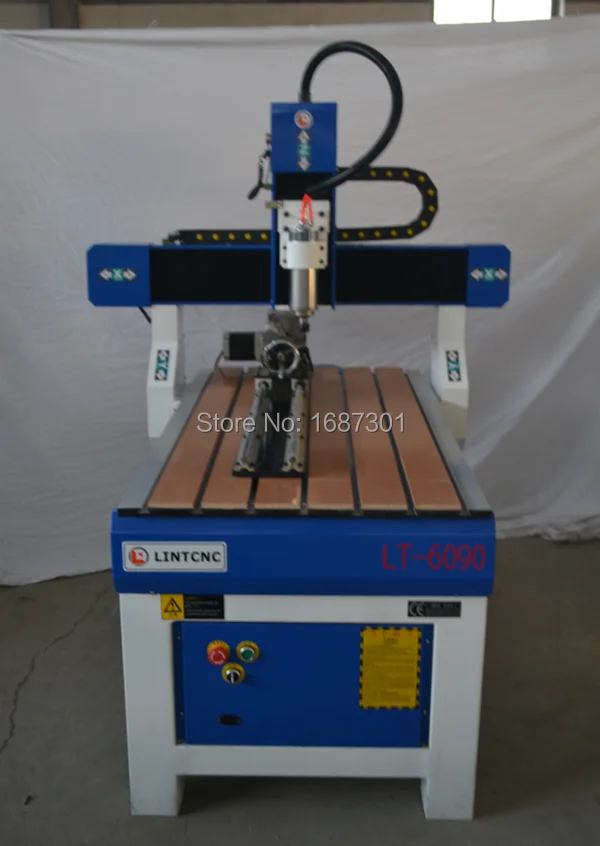

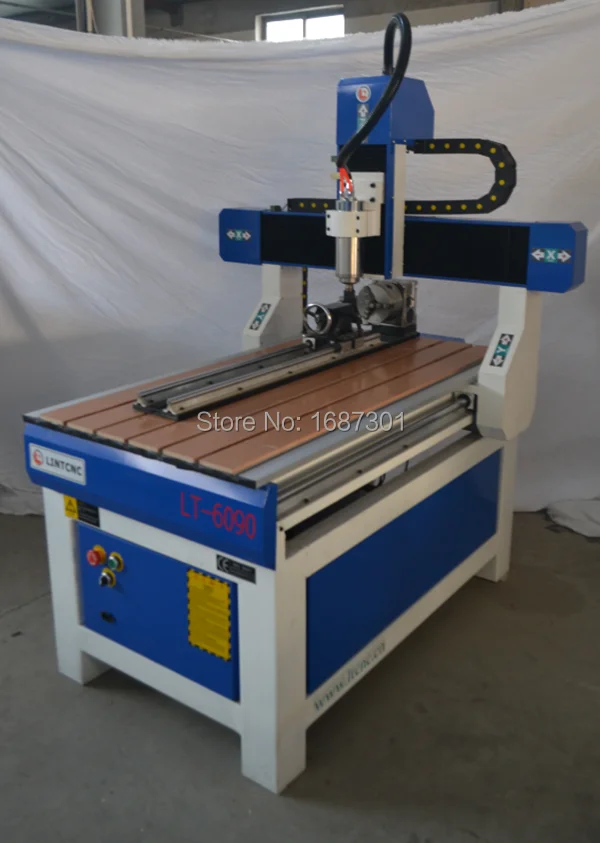

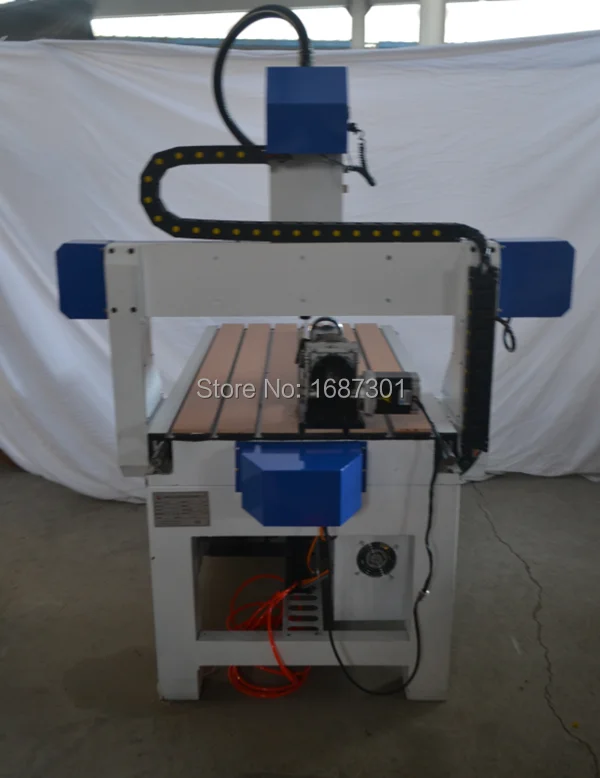

Low price 4 axis cnc router machines 6090 1.5kw water cooling spindle wood carving 6090 cnc router from factory
Performance characteristics
1. Adopts imported ball screw, long life time, high precision.
2.Moving gantry, good moving stability.
3.High power variable frequency spindle, infinitely variable speed, low price.
4.Equipped with all cutters and engraving relife function.
5.Mach3 control system, displaying 3D tracking status, breakpoint memory.
6.Key board and mouse can be operated 3D analog display function.
7.Machine with high cutting speed and good moving stability.
8.Keeping high precision of small machine, and can be engraved large objects.
Basic configuration
1)Working area:600*900mm aluminum T-slot table;
2)Whole structure:Cast-iron structure 3)Guide rail:Round guide rail
4)Driving method:Taiwan Original TBI ball screw 5)Spindle:1.5kw water cooling spindle

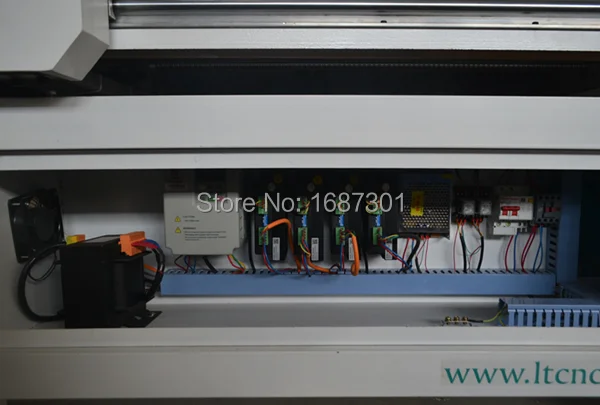

6)Motors and drivers:86BYG-450B stepper motors and MA860H Leadshine drivers
7)Invert:Fuling invert 8)Control System: Ncstudio control system
9)Standard software:Artcam2010 10) Tool sensor,Tool box
Parameter
| Model No. | LT-6090 Wood CNC Router |
| Table Size | 600mm*900mm |
| Max. feeding height of Z axis | 200mm |
| Table Structure | Aluminum table with T-slot |
| Machine body | Cast-iron |
| X Y Z axis Transmission | TBI Ball Screw |
| X Y Z Guide rail | Round Guide Rail |
| Spindle Power | 1.5kw water cooling spindle |
| Max.Spindle Speed | 24000 rpm/min |
| Max. Traveling Speed | 7000mm/min |
| Max. Working Speed | 7000mm/min |
| Processing Accuracy | ±0.025mm |
| Reposition Accuracy | ≤0.025mm |
| Driving System | Leadshine drivers |
| Command Language | HPGL, G Code |
| Control System | NCSTUDIO/MACH3/DSP |
| Working Voltage | AC110/220V, 50/60HZ |
| Net Weight/Gross Weight | 400KGS |
| Package Dimension | 1600*1300*1730mm |
Optional part :
1.2.2kw/3.0kw water cooling spindle
2.Mach3 control system
3.Hiwin linear square guide rail
4.Water cooling system with water tank

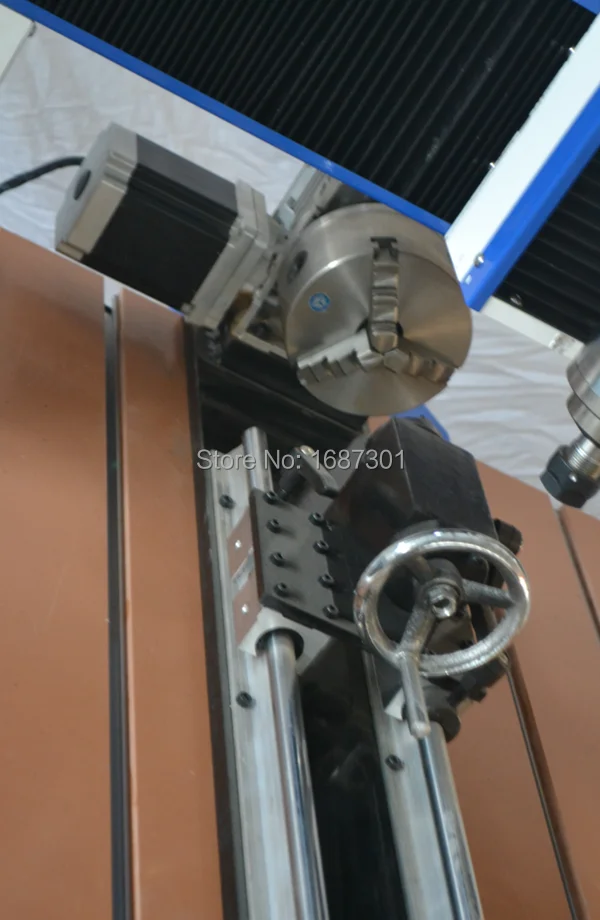

5.Rotary axis 80mm,100mm,150mm
6.Vacuum table with vacuum pump
Sample
Cnc router 6090 has a wide range of application, such as advertising field, seal field,
packing field, pane making field, decorating field, art and craft field, architecture model field,
souvenir field, badge field, electric circuitry field and carpentry field.It is used to engrave on
Acrylic sheet, abs double color sheet, PVC foam sheet, wooden sheet, scagliola, PCB, granite,
stone, steel and soft metal etc.
Guarantee & After Sales Service
1.Two years quality guaranty for the machine and online service everyday day, free
technical support. .
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Machine has been adjusted before delivery
5.Our staff can be sent to your company to install or adjust if necessary
6.The processing demo video and E-catalogue will be mailed as your request.
FAQ
1. I never use this kind of machine before, is it easy to learn? User-friendly English manual and operation video will be sent together with the machine, if there is still any question,we can talk through phone or Skype. Morever, you could come to our factory to learn how to use it before shipment. our technicant will give you professional guidance. 2. If the machine has problem, what can you do to help? Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. our after-sales staff can come to your workshop if the problem still cannot be fixed. 3. How could I know if this machine is suitable for me? Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our techniciant will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. 4. MOQ ? Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. 5. Payment terms a. 30% by T/T in advance,70% by T/T before shipping.
