DN50mm-DN700mm TM-1 Medium Size Transducer EB-1 Extend Mounting Bracket TUF-2000H Handheld Ultrasonic Flow Meter Flow Meters

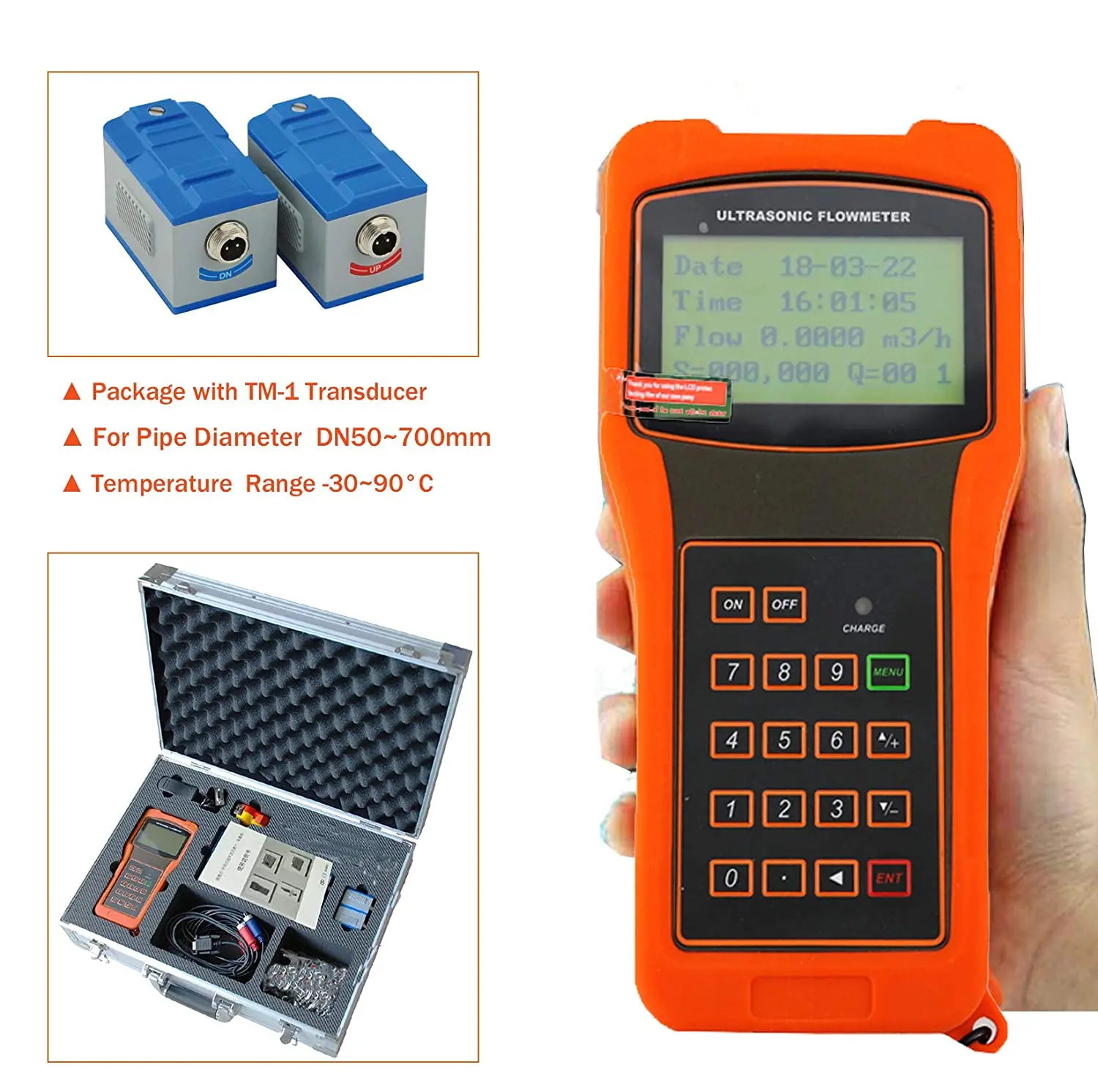

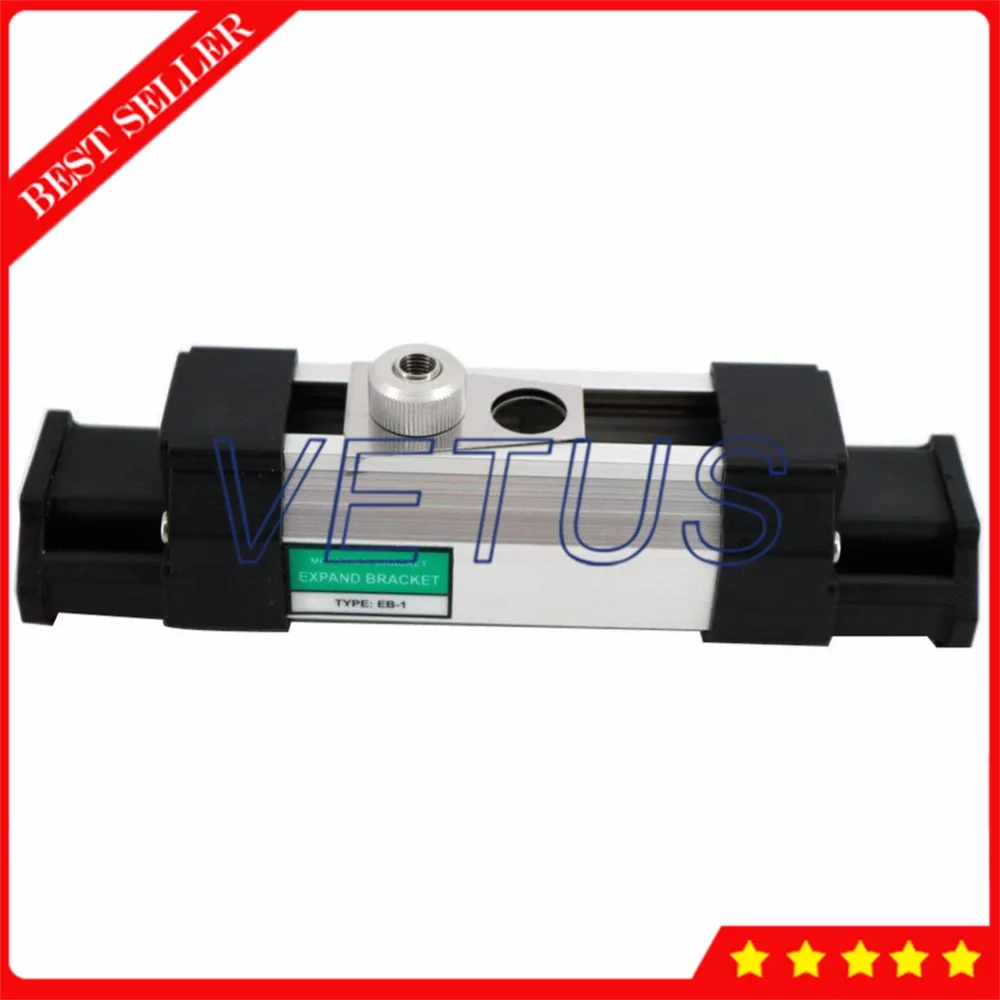

1)This type TUF-2000H comes with Clamp-on Transducer TM-1 Medium Clip(size: 64*39*44mm) for Pipe Diameter DN50 to 700mm, Temperature : -30~90°C   2)This type TUF-2000H with EB-1 Extended Bracket Transducer .Size: 88*59*49mm; for Pipe DiameterDN300mm ~ DN700mm.,Temperature: -30℃~ 90℃.    High Accuracy measuring Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%     Small size, Light weight Dimensions: 200×93×33mm; Weight:390g     Non-intrusive measuring Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.     Wide measuring range Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm     Large LCD display Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc.     Built-in data logger Built-in 24K data logger, store over 2000 lines measuring data

Shipping Policy : Battery and Liquid not included during the shipping

Items	Performance and Parameter
Main Unit	Principle	transit-time ultrasonic flowmeter
	Accuracy	Accuracy :over 1%-2%; Repeatability: over 0.2%
	Display	4 line x 16 character LCD with backlight
	Dimension	200*93*33cm:   390g
	Operation	Support 16 key light touch keyboard and the Simulation keyboard software
	Data interface	Insulate RS232 serial interface, upgrade the flew meter software by computer,
		support the MODBUS, etc.
	Signal Output	1 way OCT output
Special Cable	Twisted-pair cable, ;Select the RS232 communication.;
	Generally, the standard is 5m*2, optional 10m*2
Pipe Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass
		steel product, liner is allowed.
	Pipe Diameter	DN 15---6000mm
	Straight length pipe	Transducer installation should be satisfied: upstream10D, downstream 5D,
		30D from the pump.
Measuring Medium	Type of Liquid	Water ; Ultra-pure liquids; Solvents and other liquids
	Temperature	Standard Transducer: -30--90℃; High-temperature transducer: -40--160℃
	Turbidity	under 10000ppm and less bubble
	Flow rate	0--±10m/s
	Flow Direction	Measuring two (plus-minis) direction of flow rate
Working Environment	Temperature	Main Unit: -20--60℃
		Flow transducer: -40--160℃;
		Temperature transducer: according to the customer’s demands.
	Humidity	Main Unit: 85% RH
Power Supply	AC  110V-240V
