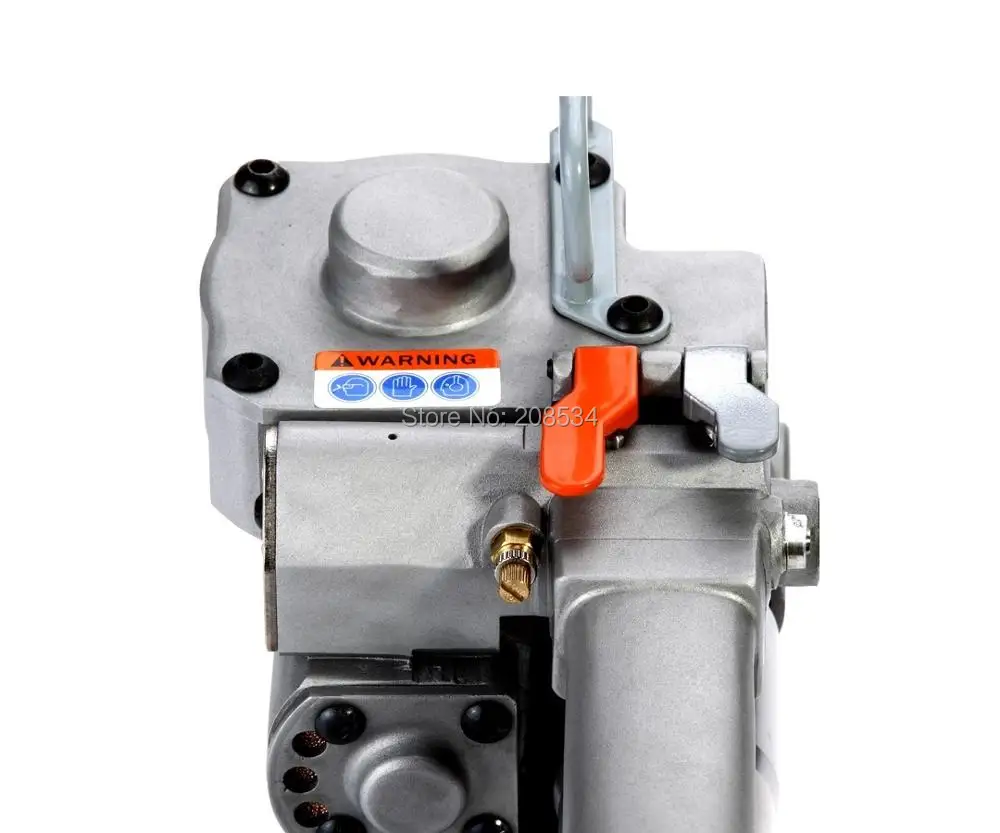

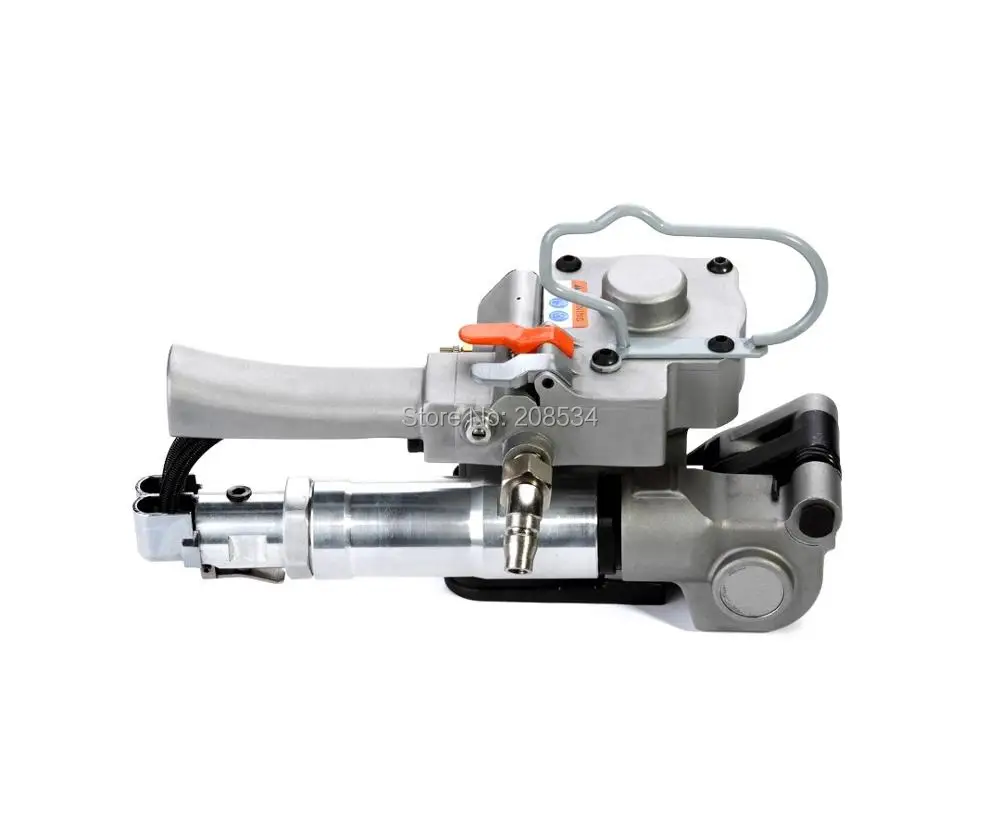

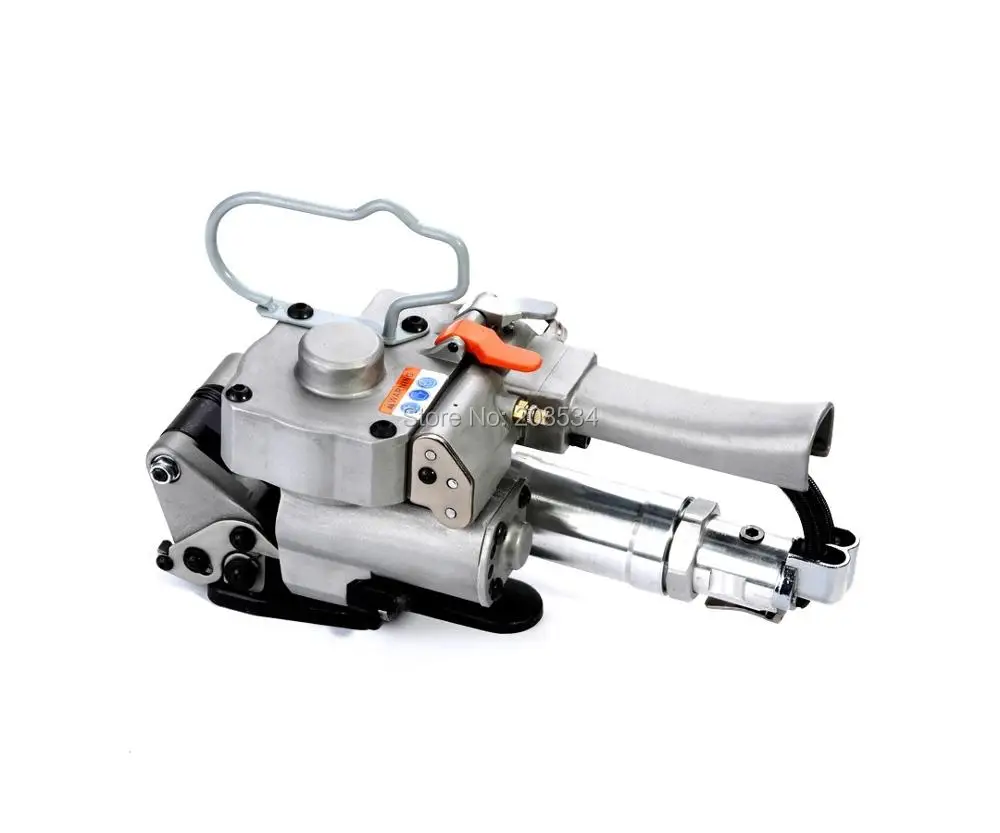

Warranty 100% New Manual Pneumatic PET/Plastic Friction Welding Strapping Tools AQD-19 for 13-19mm PET&PP strap(Tension >=3500N)

This tool is a kind of fusion packaging machine. The lapped thermoplastic packaging belt is fused by the heat produced by friction motion. Hence, it is called "friction fusion". Principle is to use the binding tape winding product or package, then tighten and ends by heating molten or use the material such as bag buckles connection machine. It is widely used for paper, aluminum, wood, wooden packaging, chemical fiber, cotton, tobacco, chemicals, foodstuff and daily merchandise, metal products industries. It adopts PET tape to finish a strap in a high speed once. This PET tape is high-tension, environmental-protection and no-pollution and can be used to replace steel tape.

Principle of friction instruction:

The compressed air will push the piston within air cylinder. The upper part of piston and vibrating bar is connected with the rocking pin, so the vibrating bar will press the lapped part of packaging belt when moving down.
There is an elliptic hole at the center of vibrating bar. This hole is connected with the eccentric shaft of pneumatic motor. The pneumatic motor rotates at a high speed (10000rpm), so the vibrating bar conducts reciprocal motion quickly. The lower part of packaging belt is fixed by the peg teeth of fusion toothed plate, and its upper part is driven by the peg teeth of vibrator for strenuous friction. Hence, the lapped part of packaging belt is fused by the heat produced by friction. When the vibration timer reaches the set time, vibration stops and fusion completes.
Both upper and lower parts of the packaging belt are stuck while extruding.

The required scope of air pressure: (5.0-7.0bar)

Installation of gas source: Filter, pressure regulating valve and lubricator assembly shall be close to the pneumatic tool. The min. inner diameter of air hose is 6.0mm. Both ends of air supply pipe should be equipped with quick unions.

Moisture filtration: A drain valve must be mounted at the bottom of the air supply circuit's bypass to drain once every day.

Lubrication: Pneumatic motor should be lubricated properly, and the lubricator should be full and well regulated.

• Drived: By Air Pump
• Strapping Material: Polyester
• Applications: PET Strap, PP Band
• Function: Tensioning, Sealing, Cutting
• Air Pressure: 0.5-0.8Mpa
• Max Strap Tension: 3500N
• Model          ：  A19/   A 25
• Strapping Width: 13mm(1/2'')-19mm(3/4'')/ 19mm(3/4")-25mm(1")
• Strapping Thickness: 0.5(0.0196'')-1.5mm(0.06'')

• Suitable band:PP & (PET) strapping

• Adjust Range Welding Time: 2-5s

• The form of sealing: Frictional heat welding

• Lubricant Permitted: 51#

• Tool weight: 3.8kg

• Size: 280*160*180mm

•
