Описание товара

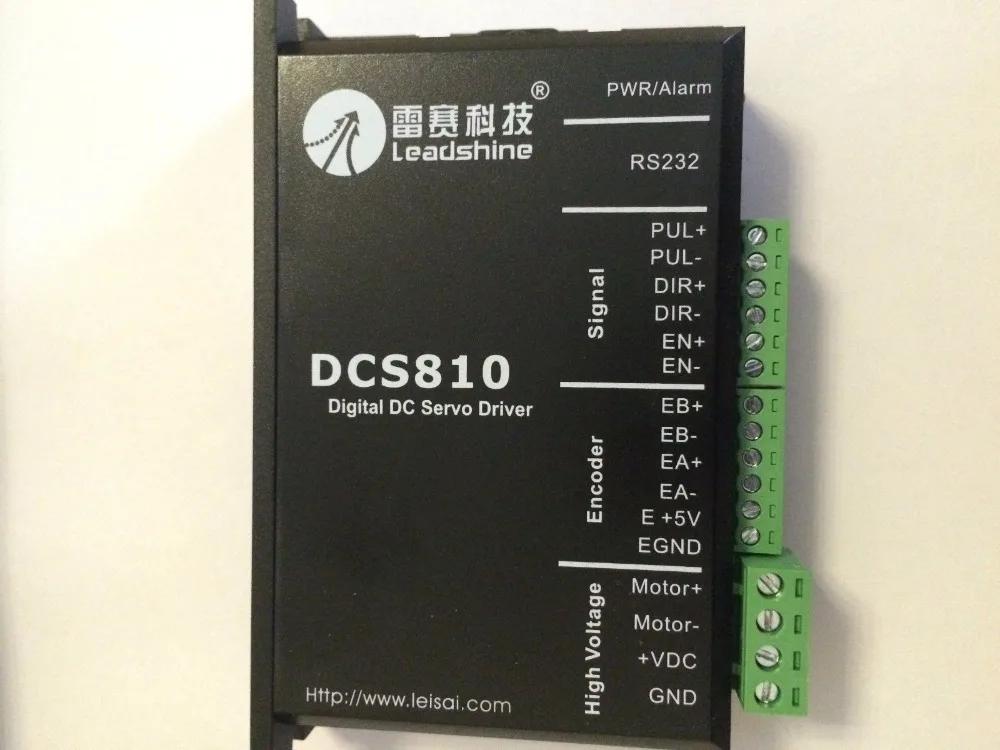

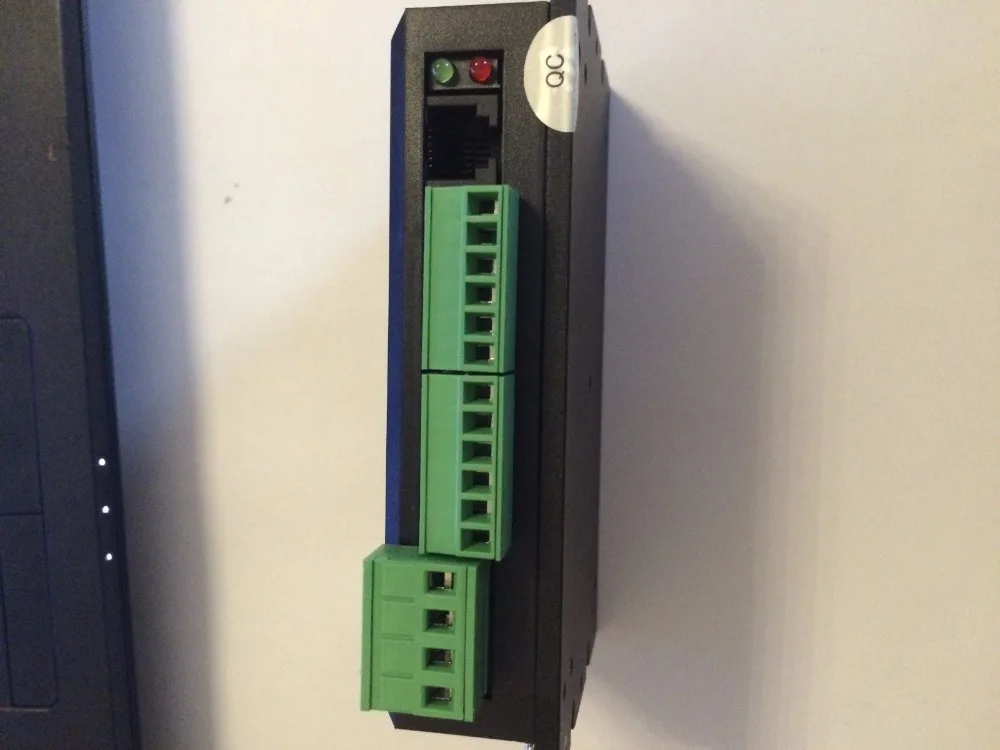

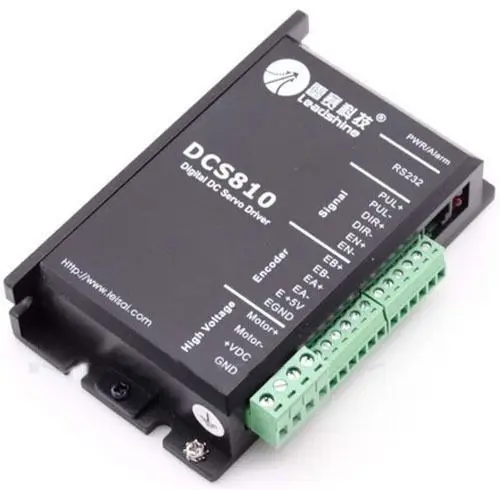

Update Leadshine DCS810 Brushed DC Servo Drive 80VDC Peak single-ended
Features: 1.The DCS810 is a digital DC servo driver developed with DSP and high efficient MOSFET technologies. In position control, it's easy for the end users to change stepping drivers to the DCS810 without changing control systems, because its input command is PUL/DIR signal, which is compatible with that of stepping drivers. In low power motion control applications, performances of DC servo systems using the DCS810 are better than those of digital AC servo systems in velocity, precision, noise, stability, or at least as good as those of digital AC servo systems. However, the cost of the DCS810 stays at the price line of stepping driver, namely far lower than those of AC servo drivers. 2.Compared to the DCS810S, the DCS810 can accept differential control signals and differential encoder feedback signals, offering better anti-interference performances. Compared to the DB810A, parameter visible tuning tools make the DCS810 much easier to tune. 3.The DCS810 is very easy to tune and all parameters are visible. Parameter visible tuning tools, including Pro Tuner (Windows based setup software) and STU (Small servo tuning unit) can meet different tuning environments or requirements.
Description: 1 electrical characteristics Parameter DCS810 Minimum value unit Continuous output current 0 - 10 A Input supply voltage +18 - +80 VDC Logic input current 7 10 20 mA Pulse frequency 0 - 500 kHz Insulation resistance 500 MΩ Encoder current 50 mA 2 use environment and parameters Cooling mode natural cooling or heat sink Use environment to avoid dust, oil mist and corrosive gas The temperature of 0 DEG C - 50 Humidity 40-90%RH Vibration 5.9 m/s2 Max Storage temperature -20 +80 C Weight of about 210 grams Shipment quantity: 1pcs
