i7 Gaming Computer Nettop PC Intel Core 5550U 5500U 4500U Fanless Mini HTPC 4MB Cache 3.0GHz Wifi 2*LAN+2*HDMI+SPDIF | Компьютеры и

---



Mini Desktop PC, HTPC



Intel i7-5500U/i7-5550U/i7-4500U Dual Core, Max Turbo Frequency 3.0GHz, 4M Cache

2*HDMI, 2*Gigabit LAN, 4*USB3.0, 4*USB2.0, 1*Optical Audio Output

1*SD Card Reader, WiFi, Intel HD Graphics 6000/4400, Fanless, No Noise





Kindly Reminded:



1, This computer works with lower volt at 1.35V instead of normal 1.5V RAM. 2, Warranty is 3 years for Barebone PC, 1 Year for RAM and Storage. 3, The RAM and SSD/HDD are from famouse brand, the RAM is normally Sam'sung, Elp'ida, Hynix; The SSD is normally from Tosh'iba, Sam'sung, ADATA, Intel, Lite-on etc. they will be shipped out at random for stock. 4, The Operating System is just for testing, copied and activated but not licensed, please install the licensed one by yourself if you prefer. 5,  Please carefully read the SHOPPING GUIDELINES    on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won't take responsibility for any problems might caused except the quality problem of the product.   Thank you !   Windows 10 Desktop:

Wireless Mini Keyboard on sale for this mini computer:





    Branded Spare Parts, Boyscott Fake Parts!!

Top Quality, 3 Year Warranty, Rest Assured!!





1,Quality Approval:



  2, Key Features:   CPU:Intel® Core™ i7-5500U Processor (4MB Cache, 2.4GHz, Max Turbo Frequency 3.0 GHz) Graphics: Intel® HD Graphics 5500, support HD Resolution HDMI 2560x1600@60Hz Intel®  Core™ i7-5550U Processor (4MB Cache, 2.0GHz, Max Turbo Frequency 3.0 GHz) Graphics: Intel® HD Graphics 6000, support HD Resolution HDMI 2560x1600@60Hz Intel® Core™ i7-4500U Processor (4MB Cache, 1.8GHz, Max Turbo Frequency 3.0 GHz) Graphics: Intel® HD Graphics 4400 , support HD Resolution HDMI 3200x2000@60Hz      RAM: Support DDR3L 1600MHz, max expanded to 16GB DDR3L-1333/1600 SODIMM Notebook memory;      Storage: max expanded to 2*mSATA3 SSD and 1*2.5 inch laptop HDD/SSD SATA3, no limited on storage capacity;   Operating System: Default: Windows 10 Pro; Optional: Windows 7, 8 & Linux Ubuntu   Wireless: 300MB WiFi with 2 Antennas      I/O: front panel ports: 1*Power indicator and switch, 4*USB 3.0 port, 1*SD Card Slot, 1*Optical SPDIF port, 1*MIC, 1*SPK; Backside ports: 1*DC IN, 2*HDMI, 2*LAN Gigabit (RJ45),  4*USB2.0, 2*WiFi antennas; Internal ports: 2*mSATA3.0, support 6Gb/s, 1*SATA3.0, support 6Gb/s, 1*mini-PCIE port (for WIFI);           HD Out put: 2*HDMI, support HDMI to DVI and HDMI to VGA      LAN port: 2*Gigabit RJ45 port speed up to 1Gbps;      Case Material: Brushed Aluminum Alloy;



3, Specifications:

Processor	Intel® Core™ i7-5500U/5550U Processor
	Dual Core Quad Threads
	Base Frequency  2.4GHz/ 2.00 GHz, Max Turbo Frequency 3.00 GHz
	14nm Lithography
	Intel Broadwell-U Chipset
	4MB L3 Cache
	15W TDP
	Multimedia Instruction Set: 64-bit; MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX
Processor Graphics	Intel® HD Graphics 6000
	Graphics Base Frequency 300.00 MHz
	Graphics Burst Frequency 950 MHz /1.00 GHz
	Graphics Video Max Memory 16 GB
	Max Resolution (HDMI 1.4): 2560x1600@60Hz
BIOS	AMI BIOS, ACPI supported
RAM	DDR3L 1333/1600; 2gb/4gb/6gb/8gb/16gb optional, 2*DDR3 SO-DIMM SDRAM Slot
Storage	SSD: 64GB/128GB/256GB/512GB available;  HDD: 500GB/1TB available
Operating System	Default: Windows 10 Pro; Optional: Windows 7, Windows 8.1, Linux Ubuntu
Audio Card	ALC892 sound chip, 6-channel
Network Card	RTL 8111E 10/100/1000 BaseT LAN
Wireless	Wifi 802.11.b/g/n, 300M, Dual Antennas; Bluetooth 3.0 optional
I/O Port	2*HDMI, 2*RJ45 LAN Port, 4*USB3.0, 4*USB2.0, 1*SD Card Reader, 1*Optical Audio Output,  1*DC IN, 1*MIC, 1*SPK
SATA	2*mSATA3.0 Slot, 6Gb/s; 1*SATA3 Connector, 6Gb/s
MINI PCIE	1* MINI PCIE Slot for Wifi Module
Power	In: DC100-240V AC/50-60Hz Out: DC 12V/3A
Operating Temperature	0°C~70°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)
Size	225mmx 180mmx45mm
Package Content	Mini PC, Power adapter, Power Cable, Wifi Antennas, Stand Bracket, Screws

4, Product Advantages:

  Small Size: All Kingdel Mini PC is smaller than A4 paper, some of them only 3.5 inch size, just like the HDD size used in traditional fat computers. Most of those small size mini pc can be mounted to the backside of monitor, and takes almost zero space on your desk, make your desk more clear and tidy.       Durability: all of the fanless mini pcs are highly intergrated, fanless design makes it silent in working and no need extra maintenance like normal fat comptuters. And most of their cases are made by aluminium alloy metal materia.      Low Power: all of the mini pcs work 12V power supply, power consumption is from 15W to 30W, compare to 150W traditional pc's consumption, it saves more than 80% energy.       Universal Performance: The mini pcs are compatiable to almost all popular operating systems, such as Windows, Linux. You can not only use it as personal computer at home, HTPC in living room, but also use it in office, training center, advertisement, factory, internet cafe and anywhere that needs computers to work.   Application:   - used as HTPC (Home Theater Personal Computer). Connect HDTV with the HDMI cable, you can enjoy education online and play internet movies or games. -used as Personal Computer, high configuration and fast speed, zero noise. - Internet Bar. High speed Gigabit Ethernet and diskless certificate, support 3D games. - Factory, classroom, bank, supermarket, manager rooms, stores. - used in Library, reading room, hotel, training, call center, CCTV company.

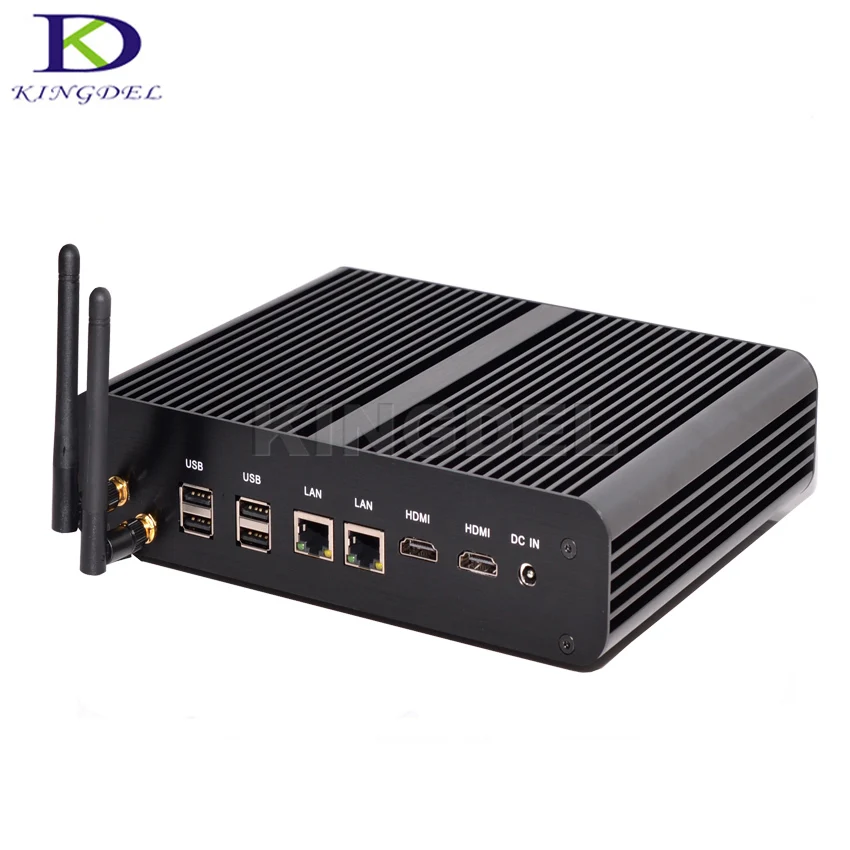

5, Product Photos:



VESA Bracket costs extra USD5, Please click the picture to pay together if you need:
